About this item

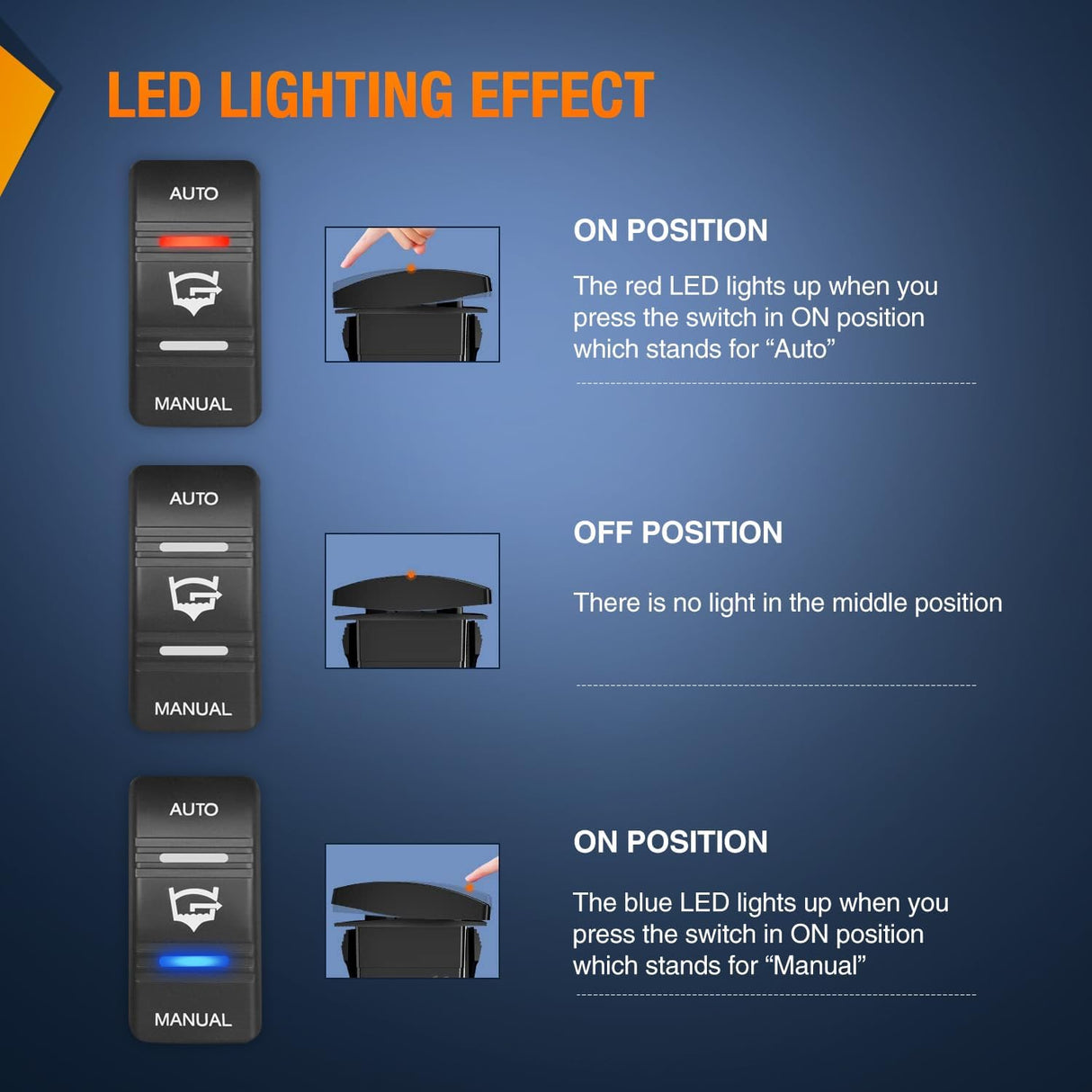

SPDT Switch: The bilge pump switch has 3 positions, ON-OFF-ON, you can control the bilge pump to auto and manual by pressing the switch to the corresponding positions. The upper red Led stands for auto, and the lower blue Led stands for manual. The middle pattern stands for the off position.

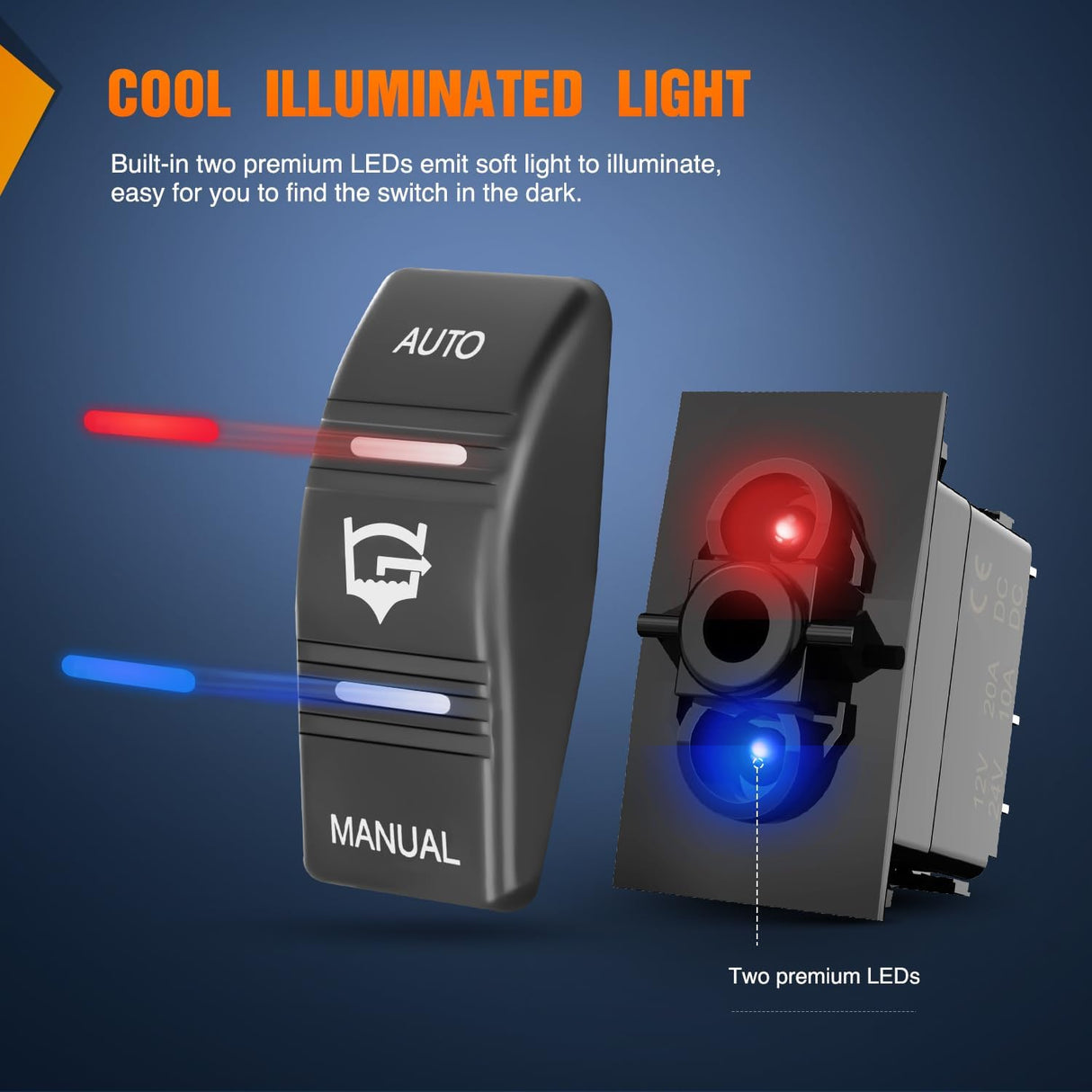

Sturdy and durable: Made of strengthened aluminum panel and well-conductive pins ensure long lasting durability highly optimized for general use and will give you a pleasant experience. it’s built-in two premium LEDs, emits soft light to illuminate the patterns, easy for you to find the switch in the dark.

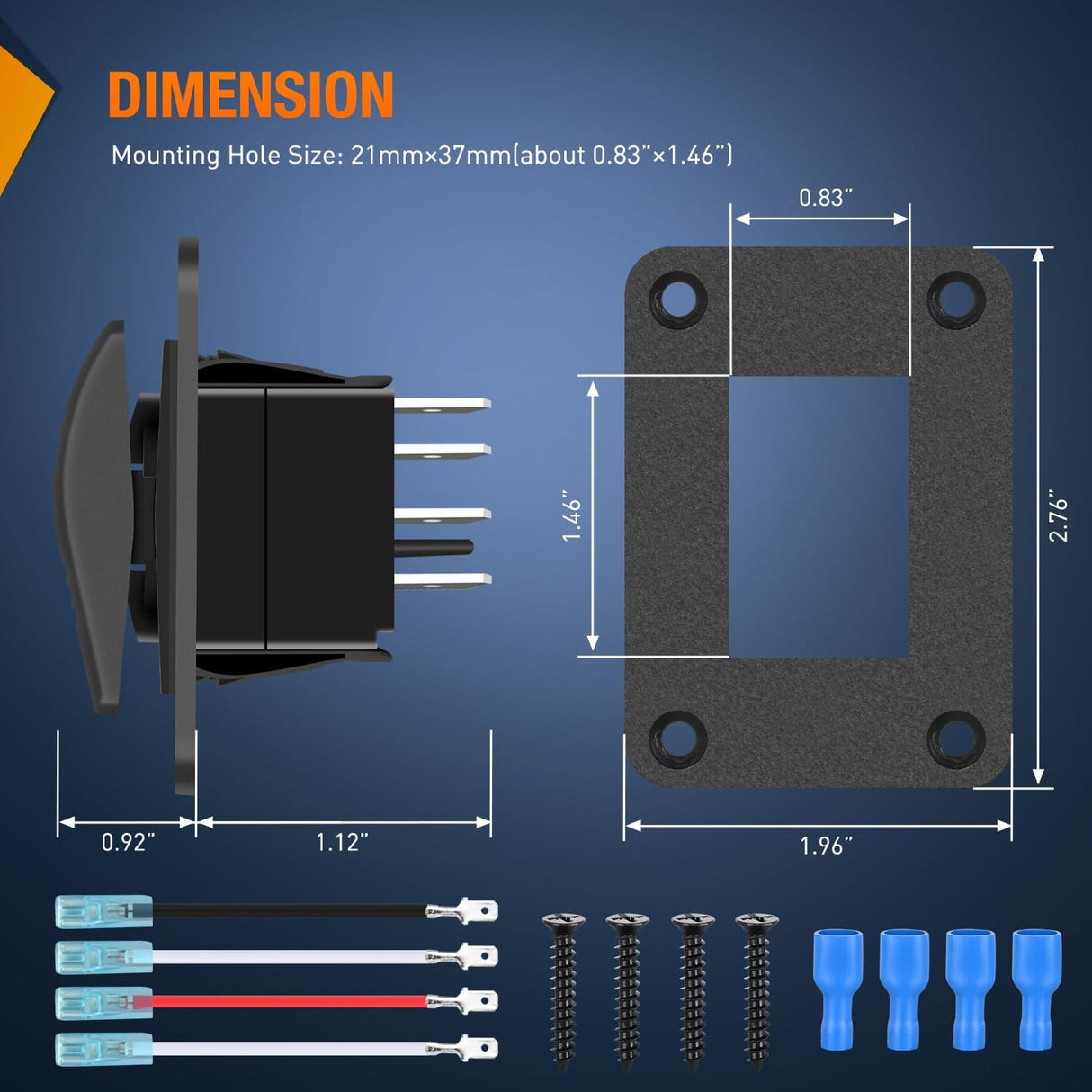

Easy to Install: The mounting hole size of the bilge pump switch is 21mm x 37mm (about 0.83" x 1.46"); it is suitable for marine installation or replacement on most vehicles. Coming with jumper wires and mounting panel and screws, the switch is quite convenient to install.
Wide Application: 4 Pin rocker switch, rated at DC 12V/20Amp and DC 24V/10Amp, perfect for controlling bilge pump, Led Light Bars, Led Work Lights, Fog Lamps, Headlights, Taillights and Auxiliary Lamps, etc. Widely used on Marine Boat Yacht Caravan Fishing Boat Vessel RV Camper, etc.

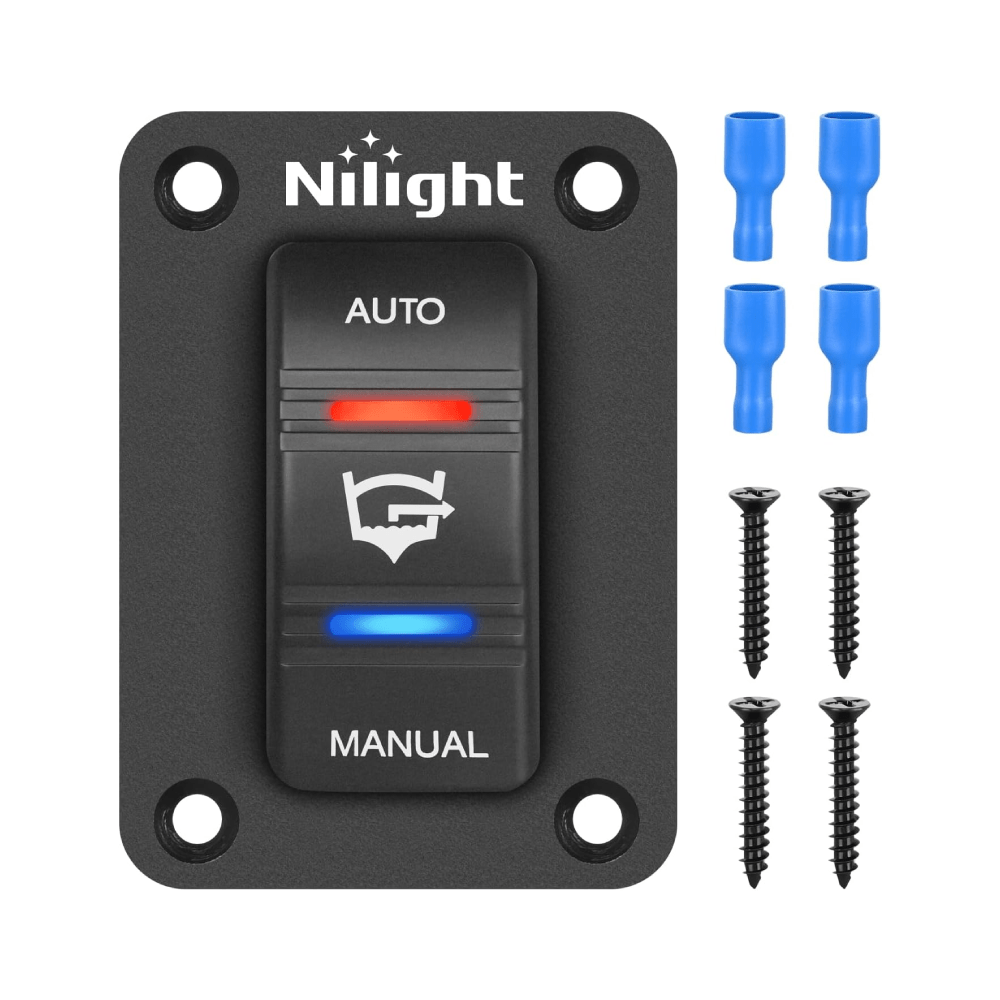

Package includes: 1x 4 Pin Rocker Switch with panel, 4x jumper wires, 4x mounting screws, 4x blue terminals, 1x Diagram. 2 Year Warranty by Nilight.
4 PIN Rocker Switch with Panel and Jumper Wires

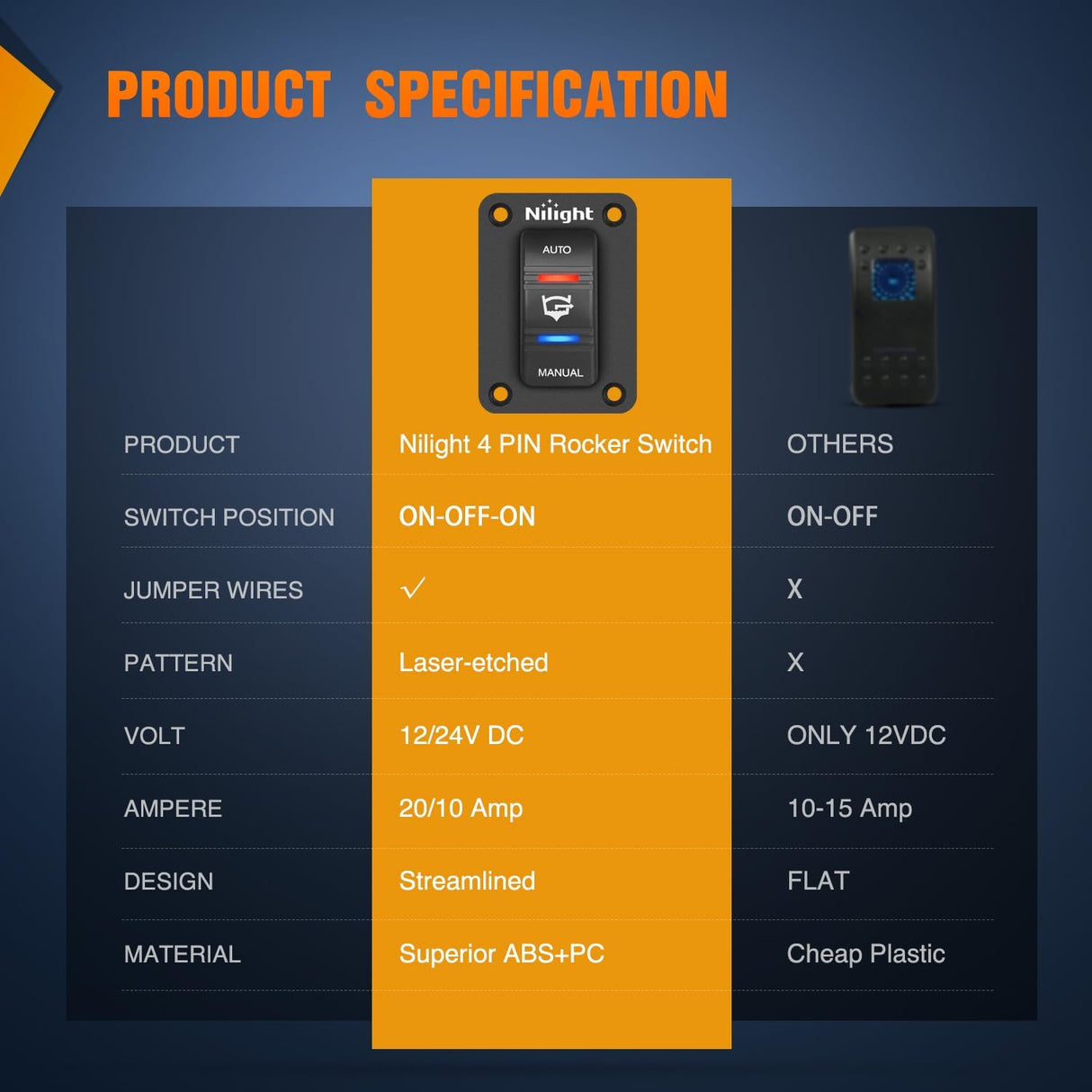

Material: Aluminium panel, Superior ABS+PC; Rated at 12V 20A and 24V 10A DC.
SPDT design (Single Pole Double Throw); Built-in 2 LEDs, laser-etched pattern.
Switch Mounting Hole Size: 0.83"(21mm) x 1.46"(37mm).
Product Details
Durable In Use
The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.
Easy Installation

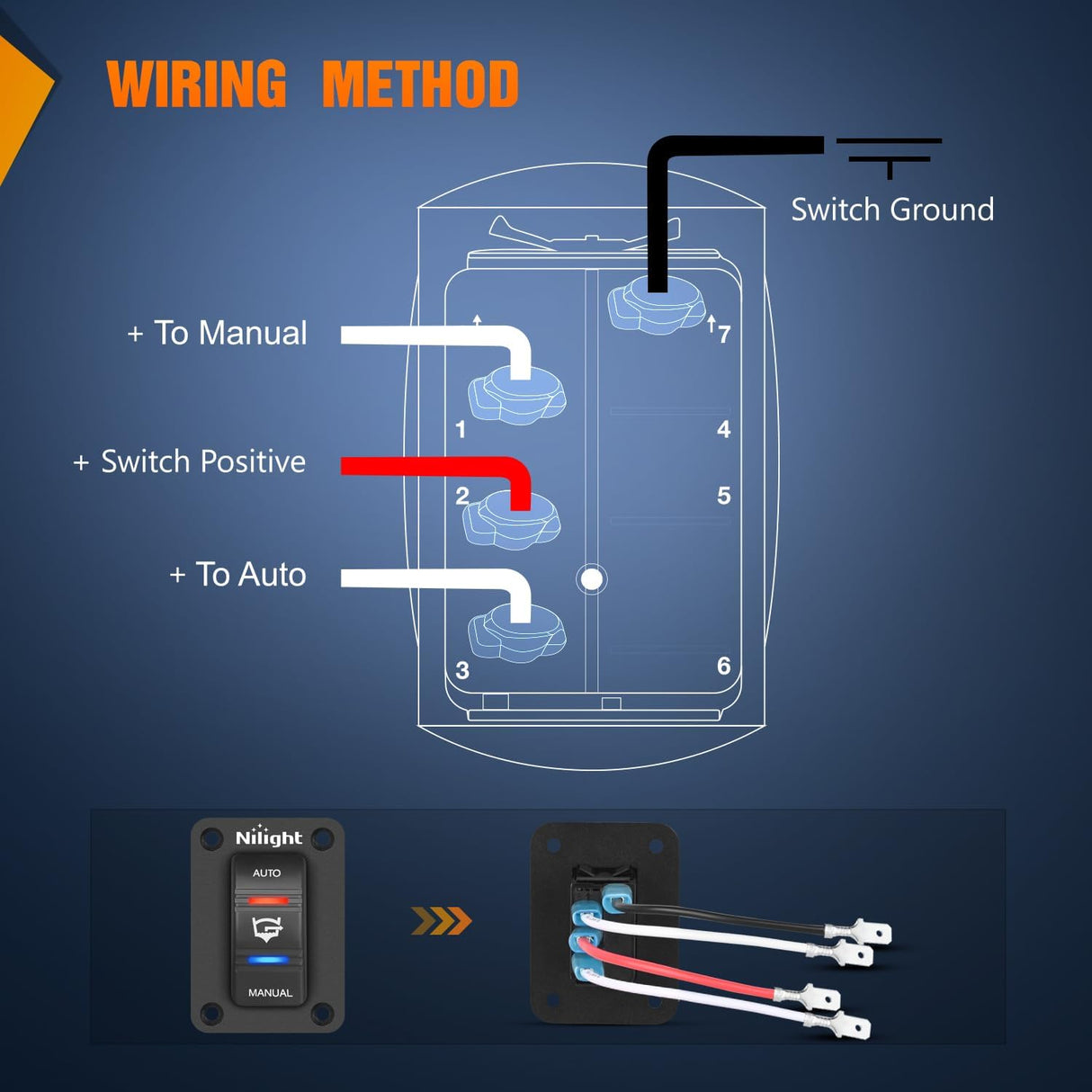

This switch is simple to install, product comes with a wiring diagram which make it easy to wire the jumper wires in two seconds.
Premium Jumper Wires

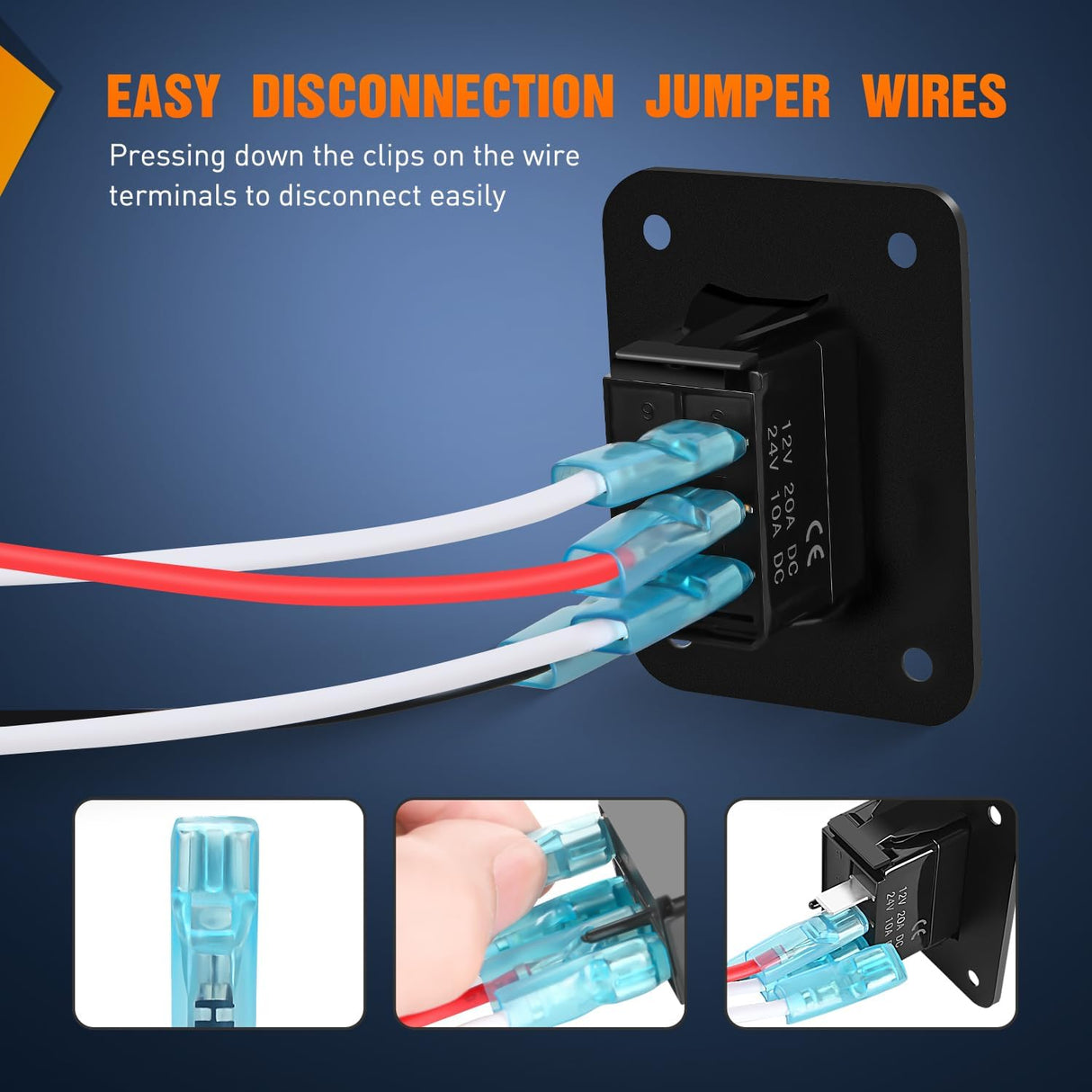

High quality 14 gauge jumper wires, the Tin-plated copper terminals on the wire is of good stability, wear resistance, corrosion resistance.
Excellent Product
Made of ABS and PC of premium quality, the switch is impact and heat resistant and it's flexible for turning on or off. Prolonging the device life.
