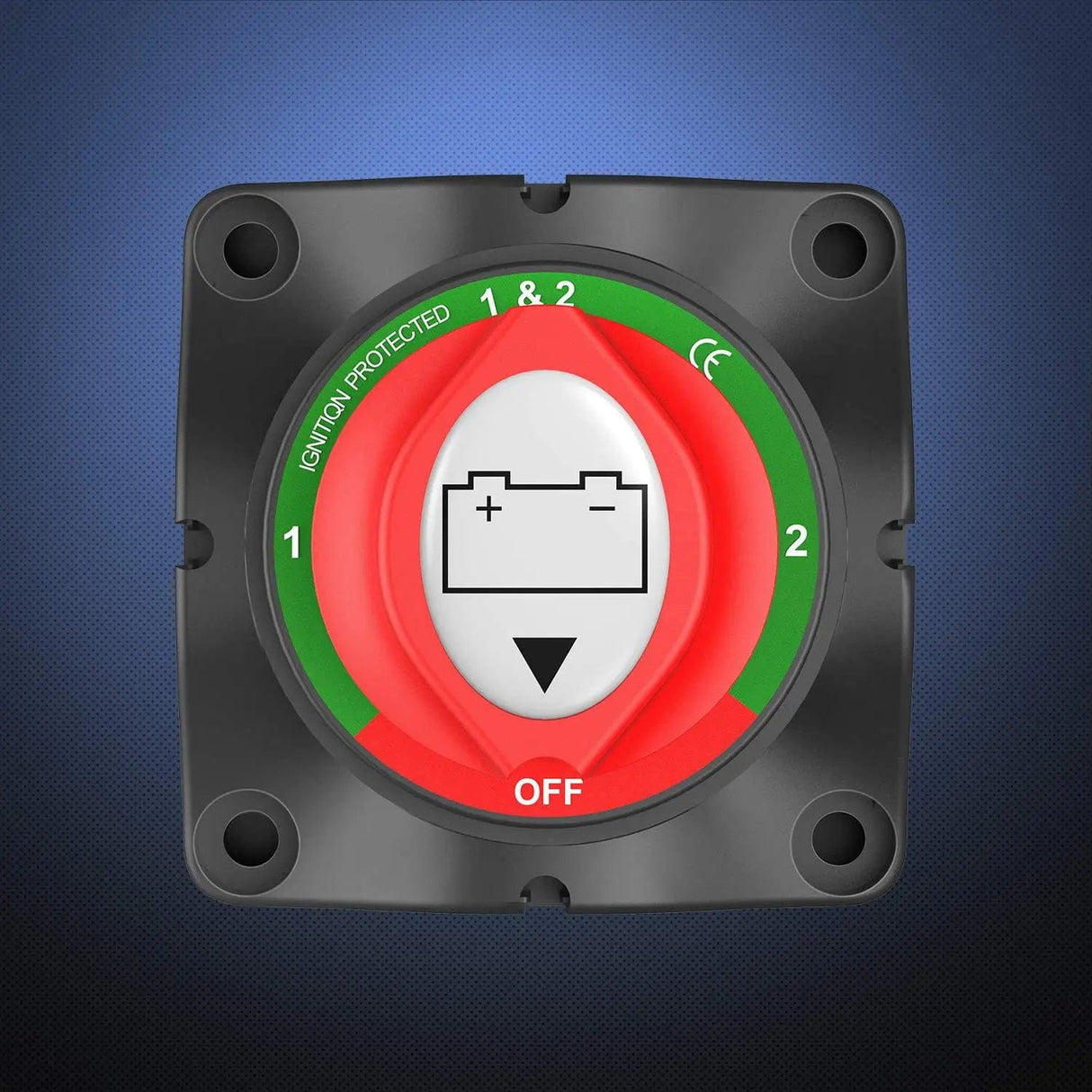

1-2-Both-Off Battery Disconnect Switch
Description
Description
Related Video
About this item
- Heavy Duty: ABS plastic housing, durably made for safety use, rear cover insulates terminals against any short of circuits. Design for 2 battery vehicles, can switch battery 1 / battery 2 separately or both on and off.
- Purpose: eliminate any power from the battery when the vehicle or boat is not in use, and disconnect the battery safely. Avoid battery drain-off.
- Operation: 1-2-Both-Off,4 positions, 200A continuous at 12VDC, 300A intermittent at 12VDC, 1000A momentary at 12VDC.
- Compatible: used for 12 - 48VDC systems to isolate and secure the electrical system, can stand alone, or be locked together with other switches. Widely used for cars, marine boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks, and other devices.
- Package include: 1x battery switch, 4 bolts & screws included.
1-2-Both-Off Battery Disconnect Switch
12-48 V Battery Cut-Off Switch
Nilight 12 - 48VDC 1-2-Both-Off battery disconnect switch cars, marine boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks, and other devices.
Design for 2 batteries, can switch to battery 1 / battery 2 separately or both on and off together. Eliminate any power from the battery when the vehicle or boat is not in use, and disconnect the battery safely. Avoid battery drain-off.
- ABS plastic housing is durably made for safe use.
- The rear cover insulates terminals against any short circuits.

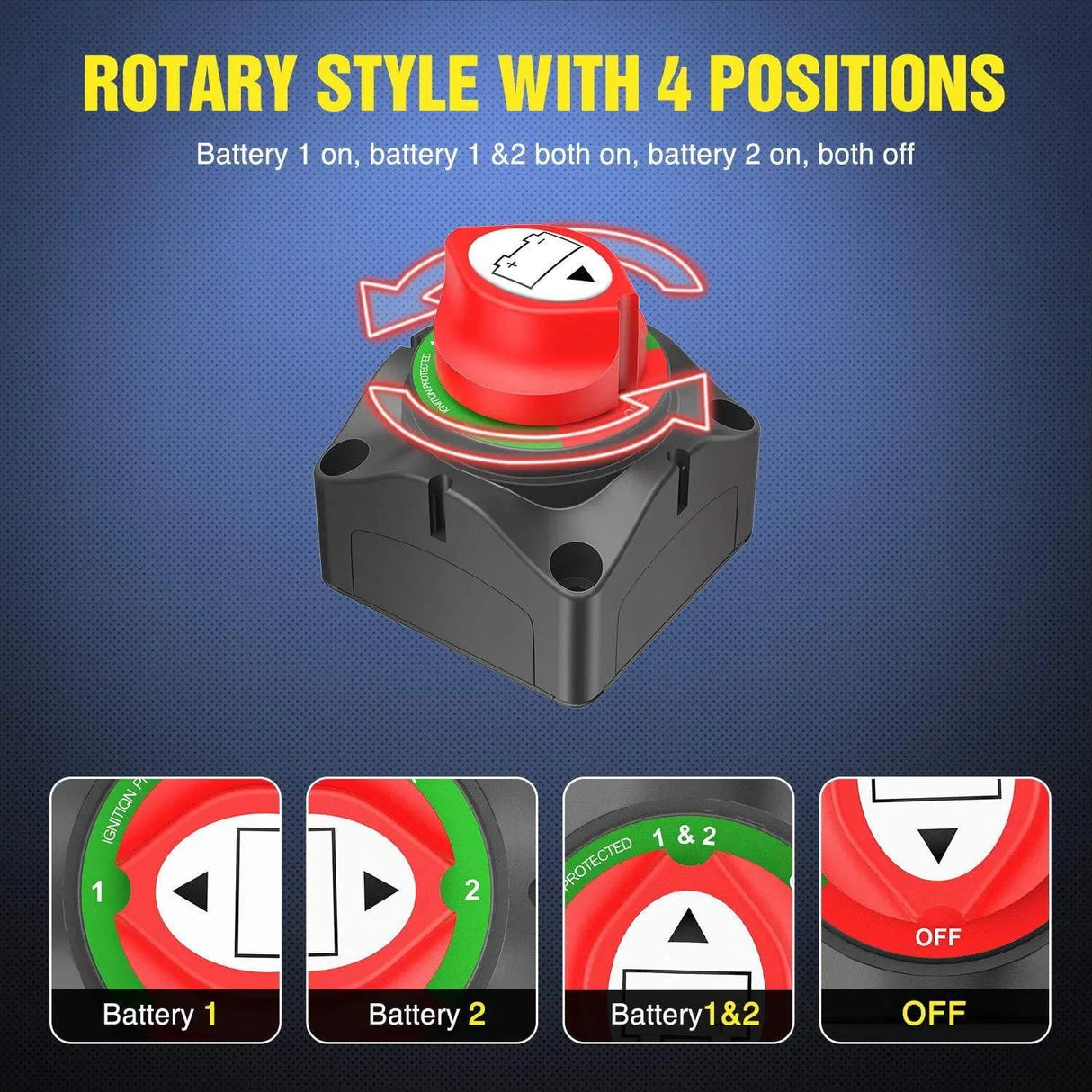

- 1-2-Both-Off 4 positions.
- Copper terminal studs with nuts and washers.
- Can stand alone or be locked together with other switches.
Features
Well Built Heavy Duty Cut-Off Switch
Panel-mounted switches are designed specifically for panel mount applications; Countersunk recesses for surface mount applications.
ABS plastic housing and on/off switch knob
- ABS plastic housing durably made for safety use, rear cover insulates terminals against any short circuit.
- Used for 12 - 48VDC systems to isolate and secure the electrical system.
- Can stand alone or be locked together with other switches.

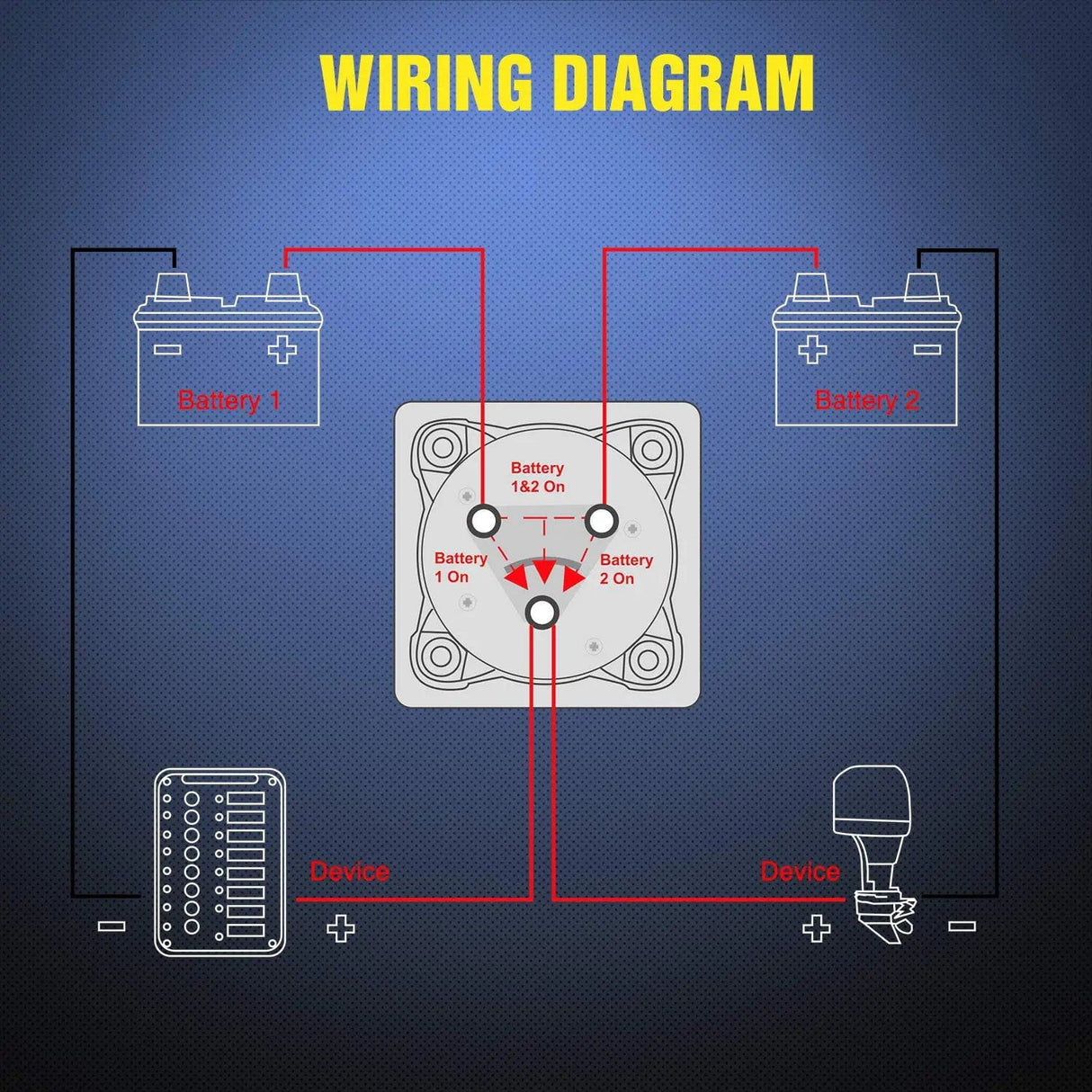

Design for 2 batteries
This switch is designed for 2 batteries. Can switch to battery 1 / battery 2 separately or both on and off. Eliminate any power from the battery when the vehicle or boat is not in use, and disconnect the battery safely. Avoid battery drain-off.

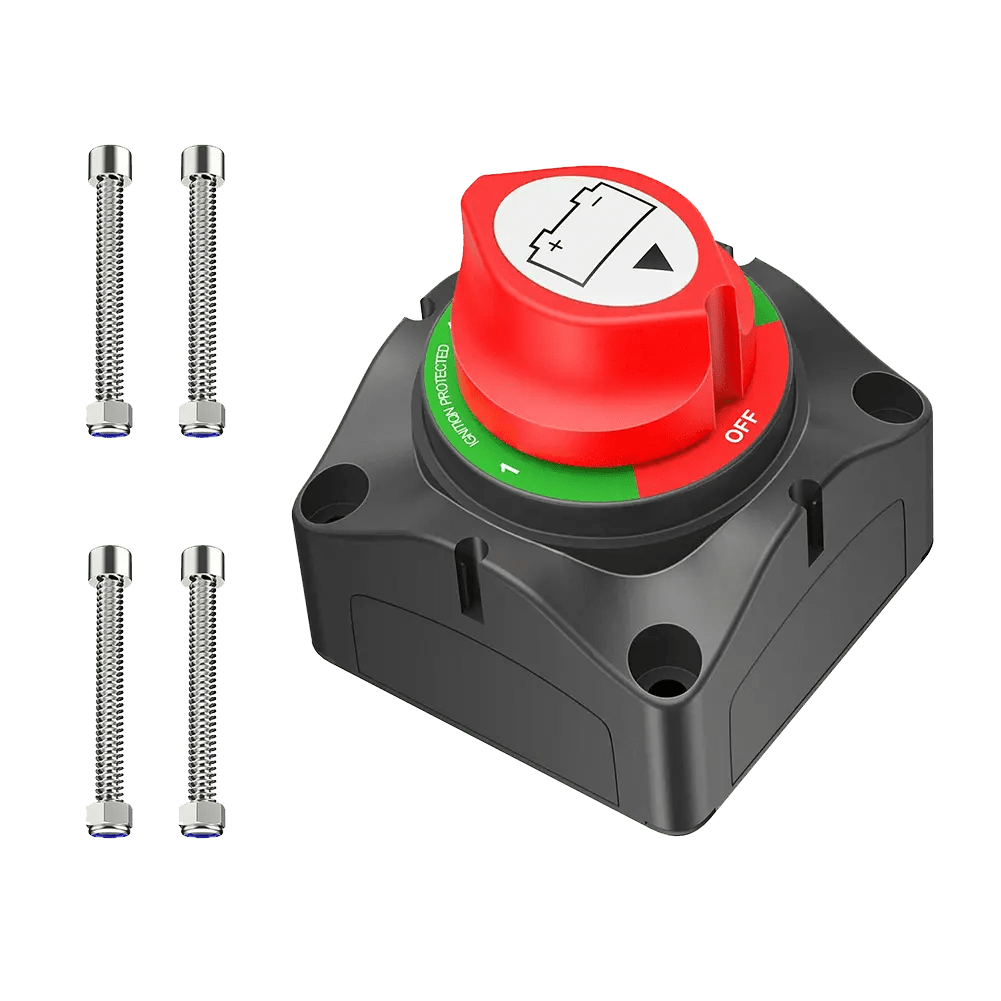

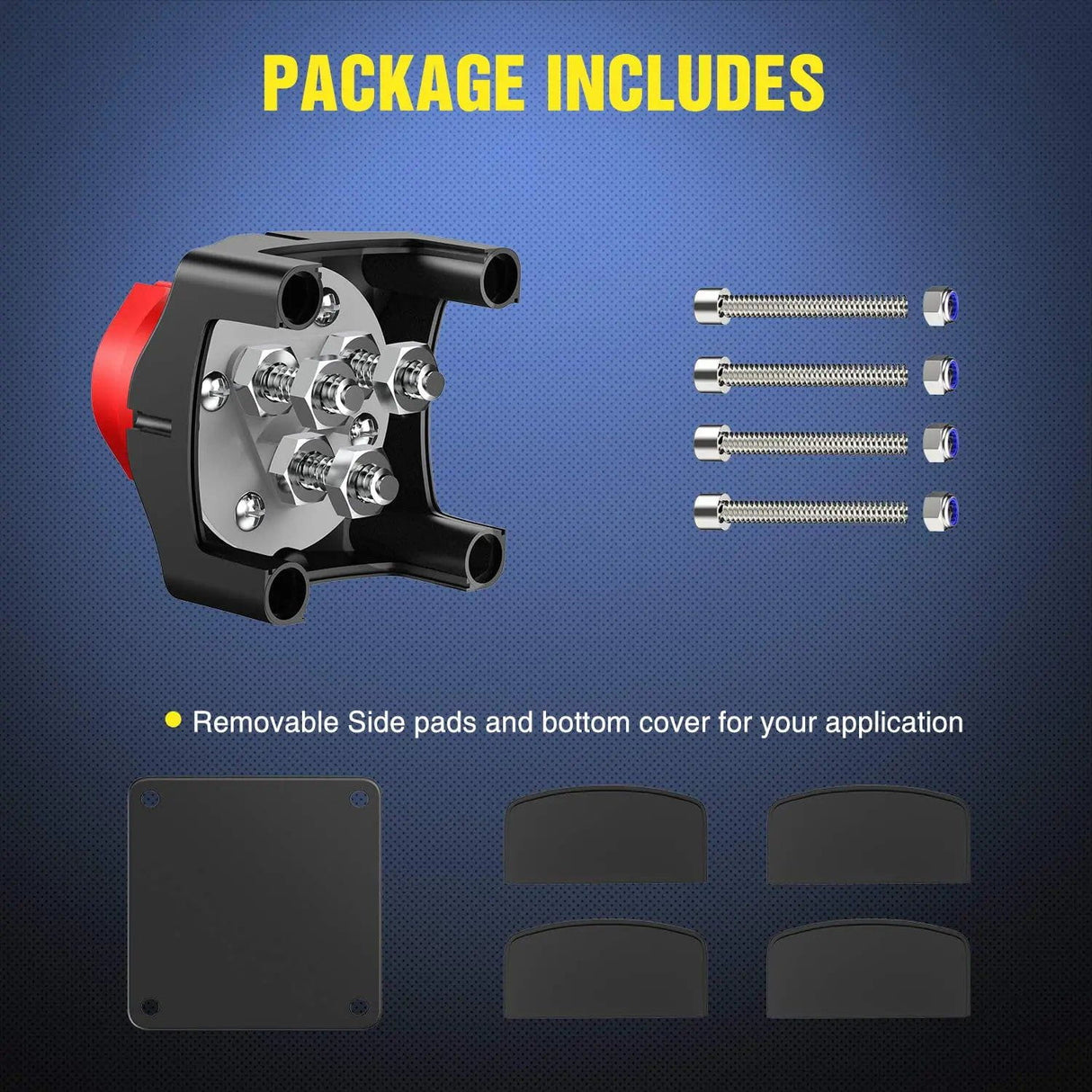

Brass Package Included: stud and nut
- 1* Battery switch
- Removable side pads and button cover
- Mounting bolt and screw*4
- Instructions

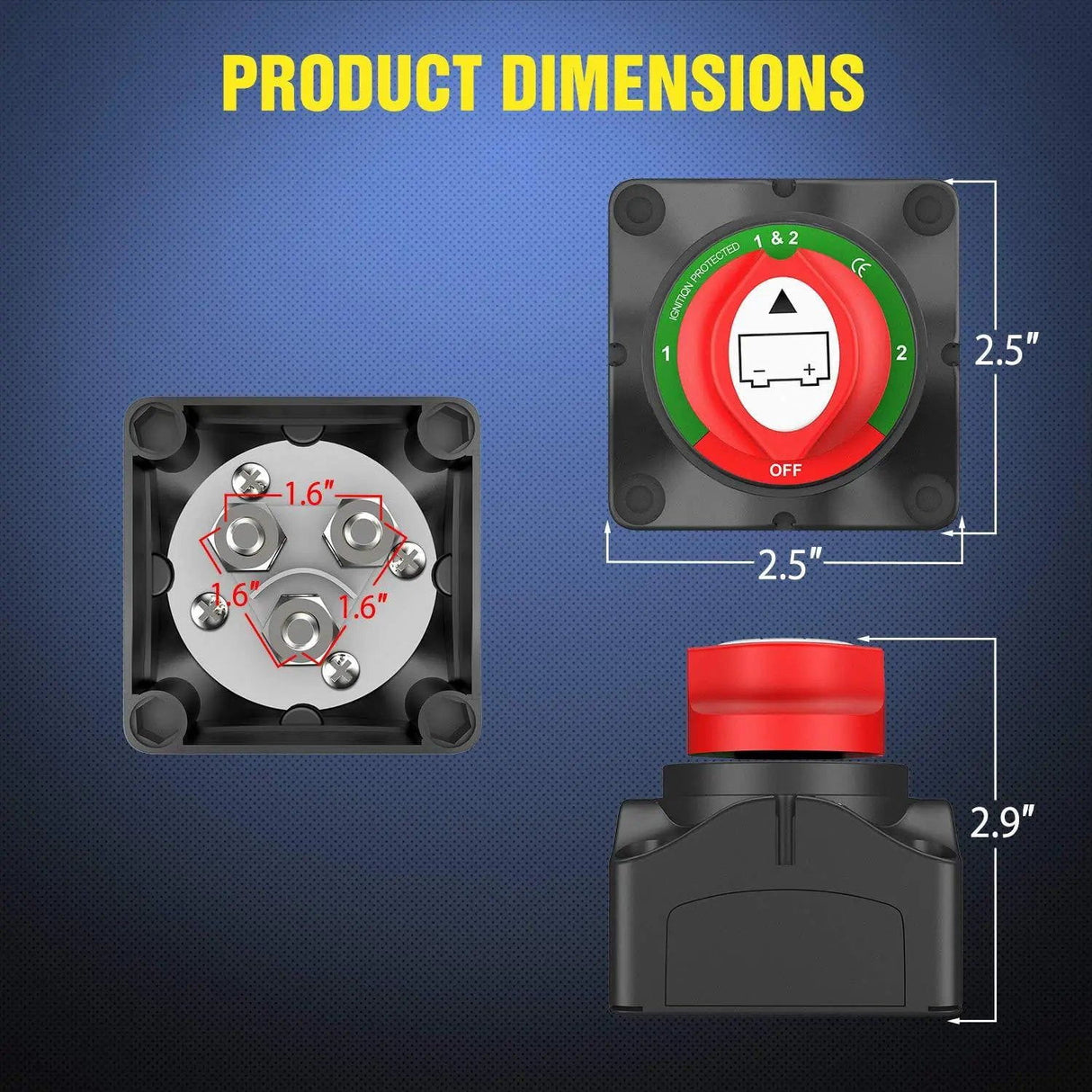

Product Specification
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Normally Closed |
| Current Rating | 275 amps |
| Included Components | 1-2-Both-Off Battery Switch |
| Lower Temperature Rating | 1 degrees_celsius |
| Material | Acrylonitrile Butadiene Styrene |
| Mounting Type | Recessed Mount |
| Operating Voltage | 12 volts |
| Operation Mode | ON-OFF |
| Switch Type | Toggle Switch |
| Terminal Type | Spst |
| Upper-Temperature Rating | 1 degrees_celsius |
