Product Description
Product Description
Related Video
About this item
- Single Light Switch: There are 5 single on-off switches of the 5 Gang switch. Each switch controls its own LED device. Great for all types of circuit control
- The rocker toggle switch panel is made of a high-quality aluminum panel and ABS material, which is durable and waterproof. The car switch panel is made by professional manufacturing and strict quality control which has a long service time.
- Installation is simple and can be mounted horizontally or vertically, Panel comes with Stainless steel mounting screws, which Helps to install the switch panel firmly according to your needs
- Short circuit/Overheat Protection: built-in Overload protection, Suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailers, RV, caravans, buses, marine boats, yachts, airplanes, etc.
- The switch fixtures of cars, boats, and yachts, such as led light bars, headlights, tail lamps, work lights, fog lights, auxiliary lights, and so on.
Pre-wired rocker switch panel
- Output circuit protection, overload protection & reverse polarity protection.
- Waterproof: The product is waterproof but submerged in water operation is not recommended.
- Easy to install, can be installed horizontally or vertically (Horizontally optional).
- Button Usage: for headlight switch, fog lamp switch, car refrigerator switch, car cleaners switch.
- Package Including 1 * 5 Gang 3 Pin On-Off Rocker Switch Panel, 4 * Stainless Steel Screws
- Material: Aluminum Panel +Superior ABS & PC Switch
- Switch Rating: DC12V-24V
- Installation: Pre-wired
- Loop Circuit: ON-OFF
Feature
Multifunction Switch Panel Kit
On-off state of 5 electrical appliances synchronously controlled available, Marine-grade Construction and Waterproof: It adopts high-quality aluminum and ABS material, Scratch-proof and Corrosion Resistant for all sockets debris-proof.
Single Light Switch
There are 5 single on-off switches of the 5 Gang switch. Each switch controls its own LED device. Sleek & Contemporary design, It clearly sees it in the dark, the blue led lights on when turned on.
Pre-wired

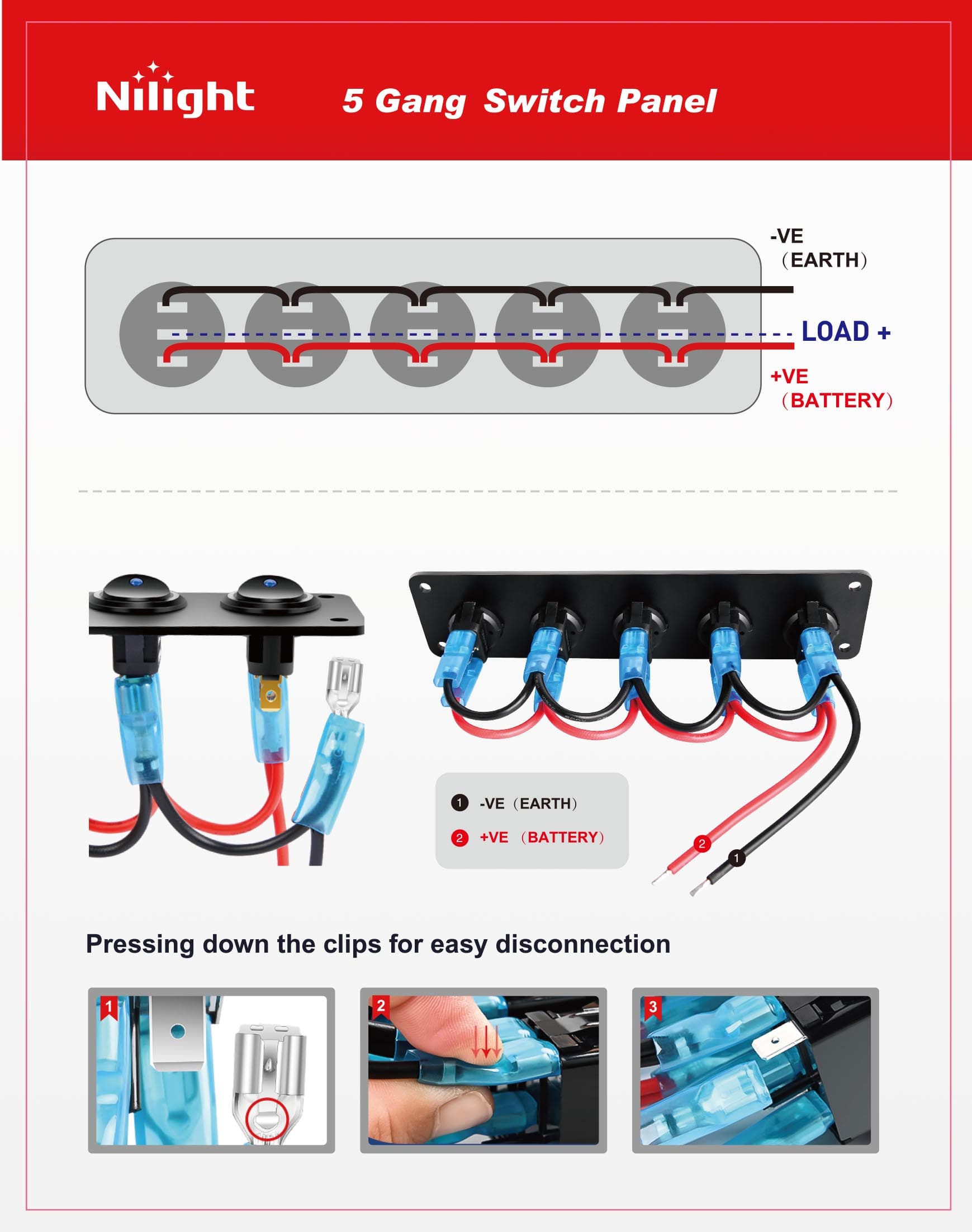

The panel is pre-wired, and easy to install: can be installed horizontally or vertically (Horizontally optional). Put this Panel into the switch hole, fix it with screws, and then you can begin to use it. Easy and convenient.
Product Specification
Product Specification
Features & Specs
| Operation Mode | OFF-NONE-ON |
|---|---|
| Current Rating | 20 Amps |
| Operating Voltage | 24 Volts |
| Contact Type | Silver |
| Connector Type | Plug In |
| Switch Type | Rocker |
| Terminal | Push on |
| Circuit Type | 1-way |
| Mounting Type | Panel Mount |
| Actuator Type | Rocker |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| Control Method | Touch |
| Connectivity Protocol | X-10 |
| Compatible with Vehicle Type | Cars, Trucks, Trailers, SUVs, Marine Boats, RVs |
| Control Type | Individual |
| Compatible Devices | LED devices in vehicles (cars, trucks, trailers, RVs, boats, etc.) |
Additional details
| Color | Blue |
|---|
Measurements
| Item Dimensions | 3 x 2 x 1 inches |
|---|---|
| Unit Count | 1.0 Count |
| Number of Items | 1 |
Materials & Care
| Material Type | Plastic |
|---|---|
| Contact Material | Normally Closed |
User guide
| International Protection Rating | IP65 |
|---|---|
| Specification Met | CE |
Item details
| Brand Name | Nilight |
|---|---|
| Model | 90018E |
| Global Trade Identification Number | 00767912577173, 00812227032524 |
| Manufacturer | Nilight |
| UPC | 812227032524 767912577173 |
| Part Number | 90018E |
| Item Type Name | Nilight 5 Gang 3 Pin Rocker Switch Panel Waterproof On-Off Toggle Switches for Car Vehicle Trailer Truck SUV Marine Boat RV Ship 12V/24V 20A,2 Years Warranty |
| Included Components | 5Gang Rocker Switch Panel |
| Item Weight | 0.13 Kilograms |
