Submersible Square LED Trailer Light Kit (Pair)
Description
Description
Related Video
About this item
- 7 Full Functions: Combined functions of stop turn tail light, side marker, side reflector, rear reflector, and license plate light. Perfect for 12V DC vehicles with max width of 80 inches. Fit most trailers, boats, trucks, RV, Marine, Pickups, camper, tractors, etc. bus, lorry, van, caravan, snowmobile utility trailers.
- Brighter & Safe: Employ quality led to drawing less amperage but outputs optimal brightness, improving great visibility and extending a longer lifetime than the incandescent lamp. 100% DOT Compliance to ensure your safety!
- IP68 Entirely Submersible: Inside LEDs and the circuit board are fully waterproof and sealed to work underwater perfectly without electric short risk. The light housing also features water drainage for added protection.
- All-in-one kit: Comes with everything for your straightforward installation, including square lights, amber clearance light, license plate bracket, 25ft length trailer wiring harness, reflector, and the different types of stainless steel mounting hardware. (For hardware instruction, please picture 8)

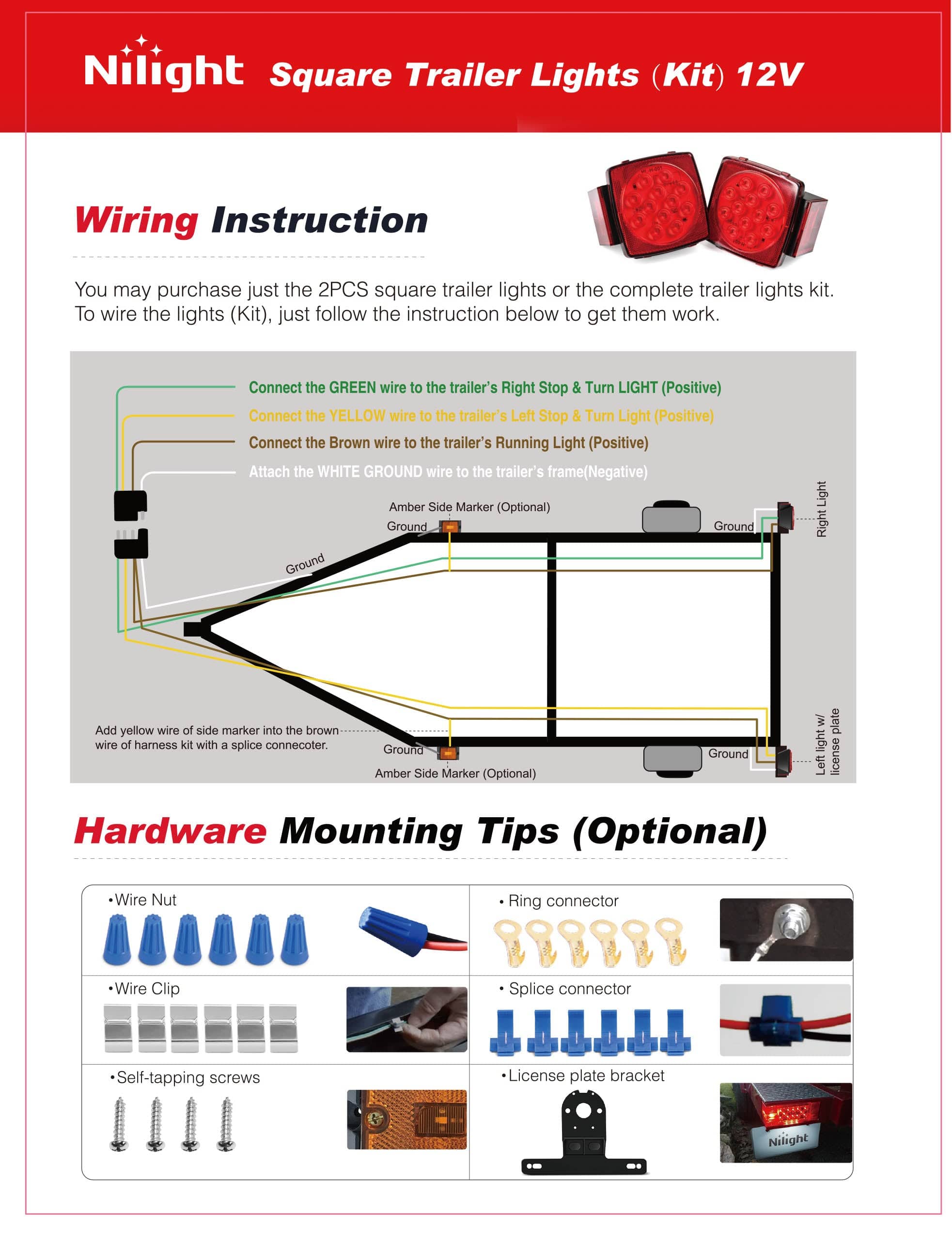

- Easy Installation: Light mounting: stud-mounted on the surface design, light with license light on left, the other on right. Wiring connection: color-coded wire, just color to color white to the ground (vehicle frame), and then follow picture 6 for wire routing instructions.
Nilight Submersible Square LED Trailer Light Kit
- DOT Compliant/Waterproof Rate: IP68
- Operating voltage: 12VDC / Amperage Draw: 0.05A-0.2A
- Amber clearance light dimension: 2.3inch x 3.9inch
- Square Light dimension: 5.12inch x 4.57inch x 2.56inch / Square light mounting distance: 2.76inch
- LED Type: 5050 tricore at front, 2835 red led at side light, 2835 white led at bottom
Key Features

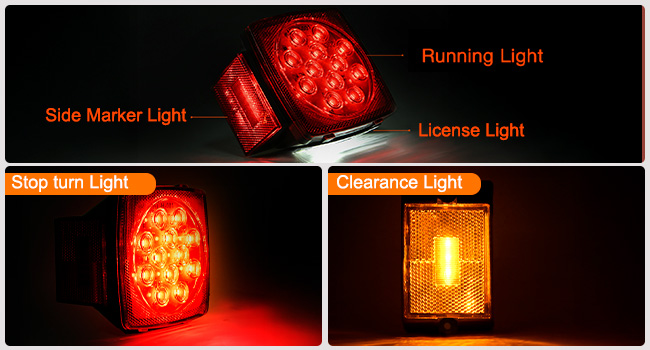

Multi-functions
The square light includes 5050 and 2835 SMD LEDs. Multi-functions: red running light stop turn light, white license light, and side marker light.

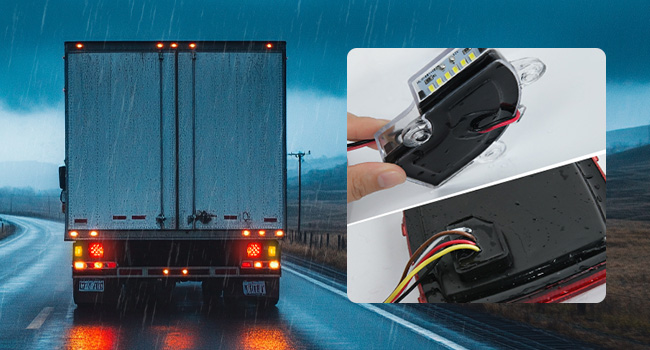

Built-in IP68 Waterproof
Inside electronics and circuit board are epoxy encased and fully sonically sealed and submersible, trailer light housing also has water drainage.

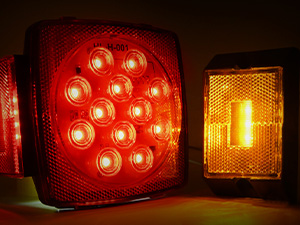

Outstanding LED
Quality and more LEDs, and add on new design halo glow ring for better brightness and safety.

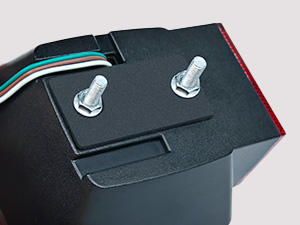

Special Design
Stud mounting for easy, firm, and durable installation. Grooves designed for perfect surface mounting. Square light mounting distance: 2.76".

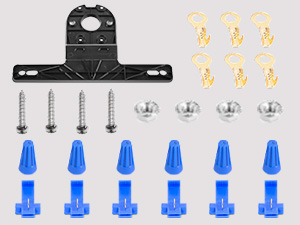

Additional Hardware
Come with all the accessories required for installation. Please refer to the attached instruction manual for detailed usage.

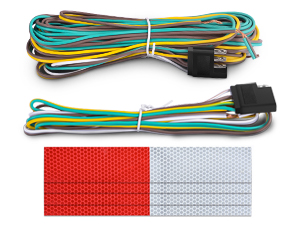

Trailer Wiring Harness
With 25ft length trailer wiring harness and the reflectors. Make the wiring more convenient, the driving safer.
Applications
DOT compliant for most 12V DC vehicles with max width of 80 inches. Fit most trailers, utility trailers, boats, trucks, RV, Marine, camper, tractors, buses, lorry, van, caravan, and snowmobile.
