4 Pcs Flasher Relay Adjustable 3 Pin CF13 JL-02 Electronic Blinker Relay 12V 150W Fixes Car Turn Signal and Hazard Warn Hyper Blink Flash or No Flash for LED and Halogen Bulbs

Related Video

About this item

• Compatibility: The electronic flasher relay can handle 0.1W - 150W halogen bulb or LED light. Suitable for motorcycles and automobiles.
• Type: 3Pin Relay, Voltage: 12V; Current: 0.02A to 20A; Flashing frequency: 55-95 Times/Min(+- 10 times); Model# CF13 JL-02. NOTE: Please check the direction of the POSITIVE and NEGATIVE poles carefully to avoid buying the incorrect product.
• Premium Quality: Made by high-grade materials to ensure superior quality and long lifespan. Designed to deliver trouble-free, consistent performance. General applications for automotive power supplies.
• Key Functions: Due to a damaged or worn-out sensor , switch , or relay, below problems may occur, this multi-function relay can well fix those issues: The turn signal and hazard warn hyper flash; The LED bulb will not blink or blink too fast; Bulb burnt out warning on the dashboard.

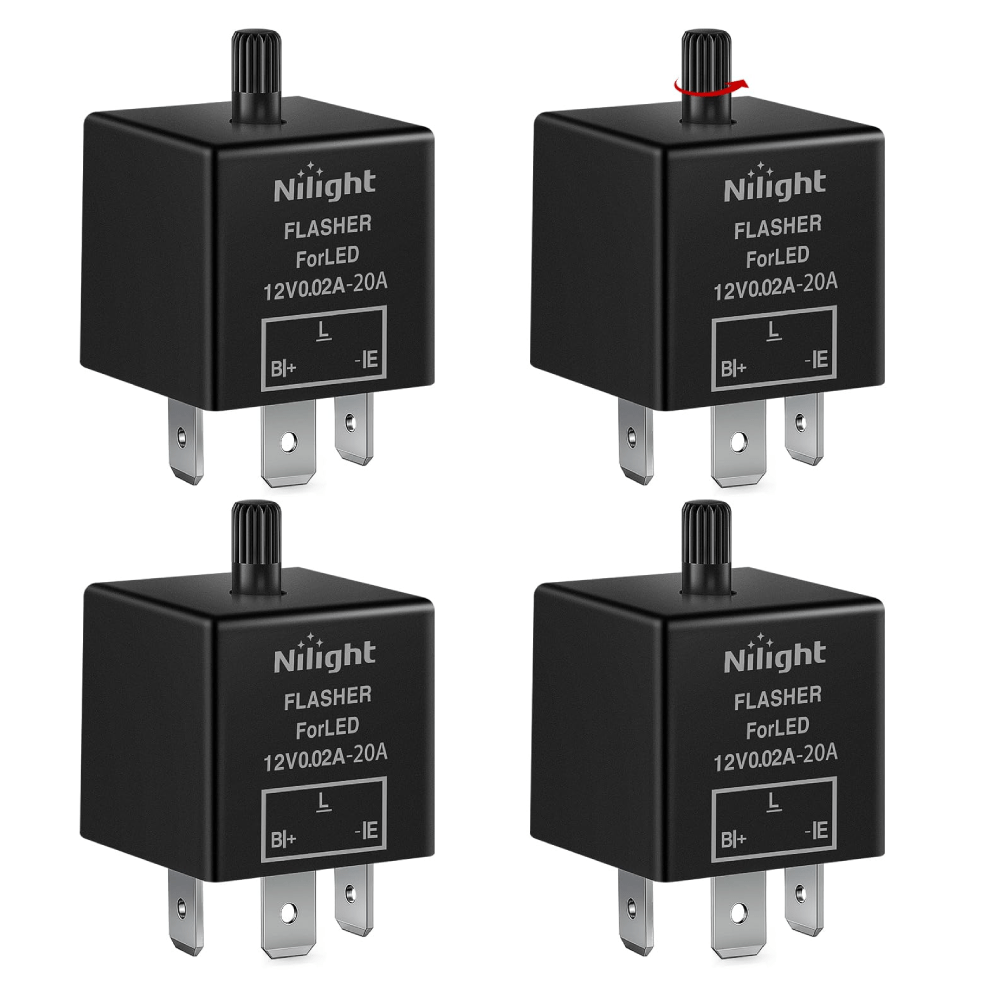

• Package Includes: 4PCS Electronic LED Flasher Relays, 12PCS Terminals. 2 Year Warranty by Nilight.

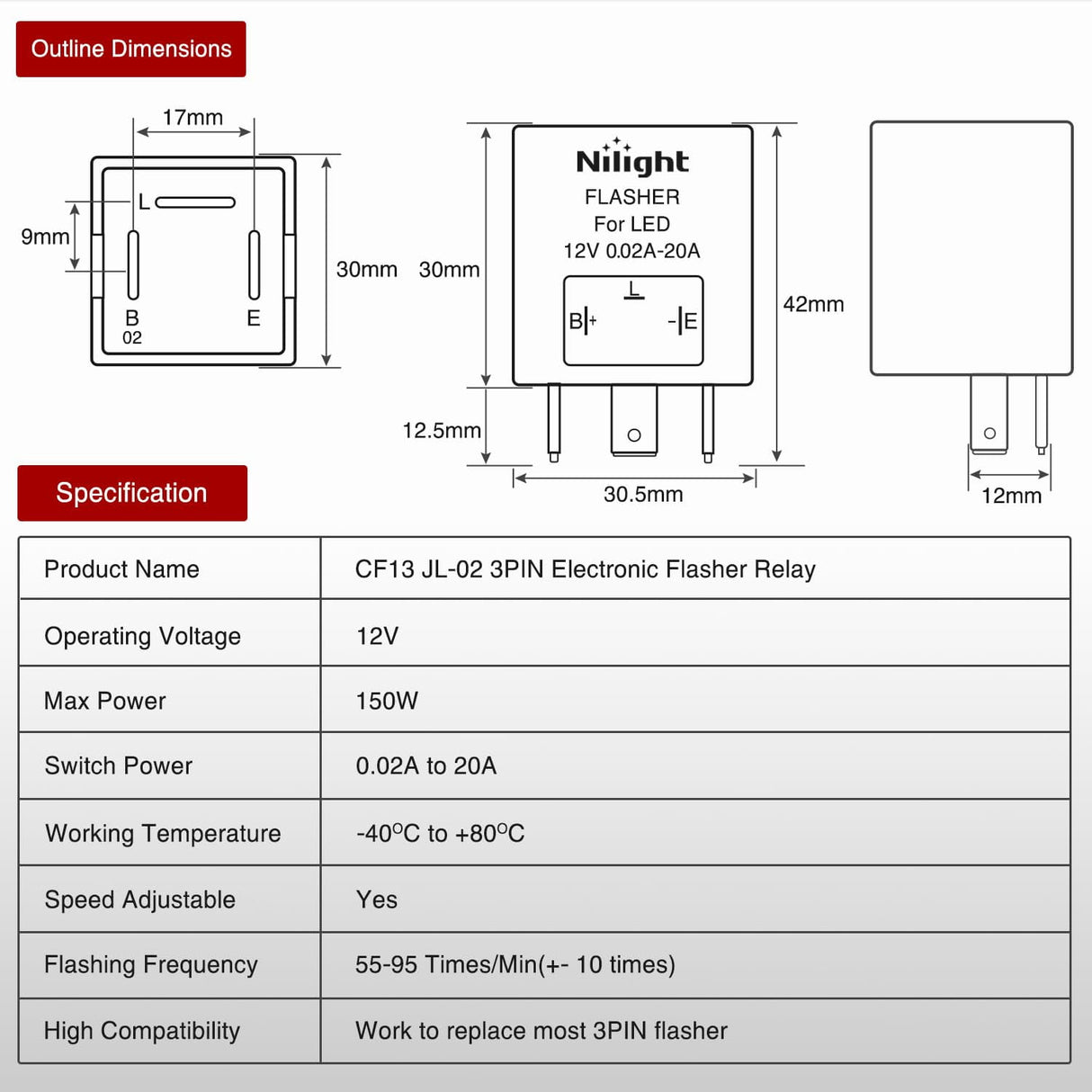

CF13 JL-02 electronic flasher relay

3 Pin Electronic Flasher Relay

• Operating Voltage: 12V
• Max Power: 150W
• Switch Power: 0.02A to 20A
• Working Temperature: -40℃ to +80 ℃
• Flashing Frequency: 55-95 Times/Min(+-10 times)

Features

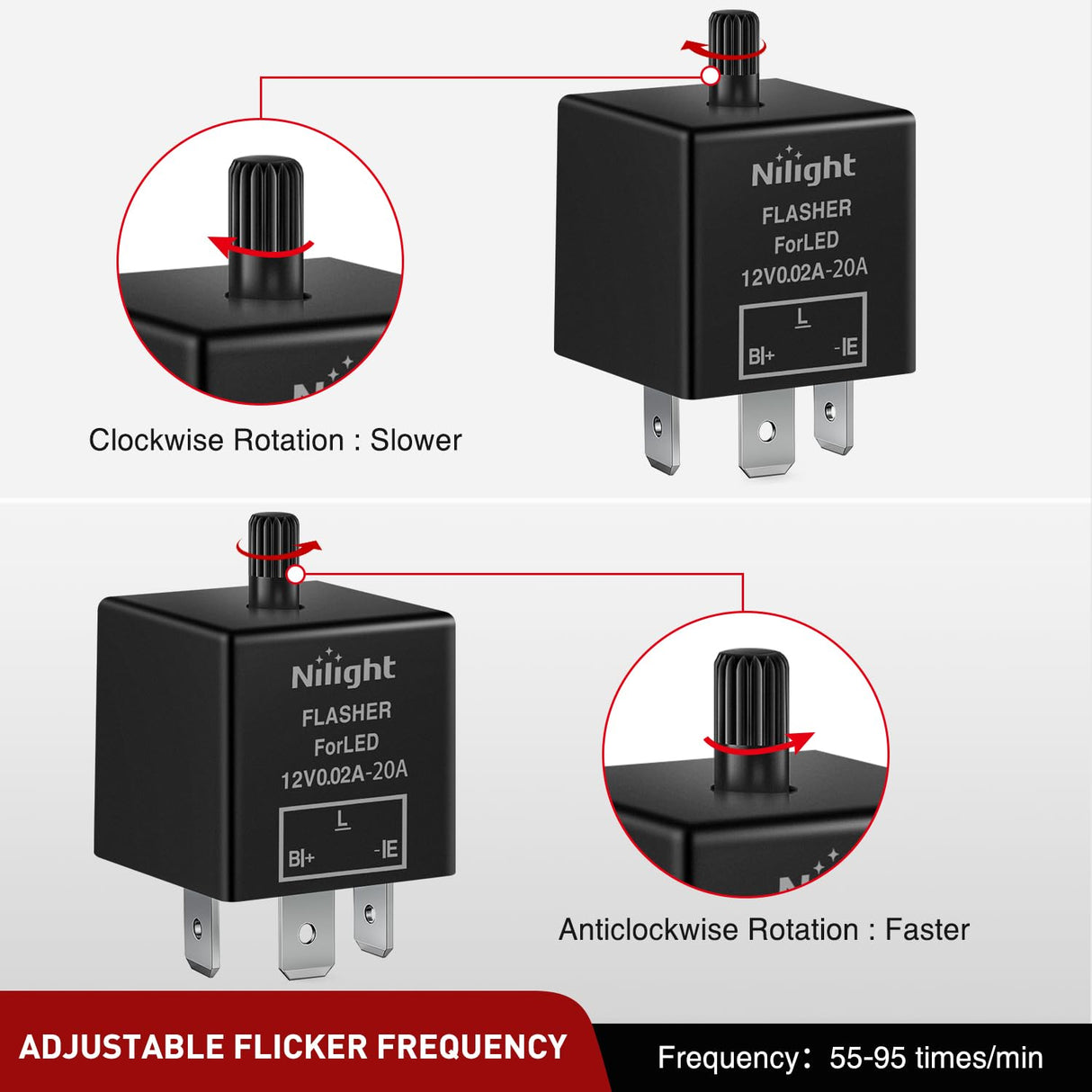

Anticlockwise

You can turn the knob at the top of the relay flasher to set your ideal flashing speed according to the bulbs load. You can rotate it anticlockwise to adjust it fasher.

Clockwise

If your bulbs are hyper flashing or blinking abnormally, you can rotate the knob clockwise to adjust it slower.

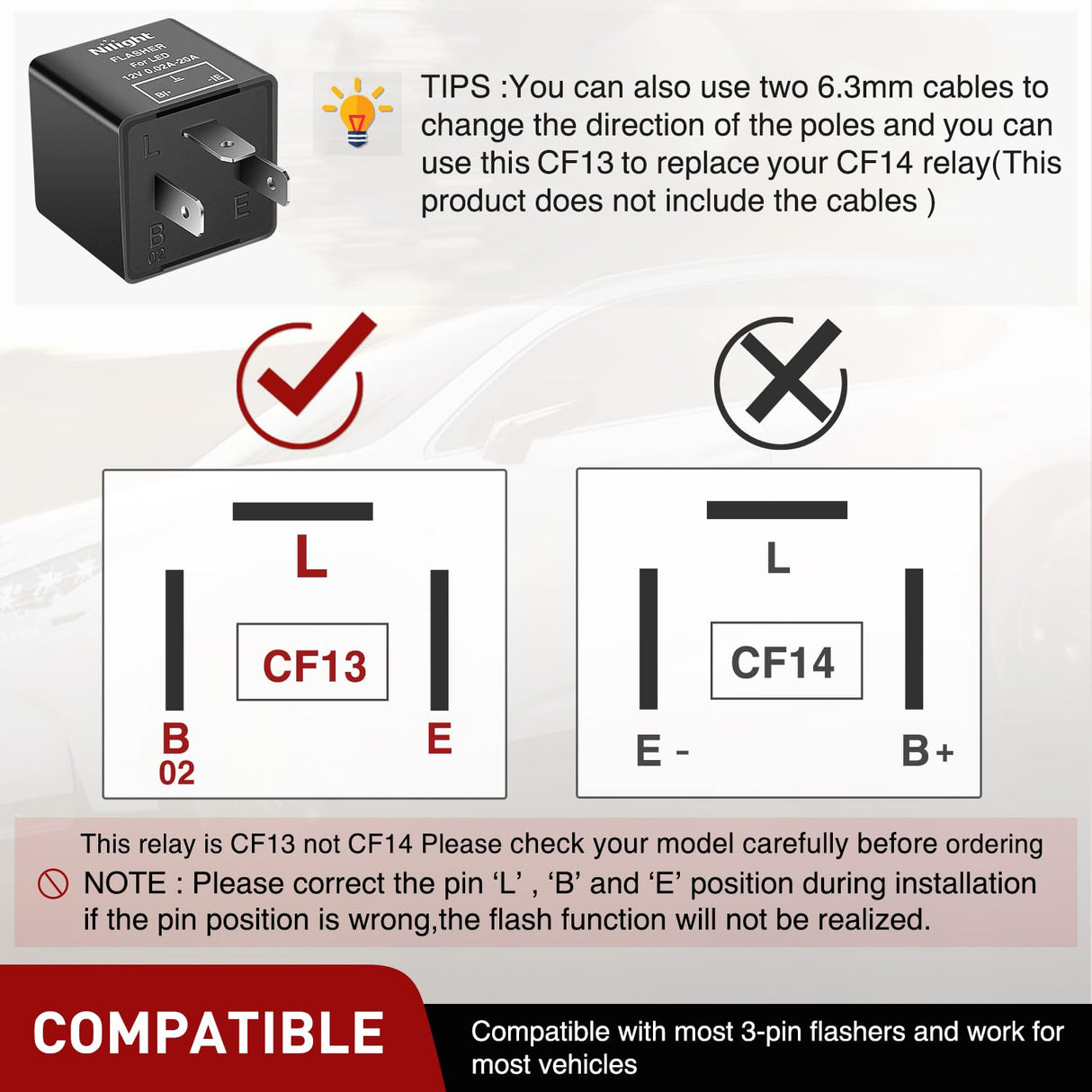

The relay is CF13

Please correct the pin ‘L’ , ‘B’ and ‘E’ position during installation , if the pin position is wrong , the flash function will not be realized.

The relay is NOT CF14

You can also use two 6.3mm cables to change the direction of the poles and you can use this CF13 to replace your CF14 relay.

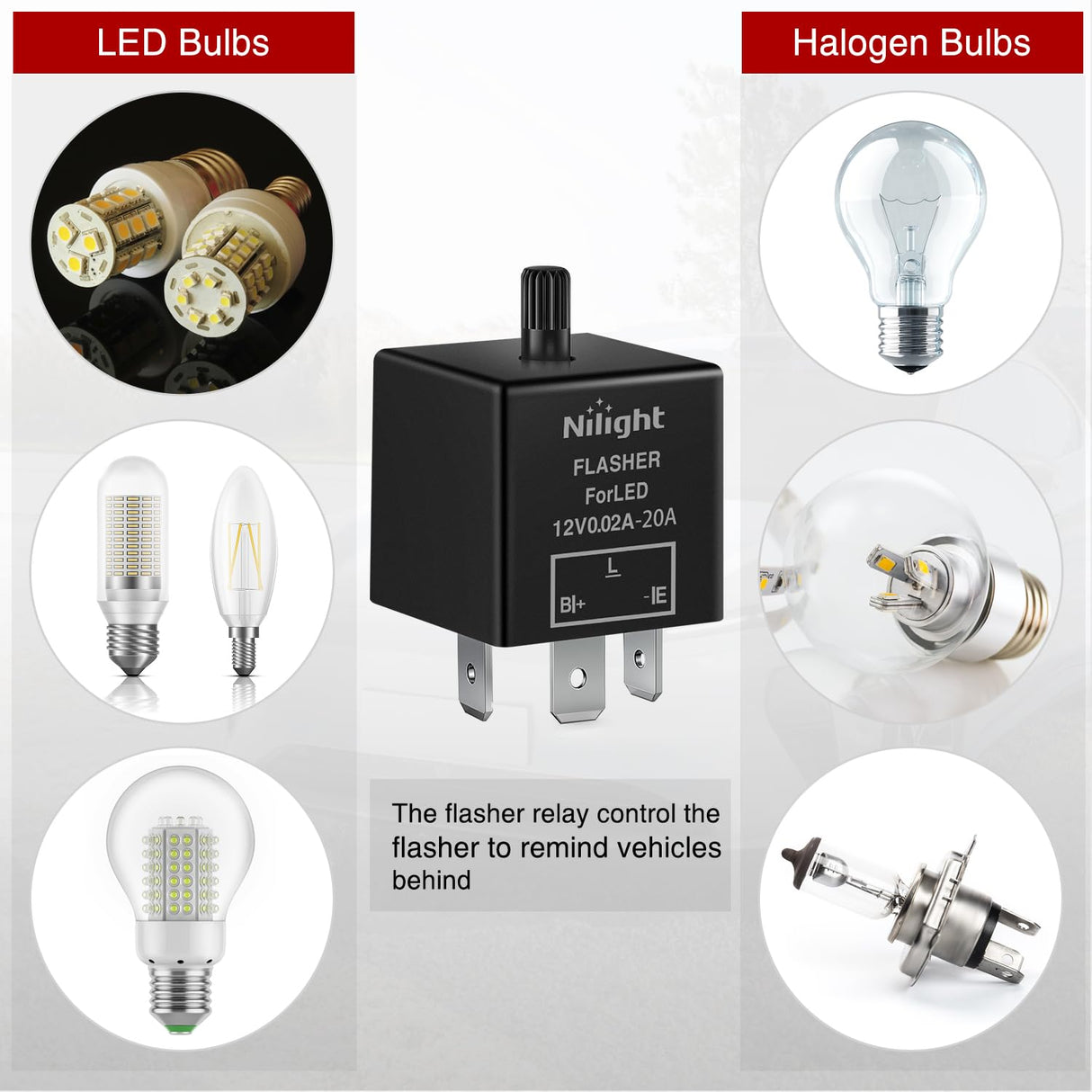

Flasher Relay for Halogen Bulbs

Compatible with the most 3 pin flasher relay.This flasher relay is not traditional 3-pin LED flashers. With this product, the speed of the flash is adjustable.The flasher relay control the turn signal lights on motorcycles and cars.

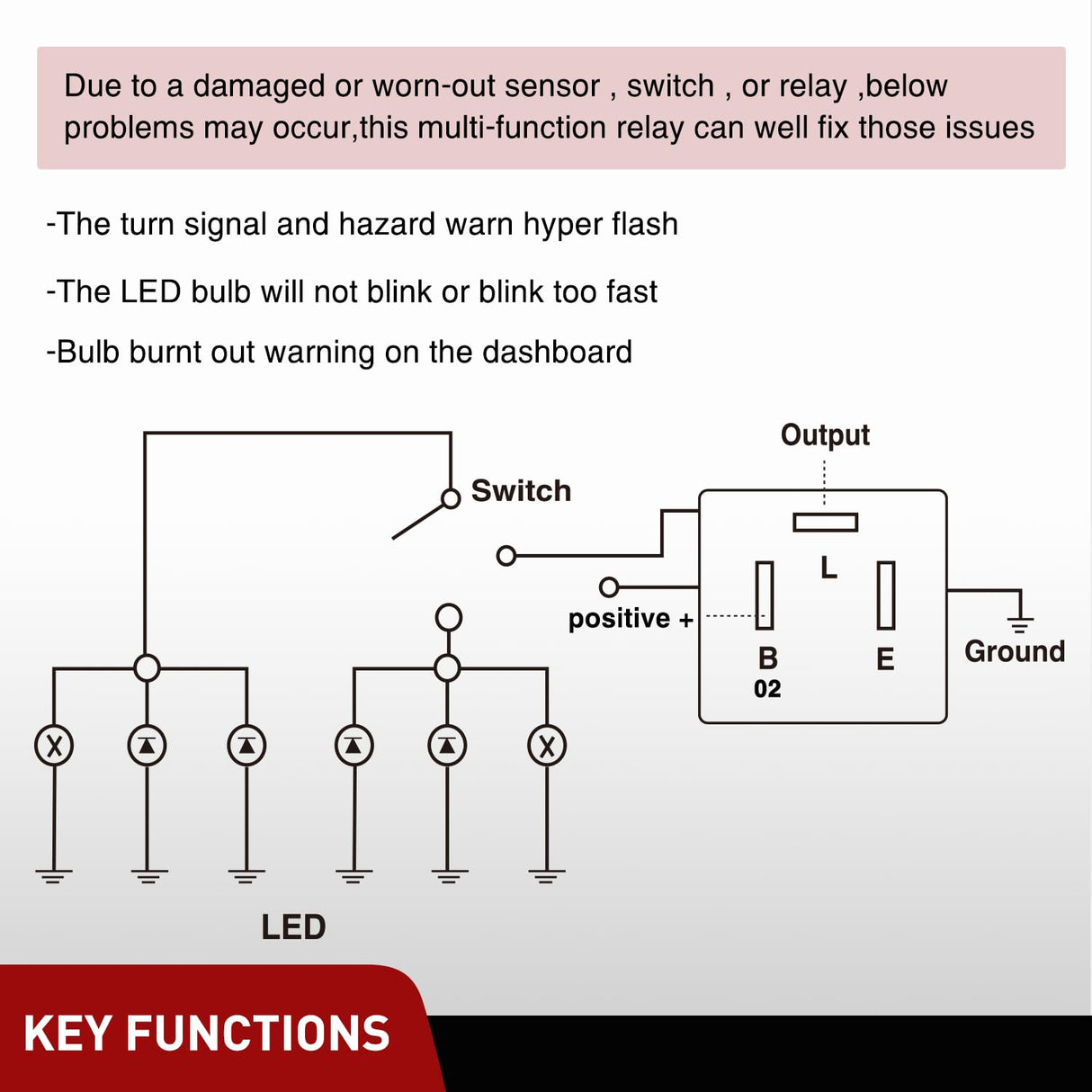

Flasher Relay for LED Bulbs

The multi-function relay can well fix：

1. The turn signal and hazard warn hyper flash; 2. The LED bulb will not blink or blink too fast; 3. Bulb burnt out warning on the dashboard
