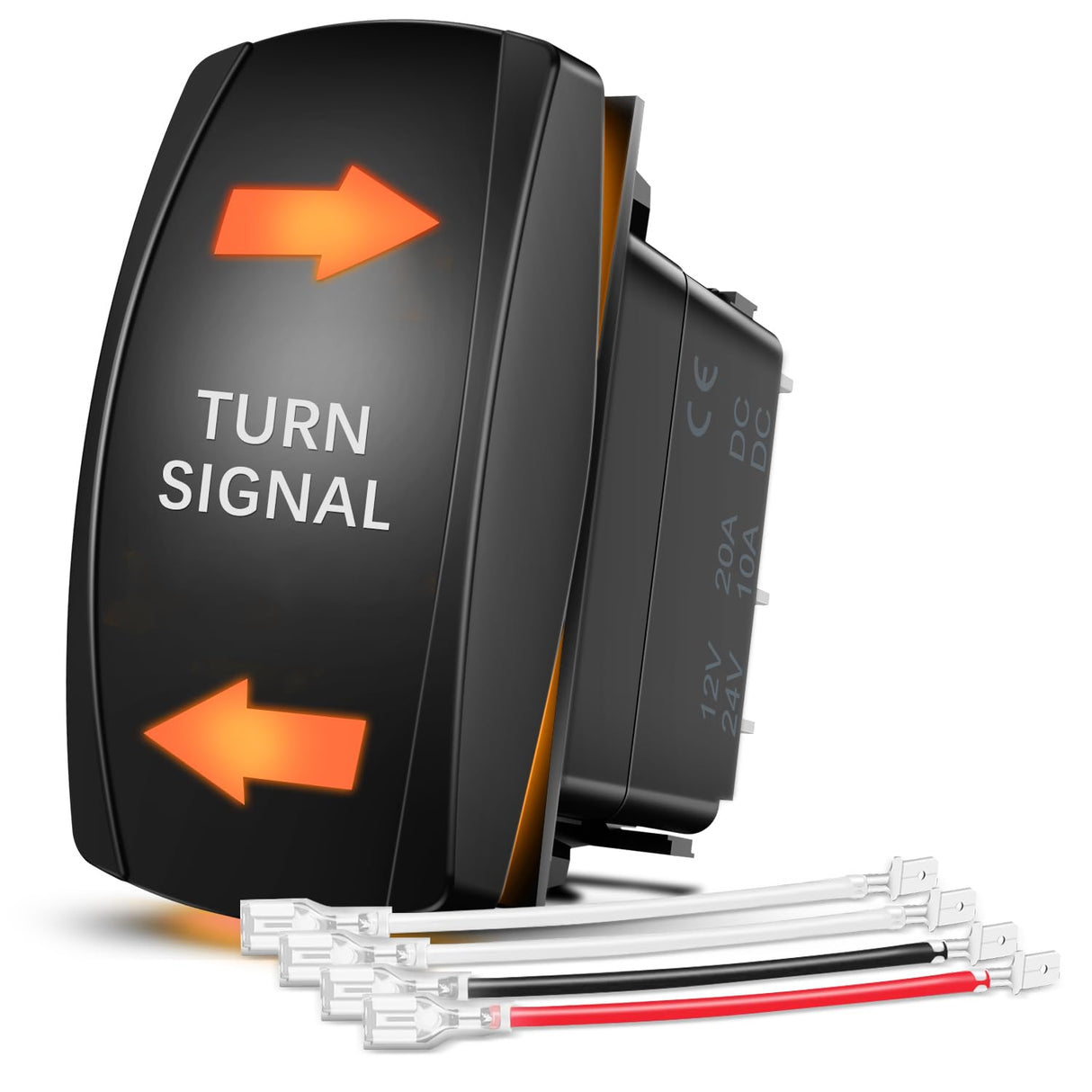

Turn Signal Switch Amber 4Pin ON Off ON Rocker Switch Laser Etched SPDT Toggle Switches 12V 20A 24V 10A Jumper Wires for Cars RVs Boats Campers Trailers
Turn Signal Switch Amber 4Pin ON Off ON Rocker Switch Laser Etched SPDT Toggle Switches 12V 20A 24V 10A Jumper Wires for Cars RVs Boats Campers Trailers is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
International Shipping
Nilight is shipping worldwide covering North and South America, Europe, Asia, Africa, Oceania and more.
We employ the services of major, trusted international carriers to ensure your package arrives at your destination safely.
U.S. domestic orders are shipped from our USA warehouse for the fastest delivery times but exceptions may occur.
Shipping Time
U.S. domestic shipping: about 3-7 Working Days
International shipping: about 8-15 working days
A standard processing time of up to 48 hours is required before the order is shipped out.
Due to challenges posed by the pandemic, our carrier is temporarily experiencing shipping delays, which may delay your delivery. We are always work to get your package to you as quickly and safely as possible.
Shipping Cost
We offer free shipping on all of our products to customers in the Continental U.S. when orders over $19.99. Customers in other regions need to pay additional shipping costs(Specific amount please kindly refer to your checkout page).
Tracking
Your tracking number will be sent in email immediately after we ship the order out. You may follow the link in the email to check the estimated arrival time of your order.
(Please note that tracking information will only be updated online in 1 working day after your order has been shipped.)
Product Description
Product Description
- Specification: 4 Pin Rocker Switch, Rated at 12V DC/20 Amp, 24V DC/10Amp. Switch function: ON-OFF-ON, amber backlight.

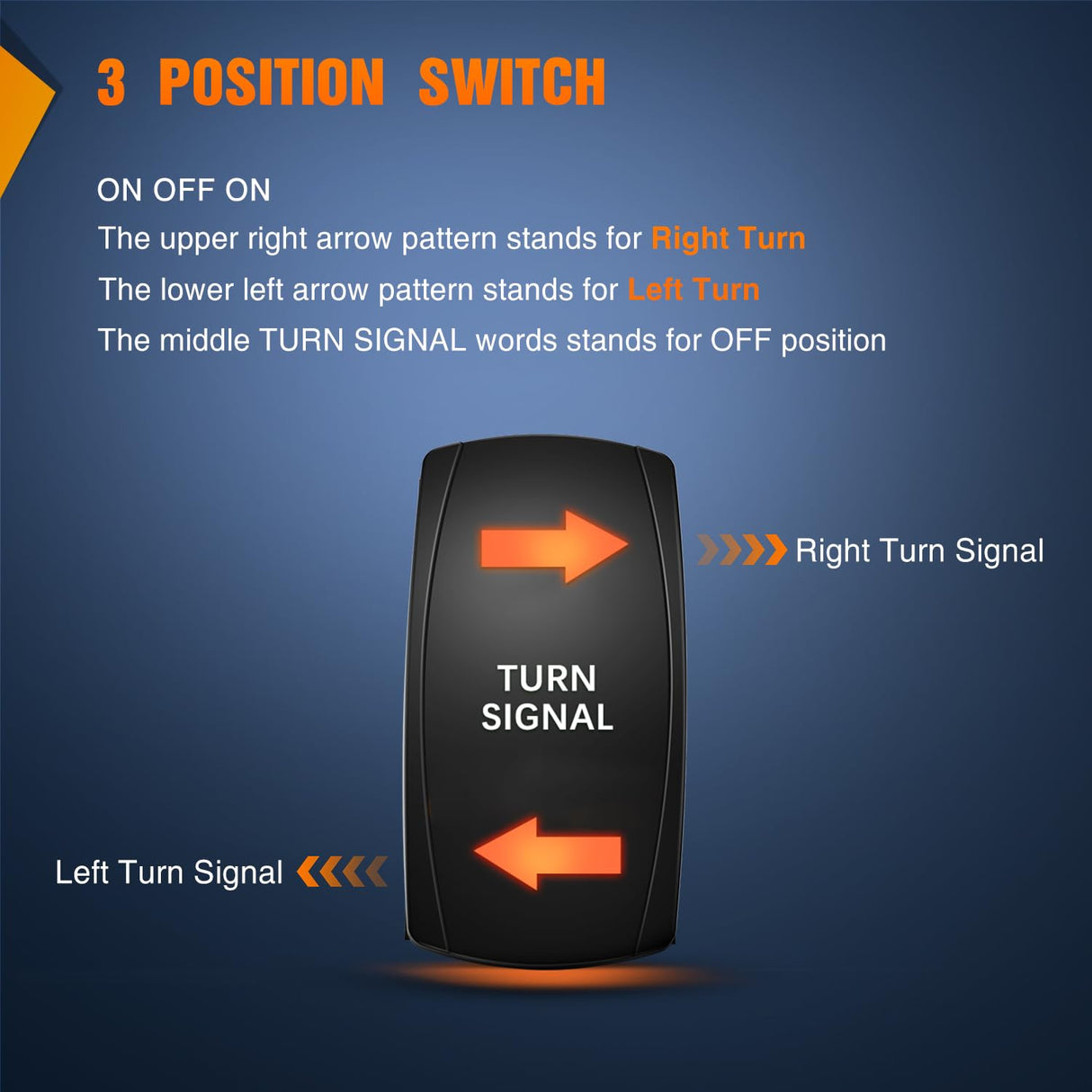

- Spdt Switch: The turn signal switch has 3 positions, you can control the turn signal light to left and right by pressing the switch to the corresponding positions. The upper right arrow pattern stands for right turn, and the lower left arrow pattern stands for left turn. The middle words “TURN SIGNAL” stands for nothing and it’s an off position.
- Sturdy And Durable: This switch is made of high-quality plastic and well-conductive pins; The laser-etched pattern is not easy to fade away and it’s built-in two premium LEDs, emits soft light to illuminate the patterns, easy for you to find the switch in the dark.
- Easy Installation: This 4 Pin rocker switch fits Nilight rocker switch panels and switch holders, it’s the same size with other 5 Pin and 7 Pin rocker switches. Suitable for installing on any 12/24V DC cars, trucks, RVs, Trailers, Campers etc to control the signal lights.
- Package Includes: 1x 4 pin rocker switch, 1x jumper wires set, 1x wiring diagrams.
Features
ON-OFF-ON 4 Pin Rocker Switch
- Material: Superior ABS+PC; Rated at 12V 20A and 24V 10A DC.
- SPDT design (Single Pole Double Throw); Built-in 2 LEDs, laser-etched pattern.

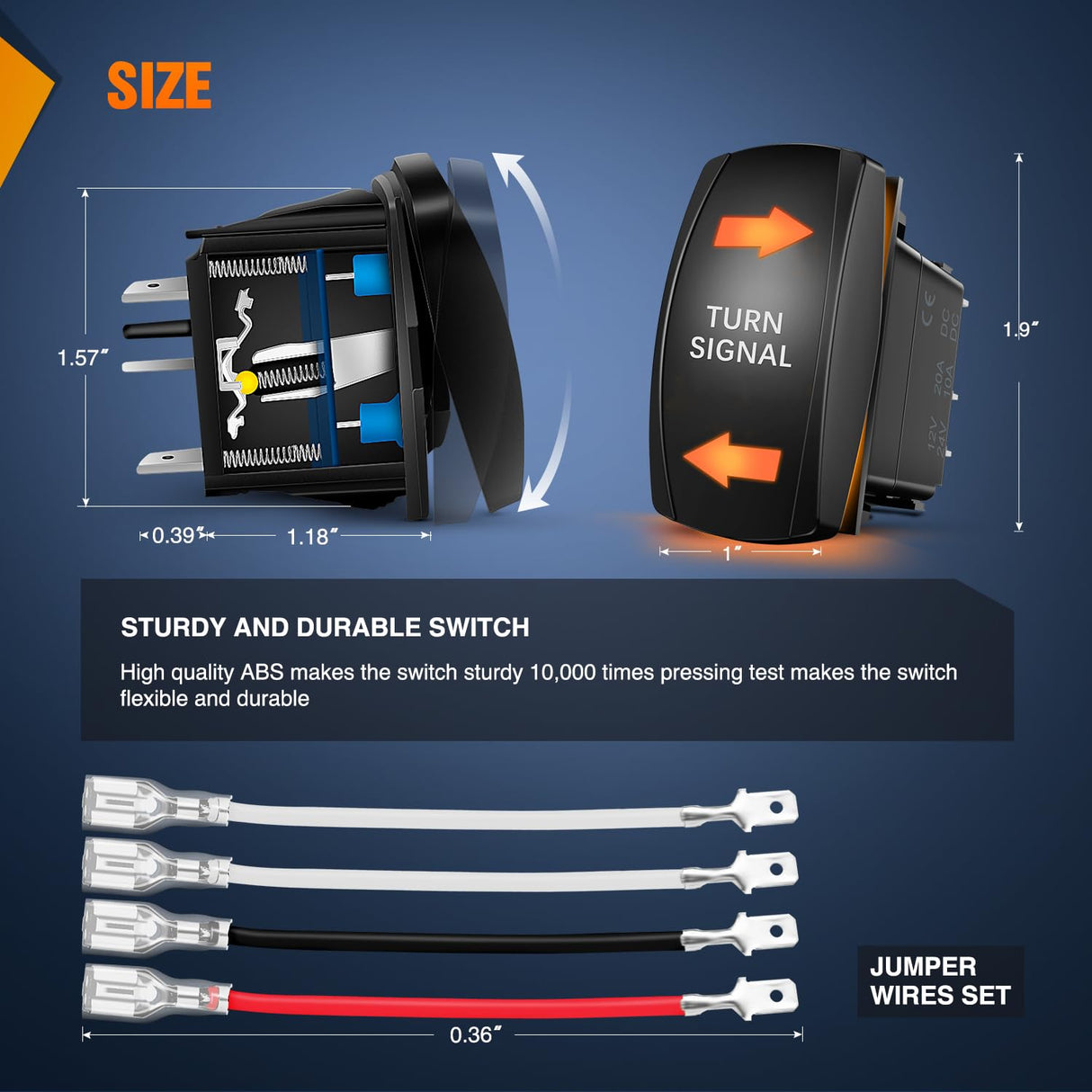

- Mounting Hole Size: 1.43 inch(37mm) x 0.84 inch(21.3mm).
- Application:
The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.

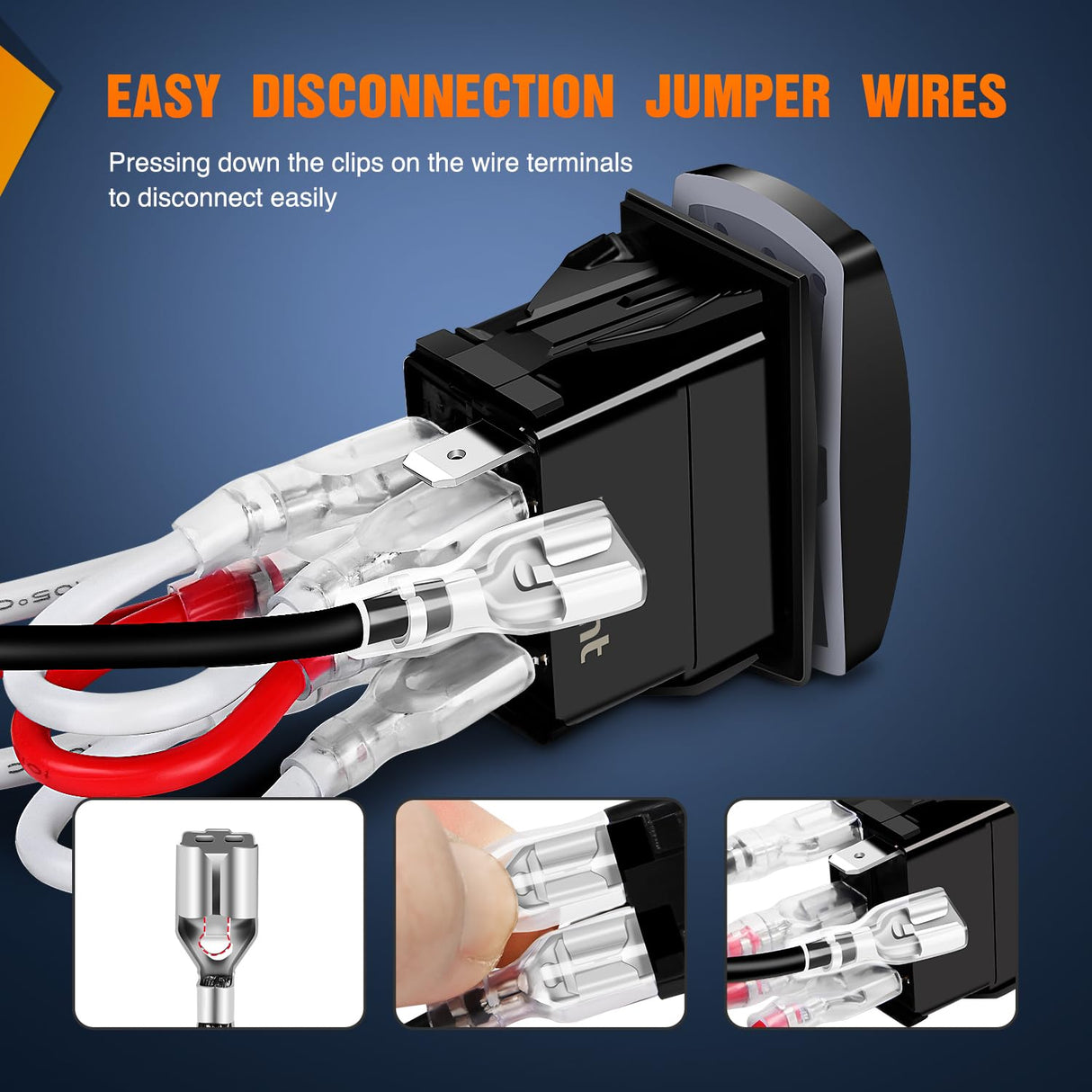

High quality 14 gauge jumper wires, the Tin-plated copper terminals on the wire is of good stability, wear resistance, corrosion resistance.
Made of ABS and PC of premium quality, the switch is impact and heat resistant and it's flexible for turning on or off. prolonging the device life.

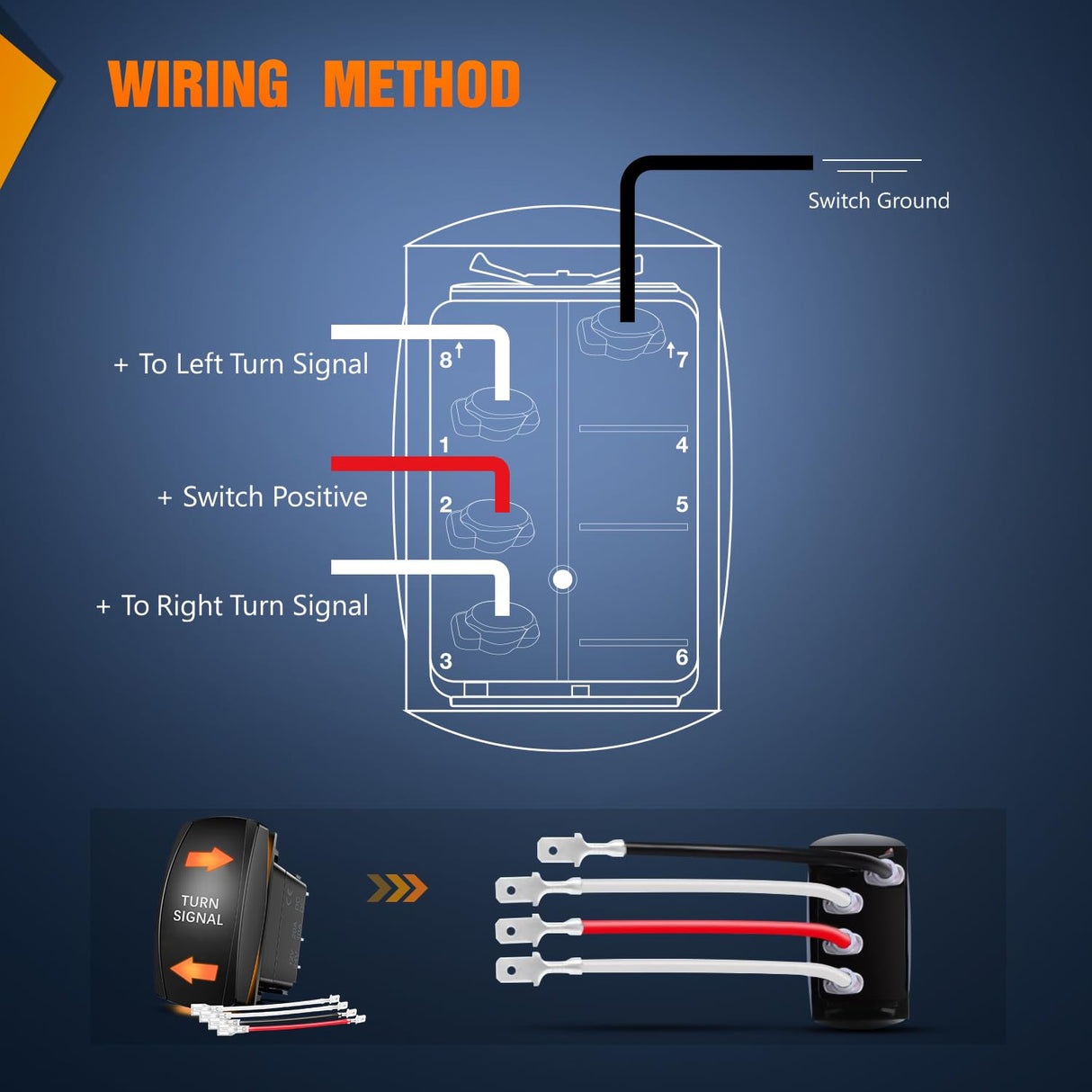

This switch is simple to install, product comes with a wiring diagram which make it easy to wire the jumper wires in two seconds.
- PIN 1&3- Connect the Left/Right Turn Signal, or outgoing to relay, accessory and equipments
- PIN 2 - Connect the positive battery terminal
- PIN 7 - Connects the negative battery terminal

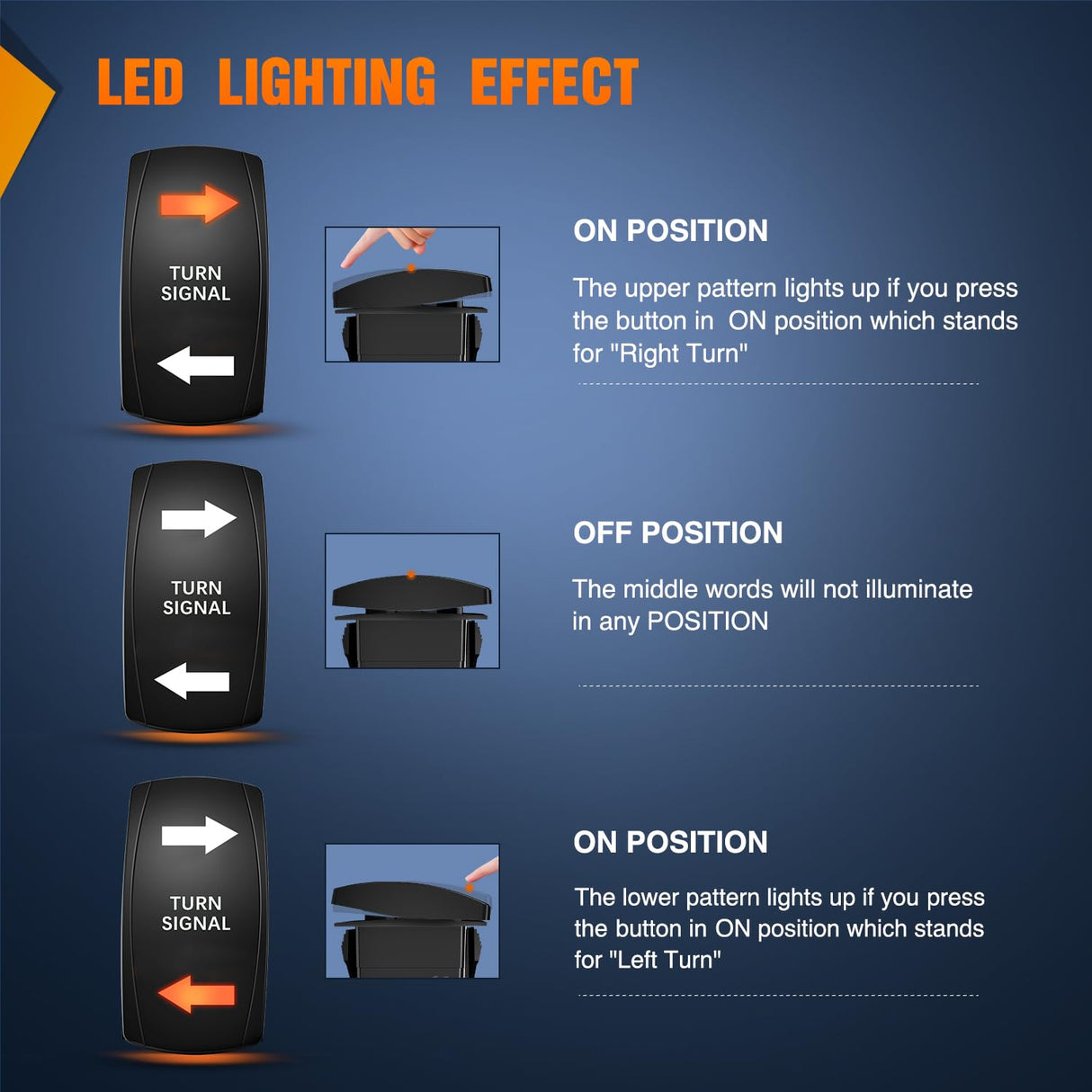

- The upper right arrow pattern stands for right turn, and the lower left arrow pattern stands for left turn.
- The middle words “TURN SIGNAL” stands for nothing and it’s an off position.

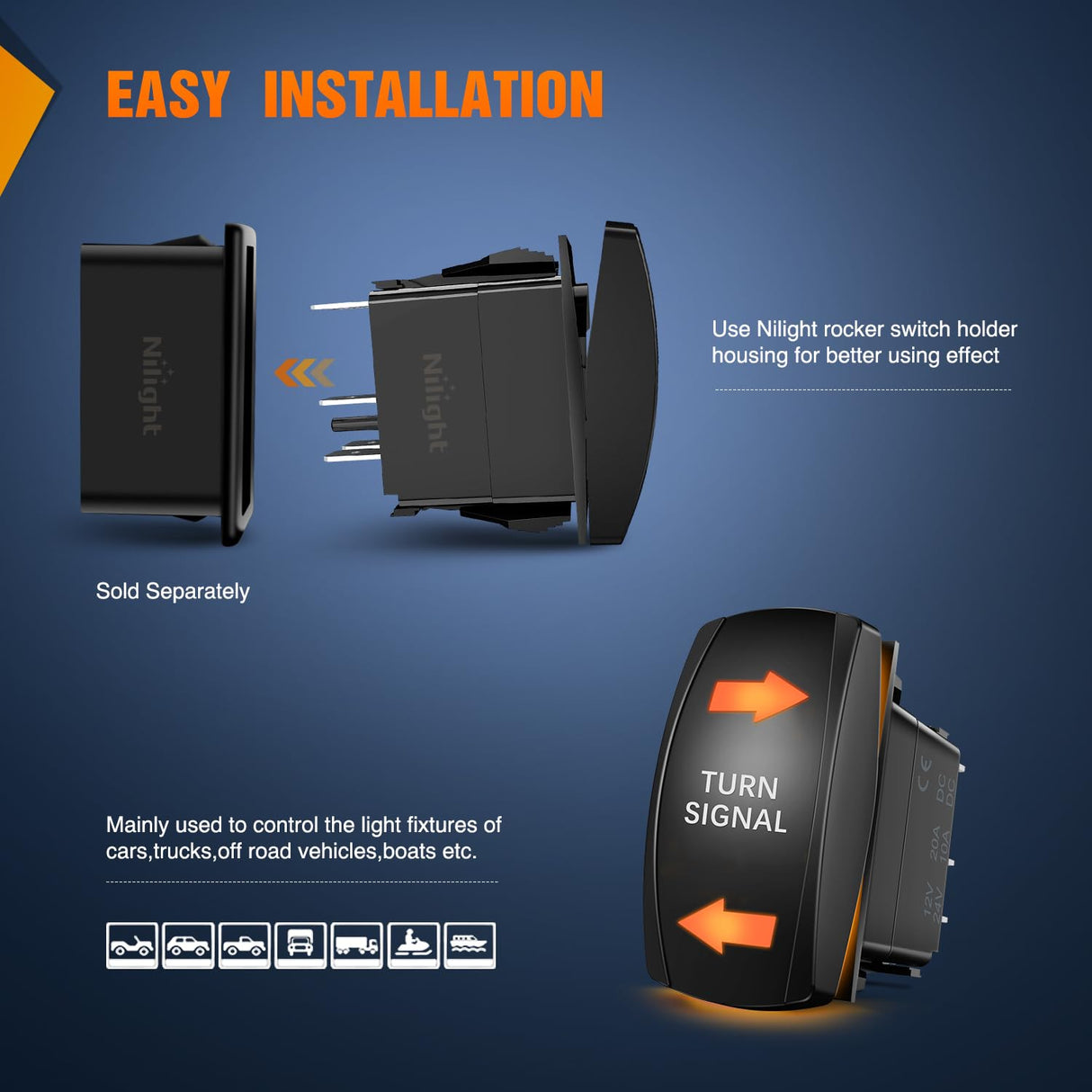

The 4 pin rocker switch can be installed on Nilight rocker switch holder housing for better using effect.
It can also be replaced to any defective 4 PIN switches. Convenient and cost-effective.
The switches can be replaced with any defective 4 PIN SPST switches, convenient and cost-effective.
It's dimension is the same as the original factory switch on UTV vehicle, which can replace damaged UTV switches without the need for drilling holes.

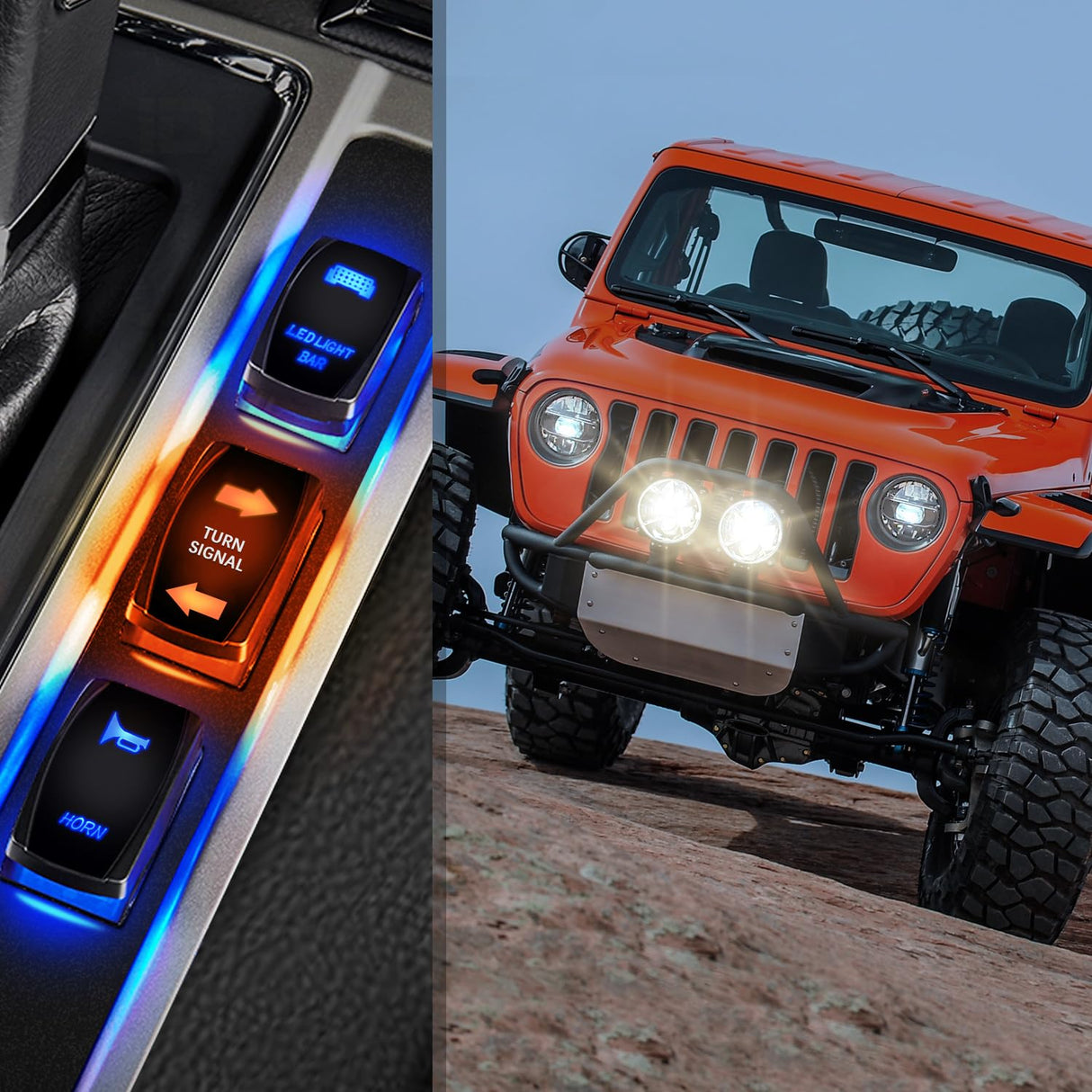

Suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailer, RV, caravan, bus, marine boat, yacht, airplane, etc.
suitable for UTVs and ATVs.

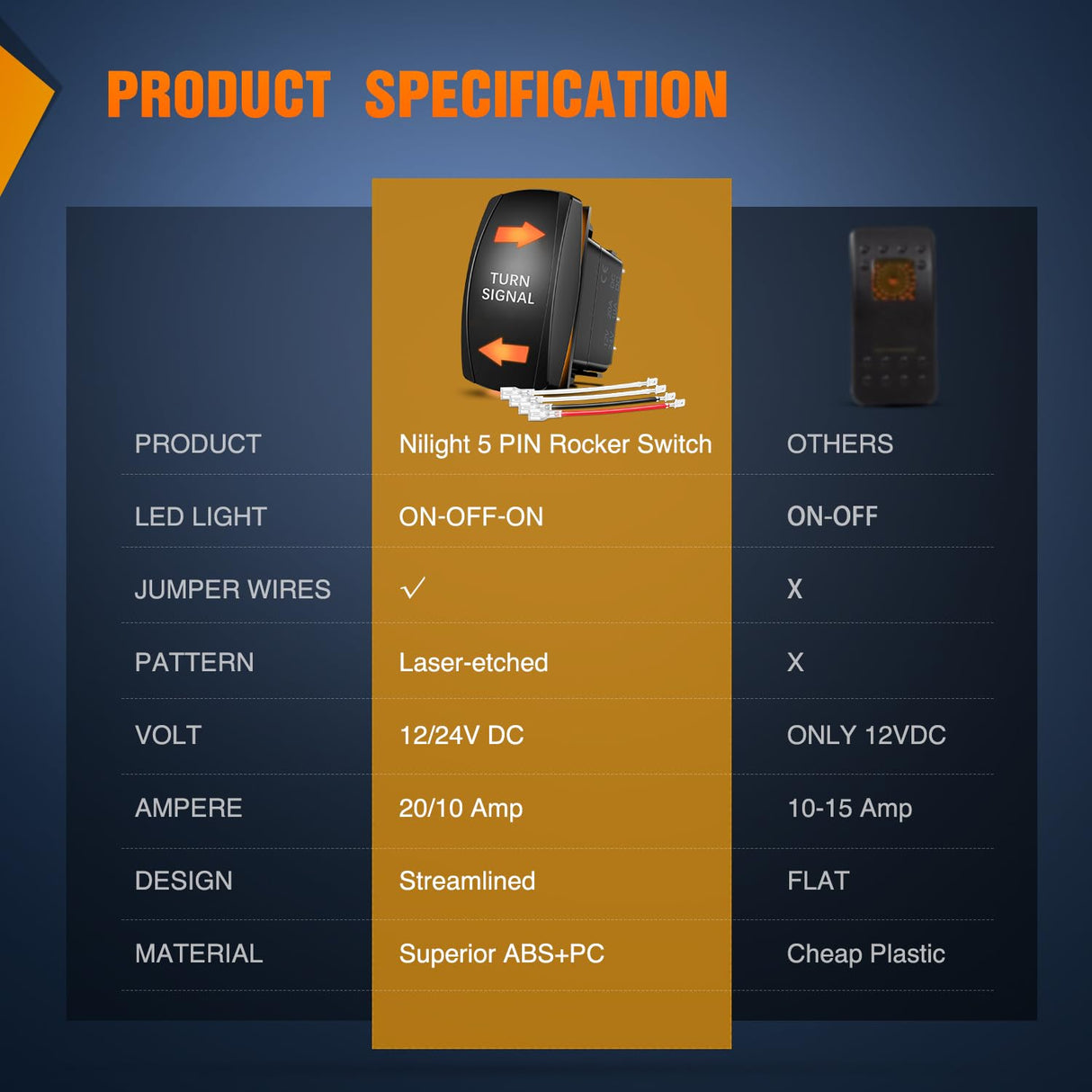

Product Specification
Product Specification
Features & Specs
| Operation Mode | ON-OFF-ON |
|---|---|
| Current Rating | 20 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Open |
| Connector Type | Quick Connect |
| Switch Type | Rocker |
| Terminal | Spade |
| Circuit Type | 5-way |
| Mounting Type | Panel Mount |
| Actuator Type | Rocker |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| Control Method | Touch |
| Wattage | 240 watts |
| Compatible with Vehicle Type | cars, trucks, RVs, Trailers, Campers |
| Control Type | directional |
| Compatible Devices | cars, trucks, RVs, trailers, campers, boats |
Additional details
| Color | Black |
|---|
Measurements
| Item Dimensions | 2.36 x 2.36 x 1.97 inches |
|---|---|
| Unit Count | 1.0 Count |
| Number of Items | 1 |
Materials & Care
| Material Type | Plastic |
|---|---|
| Contact Material | Brass |
User guide
| International Protection Rating | IP64 |
|---|---|
| Specification Met | CE |
Item details
| Brand Name | Nilight |
|---|---|
| Model | 90743A |
| Manufacturer | Nilight |
| UPC | 840323933490 |
| Part Number | 90743A |
| Included Components | Turn SIgnal Switch |
