Nilight 5-Pack Waterproof 5-Pin SPDT Bosch Style 12V Automotive Relay and Harness Set 40/30 AMP with Heavy Duty 12 AWG Tinned Copper Wires




UPC: 812227032197

Key Features:

12 V DC automotive waterproof relay (max 14 V). Note: 12 V and 14 V are coil voltages, they are not the voltage that triggers the switch

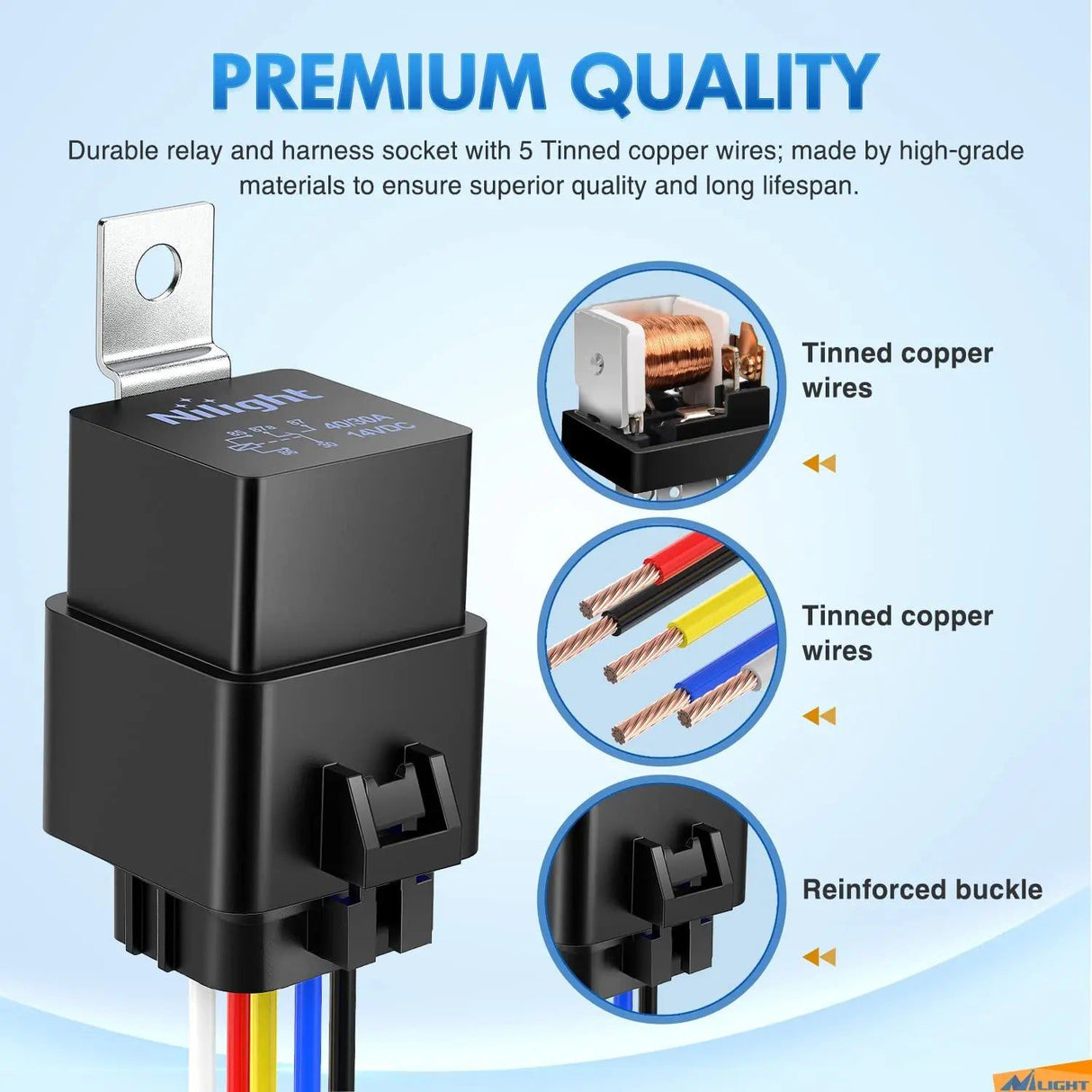

Premium quality: durable relay and harness socket with 5 wires; made by high-grade materials to ensure superior quality and long lifespan

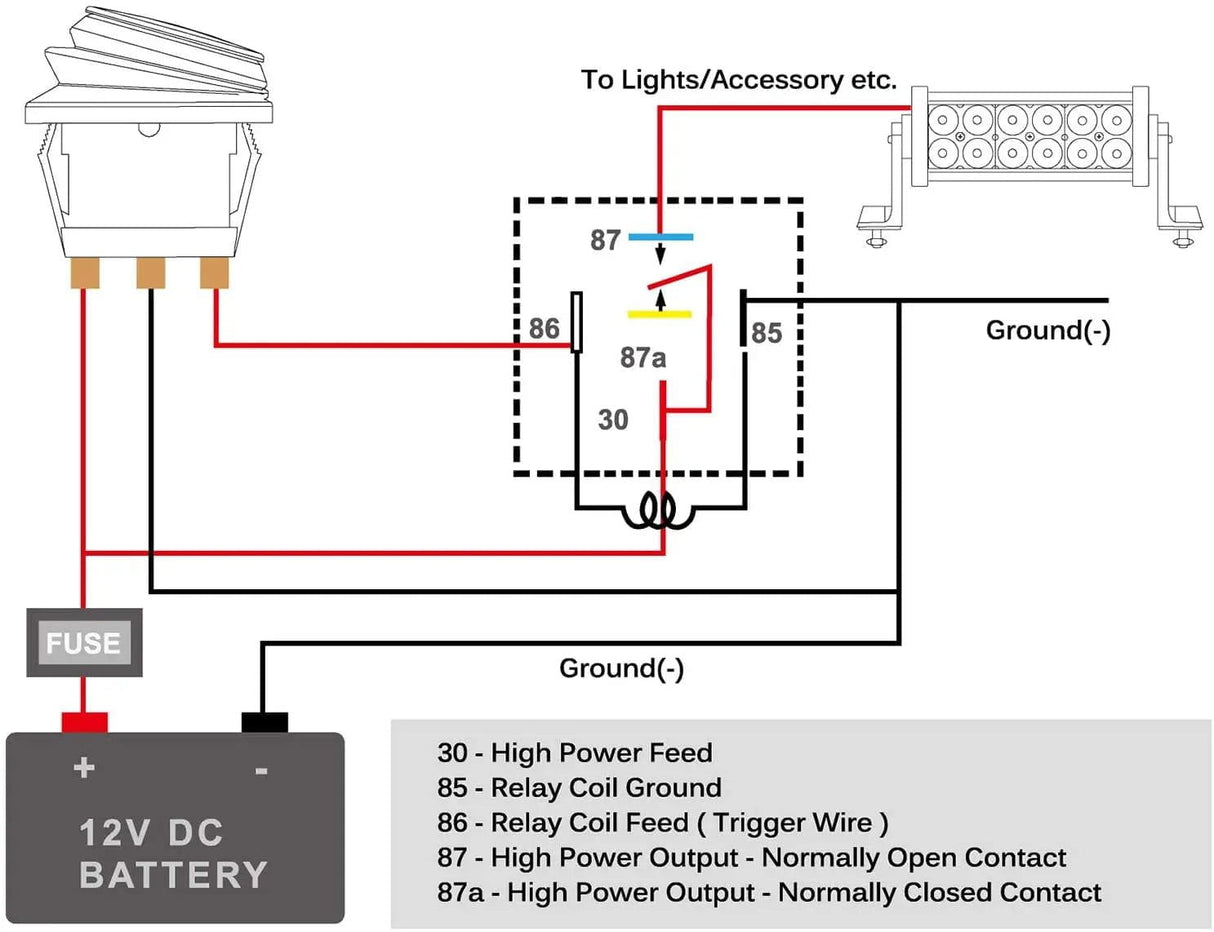

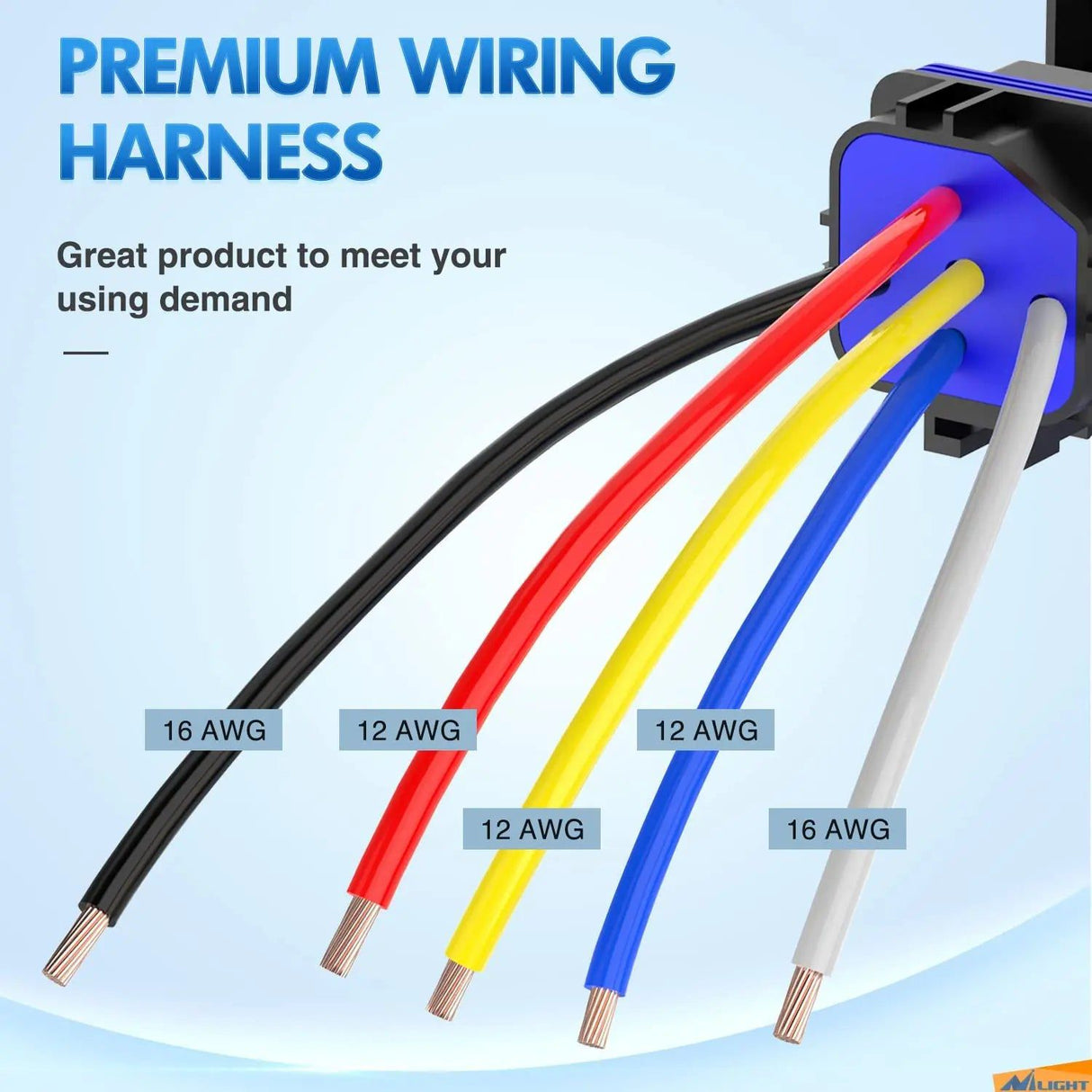

Pre-wired Harness: Heavy duty 12/16 AWG wiring harness. Black - 16AWG Pin85, White - 16AWG Pin86 , Red - 12AWG Pin30 Yellow - 12AWG Pin87a, and Blue - 12AWG Pin87

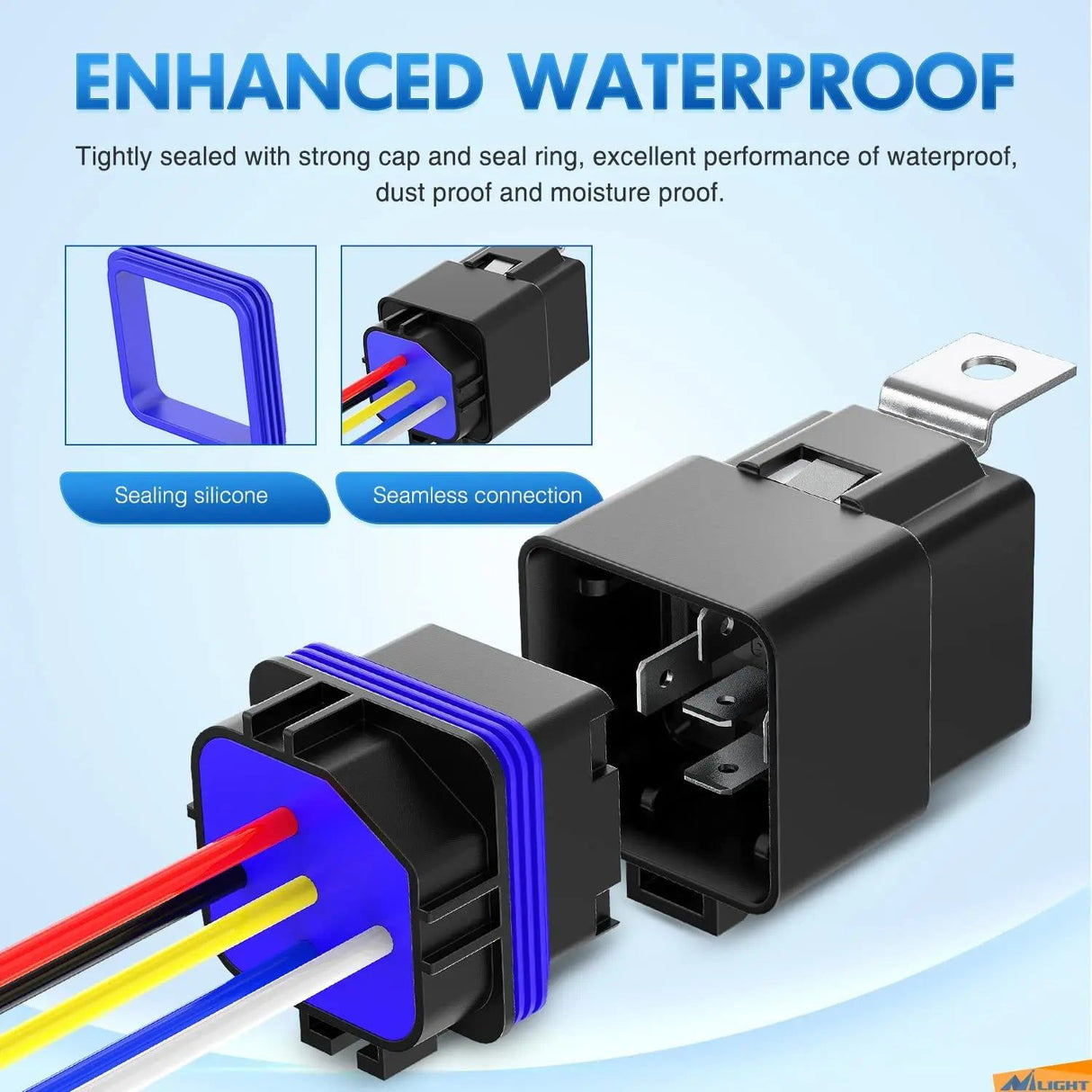

Enhanced Waterproof - The 5-Pin relays are tightly sealed with strong cap and seal ring, excellent performance of waterproof, dust proof and moisture proof, works well in any weather conditions

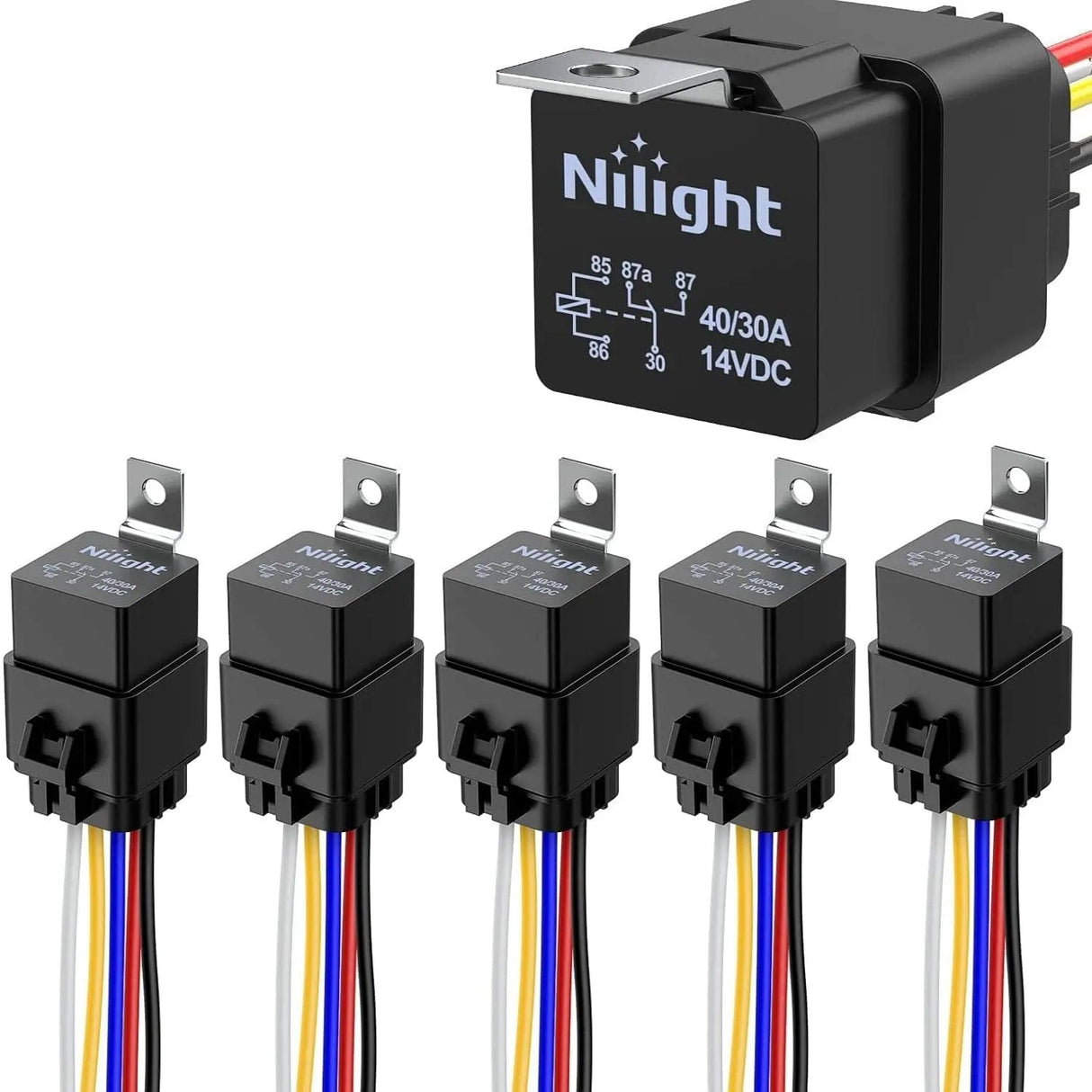

Package include: 5 pack Waterproof Relay and Harness. 1x User manual


Coil Voltage: 12V DC
Coil Current: 160 MA
Switching Voltage: 14V DC
Current Rating: - NO 40A 14V DC- NC 30A 14V DC
Initial contact resistance (at 6VDC 1A): 50m¦¸ Max. Initial insulation resistance: 100M¦¸ Min. (DC500V)
Initial dielectric strength: - Between open contacts: AC500V, 50/60 Hz 1Min. - Between coil and contact: AC500V, 50/60 Hz 1Min.
Endurance (operations): - Mechanical (at 7, 200 ops. /h): 10, 000, 000- Electrical (at 600 ops. /h): 100, 000
Package Content: 5 x 5-PIN SPDT Relay and harness Please Note: --- Easy to mount Instructions were included--- For your and others' safety, let professional technicians to install the equipment.
