16AWG Wire Harness 4 Leads W/ 2 Gang Rocker Switch | 6 Fuses | 8 Spade Connectors

$35.99
{price}% OFF
30 Days Returns

Nilight will accept returns for up to 30 days from the date of purchase. Please include all original items in your return shipment. Incomplete returns may not be eligible for a full refund. Returns within 30 days or purchase will receive a full refund for the purchase price of the product.

No returns will be accepted after 30 days. Nilight will provide a return shipping label upon request.

Non-contiguous US residents and International residents – including Alaska, Hawaii, Canada and Mexico – are responsible for return shipping charges. Refunds will be applied to the original payment method that was used. Refunds are generally issued within 5-10 business days of Nilight receiving all returned goods. Your bank may require additional processing time to reflect the refund in your account.

Early Black Friday Deals

10% OFF For All Items;

13% OFF For Orders Above $229;

16% OFF For Orders Above $399

Check All Categories >>

Free Delivery|Order in the next [hour] to get it between [date_start] and [date_end]
  • Lowest Price
    Guarantee

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Details

Reviews

Free Shipping

2024 Product Guide

About this item

  • Universal fitment: this wiring harness is compatible with all automobiles, boats and devices equipped with a 12V DC power source.
  • Shining in the dark: built-in two premium LEDs emit soft light to illuminate the patterns easy for you to find the switch in the dark.
  • Efficient protection: power relay for safety protection and conversion circuit blade fuse protected against overcurrent and short circuit.
  • Premium quality: excellent electrical conductivity outstanding bending performance, high temperature and melting resistant longer lifespan.

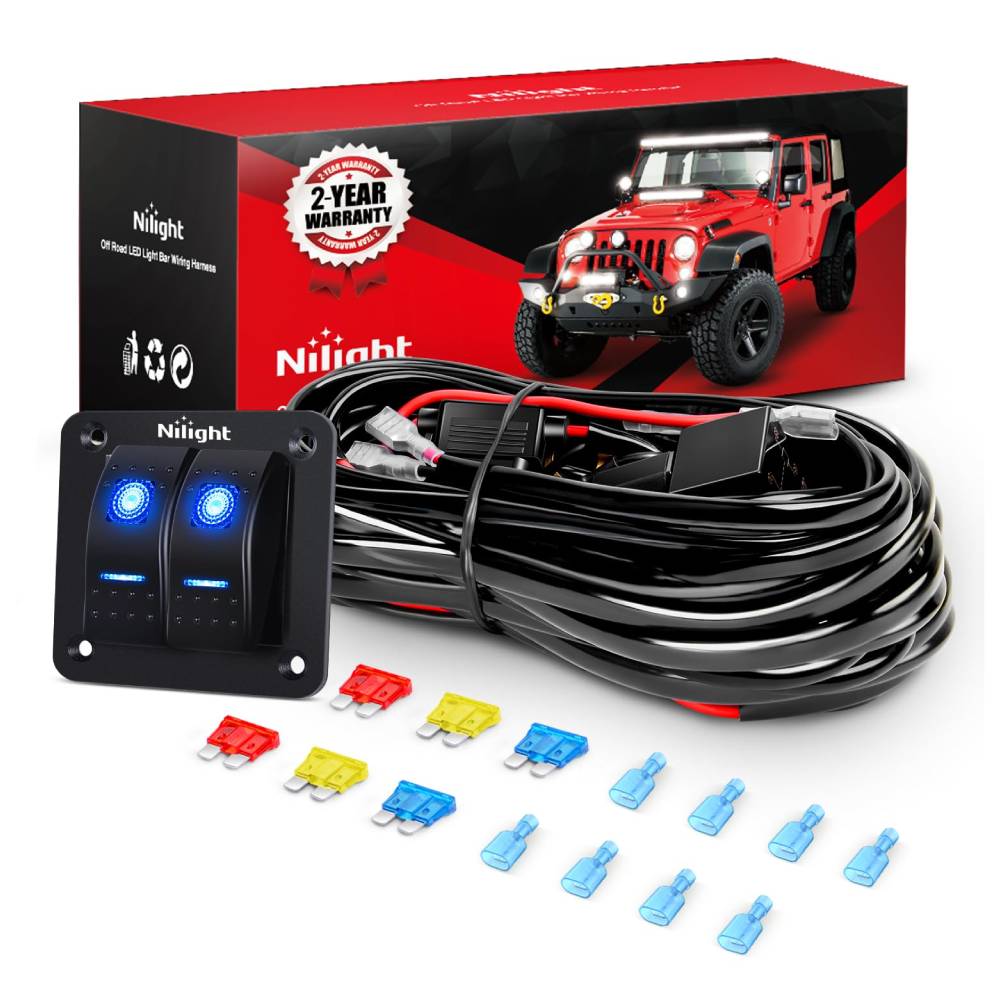

  • Package includes: 1 x wiring harness kit 1 x 5 pin LED rocker switch 1 x instructions, 2 Years Warranty Honored by Nilight.

16AWG Wiring Harness Kit-4 Leads 12V On/Off 5 Pin 2 Gang Rocker Switch

Specification

  • Wire Gauge: 16 AWG ; Working Voltage: 12V DC; Max Working Current: 15A;
  • Length: 6.6 FT Wiring Harness Kit - FOUR Leads; Max Wattage: 360W;
  • Switch: 5 Pin on-off rocker switch;
  • Automotive relay, inline blade fuse with six extra fuses;
  • Note: Please finish the installation by professionals or install the wiring harness under the guidance of professionals.

Product Features

The relay is high quality made with well conductive pins.

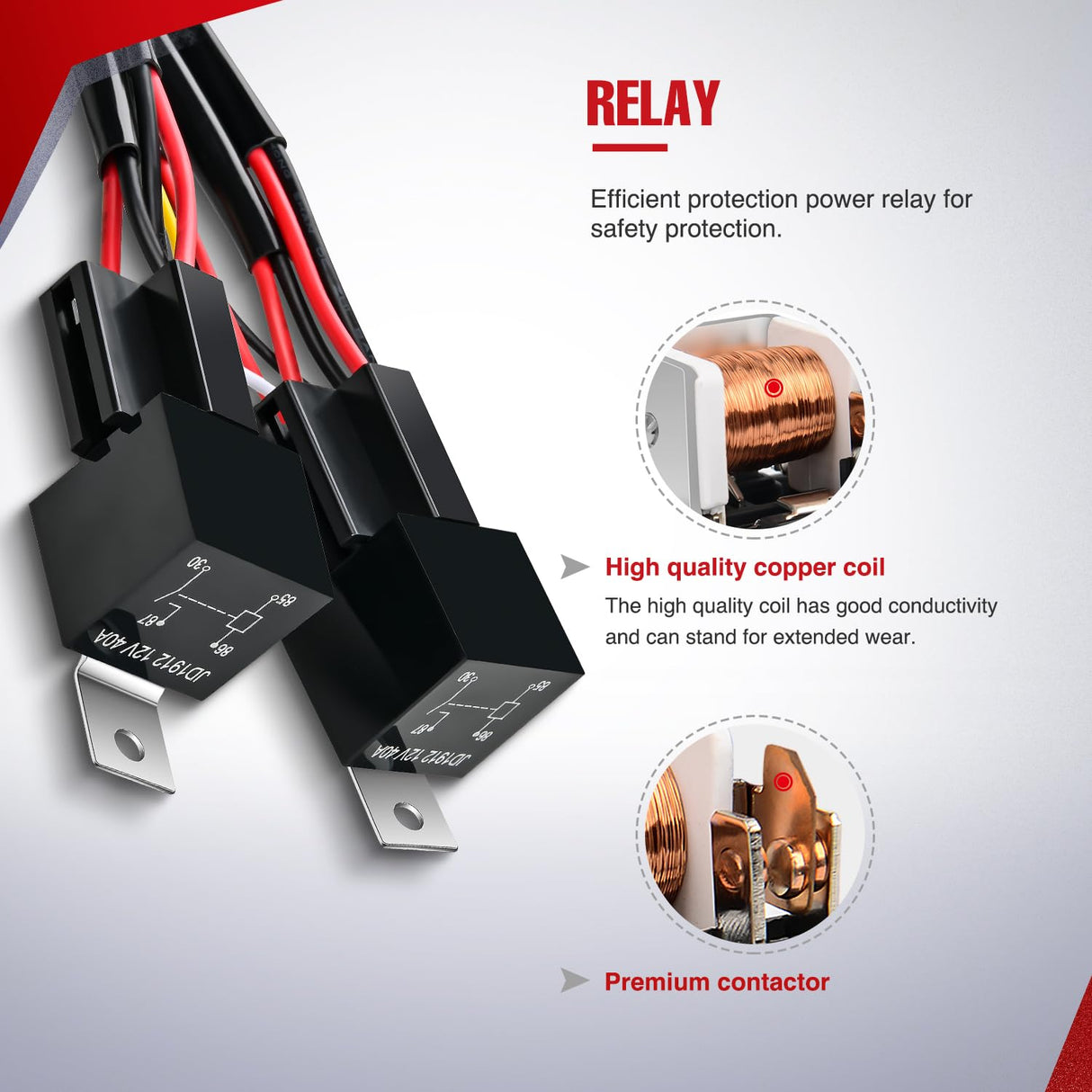

Two Automotive Relay

  • Relay : 5Pin
  • Voltage: 12V
  • Current: 40Amp
  • The power relay uses high-quality materials, the pin conductivity is good, and plays an important role in safety protection and circuit conversion, which can effectively protect the circuit and lighting system.

Six wire connectors are included for safer connection.

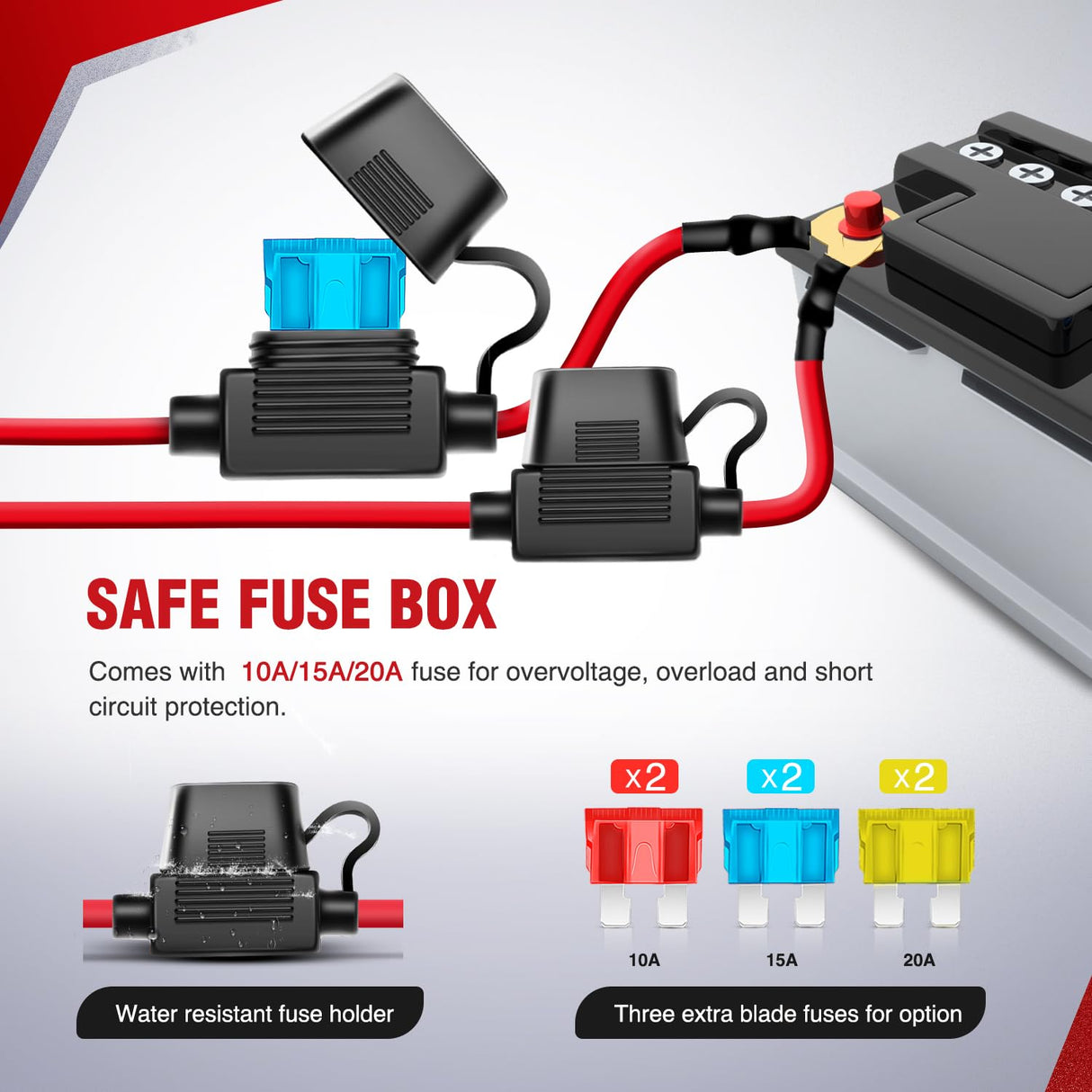

Blade fuse with water resistant fuse holder

  • Specially designed cap for tight sealing, efficiently prevent water and dust from entering, upgrading waterproof performance.
  • The inline blade fuse with water resistant fuse holder act as the first Line of defense against over current and short circuit which is more scientific and safer.

Made of ABS and PC of premium quality, the switch is impact and heat resistant.

5-Pin Rocker Switch

  • Material quality: The switch is made of high-quality ABS and PC, with impact resistance and heat resistance.
  • Flexible and durable: The switch can be opened or closed flexibly to extend the service life of the equipment. It can stand up to 10,000 times pressing under normal use.

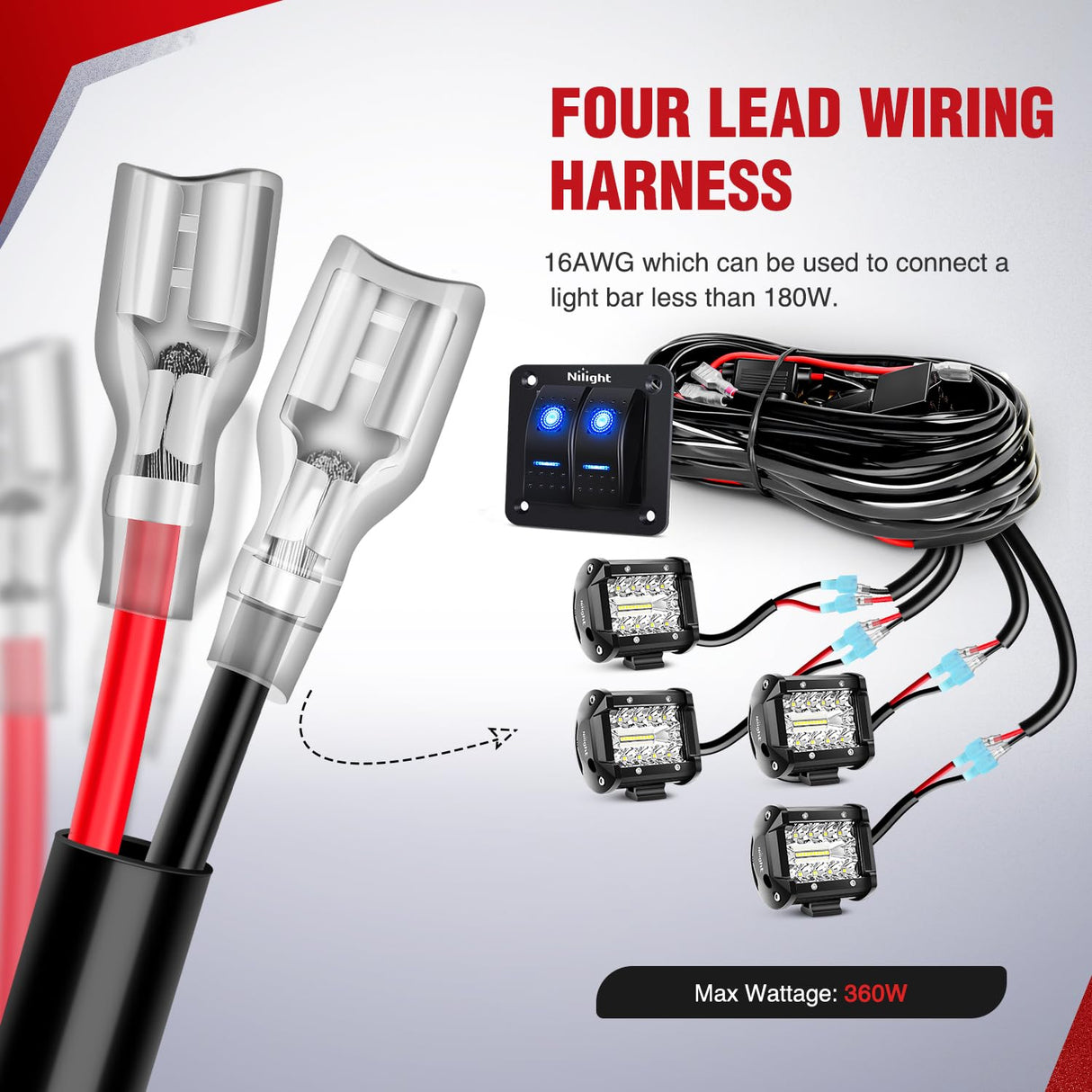

The wiring harness can hook up four LED lights within 180W at the same time.

Four Leads

  • The max wattage of each switch is 180W/15Amp. Each switch contains 2circuits (2 leads).
  • The max wattage of the 2 gang switch panel is 360W/30Amp. The wiring harness can hook up four LED lights at the same time.

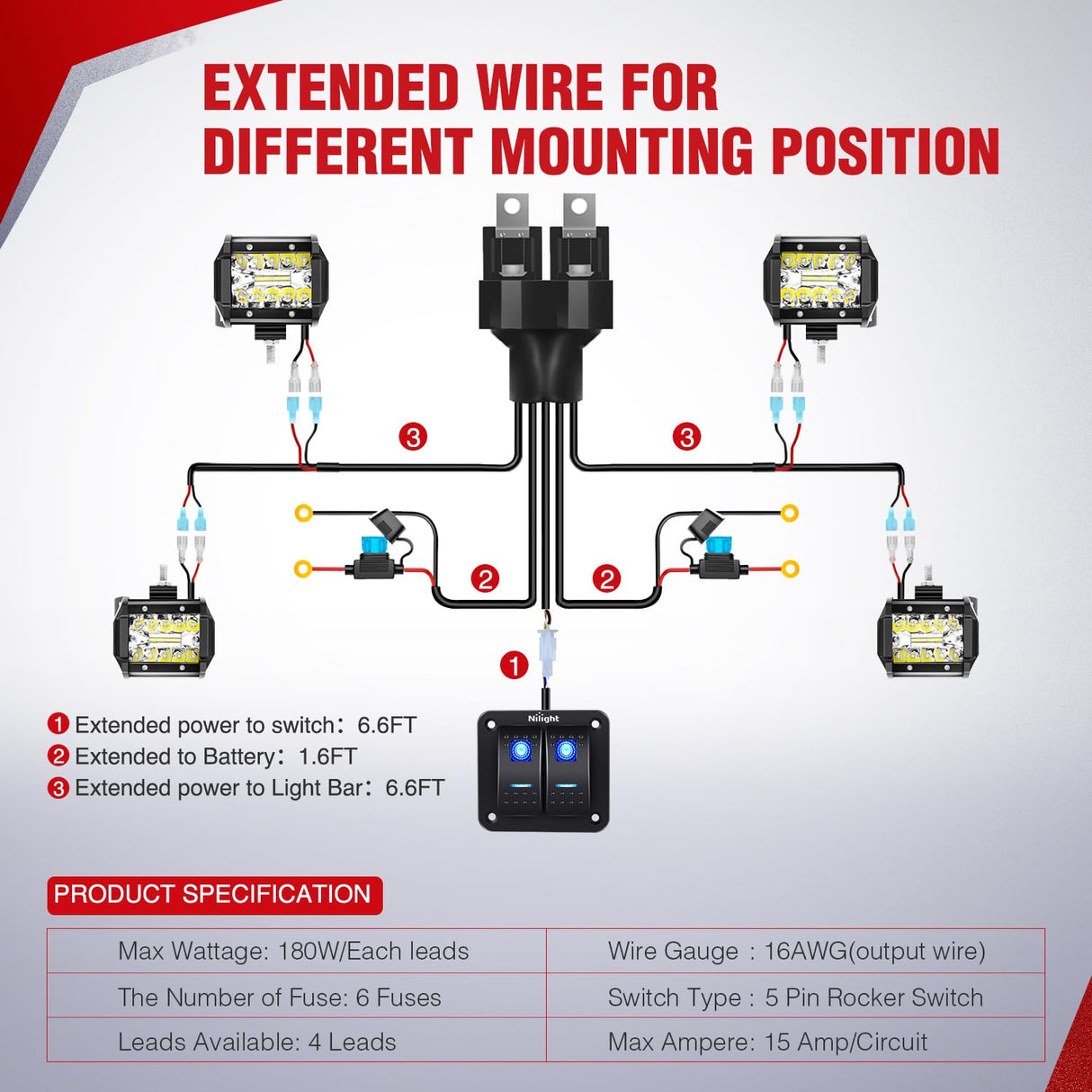

Extended wire for different mounting position

Nilight Glow DIY Sticker

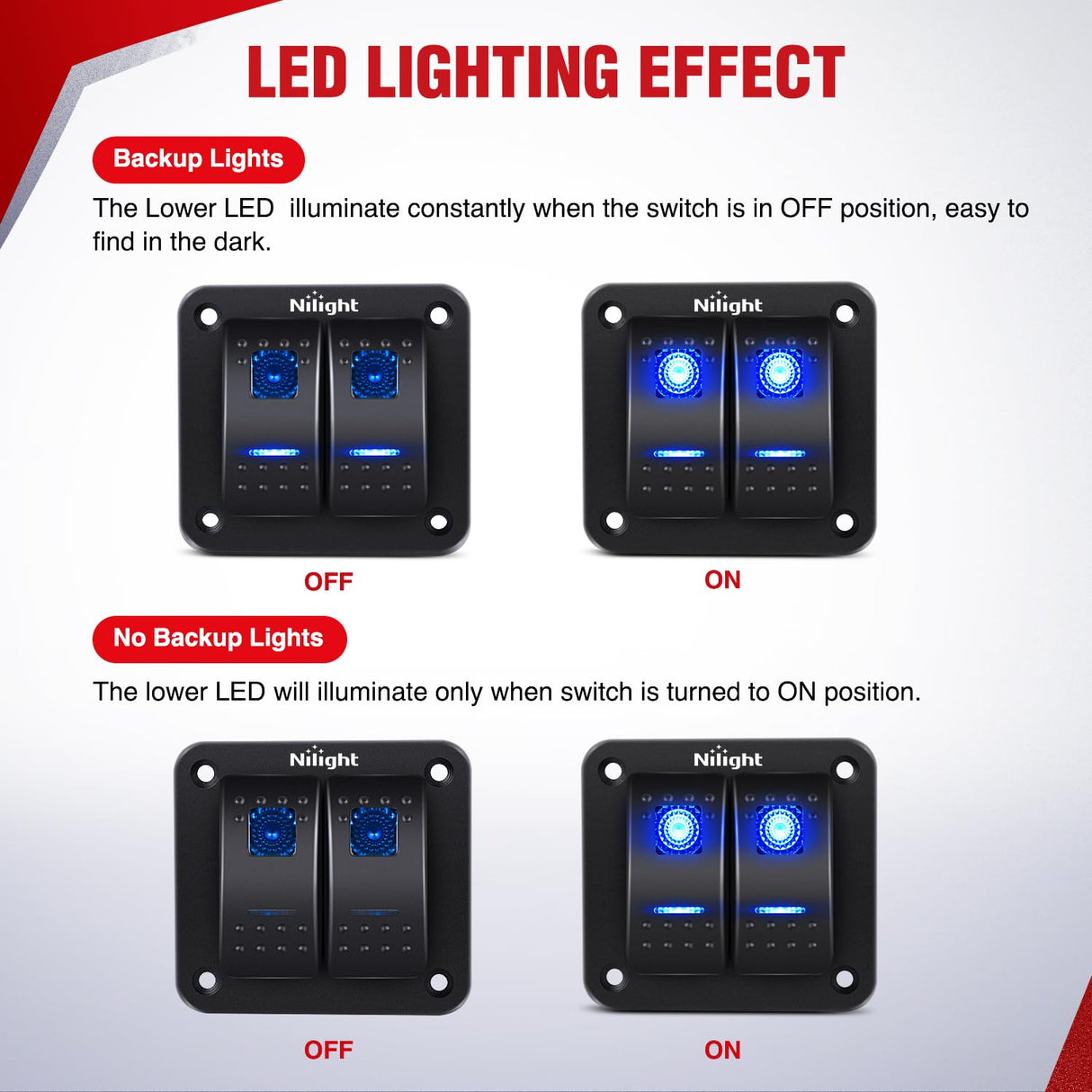

LED Lighting Effect

Wide Applications

  • Nilight Wiring Harness Kit is suitable for almost all 12V battery vehicles, such as jeeps, Tractors, ATVs, UTVs, cars, motorcycles, ships, yachts and trailers.
  • Mainly used for controlling LED light bars, LED work lights, fog lamps, driving lights, headlights, taillights, off-road lights, etc.
