Product Description
Product Description

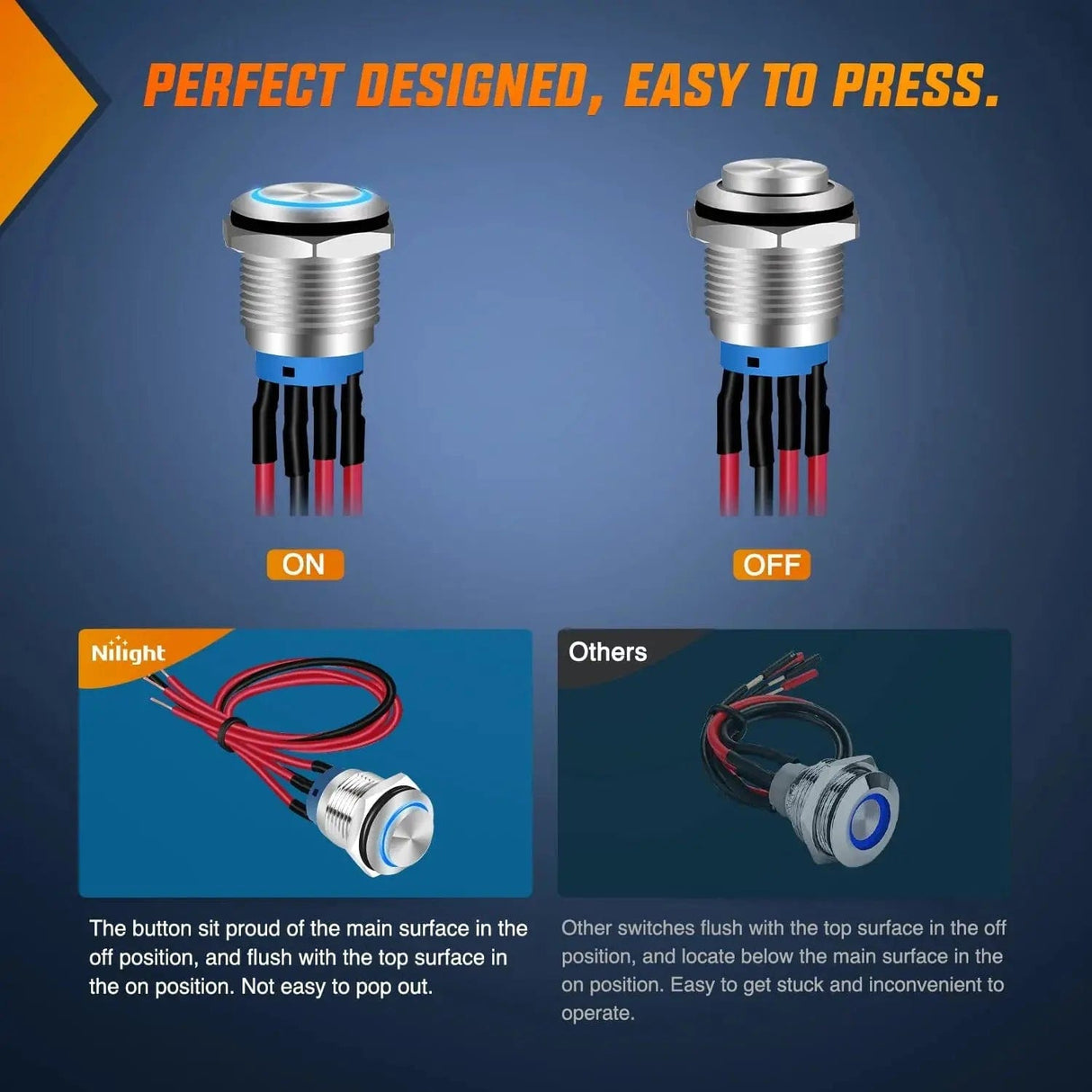

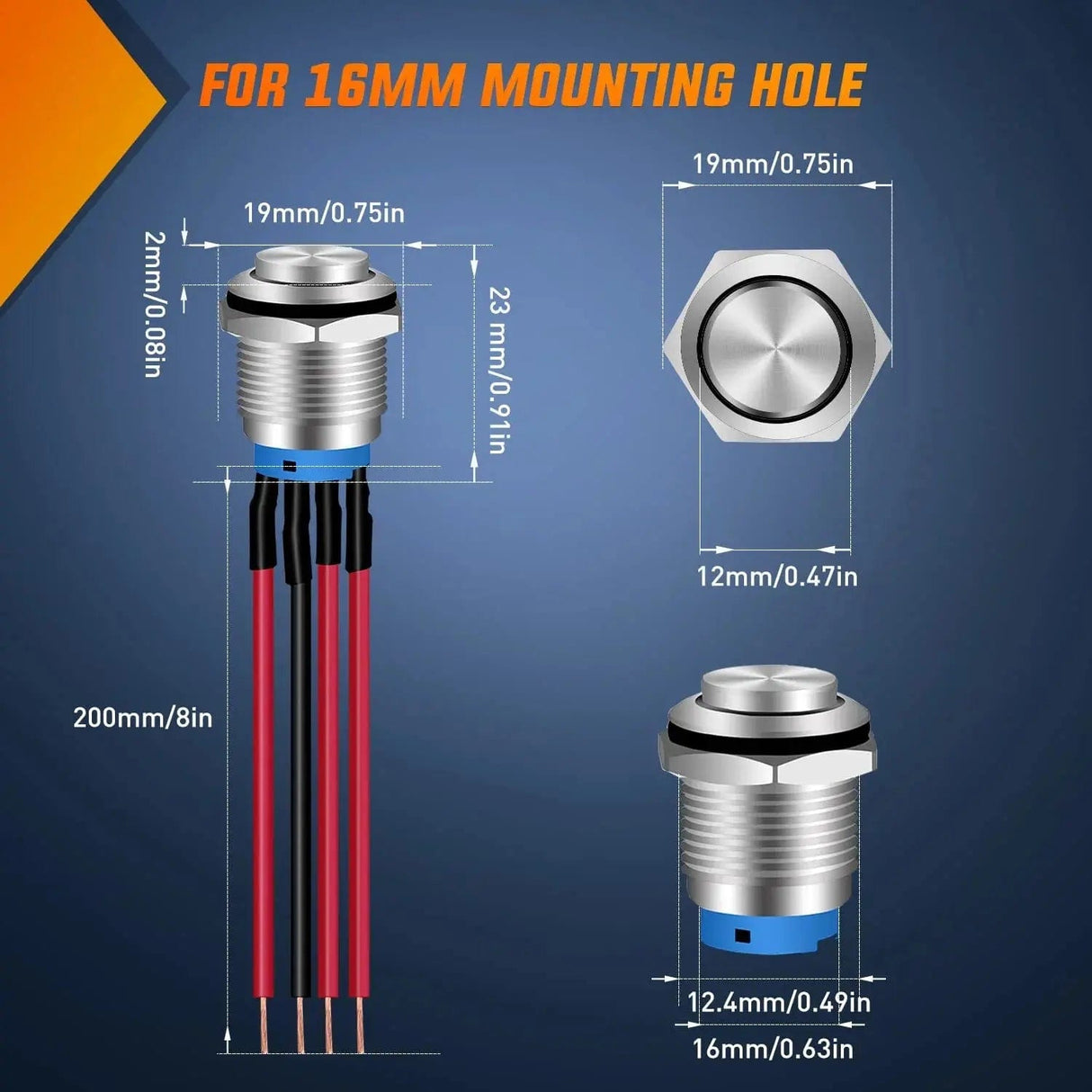

- Led Illuminated Switch: The LED indicator on the push button switch will illuminate when you press the switch to "ON" status, and LED remain off when the switch is in "OFF" status. Mounting hole size for the switch is 16mm 5/8 inch, durable for a longer lifetime.
- Easy Installation: Each switch is pre-wired with the soldered wiring harness, convenient for connect the accessories or equipments. Round latching switch with screw clamp type terminals to make fitting very easy, multi-type wire connection. Lifetime can up to 500,000 cycles, durable and antirust.

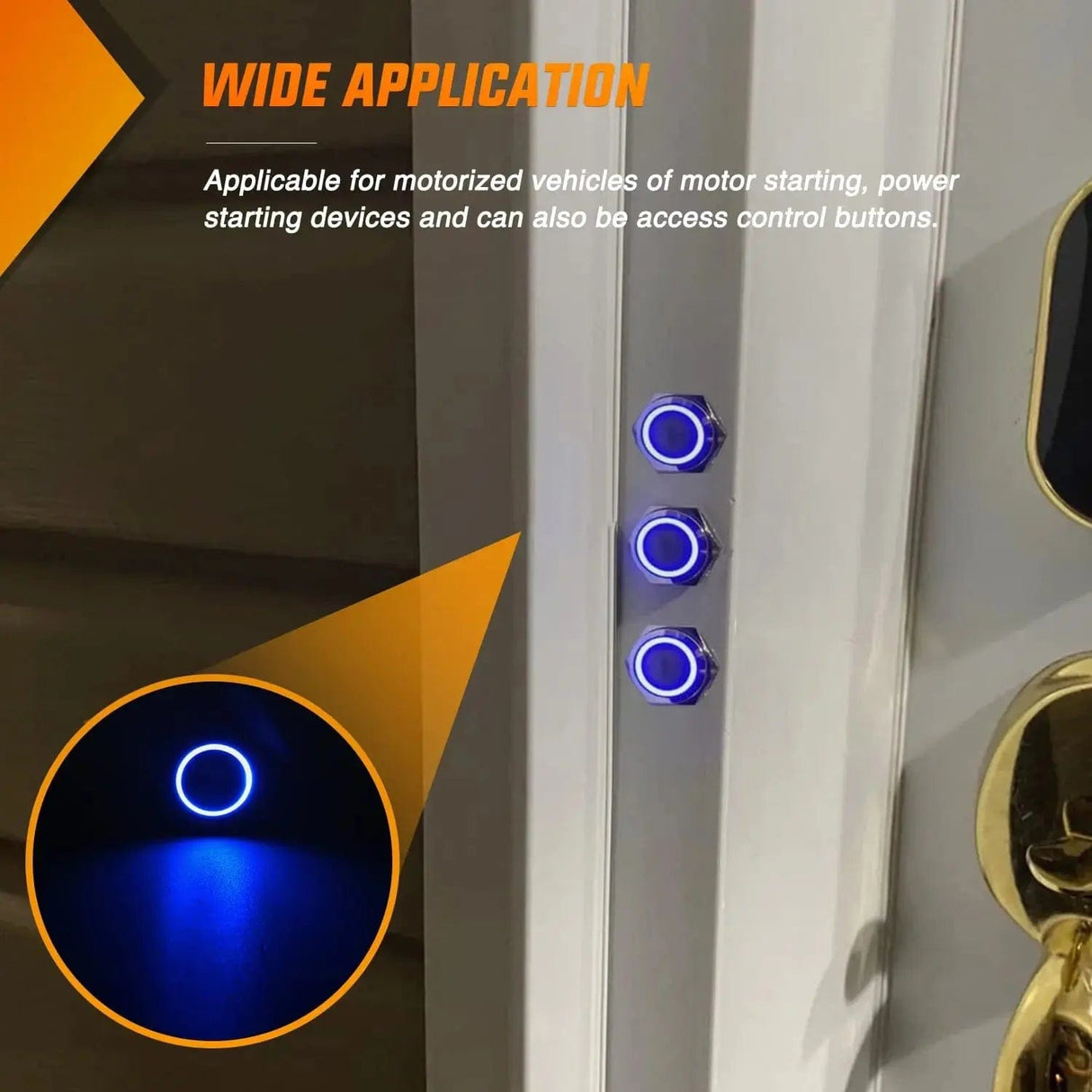

- Wide Application: Our switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment. It is widely used to control LEDs and circuits on Car, RV, Marine Boats, Trucks, Households, Coffee Machine, Industrial Equipment and Medical Equipment. Suitable for almost any motorized vehicle of motor starting, power starting devices, and can also be an access control button.
- Ip67 Waterproof Rating: This self-locking push button switch can be used in a wet or dusty environment, no worry about rain or water anymore, which can be used outdoor and rainy day.

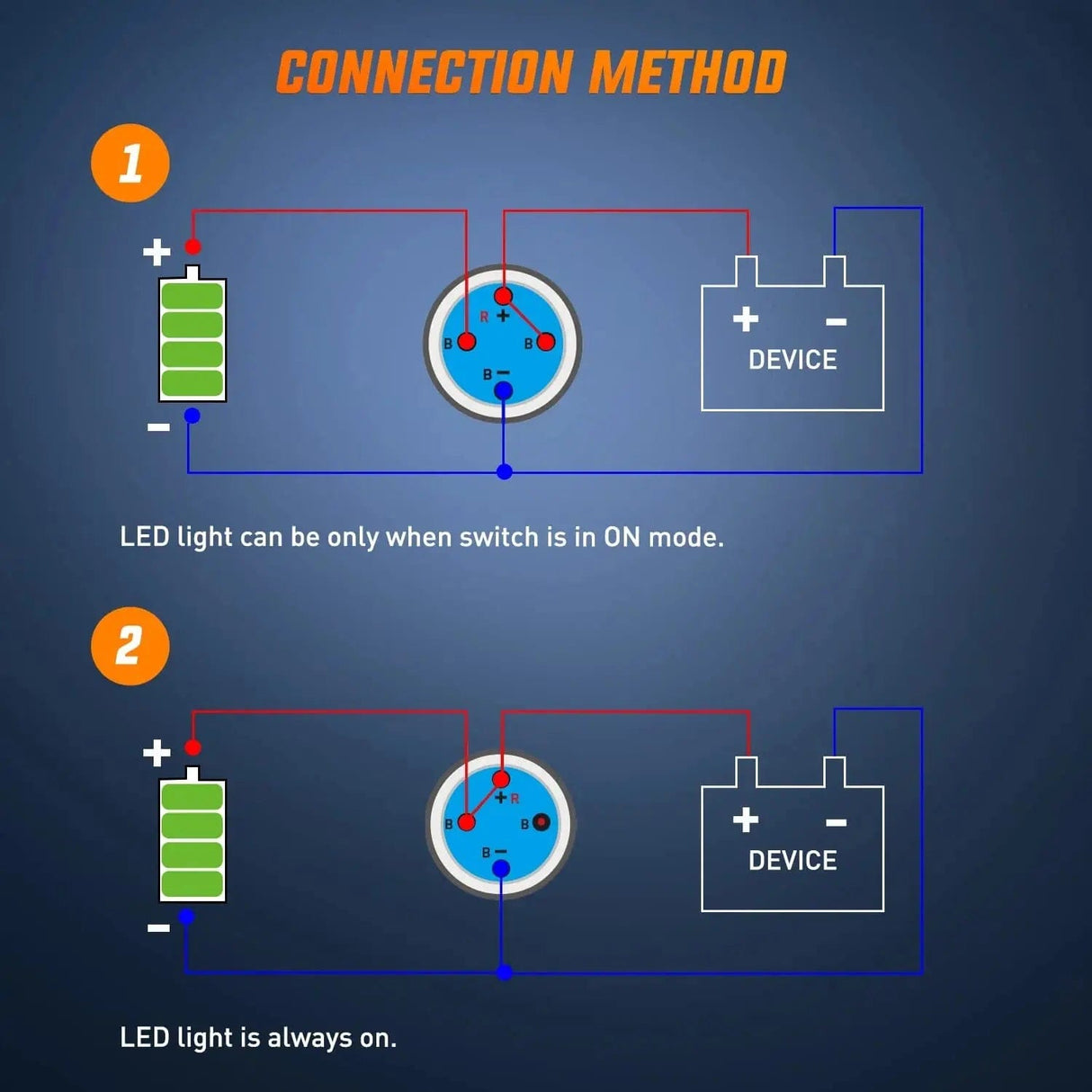

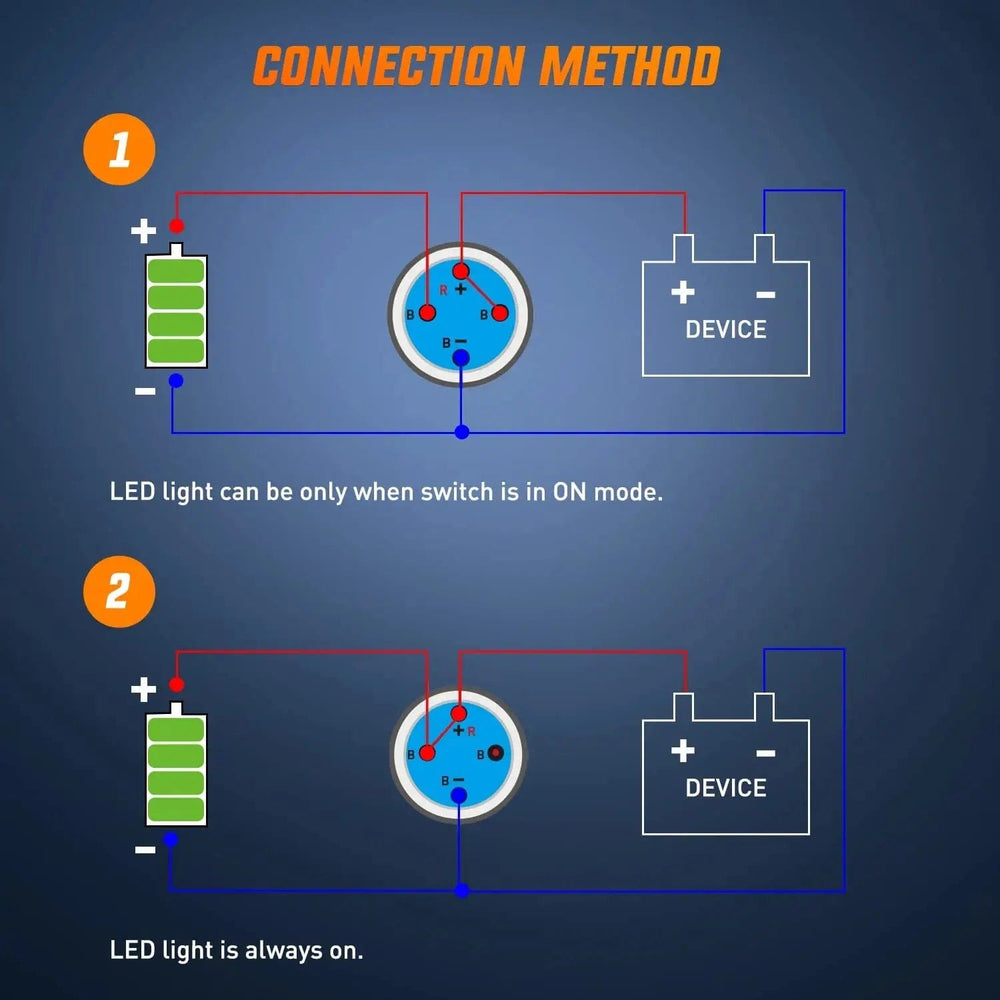

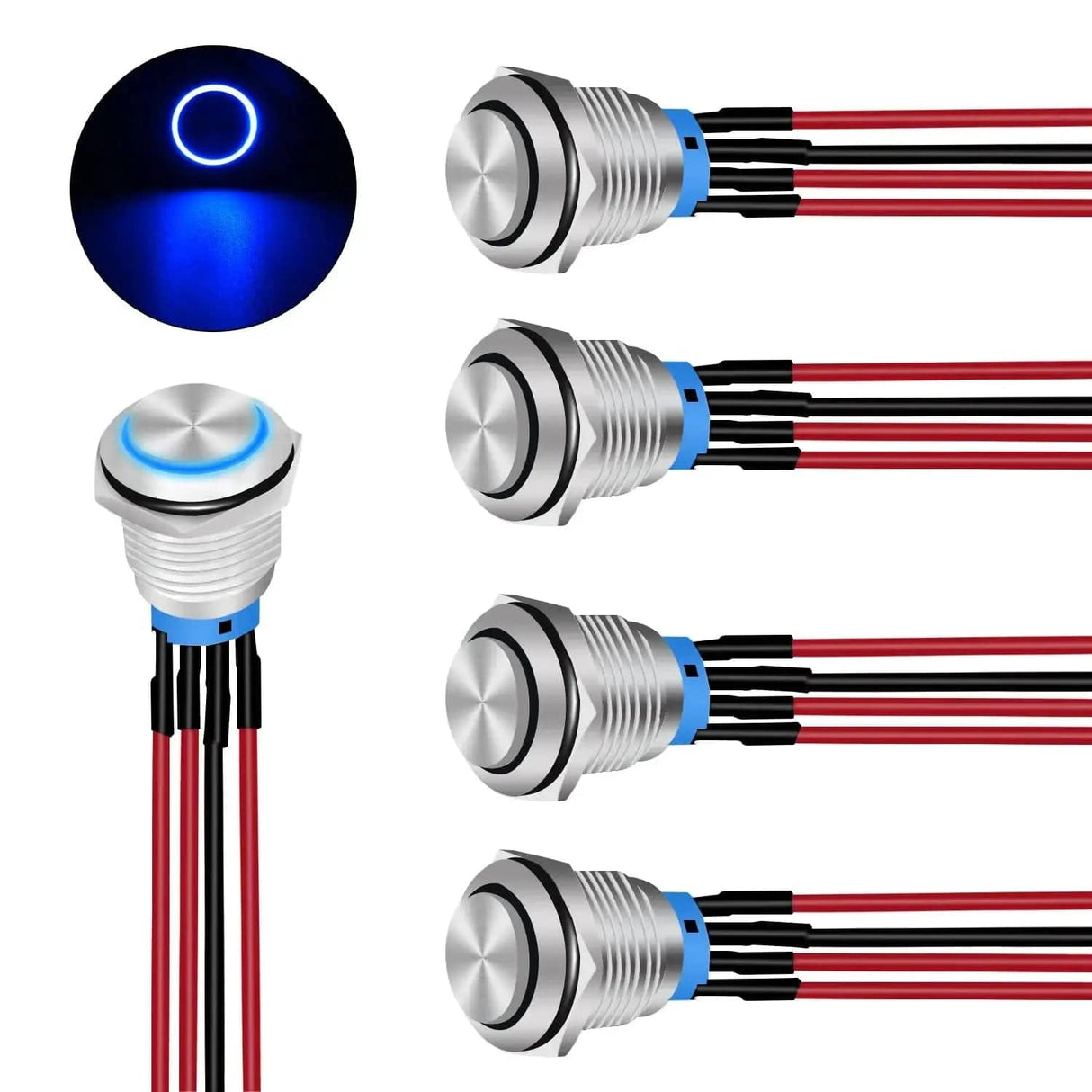

- Package Includes: 5 x 16mm 12V SPDT latching push button switch with 8inch wiring harness, a wiring diagram. Great for motorized vehicles of motor starting, power starting devices and can also be an access control button
Features
Pre-Wired SPDT Self-Locking Switch
- SPDT: ON-OFF
- Type: 2 pole design (On/Off), 3rd poles with LED
- Input: 12V, 20A

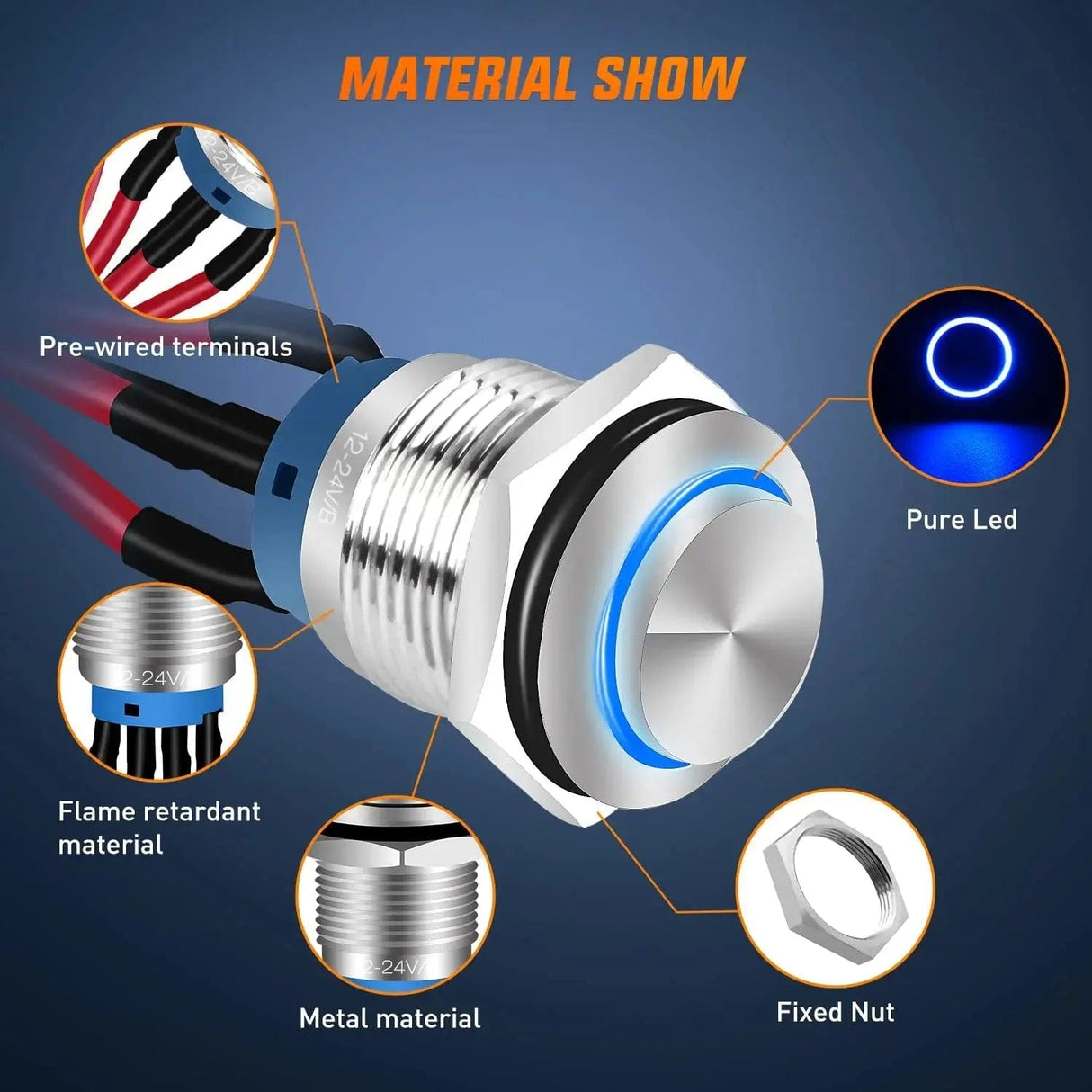

- Material: Metal+Flame retardant material
- Wiring harness: 8inch
With pre-soldered cable, convenient for wire connection, no need connector socket. Lifetime can up to 500,000 cycles, durable and antirust.
This self-locking push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.

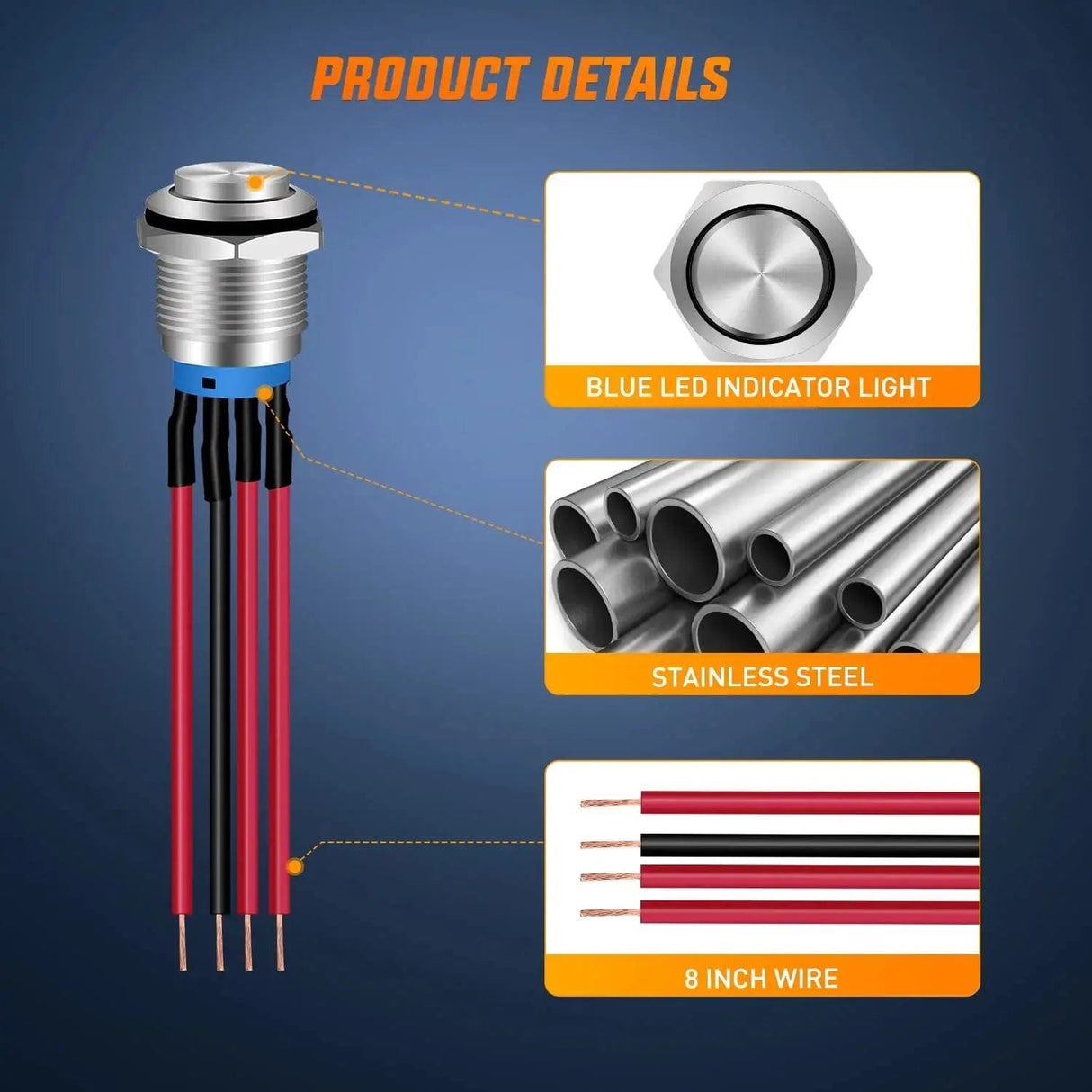

Blue LED indicator will be illuminated when the switch is turned on When the switch is turned on, the light is also turned on; Switch off, light off
Round latching switch with screw clamp type terminals to make fitting easily,multi-type wire connection. Lifetime can up to 500,000 cycles,
Product Specification
Product Specification
Features & Specs
| Operation Mode | ON-OFF |
|---|---|
| Current Rating | 1 Amps |
| Operating Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Connector Type | Plug In |
| Switch Type | Push Button |
| Terminal | Solder |
| Circuit Type | 1-way |
| Mounting Type | Through Hole Mount |
| Actuator Type | push button switch |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| Controller Type | Push Button, Ring |
| Control Method | Touch |
| Connectivity Protocol | X-10 |
| Wattage | 1000 Milliwatts |
Additional details
| Color | 5Pcs 16mm Switch |
|---|
Measurements
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
|---|---|
| Unit Count | 1.0 Count |
| Number of Items | 1 |
Materials & Care
| Material Type | Stainless Steel |
|---|---|
| Contact Material | Copper |
User guide
| International Protection Rating | IP67 |
|---|---|
| Specification Met | CE |
Item details
| Brand Name | Nilight |
|---|---|
| Model | 90253B-A |
| Manufacturer | Nilight |
| UPC | 840323901611 |
| Part Number | 90253B-A |
| Included Components | 5PCS Push Button Switch with pre-wired harness |
