16mm RGB Toggle Switch 3Pcs

About this item

• RGB Indicator Light ON OFF Switch: Nilight on/off switch with RGB indicator light is 7 pin ON OFF SPST design (single pole single throw), high brightness, good color rendering and soft light, which is conducive to the operation at night. ON OFF marked on the button, with 5A 12V/24V DC Rating. Lifetime can up to 500,000 cycles, durable and antirust.
• Function: This lighted toggle switch contains a 12-24V RGB (Red, Green, Blue) triple LED and enables a higher level of customized light styles. For example, you can choose one of colors such as red to when switches off; then when switch on, the red color can switch to another color such as blue. Come with 3 sets of wires included, you can connect the Round Rocker Switch to device more conveniently.
• Safety Protection: This truck rocker switch control uses copper-plated silver contacts, has good electrical conductivity, and uses high-quality materials and flame-retardant casing for high safety. IP67 Waterproof toggle switch is protected against dust and low-pressure water jets, can work greatly even wet by rain or splashed water outdoors and indoors.
• Widely Application: Our switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment. It is widely used to control LEDs and circuits on Car, RV, Marine Boats, Trucks, Households, Coffee Machine, Industrial Equipment and Medical Equipment. Can also use these on water dispenser, running machine, electromobile and other household appliances modification

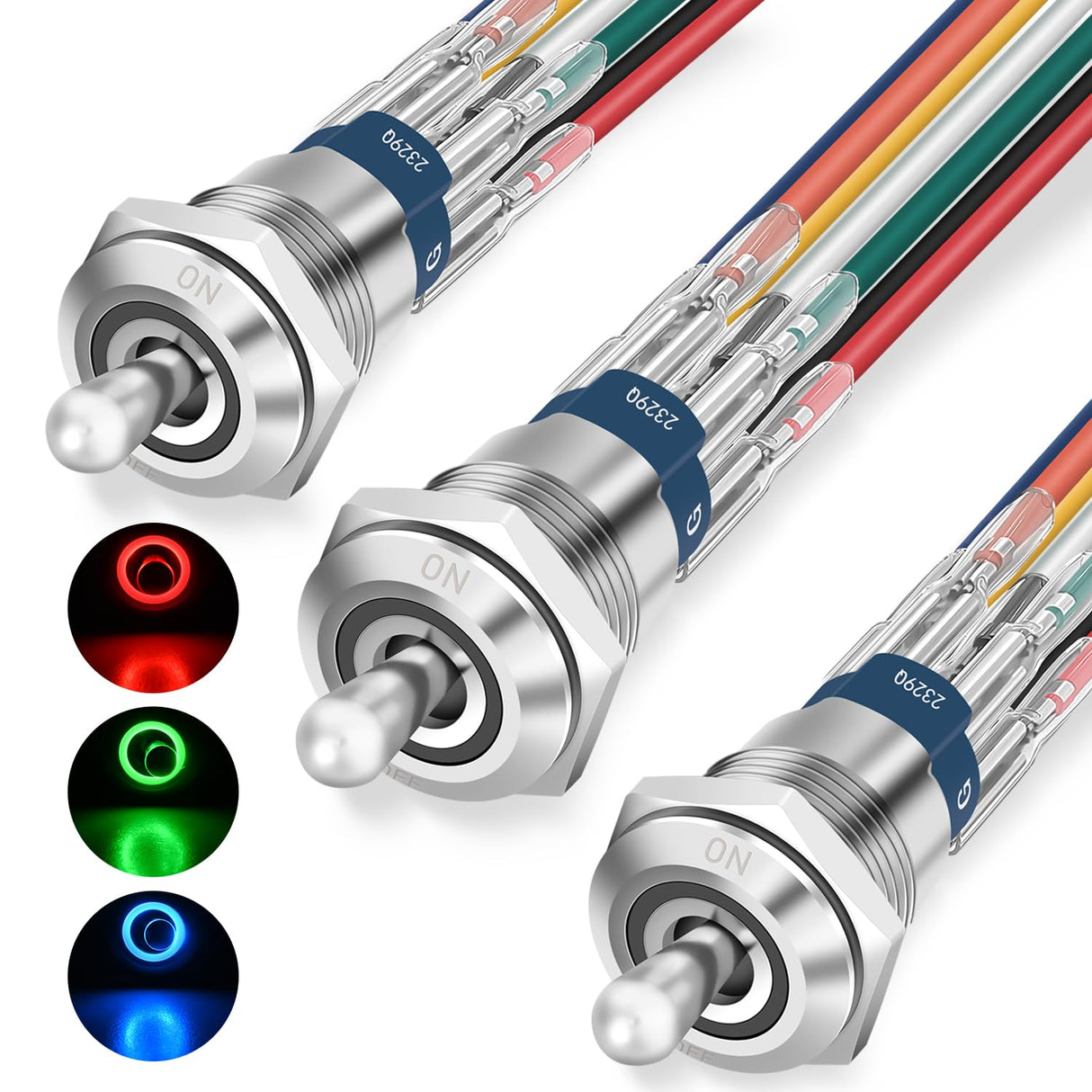

• Package Includes: 3 x RGB LED Lighted ON OFF rocker switches, 21 x Connecting wires including red green blue black white yellow orange , 1x user manual, 2 Year Warranty by Nilight

7 pin ON OFF SPST design (single pole single throw), high brightness, good color rendering and soft light, which is conducive to the operation at night. ON OFF marked on the button, with 5A 12V/24V DC Rating.

Features

7 pin ON OFF SPST switch

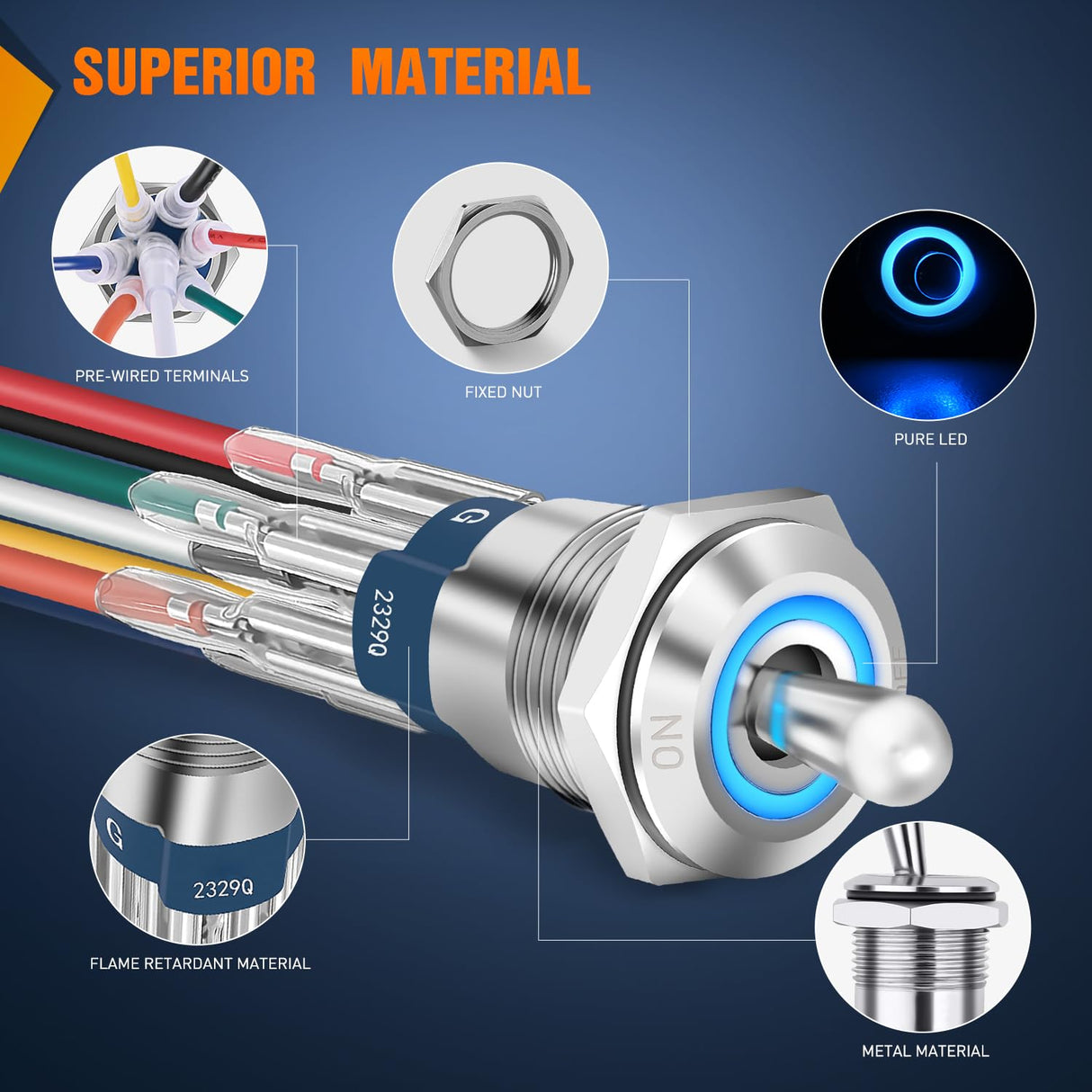

This truck rocker switch control uses copper-plated silver contacts, has good electrical conductivity, Smooth feeling, Reliable Quality.

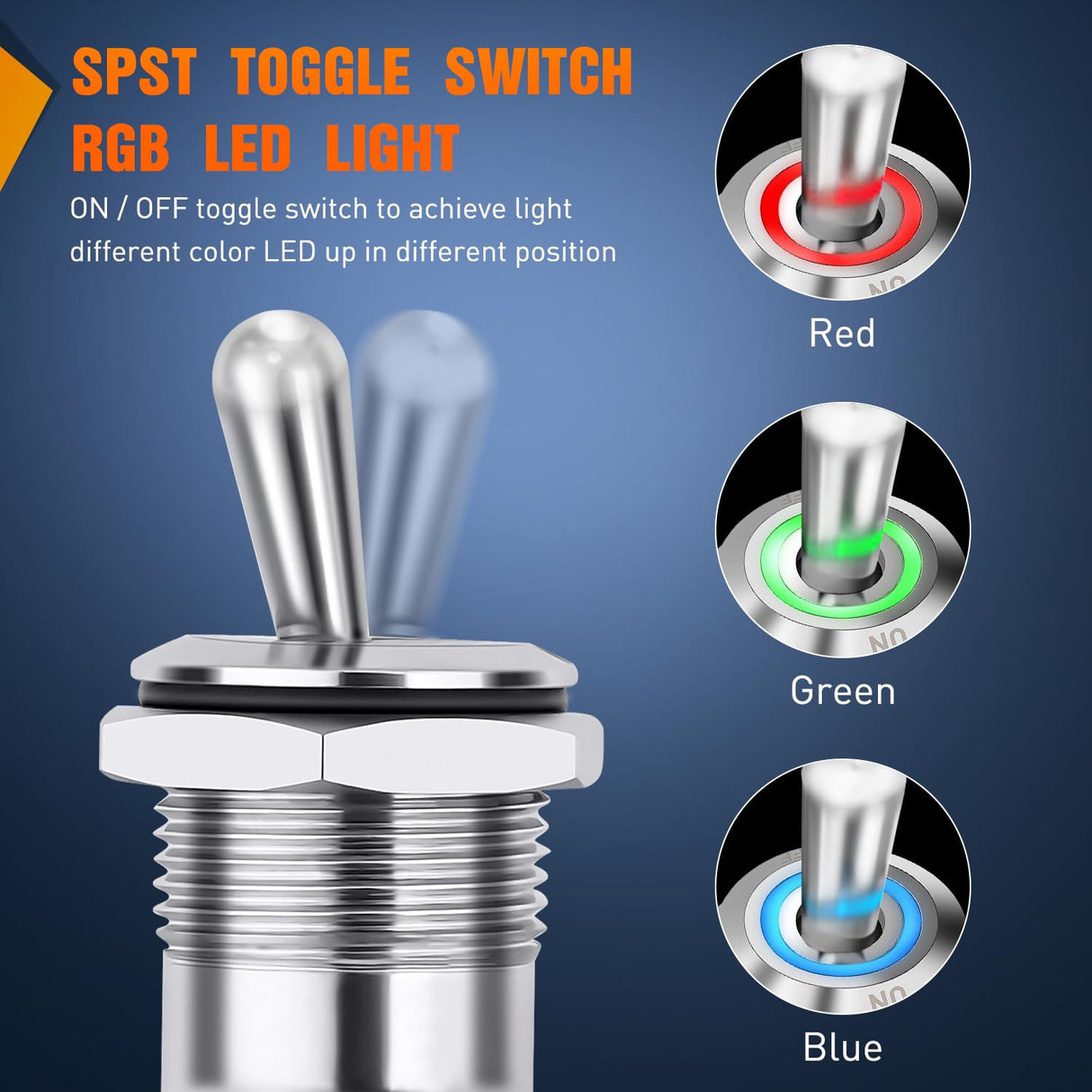

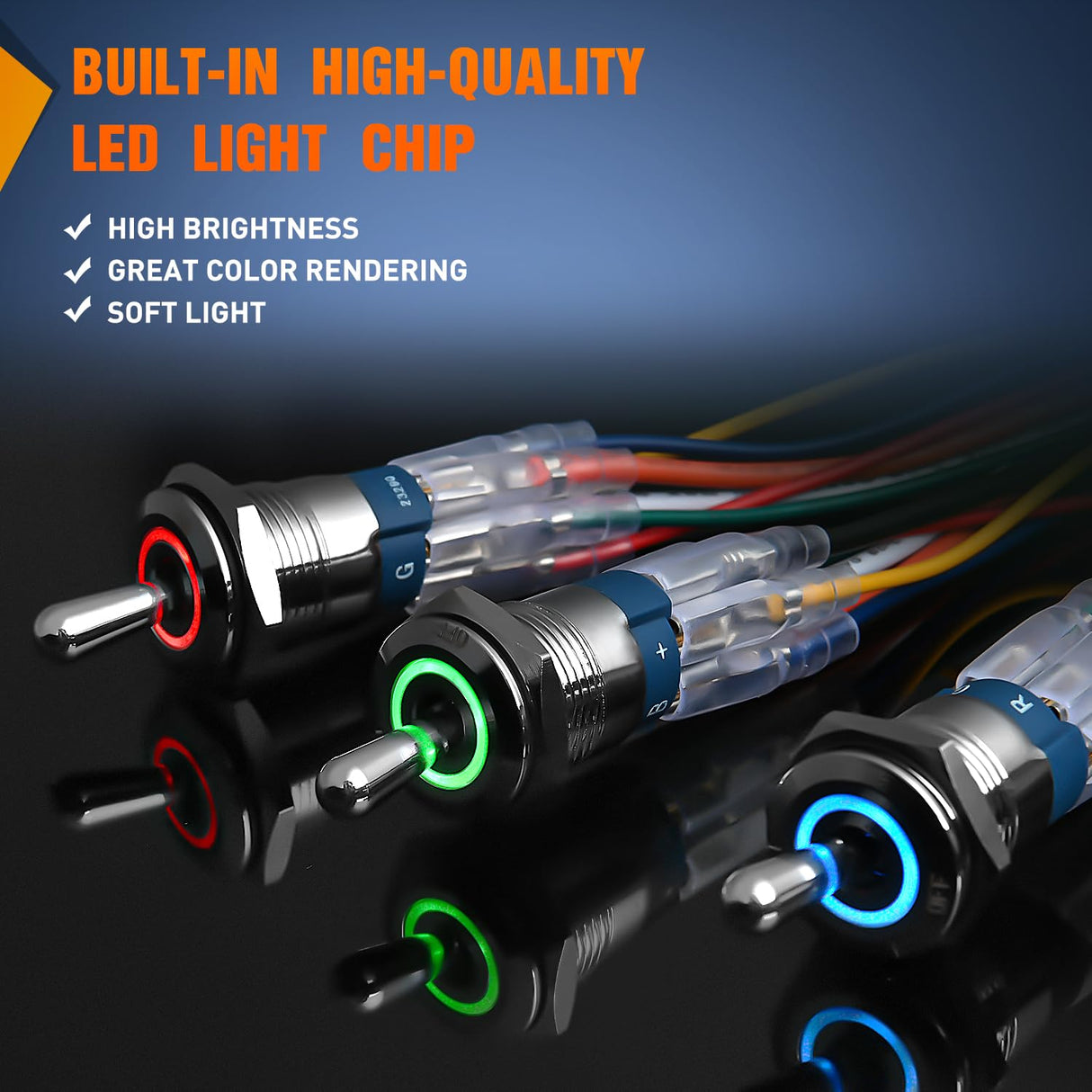

RGB Indicator Light

This lighted toggle switch contains a 12-24V RGB (Red, Green, Blue) triple LED and enables a higher level of customized light styles.

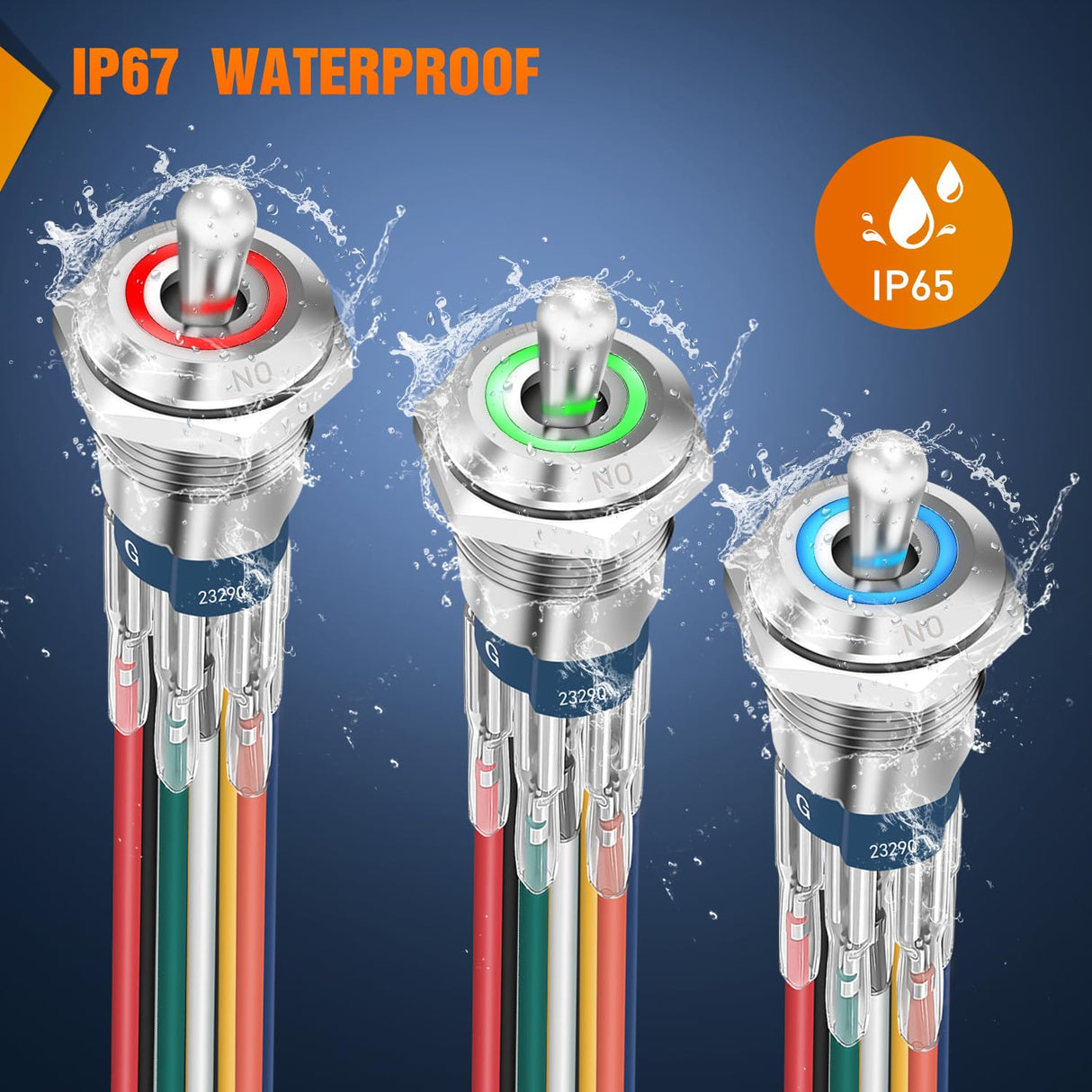

IP65 Waterproof Rating

This rocker switch is fully sealed to prevent water from flowing in. can be used in a wet environment, which can be used outdoor and rainy day.

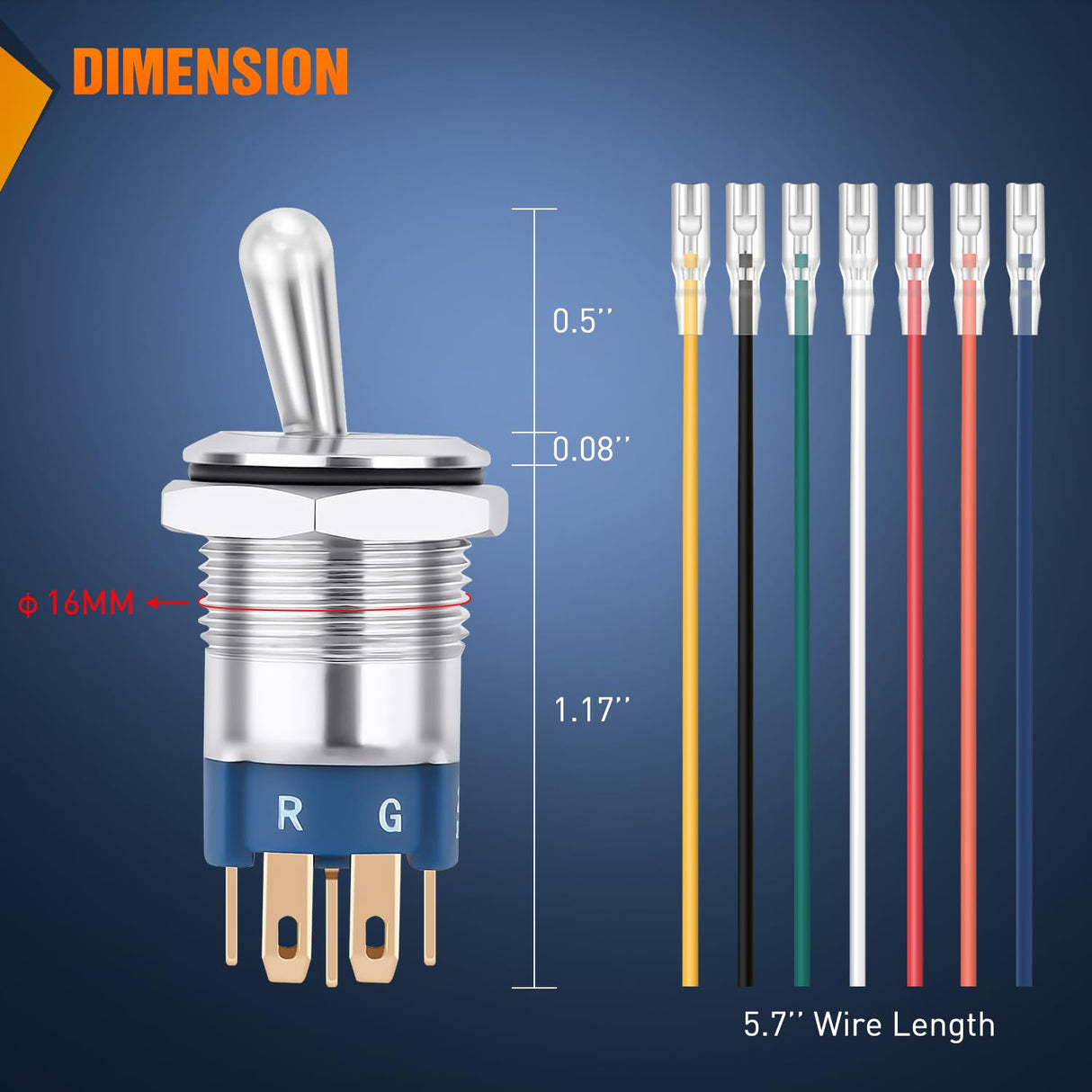

16MM Compact rocker switch

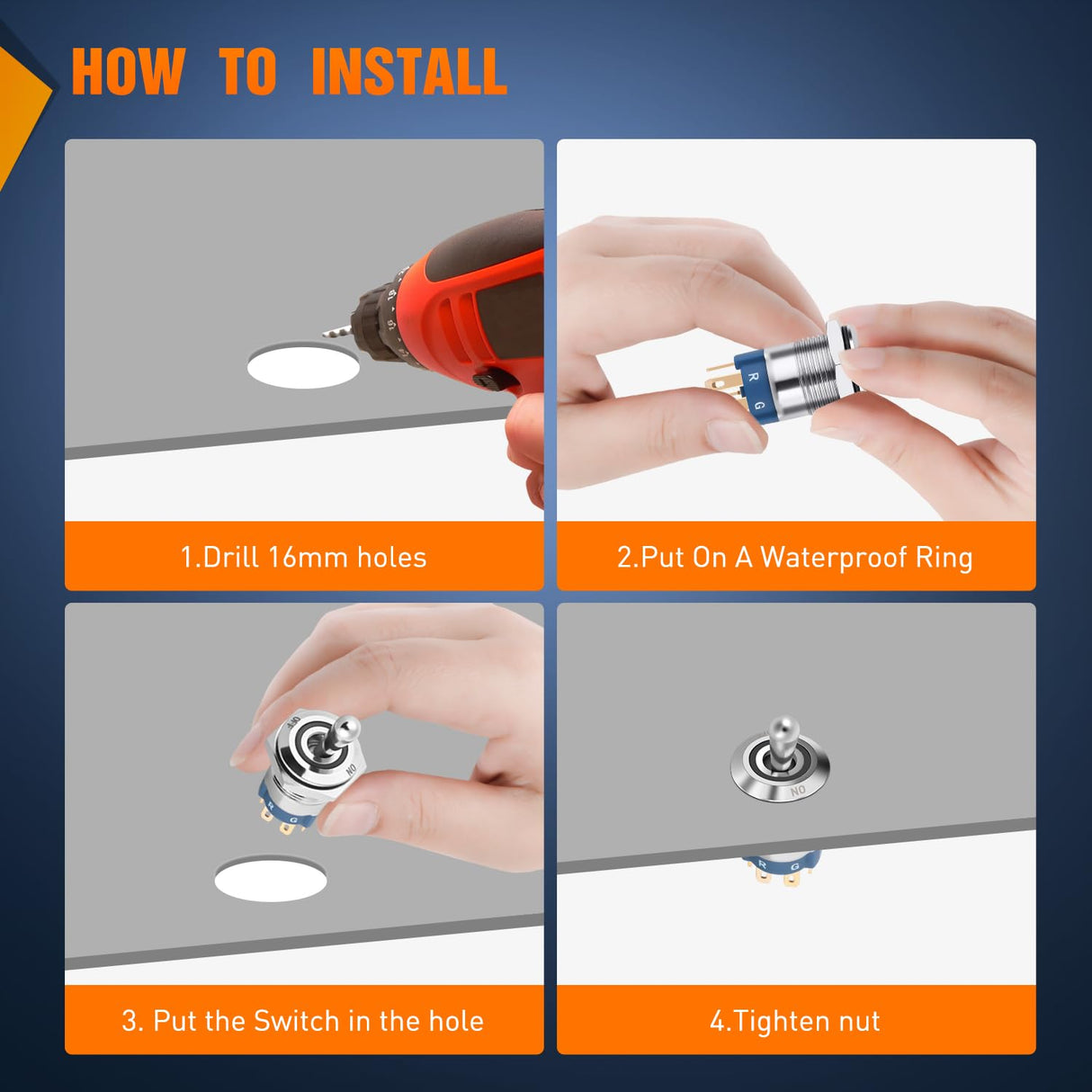

The diameter of mounting hole is 16mm, it is a compact and convenient switch. Lifetime can up to 500,000 cycles, durable and antirust.

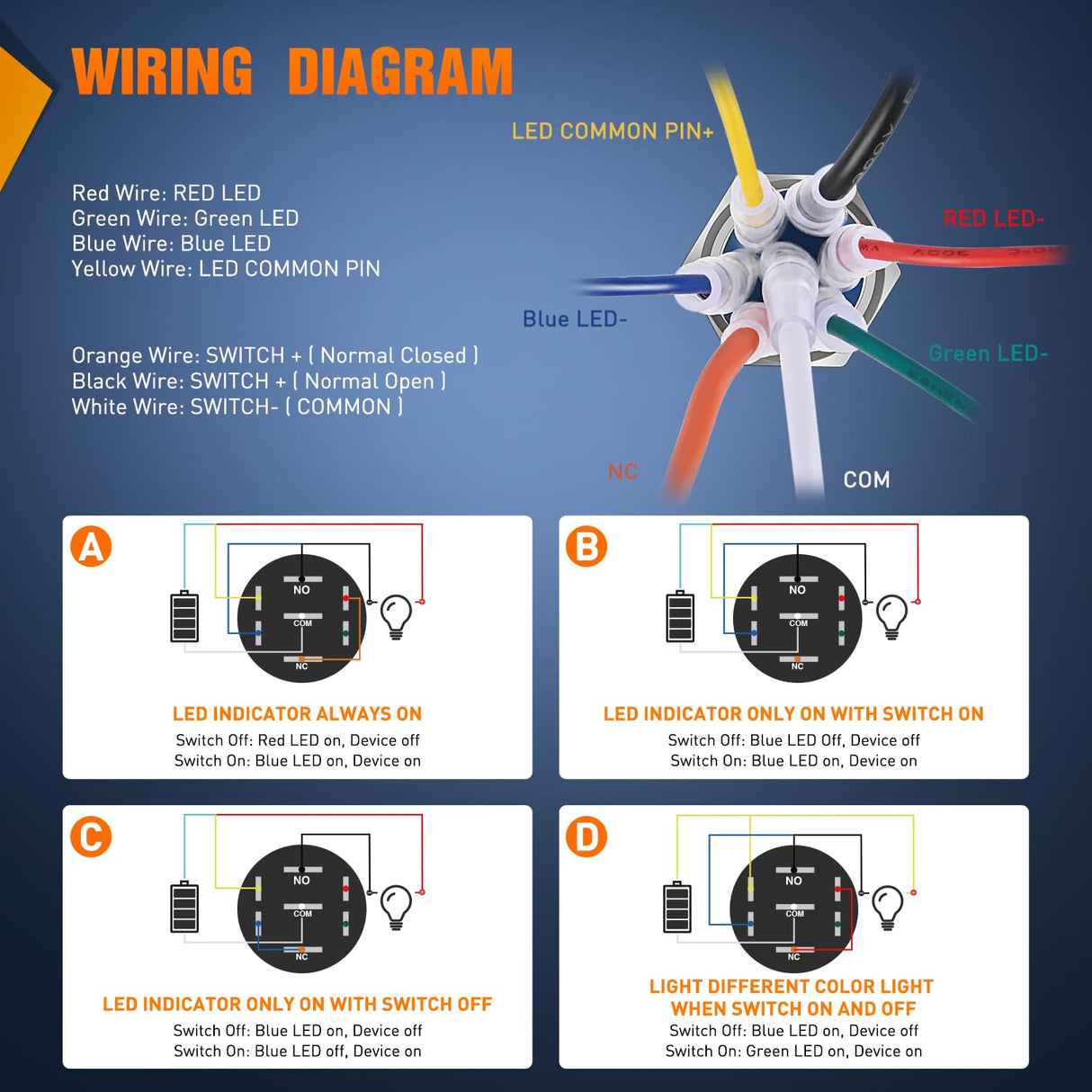

Wiring ways

LED Indicator Always On

Switch Off: Red LED on, Device off

Switch On: Blue LED on, Device on

LED Indicator Only on with Switch on

Switch Off: Blue LED Off, Device off

Switch On: Blue LED on, Device on

LED Indicator Only on with Switch Off

Switch Off: Blue LED on, Device off

Switch On: Blue LED off, Device on

Light Different Color Light when Switch ON and OFF

Switch Off: Blue LED on, Device off

Switch On: Green LED on, Device on
