About this item
Easy to install and use: 5 pins on-off rocker switch with SPST design (single pole single Throw), simple installation, freely turn on or off the light.
Cool illuminated light: Built-in two premium LEDs Emit soft light to illuminate the patterns, easy for you to find the switch in the dark.
Sturdy and durable: Made of high-quality plastic and well-conductive pins; laser-etched pattern, not easy to fade away.
Wide application: Available for controlling LED light bars, LED work lights, fog lamps, driving lights, headlights, taillights, off-road lights, etc.

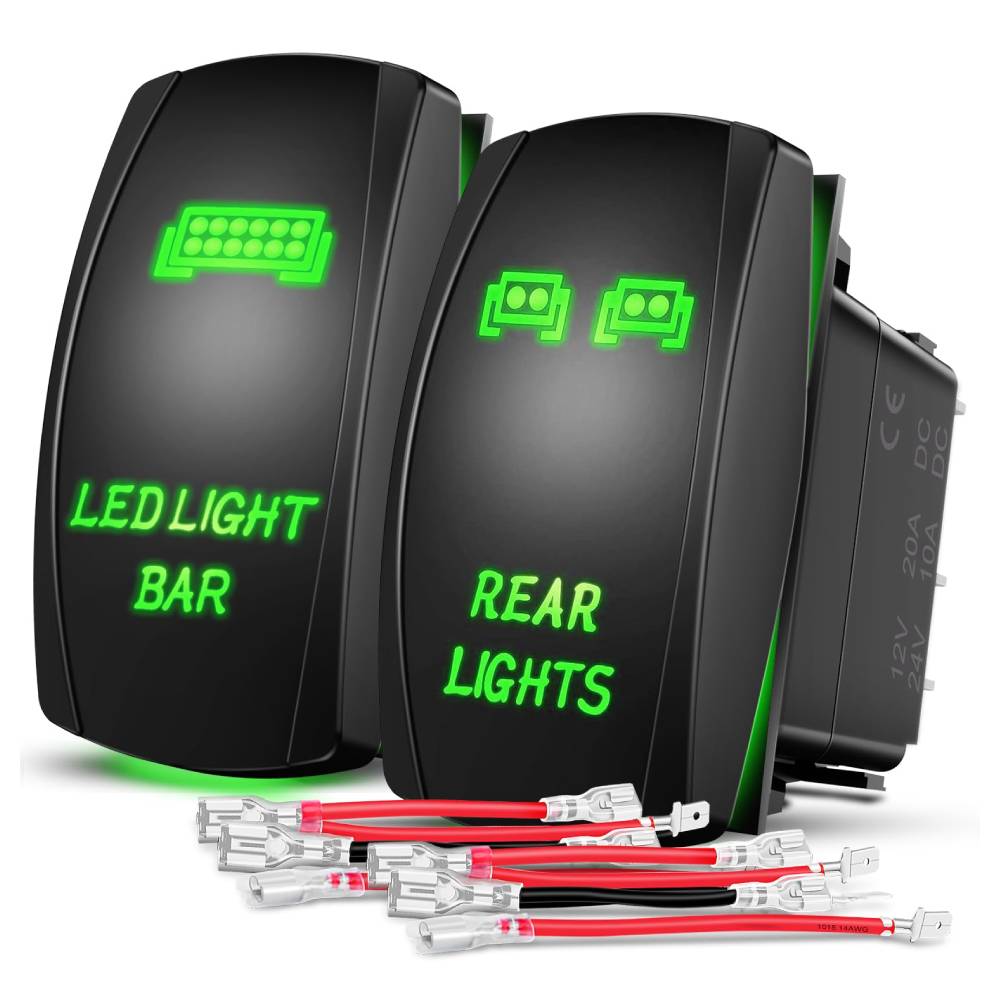

Package includes: 1 x 5 pin Rear Lights Rocker Switch, 1 x 5 pin LED Light Bar Rocker Switch, 2 x jumper wires set, A wiring diagrams.
Rocker Switch with Jumper Wires Set

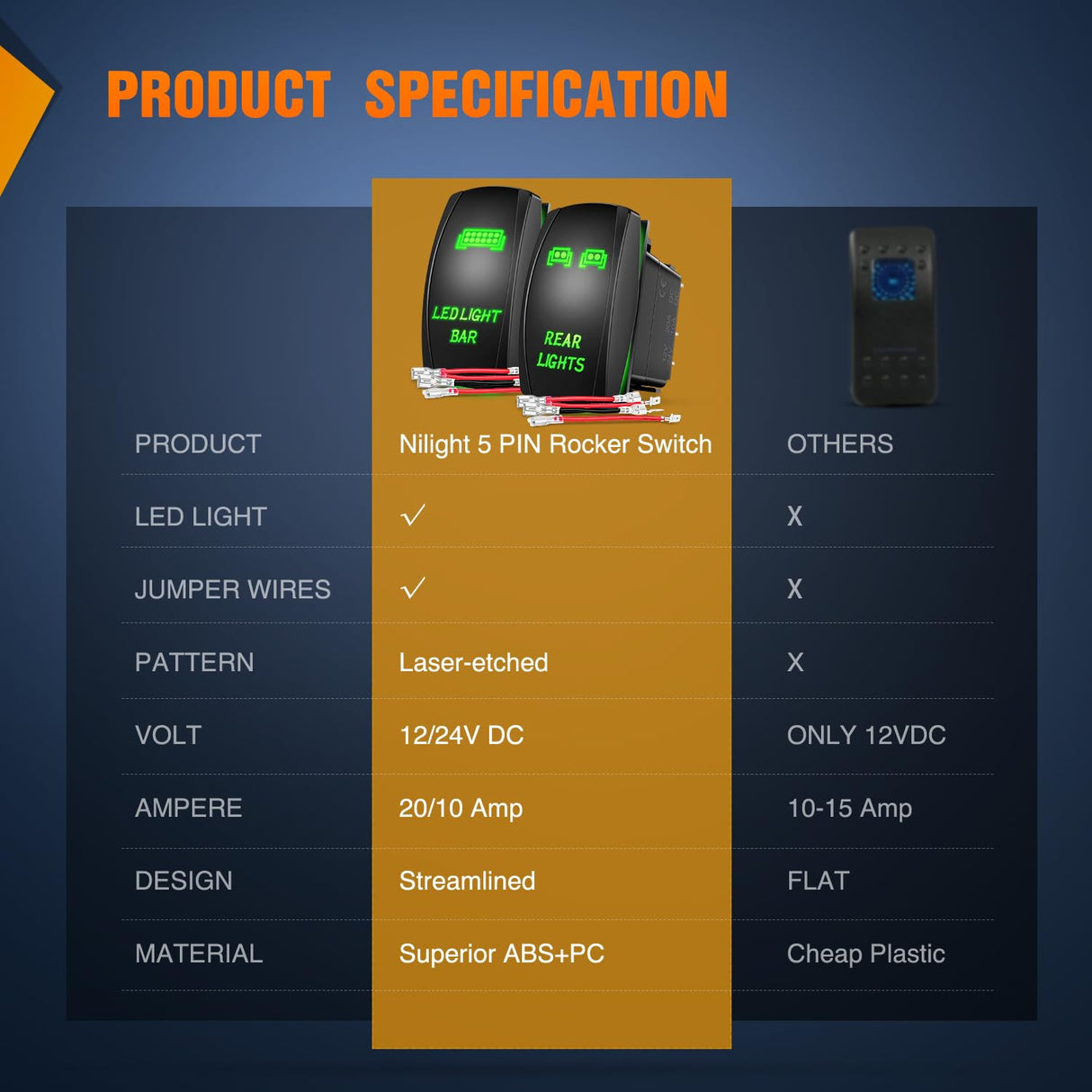

Material: Superior ABS+PC; Rated at 12V 20A and 24V 10A DC.
SPST design (Single Pole Single Throw); Built-in 2 LEDs, laser-etched pattern.

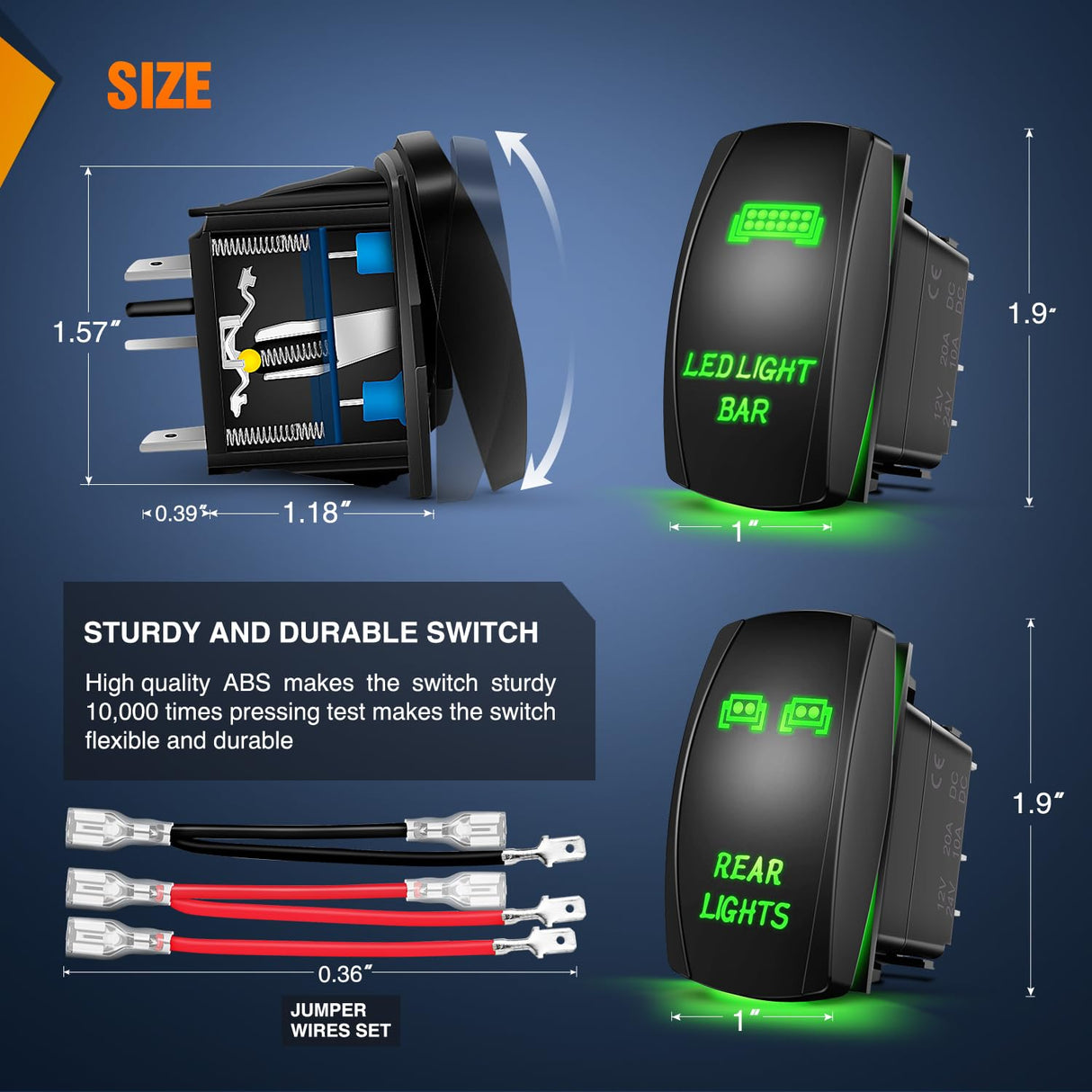

Mounting Hole Size: 1.43in(37mm) x 0.84in(21.3mm).

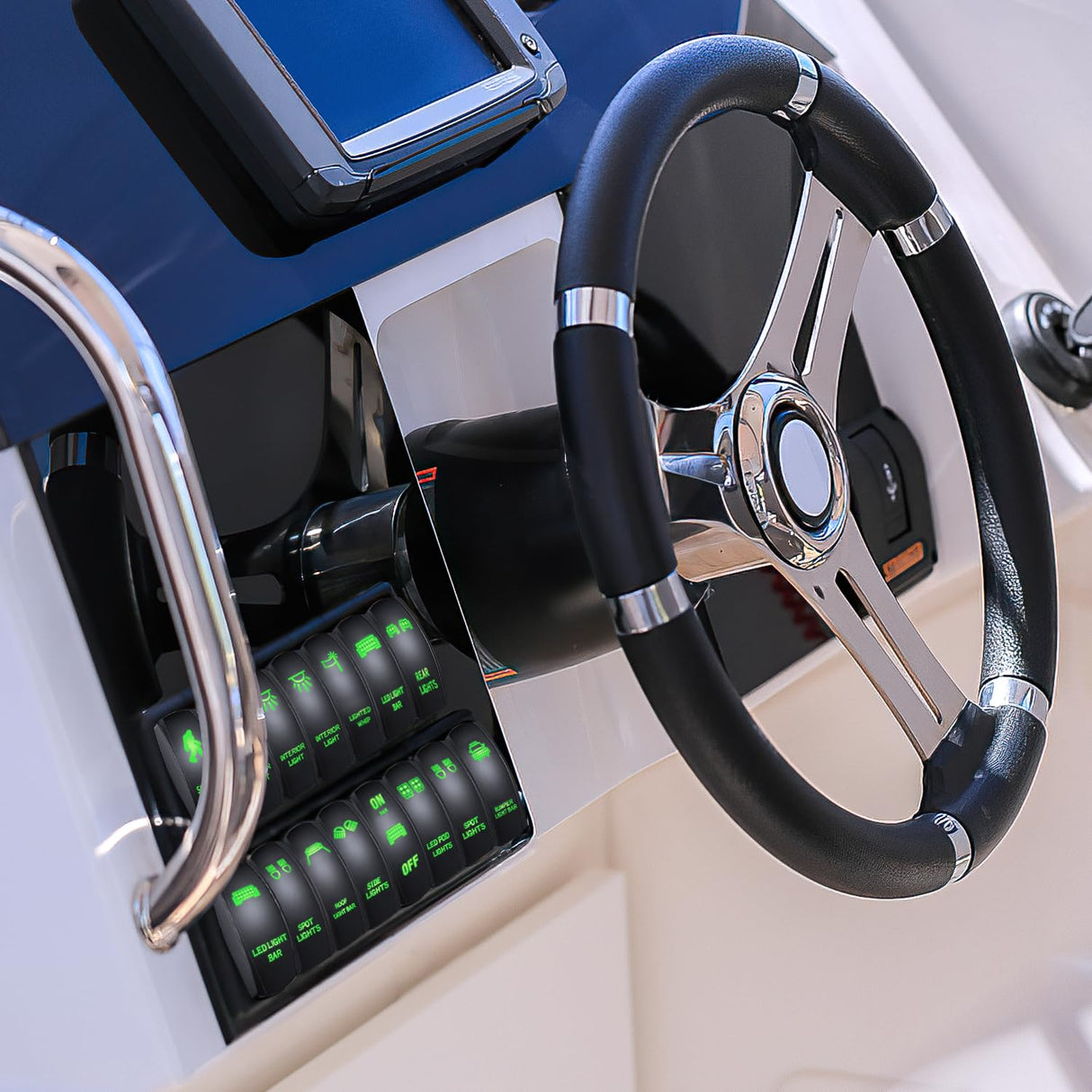

Application:Â Fits for most cars, SUV, ATV, UTV, 4X4, motorcycle, truck, Jeep Wrangler, boat, yacht, and other off-road vehicles.
It can be used for controlling LED light bar, LED work lights, fog lamps, driving lights, headlights, taillights, off road lights, boat light, etc.
Feature
Durable In Use
The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.
Easy Installation

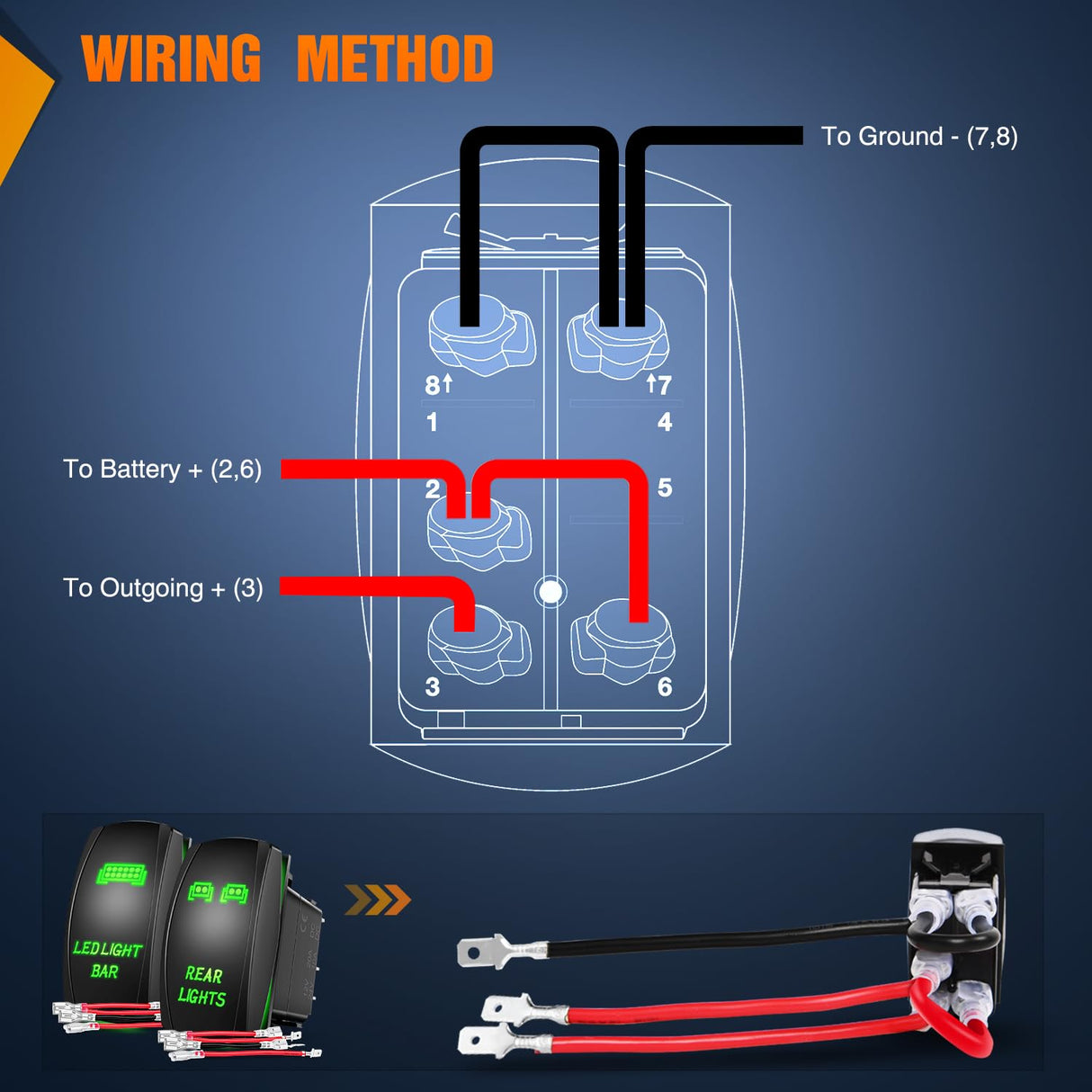

This switch is simple to install, product comes with a wiring diagram which makes it easy to wire the jumper wires in two seconds.

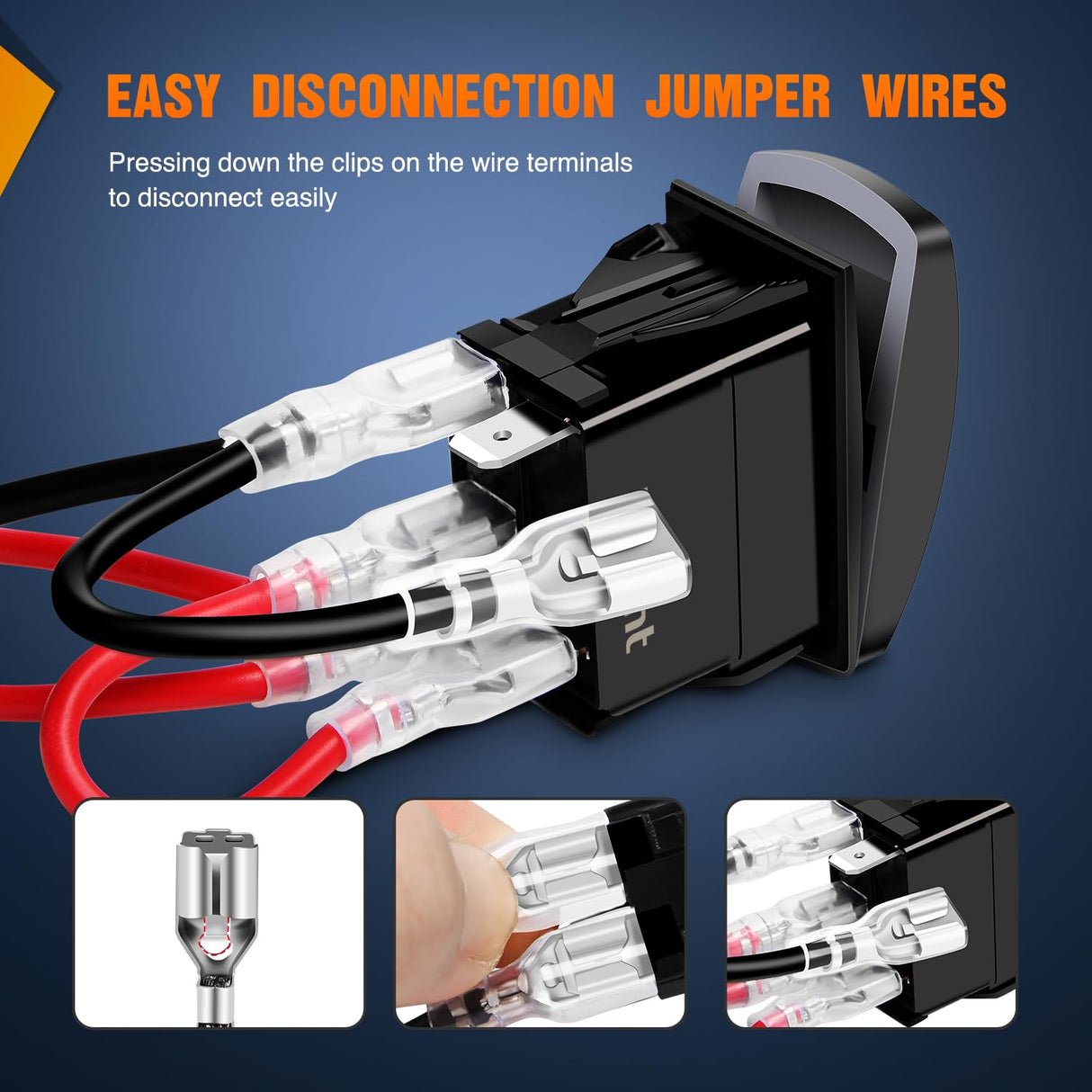

Premium Jumper Wires
The jumper wires are made of high-quality 14 gauge wires.
The Tin-plated copper terminals on the wire are of good stability, wear resistance, and corrosion resistance, which improves the oxidation resistance of copper and maintains its conductivity better.
Excellent Product
Made of ABS and PC of premium quality, the switch is impact and heat-resistant. all patterns are laser etched directly onto the switch surface to ensure long-lasting durability.

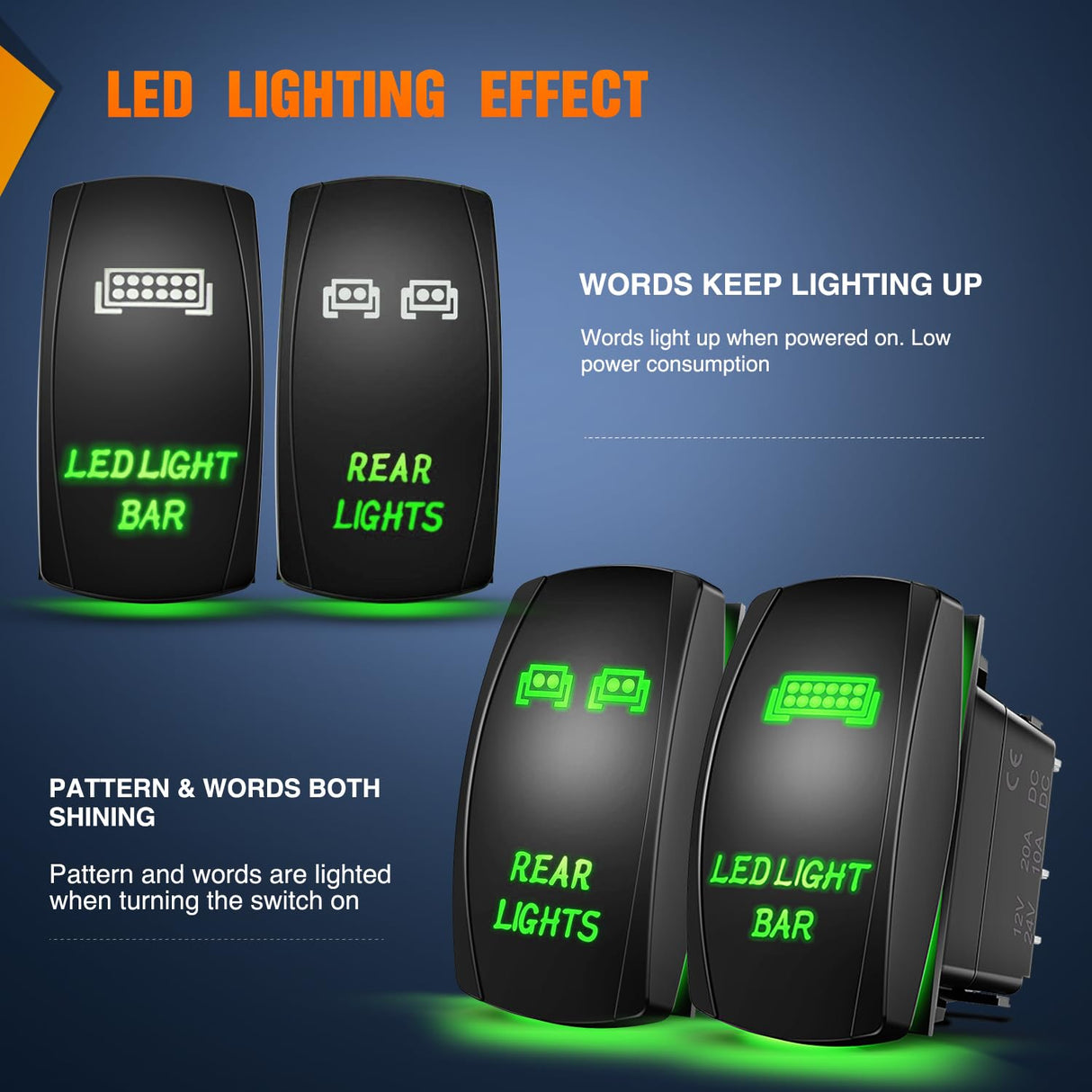

LED Lighting Effect
Backup Lights
The lower LED illuminates constantly even when the switch is OFF, easy to find in the dark.
No Backup Lights
The lower LED will illuminate only when the switch is turned to ON position.

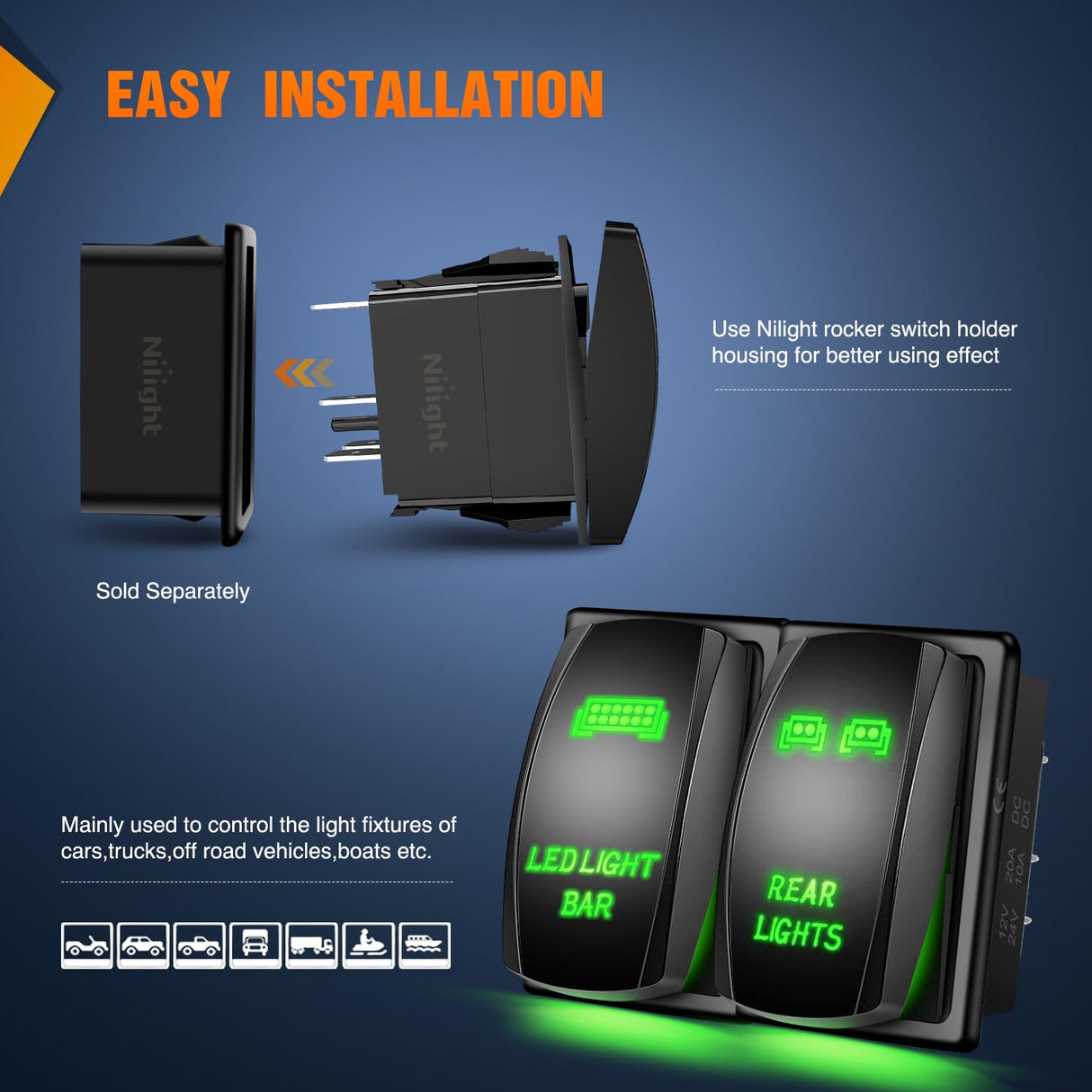

Easy Installation
Installation on switch holder
The 5 pin rocker switch can be installed on Nilight rocker switch holder housing for better using effect.
Installation on switch panel
It can also be replaced to any defective 5 PIN switches. Convenient and cost-effective.
