7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue Nilight
7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue Nilight
7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue Nilight
7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue Nilight
7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue Nilight
7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue Nilight
7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue Nilight

7Pin DPDT On/Off Arrows Polarity Reverse Rocker Switch Blue

$9.99
{price}% OFF
30 Days Returns

Nilight will accept returns for up to 30 days from the date of purchase. Please include all original items in your return shipment. Incomplete returns may not be eligible for a full refund. Returns within 30 days or purchase will receive a full refund for the purchase price of the product.

No returns will be accepted after 30 days. Nilight will provide a return shipping label upon request.

Non-contiguous US residents and International residents – including Alaska, Hawaii, Canada and Mexico – are responsible for return shipping charges. Refunds will be applied to the original payment method that was used. Refunds are generally issued within 5-10 business days of Nilight receiving all returned goods. Your bank may require additional processing time to reflect the refund in your account.

Prime Week Offer

12% OFF For All Items;

15% OFF For Orders Above $229;

18% OFF For Orders Above $399

Check All Categories >>

Free Delivery|Order in the next [hour] to get it between [date_start] and [date_end]
  • Lowest Price
    Guarantee

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Details

Reviews

Free Shipping

2024 Product Guide

About this item

Momentary Switch: Heavy duty DPDT reverse polarity switch resetting automatically (returns to off) when released. Controls the up/down, clockwise/counterclockwise motion of DC loads (e.g. motors, hoists, cranes, linear actuators etc.).

Dual Operation: This momentary electrical system switch is used for jogging or inching operations. A DPDT switch is equivalent to two SPDT switches. It routes two separate circuits. Connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which two contact can be routed. Always make sure you are using a switch and wire sufficient to handle the load you are carrying. In higher draw applications, a relay may be needed.

Wide range of application: Universal fit for all cars, RVs, SUVs, ATVs, UTVs, Cans, Buses, Marine boats, Yachts, Trailers, Jeeps, Prerunners, Campers, Caravans etc; Mainly used to control Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump or led light bar, led work lights, fog lamps, headlights, taillights and auxiliary lamps, etc.

Sturdy and durable: made of high-quality plastic and well-conductive pins; ensure long lasting durability, highly optimized for general use and will give you a pleasant experience.

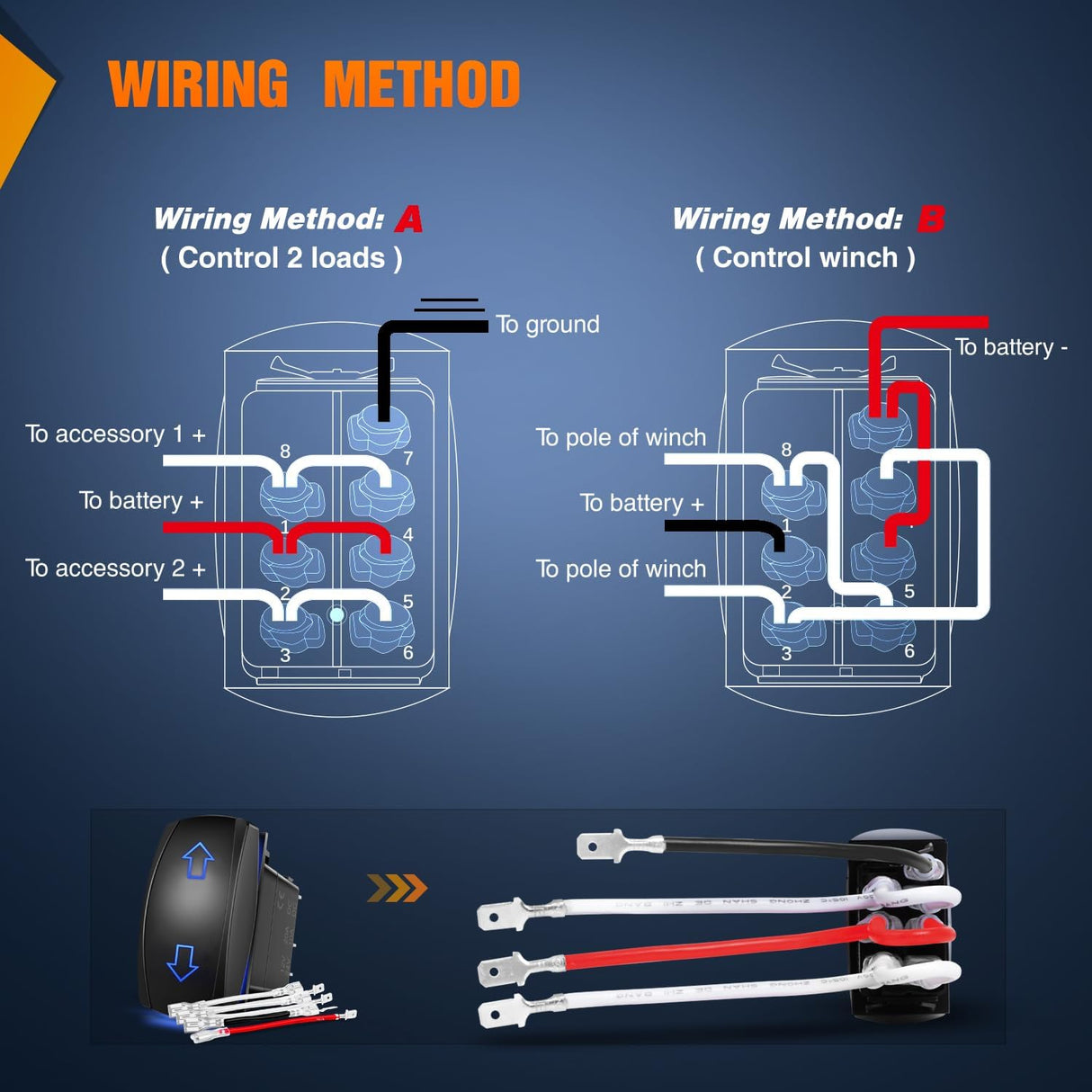

Package Includes: A 7 PIN switch, jumper wires set and a wiring diagram. 2 Year Warranty by Nilight.

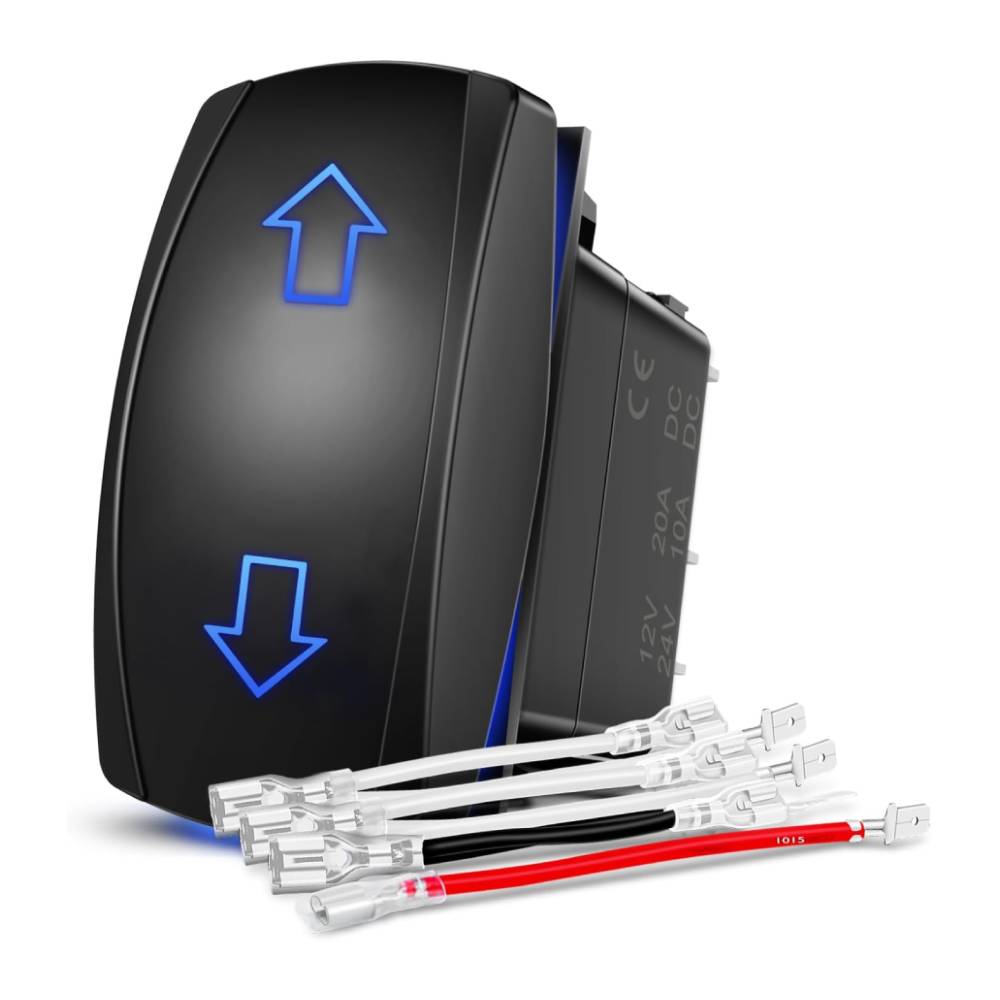

7 PIN Rocker Switch

7PIN (ON)-OFF-(ON ) rocker switch with 16 AWG jumper wires

Material: Superior ABS+PC; Rated at 12V 20A and 24V 10A DC.

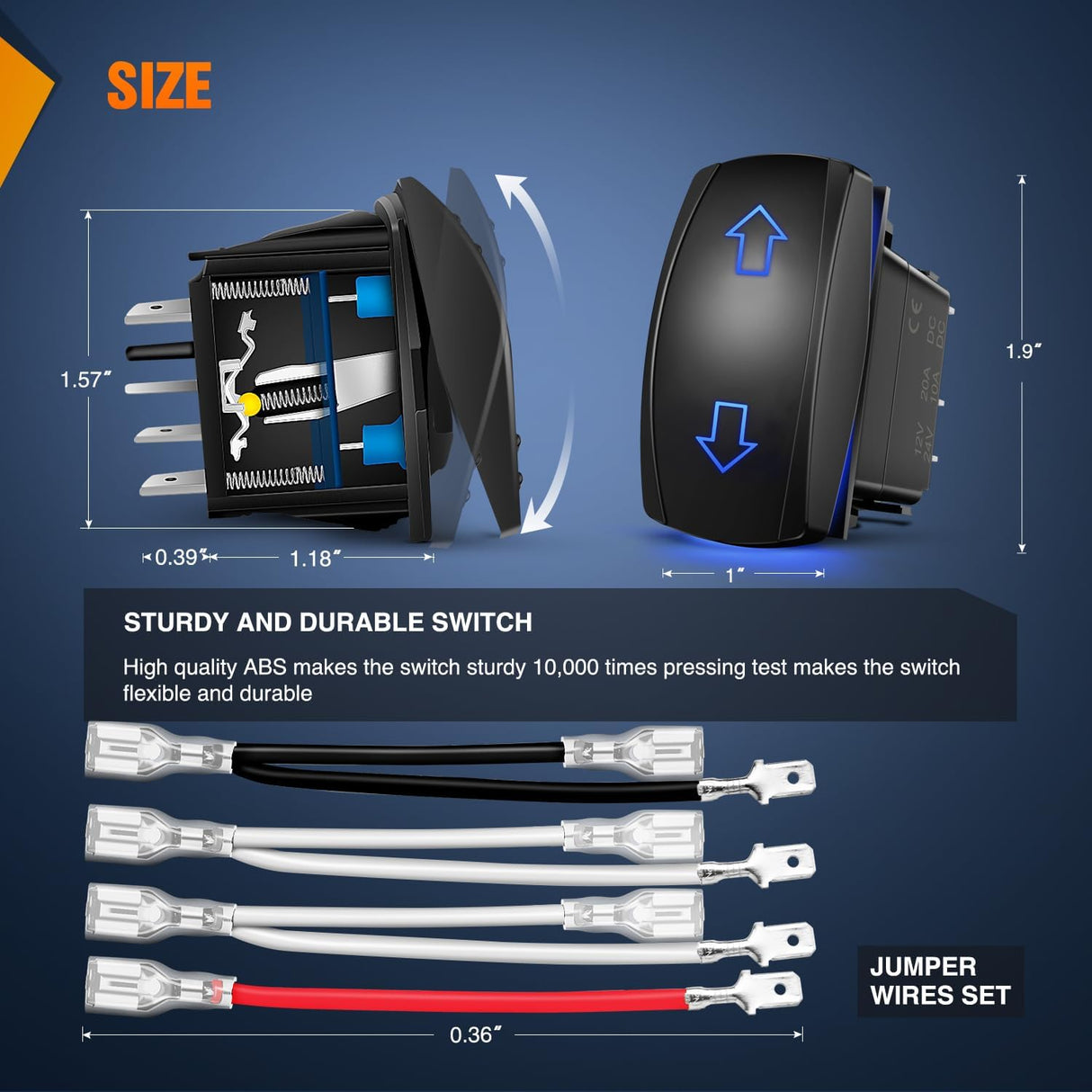

Mounting Hole Size: 1.43in(37mm) x 0.84in(21.3mm). DPDT design, can control 2 loads.

Fits most cars, SUVs, ATVs, UTVs, 4X4, motorcycles, trucks, Jeep Wranglers, boats, yachts, and other off-road vehicles.

Mainly used together with wiring harness to control the up/down, clockwise/counterclockwise motion of DC loads (e.g. motors, hoists, cranes, linear actuators etc.). Such as Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump etc.

Product Details

7 pin rocker switch

Non-Locking Design

The switch is very flexible for turning on or off. Automatic rebound when finger released. It can stand up to 10,000 times pressing under normal use.

7 pin rocker switch

Easy Installation

This switch is simple to install, product comes with a wiring diagram which make it easy to wire the jumper wires in two seconds.

7 pin rocker switch

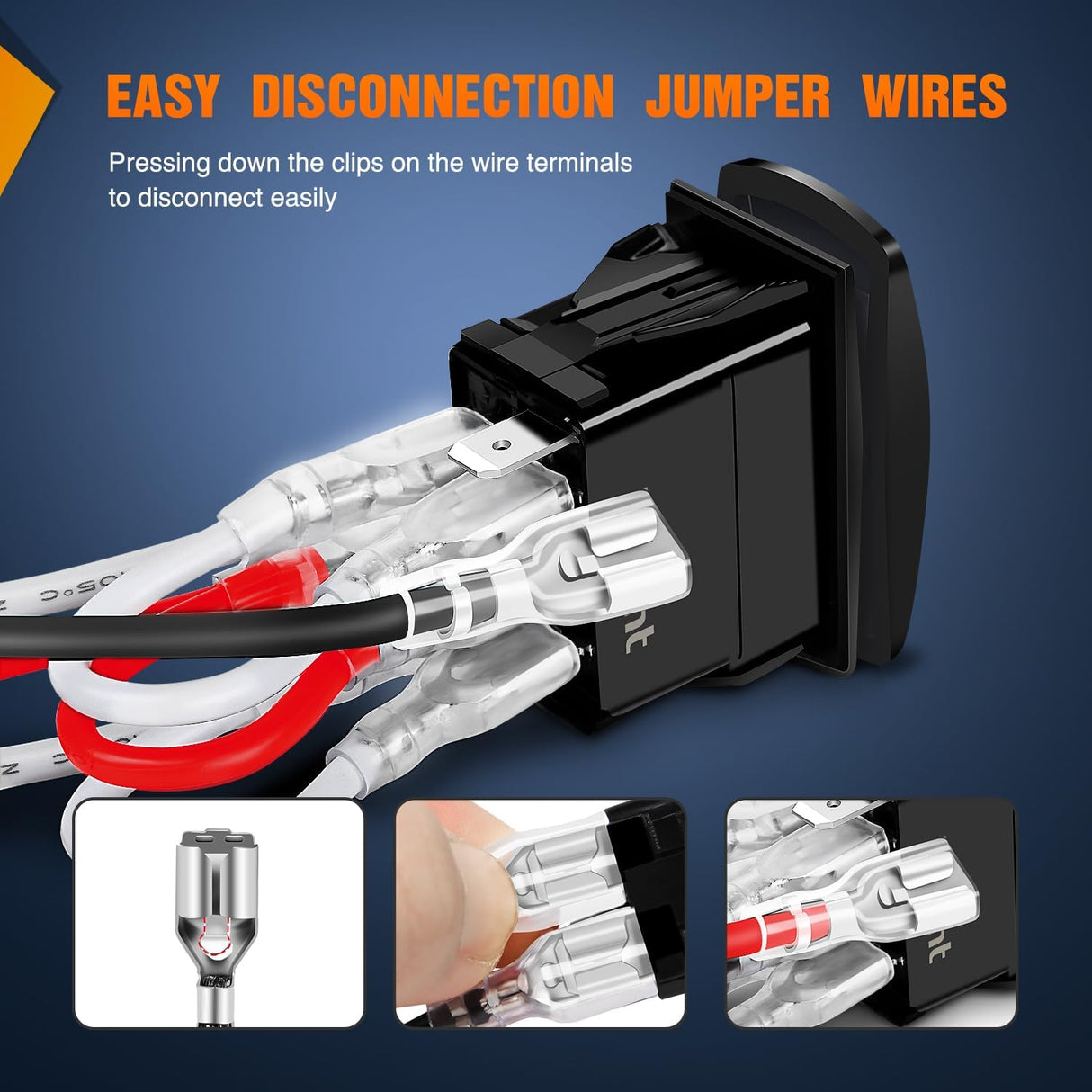

Premium Jumper Wires

The jumper wires are made of high-quality 14 gauge wires.

The Tin-plated copper terminals on the wire are of good stability, wear resistance, and corrosion resistance, which improves the oxidation resistance of copper and maintains its conductivity better.

7 pin rocker switch

Excellent Product

Made of ABS and PC of premium quality, the switch is impact and heat-resistant. all patterns are laser etched directly onto the switch surface to ensure long-lasting durability.

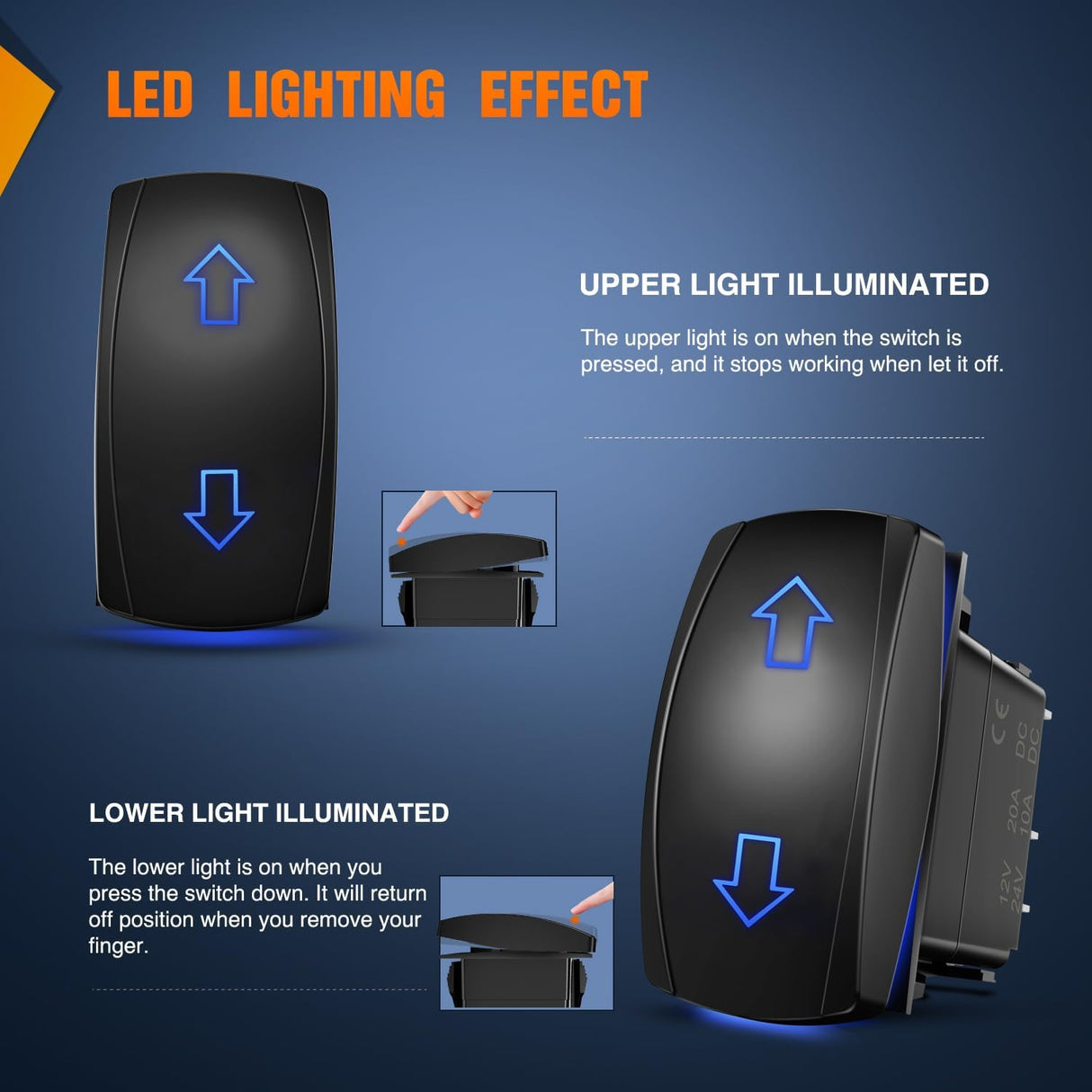

LED Lighting Effect

7 pin rocker switch

Upper LED Illuminated

The upper light is on when the switch is pressed, and it stops working when let it off.

7 pin rocker switch

Lower LED Illuminated

The lower light is on when you press the switch down, and it will return off position when you remove your finger.

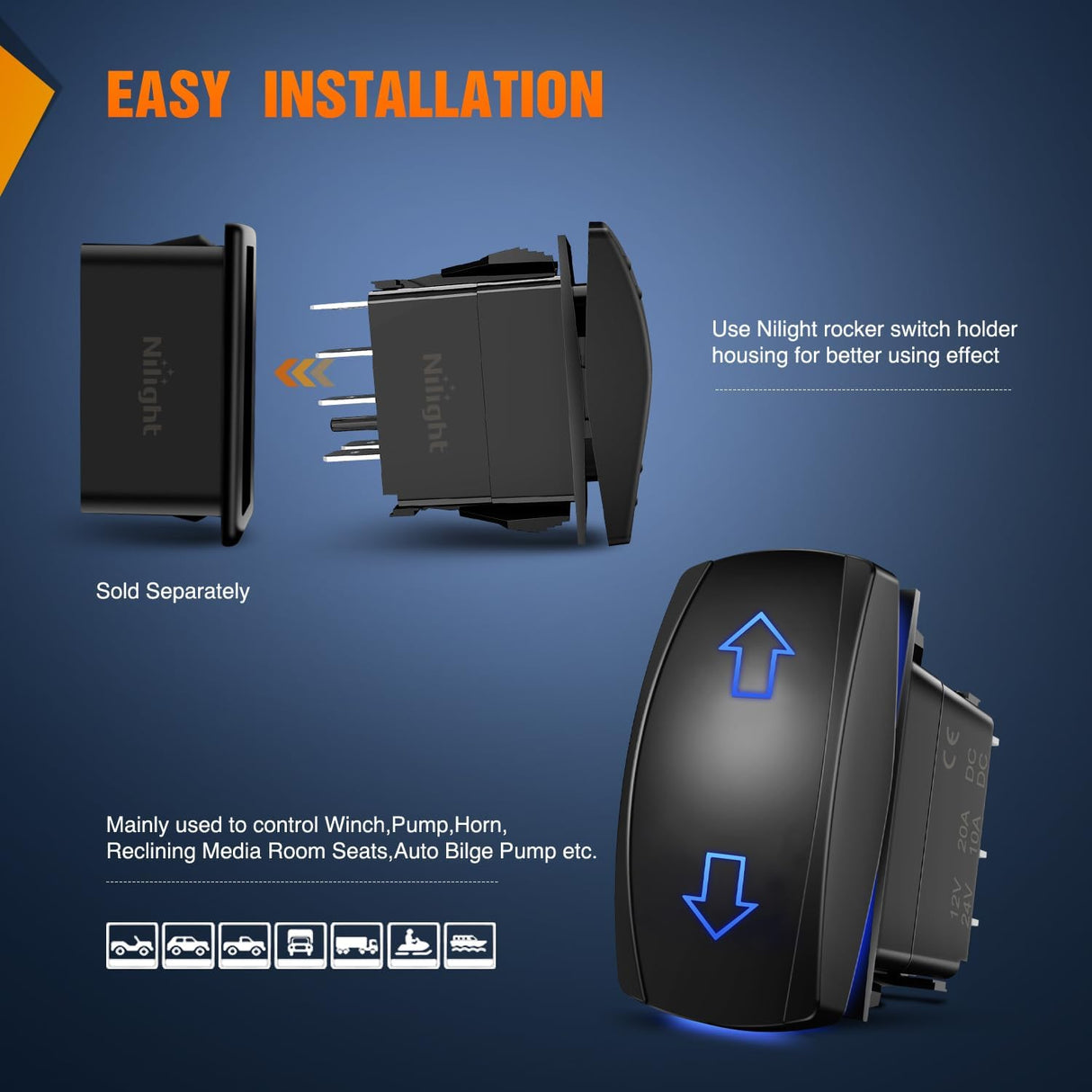

Easy Installation

7 pin rocker switch

Installation on switch holder

The 5 pin rocker switch can be installed on Nilight rocker switch holder housing for better using effect.

7 pin rocker switch

Installation on switch panel

It can also be replaced to any defective 5 PIN switches. Convenient and cost-effective.

Applications

7 pin rocker switch

Replacable Rocker Switch

The switches can be replaced with any defective 5 PIN SPST switches, convenient and cost-effective.

5 pin rocker switches

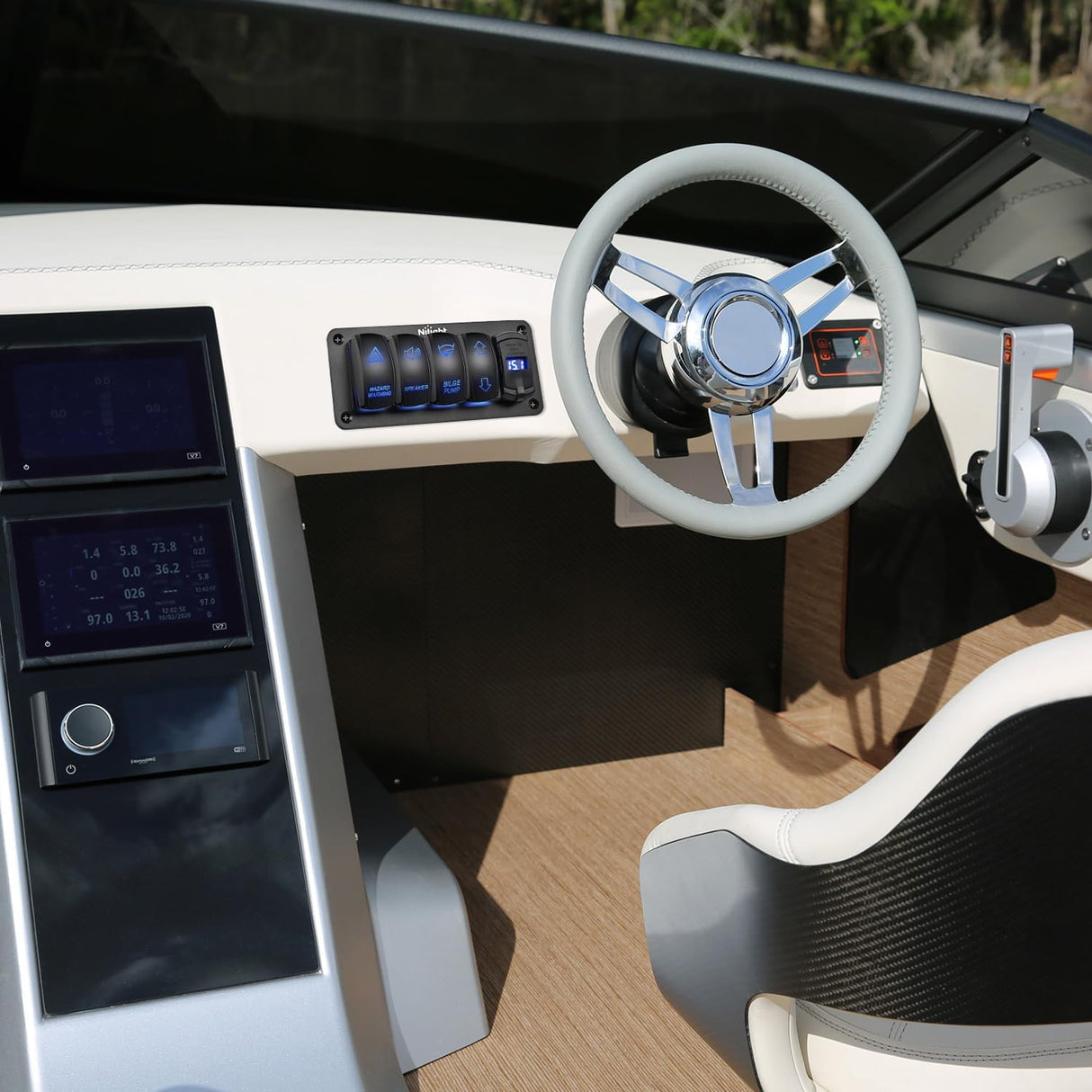

Use on Marine Boat

Marine-grade Construction and IP65 Waterproof: It adopts a high-quality Aluminum panel, Scratch-proof, and Corrosion Resistant, with a rubber-sealed cap for all sockets dust-tight and debris-proof.

5 pin rocker switches

Wide Application

The product is suitable for controlling all electronic equipment on board. Available for upgrading headlights switch, fog light switch, wide light switch, car refrigerator switch, and car vacuum cleaner switch replacement. etc.

5 pin rocker switches

Car Electronic Device

The product is suitable for UTVs and ATVs.

Installation is simple and can be mounted horizontally or vertically. You can even use it at -25°(Min) or 80°(max). Suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailers, RV, caravans, buses, marine boats, yachts, airplanes, etc.
