250A ANL Fuse with ANL Fuse Holder

: In stock

Regular price $17.99


Related Video

About this item

  • Protect Your System: Nilight ANL fuse is a portable, battery-powered device that detects and diagnoses electrical problems in your vehicle's electrical system. These fuse with ANL fuse holder will protect your controller, wires, and battery from overcurrent. Suitable for any 12V, 24V, and 32V DC automotive cars, boats, trucks or other vehicles.Widely applied to inverter, audio amplifier and other high current applications, prevent excessive current and protect other electrical appliances.

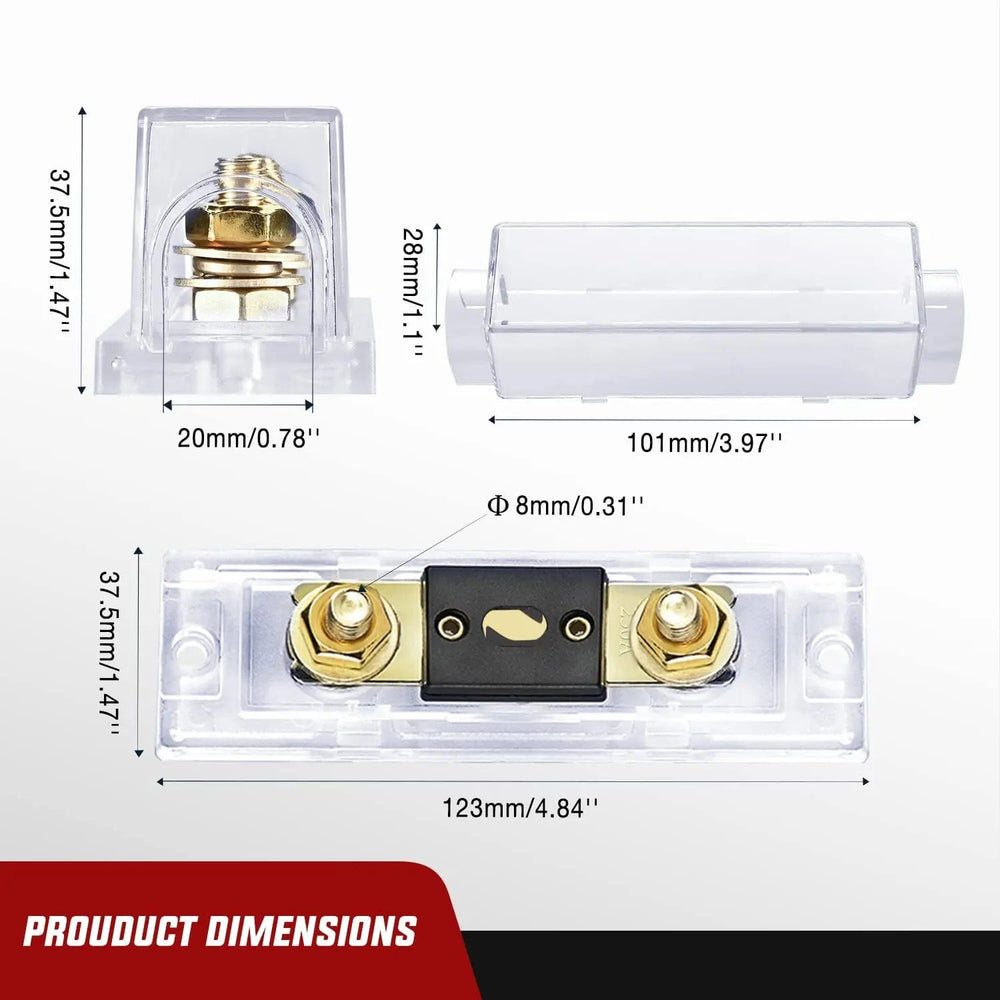

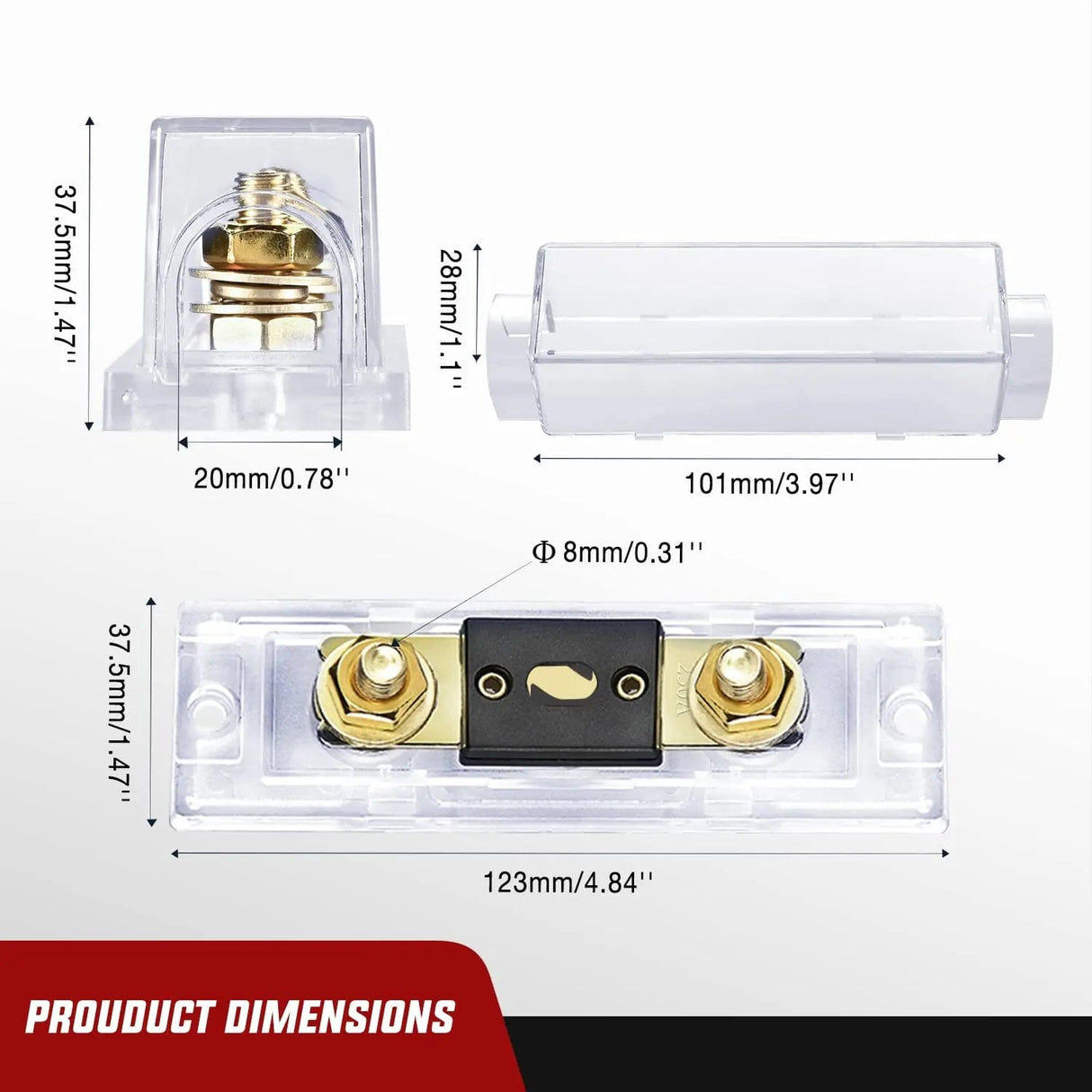

  • Stud Size: ANL Fuse Holder mounting bolts are 8 mm(5/16") in diameter. which is the size of commonly used terminals to achieve a proper connection to the the ANL Fuse Holder. This package includes 4 PCS 5/16" Copper Lugs with Heat Shrink Tubing which are safe and reliable, and great for this ANL fuse holder. It can securely hold the fuse and use it with 1/0,2,4 AWG Ring Terminals.
  • High Quality: Our ANL fuse is made of copper alloy and gold plating on the surface, durable and reliable to use, heat resistant, melting resistance and good conductivity, clear cover and holder features transparent design, allow you to visually see the operation of the fuse, waterproof cover protect the internal fuses from water and further damage.
  • Note: Look at the fuse wire. If there is a visible gap in the wire or a dark or metallic smear inside the glass then the fuse is blown and needs to be replaced. For most applications, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse.

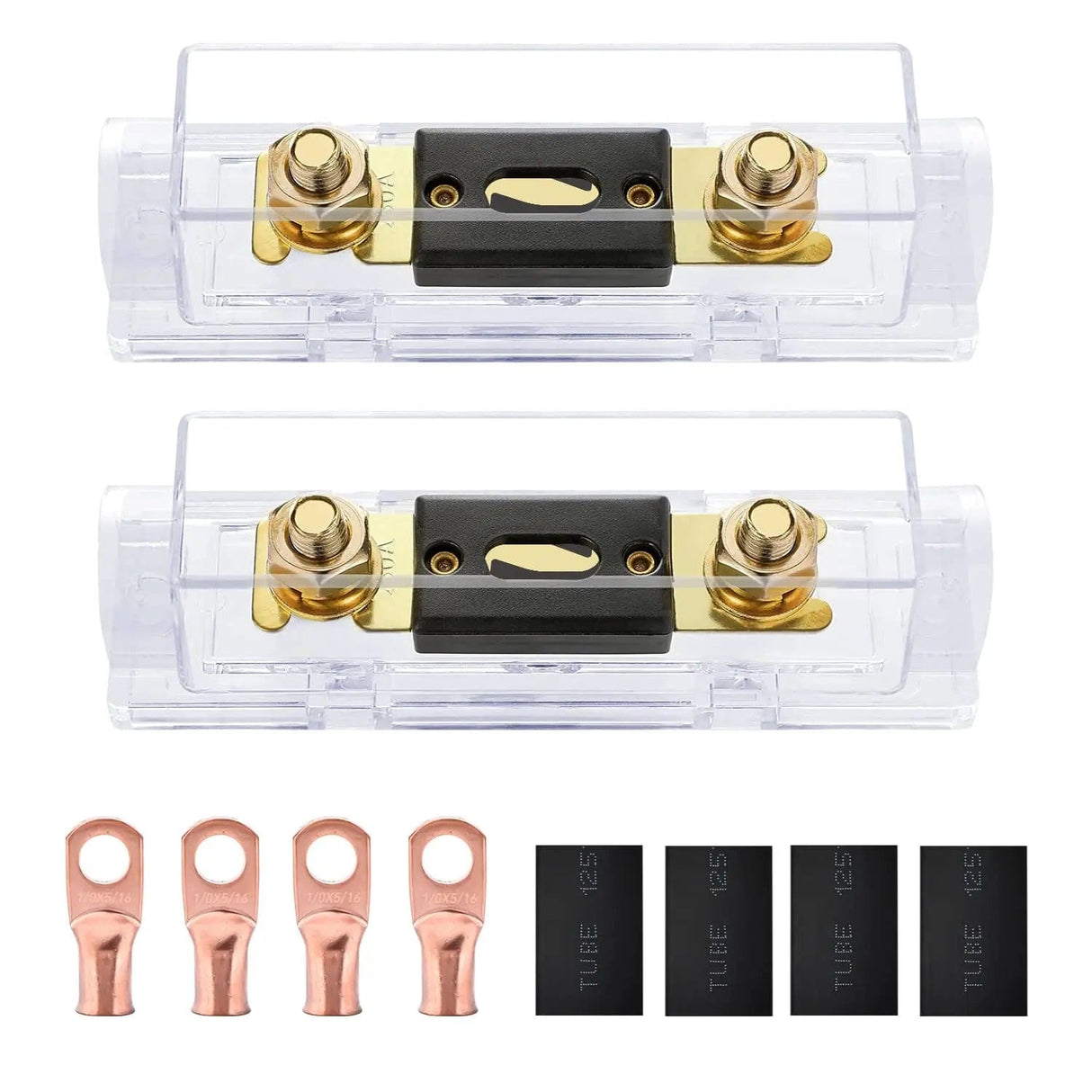

  • Package Includes: 2pcs ANL Fuse Holder with 2pcs 200Amp ANL blade fuse; 4pcs Copper Wire Lugs with 4pcs Heat Shrink Turbing.


250A ANL Fuse with ANL Fuse Holder

Great ANL Fuse Block Kit for Audio and Video System

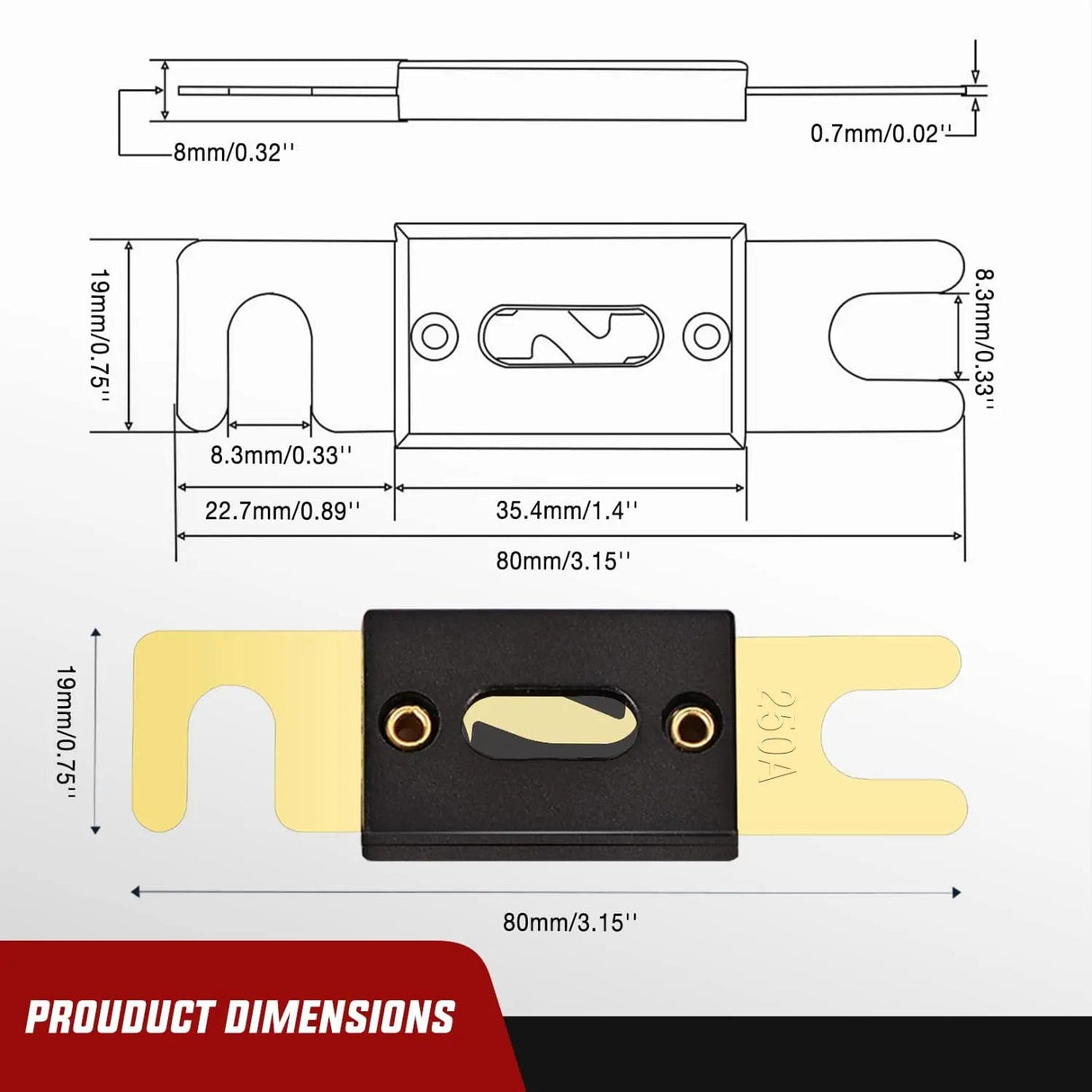

  • Fuse Type: 250A ANL Blade Fuse
  • Rated Current: 25A - 250A
  • Temperature Range: -40℃-125℃
  • Flame Retardant Rate: UL94V-0
  • Transparent Protection Cover
  • PC base + PC waterproof and dustproof cover + Nickel plated copper ring terminal
  • Tin-plated copper for heat resistance & melting resistance & optimal electrical conductivity

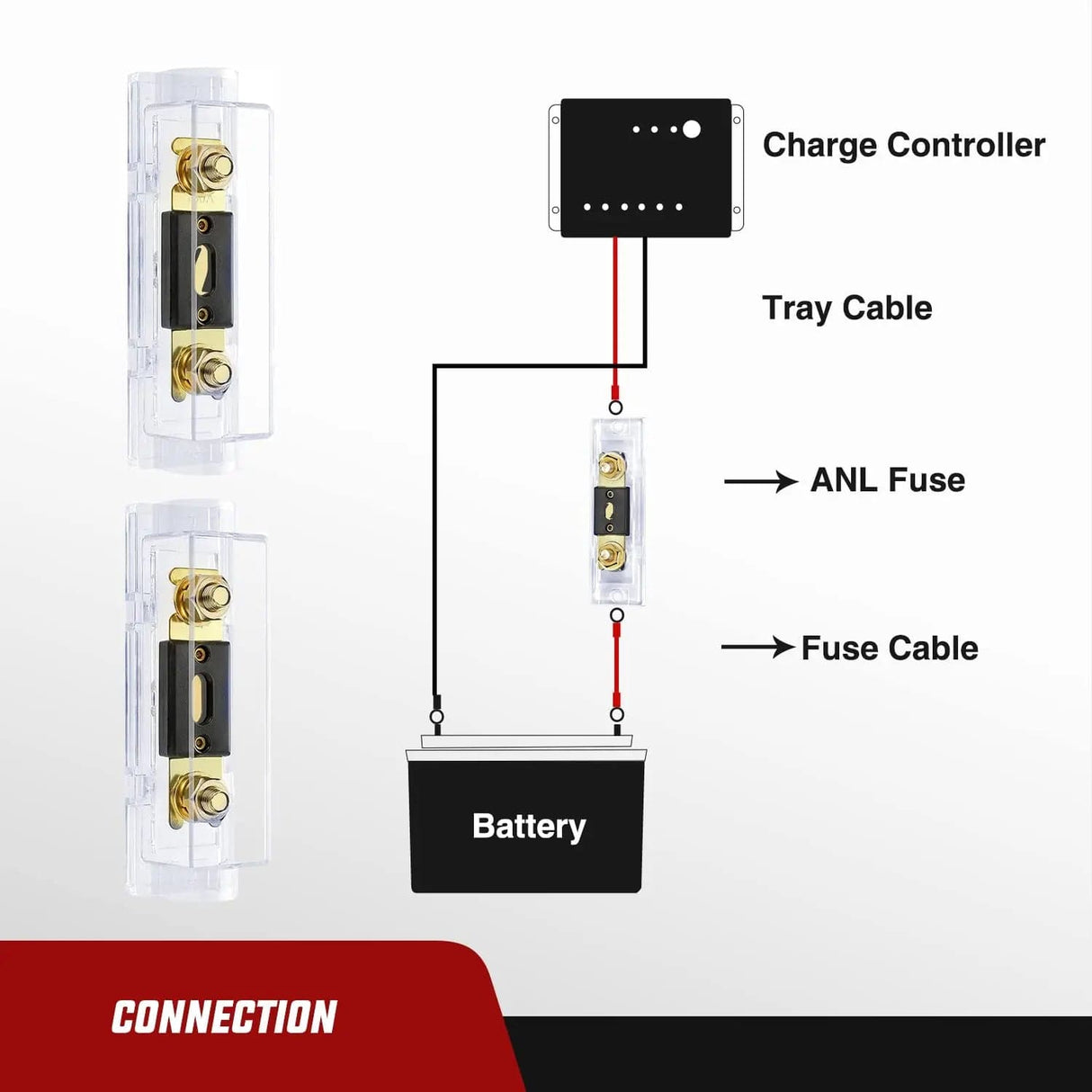

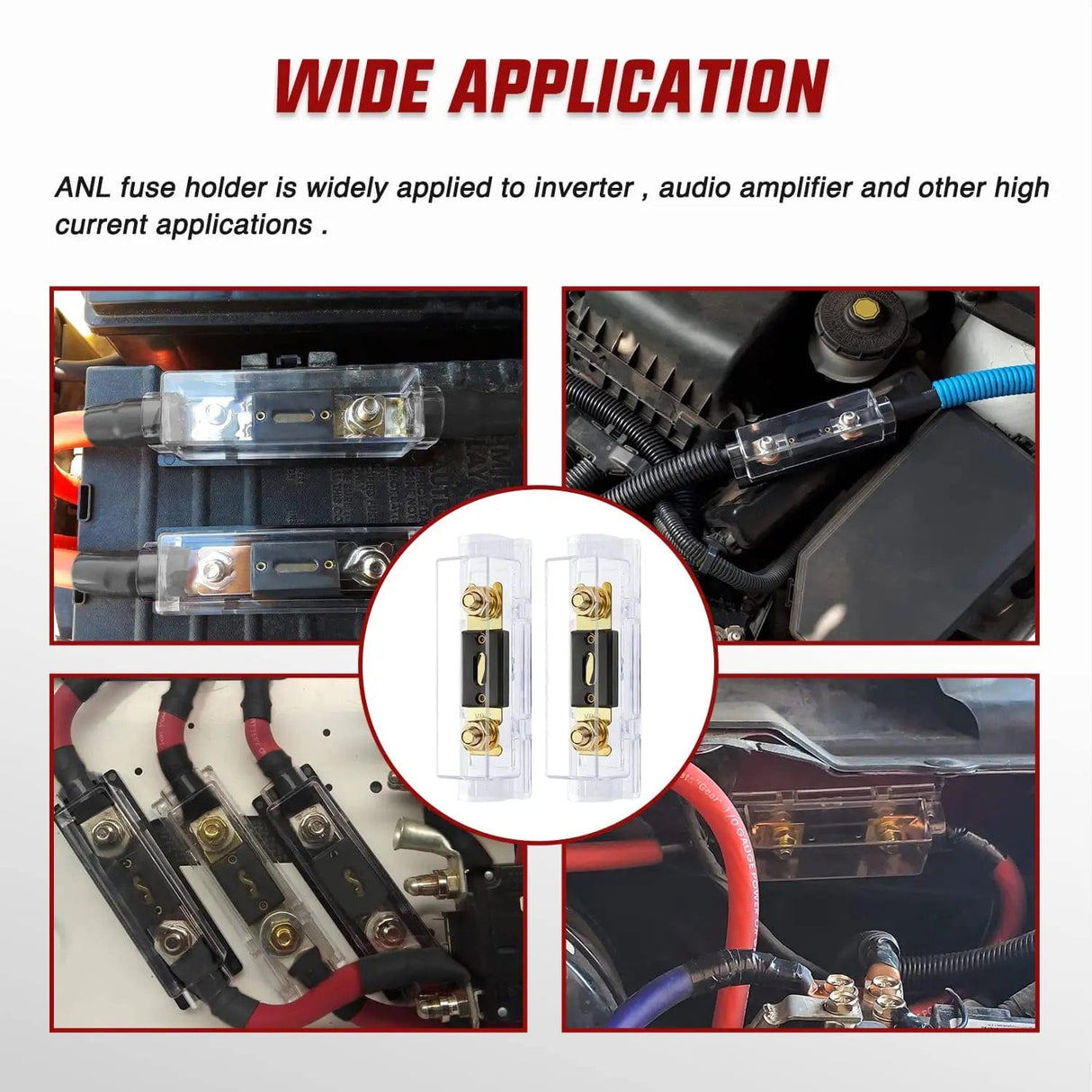

Being a fuse between a battery and inverter, this fuse block kit can also be used for high-power car audio stereo, marine, RV and motorhome applications.

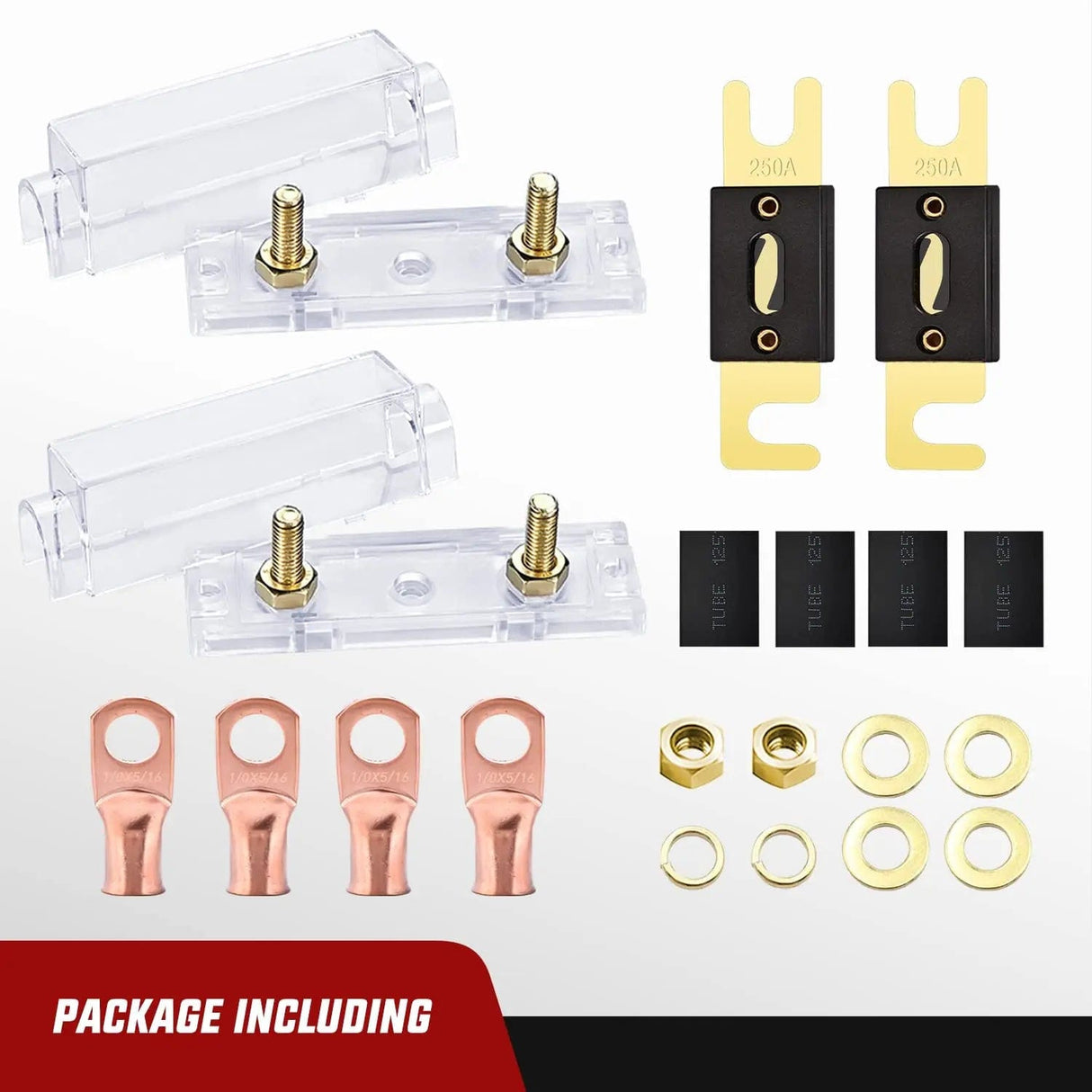

Package includes:

  • 2x 250A ANL Fuse with 2x ANL Fuse Holder
  • 4x 2AWG x 5/16 Copper Ring Terminal
  • 4x Heat Shrinkable Tube for 1/0 , 2, 4AWG

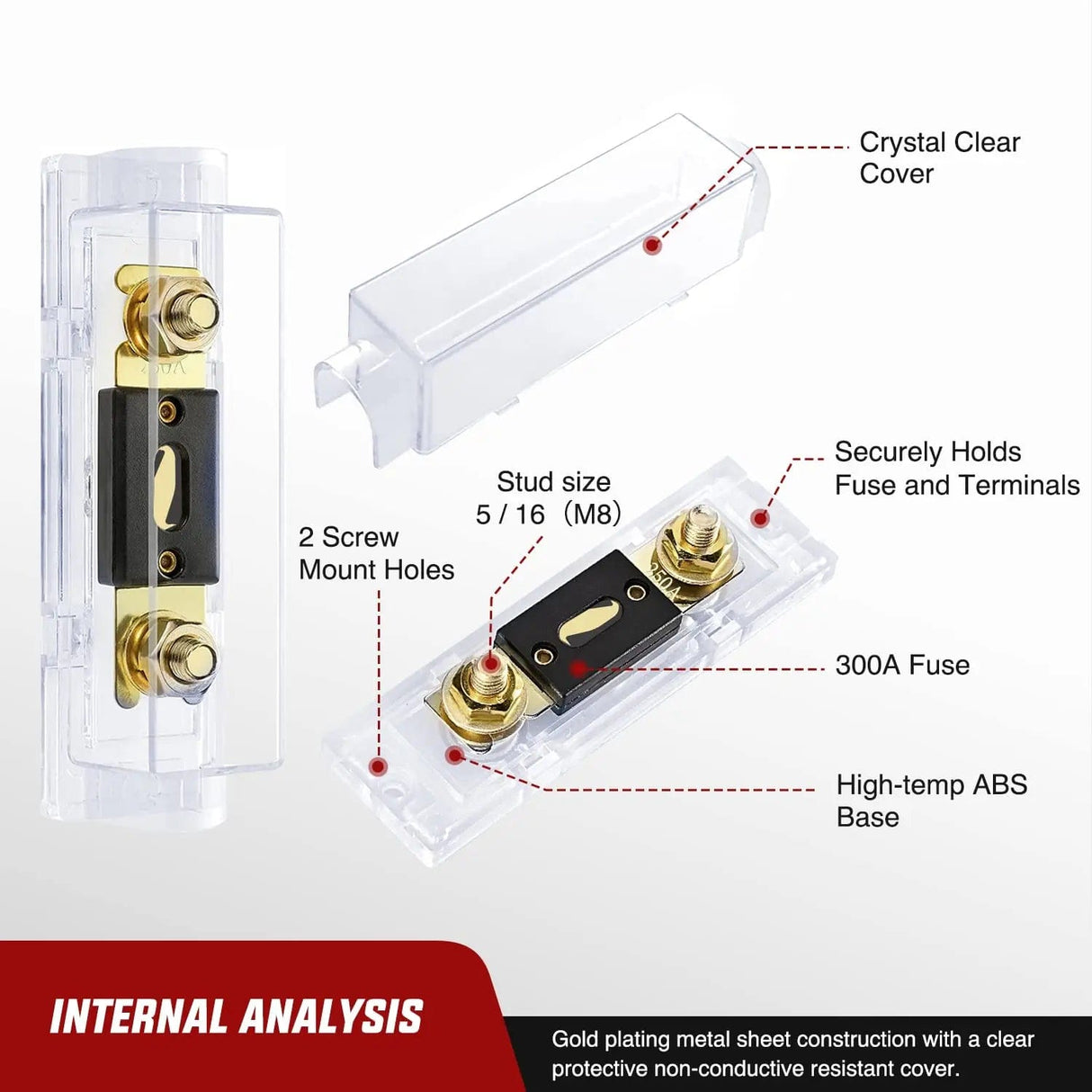

ANL Fuse Holder

Waterproof Cover

The clear cover is easy to open and cover, helps to add extra protection to the fuses from dust, splash. Made your wiring clean and visible.

ANL Fuse with ANL Fuse Holder

High-temp PC base

The plastic base is well built and sturdy. It can securely hold the fuse and use it with 1 / 0 , 2 , 4AWG Ring Terminals

ANL Fuse with ANL Fuse Holder

Copper Ring Terminal

We provide AWG 2/0-5 /16 copper terminals. Nickel plated copper ring terminals, makes the connection high current flow.

ANL Fuse Holder

20mm Width Hole

Without bending the cable lugs can be cabled and use the cover, perfect “N” construction.

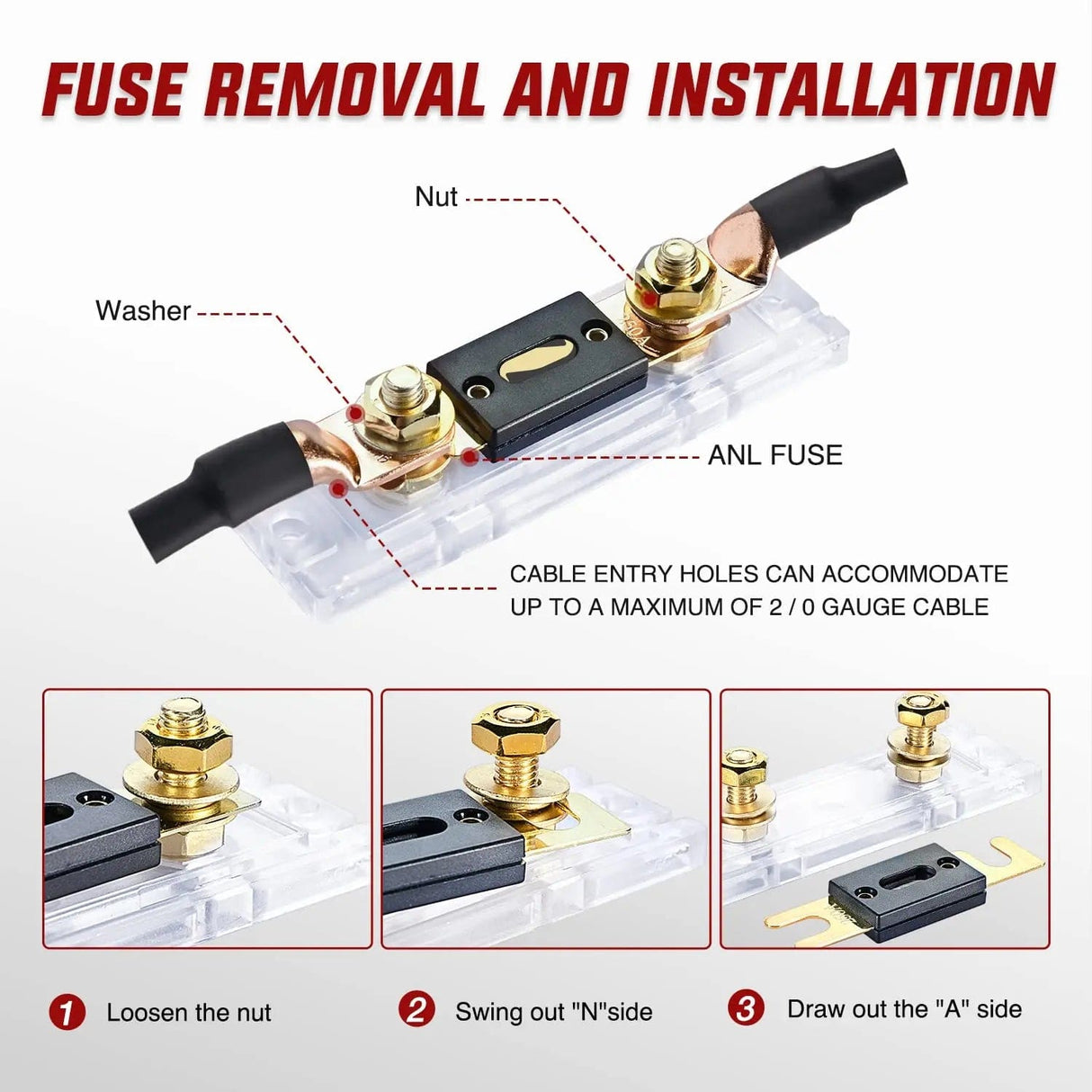

Fuse Removal and Installation

ANL Fuse Holder

1. Loosen the nut

ANL Fuse Holder

2. Swing out N side

ANL Fuse Holder

3. Draw out the " A " side


Features of this ANL Fuse Holder

  • ANL Fuse Holder with 250A Fuse
  • Securely Holds Wire (Terminals Not Needed)
  • 1/0 or 4 Gauge Wire Input
  • High-temp Base and Cover


-The fuse can be replaced by removing it from the fuse holder. You don't need to replace the entire device

2. What is the stud size? Or what size lug works?

-The stud size is 8mm, 5/16" stud. (Use with 0,4,8 or 10 Gauge Ring Terminals). it will fit up to 1 gauge wire

3. Is it mini ANL or regular ANL?

-It's a regular ANL fuse and fuse holder.

4. What amp fuse would I need for a 2500 watt amp?

-The size of the fuse has nothing to do with your amp. The fuse protects the wire. It should be rated for the ampacity of the wire. What gauge and what quality of wire are you using? Those are the things that you need to know in order to answer that question. 0 gauge high-quality oxygen-free copper will pass more amperage than 0 gauge CCA wire
