560Pcs Heat Shrink Tubing Kit

About this item

• Environmental & safety: made of polyolefin, shrinkage ratio: 2: 1, 15KV/mm dielectric and flame retardant, soft and flexible, acid and alkali resistance, anti-aging.
• Easy to use- exposed to the heat source for a few seconds at 70℃, Sleeving wrap would shrink rapidly at least 1/2 diameter.
• Multiple sizes- wrap cable sleeve length: 45mm, internal diameter: 1mm/1.5mm/ 2mm/2.5mm/3mm/3.5mm/4mm/5mm/6mm/7mm/10mm/13mm, satisfied for your different needs
• Box organized- 5 colors of heat shrink tubing including Black, Red, Blue, Yellow, and Green, a total of 560 pcs, well organized in a storage box for easy access and carry

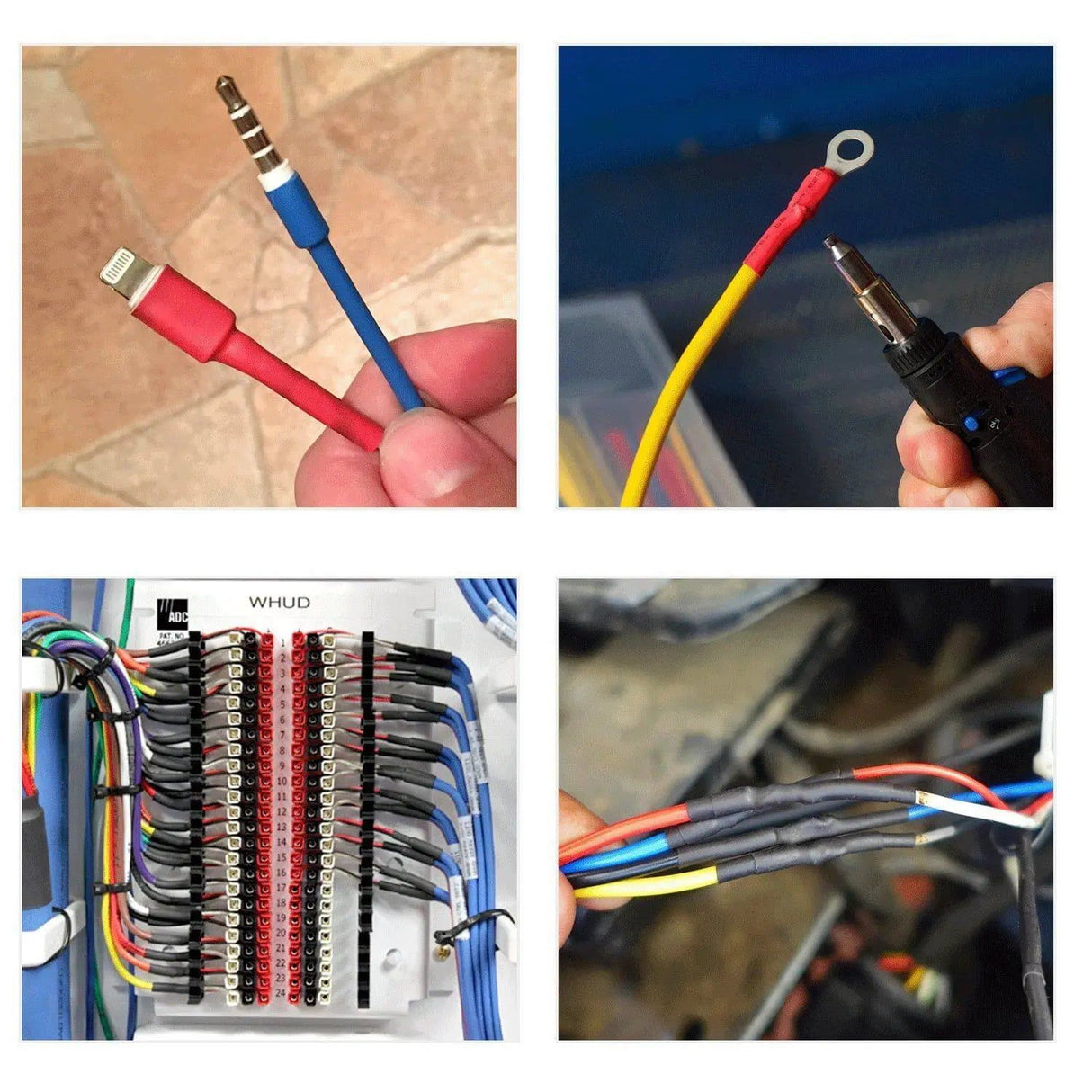

• Usage- Suitable for electrical insulation, wire bundling, color coding, mechanical protection, wire/cable joints, daily repairs, etc

Specification

• Material: Environmental Polyolefin.
• Performance: Shrinkage Ratio: 2:1.
• Minimum Shrinkage Temp: +70℃.
• Full Shrinkage Temp: +110℃ maximum.
• Operating Temperature: -55℃ to + 125℃.
• Tensile strength: 10.4Mpa.
• Dielectric strength: 15 kV / mm.
• Flammability: Flame Retardant.
• Cutting method: Scissors or sharp knife
• item weight: 3.2 ounces
• Dimensions: 7 x 0.2 x 3 inches

If you use a lighter or candle to heat up the tube, please make sure that the flame is at least 1 CM away from the tube, or the flame may lead to black marks on the tube, which not only impairs its appearance but also may burn your electric wire.

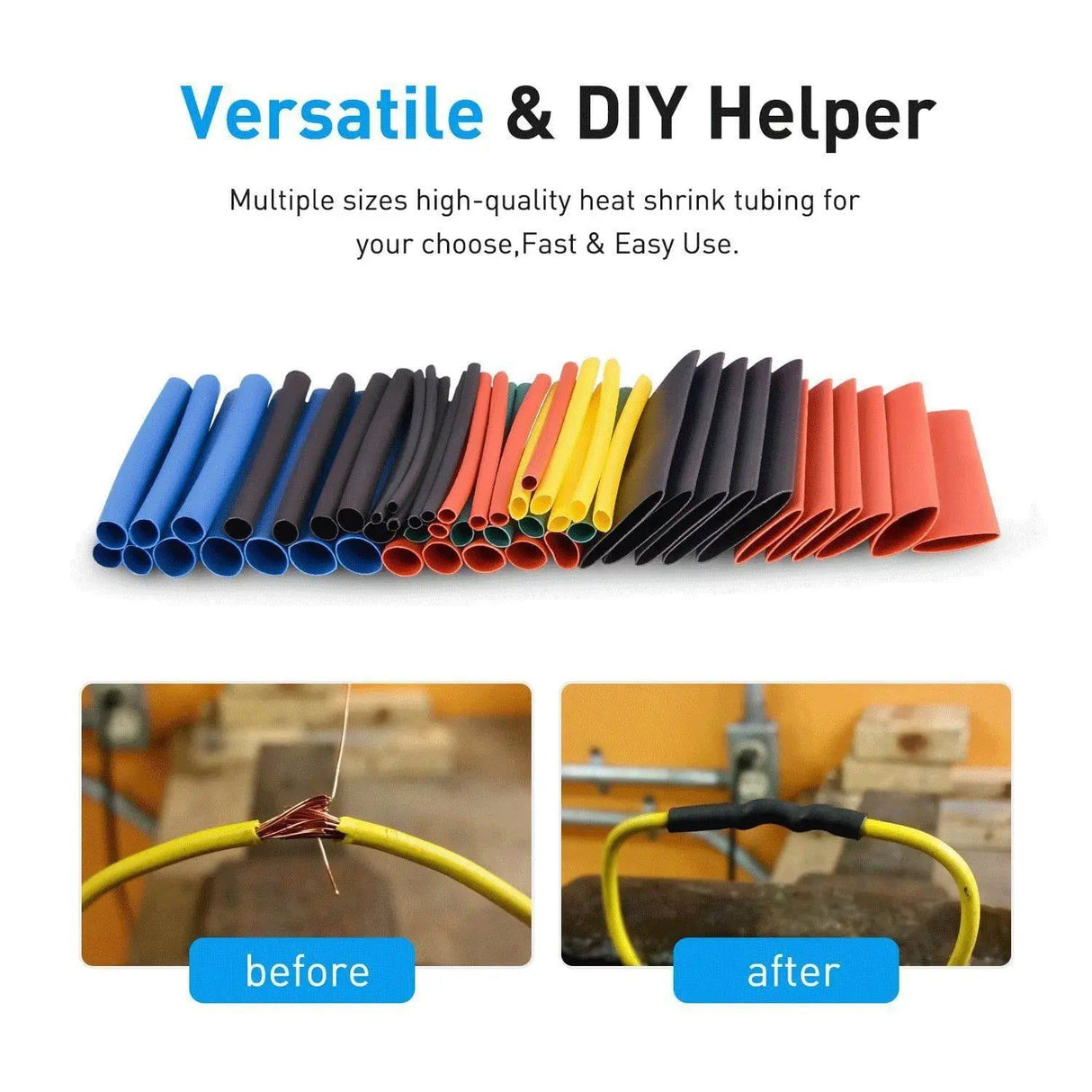

Suitable for any project workshop, fixing broken wires, electrical insulation, mechanical protection, wire bandwidth, wire connection, wire ends the process, wire/cable junctions, daily repairs, color coding, etc.

Quantity x Internal Diameter x Single Length

• 90pcs x 1.0mm x 45mm Black / 70pcs x 1.5mm x 45mm Red
• 80pcs x 2.0mm x 45mm Yellow / 70pcs x 2.5mm x 45mm Green
• 50pcs x 3.0mm x 45mm Black / 45pcs x 3.5mm x 45mm Blue
• 40pcs x 4.0mm x 45mm Red / 25pcs x 5.0mm x 45mm Blue
• 20pcs x 6.0mm x 45mm Blue / 25pcs x 7.0mm x 45mm Red
• 25pcs x 10.0mm x 45mm Black / 20pcs x 13.0mm x 45mm Black

Features

Multiple Sizes

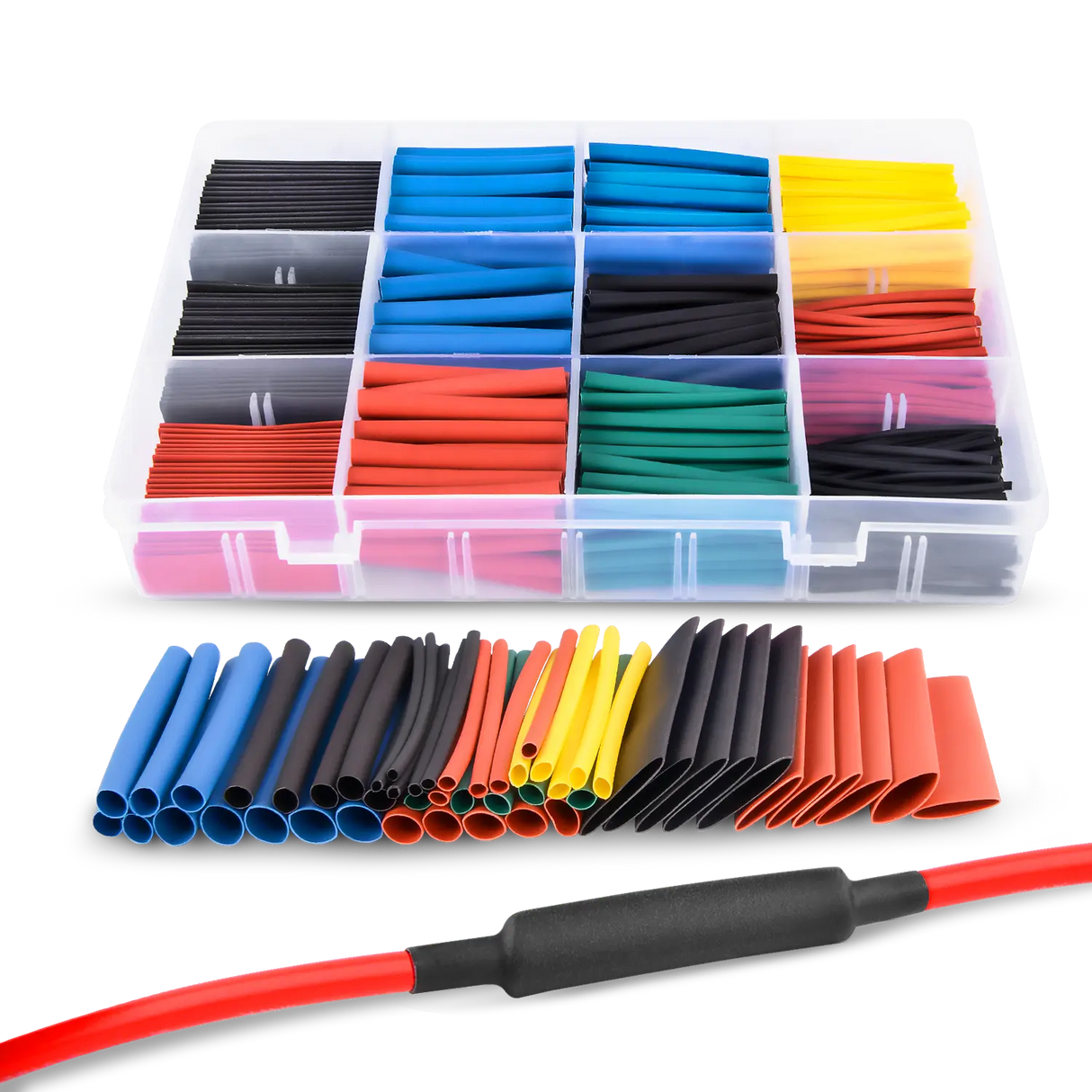

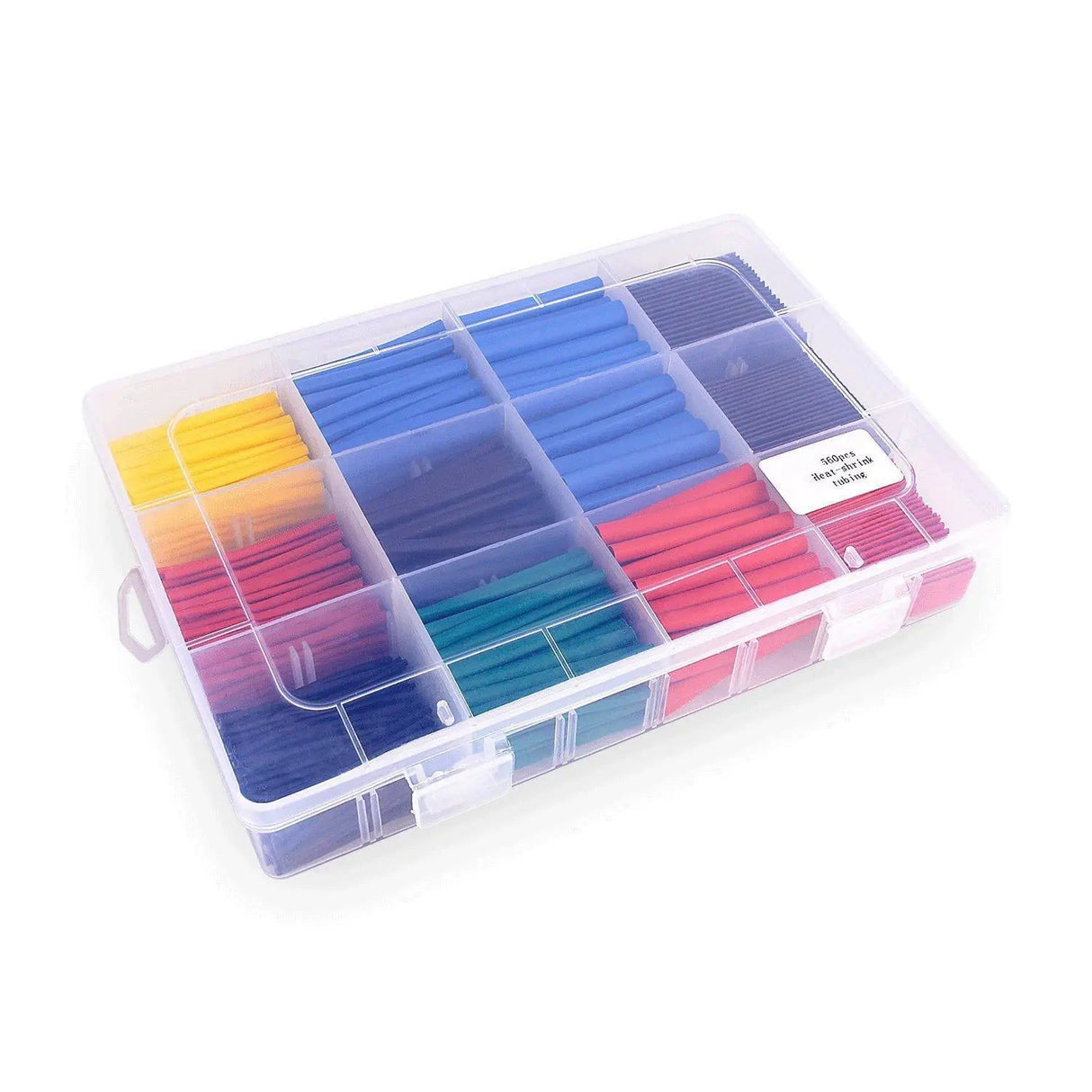

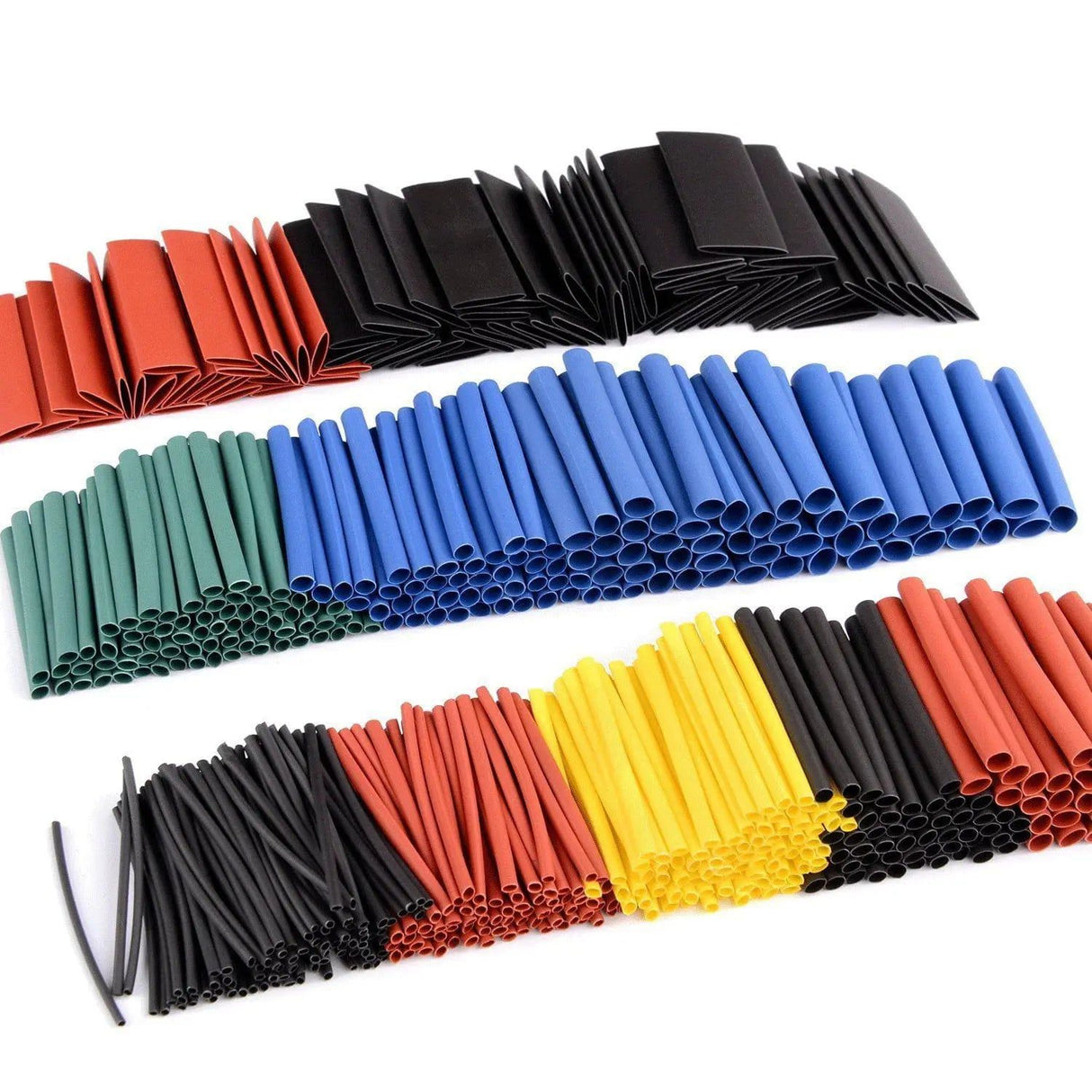

Comes with 560pcs heat shrink tubing assorted in the plastic box, 12 Specifications, 5 colors, 560pcs, satisfied for your different needs.

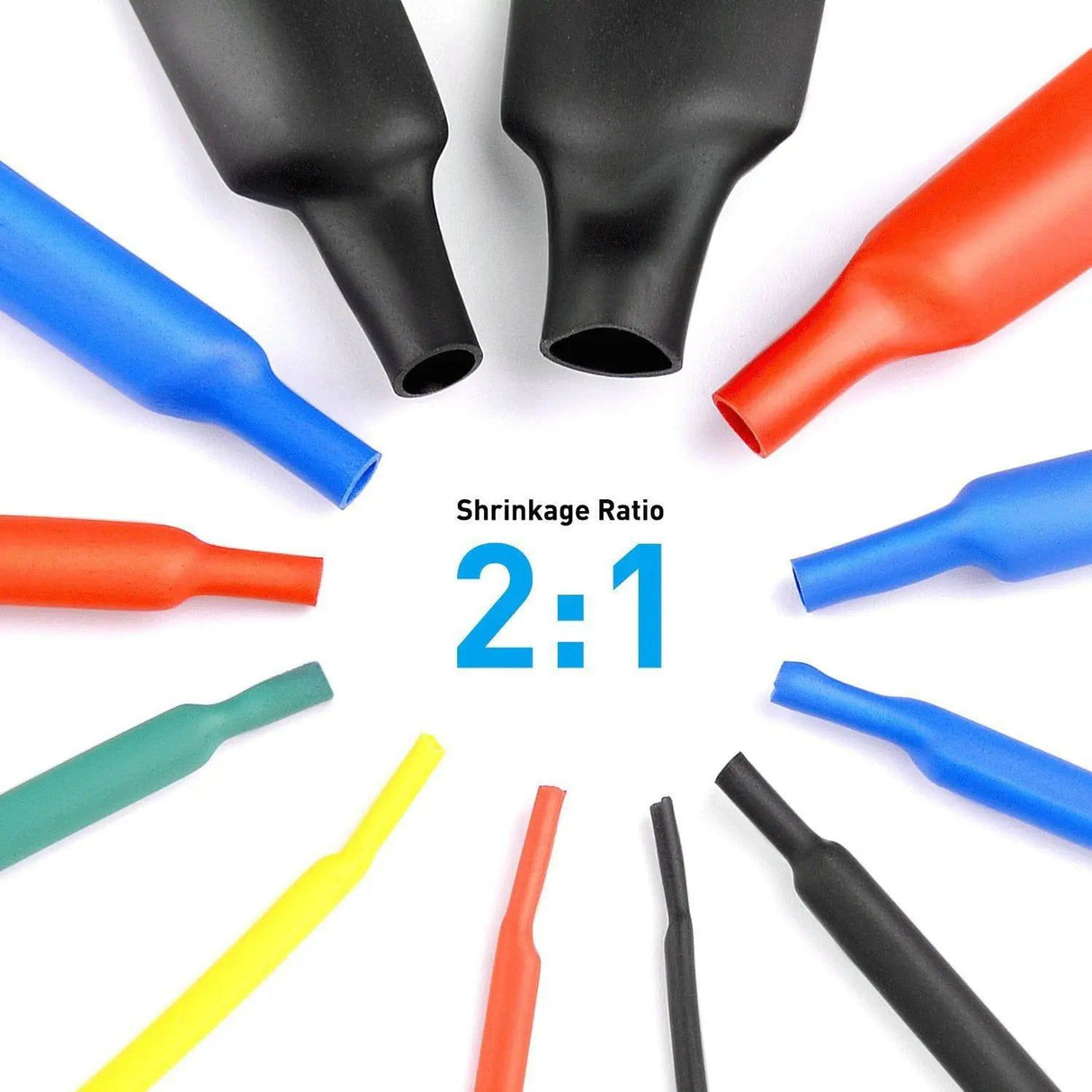

Shrinkage Ratio: 2:1

Exposed to the heat source for a few seconds at 70℃, Sleeving Wrap would shrink rapidly by at least 1/2 diameter. Lower and faster than 80℃ tubing on the market.

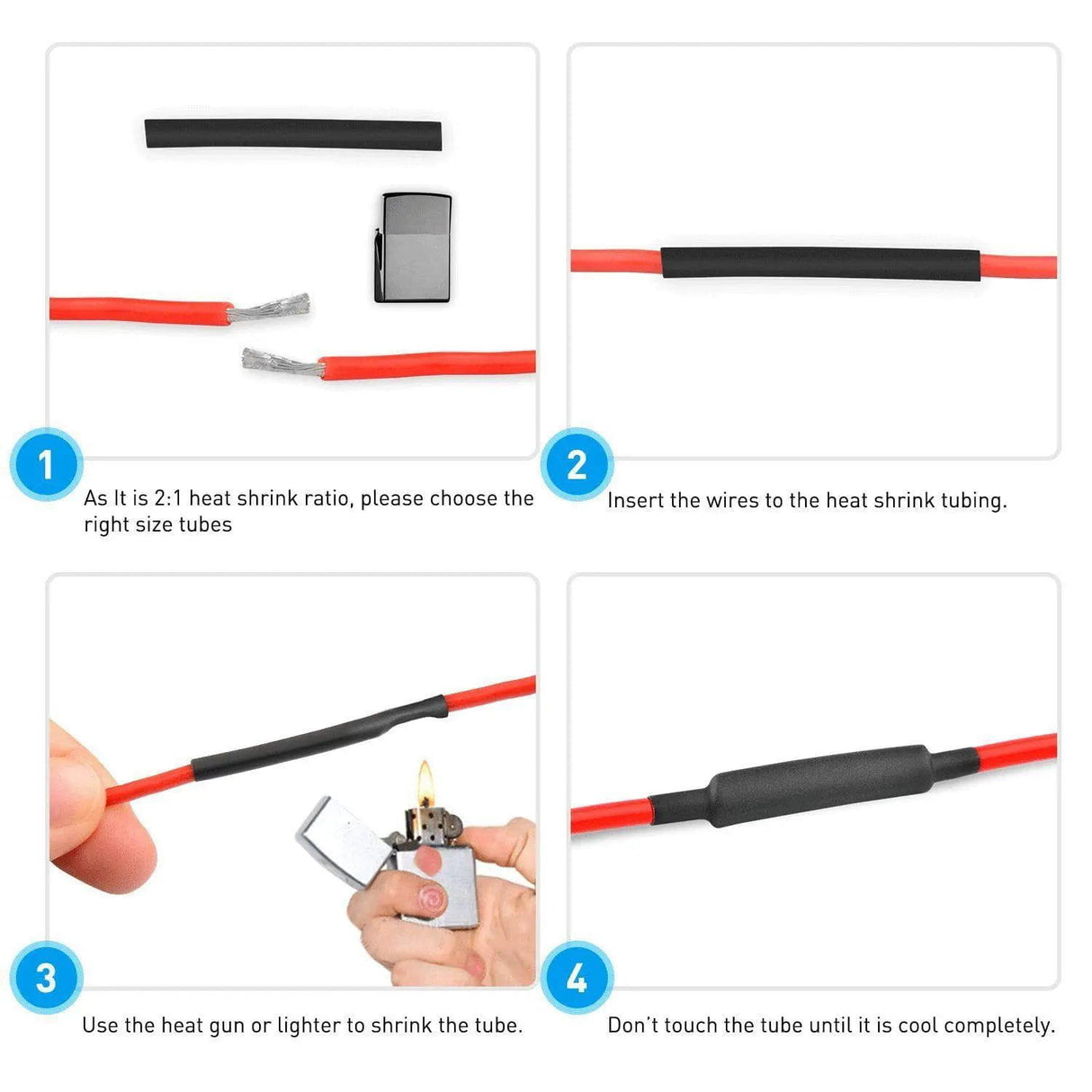

Easy to use

Keep about a 1/2 inch distance when using the lighter to shrink the tube, or it may leave a black mark on the tube. Don’t touch the tube until it is cool completely.
