Nilight 540PCS Mixed Quick Disconnect Electrical Insulated Butt Bullet Spade Fork Ring Solderless Crimp Terminals 22-16/16-14/12-10 Gauge Electrical Wire Connectors Assortment Kit, 2 Years Warranty

Related Video

About this item

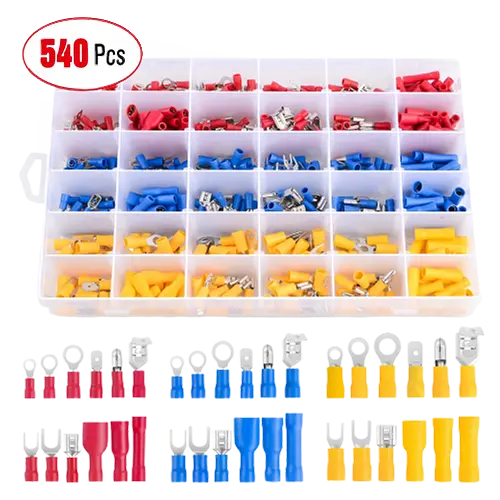

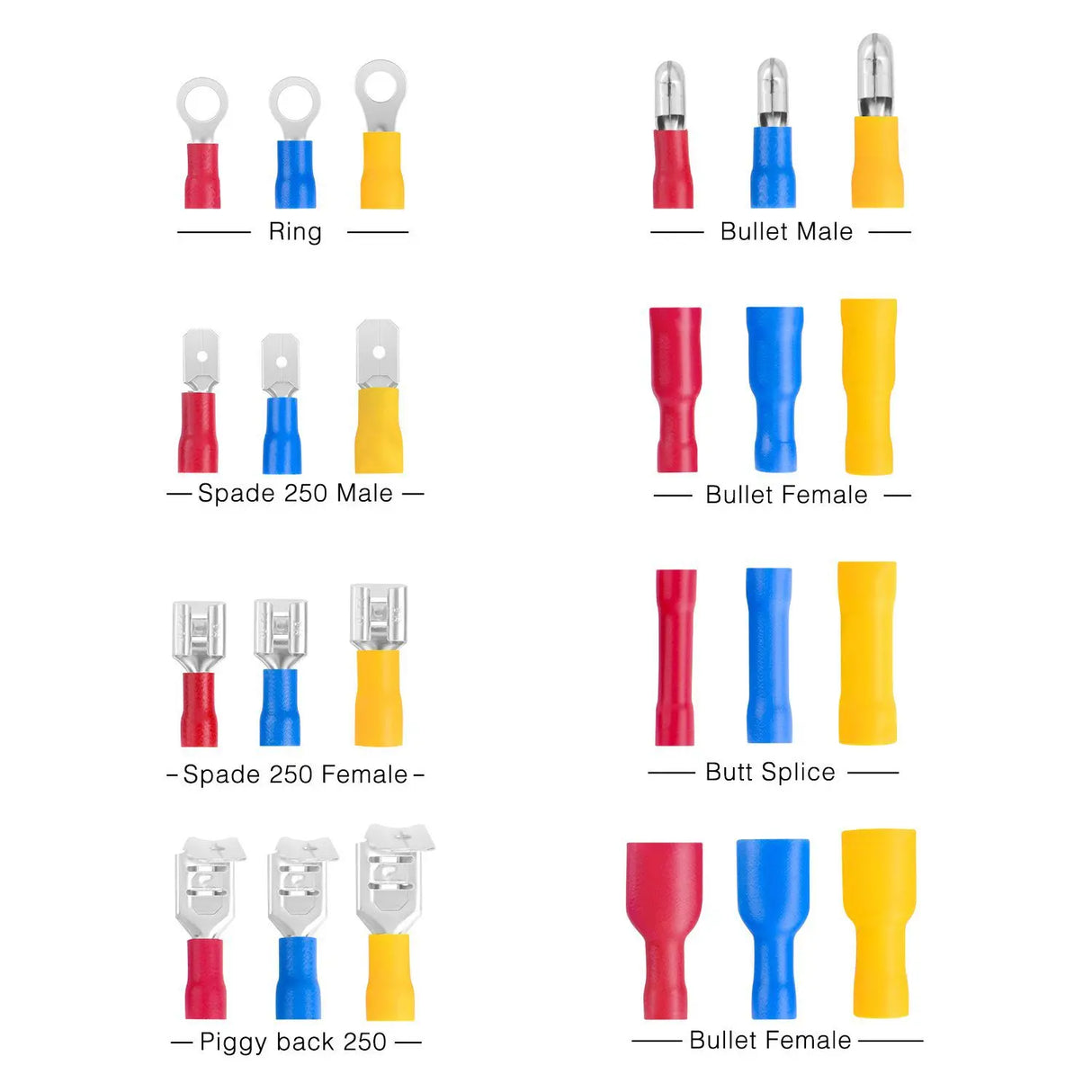

• 540 pcs assorted crimp terminals: ring terminals, spade Terminals, Bullet Male & female, butt Splice & connectors, fork spade, and piggyback
• Wire terminals kit provides strain relief and against vibration in rugged environments, which excellently insulates and protects electronic connections.
• Wire range: 22-16 ( Red )/ 16-14 ( Blue )/ 12-10 ( yellow ) a. W. G.

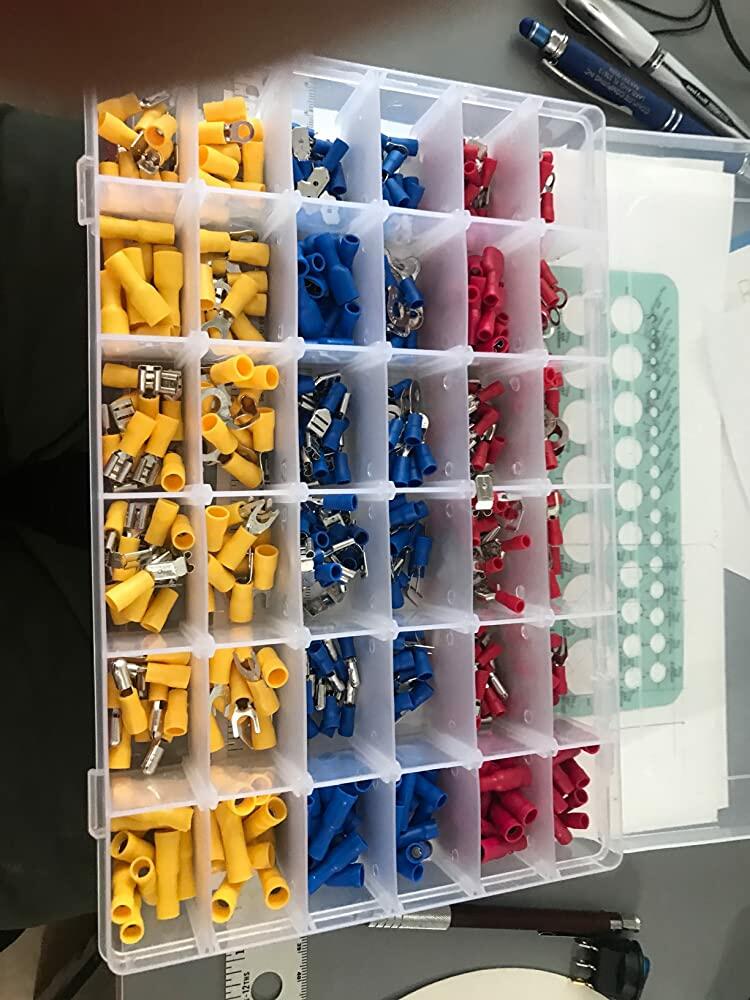

• All insulated electrical terminals are nicely enclosed in a plastic case for easy access and carry.
• Wire terminal connectors are made with a copper core, tin plating, and PVC insulator. Ideal for garages, auto electricians, mechanics, workshops, etc... Suitable for cars, vans, motorcycles, homes, etc.

540 PCS Electrical wire terminal crimp connectors

• Durable Insulated crimp connectors.
• Assorted crimp terminals come with a case.
• The copper barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime.
• Multifunctional Set-Perfect Assortment for electricians Ideal for garages, auto electricians, mechanics, workshops, etc...Suitable for cars, vans, motor, home, etc
• All Electrical Terminals Kit are Enclosed in Plastic Case for Easy Access.
• Material: Copper + PVC + Tinplate

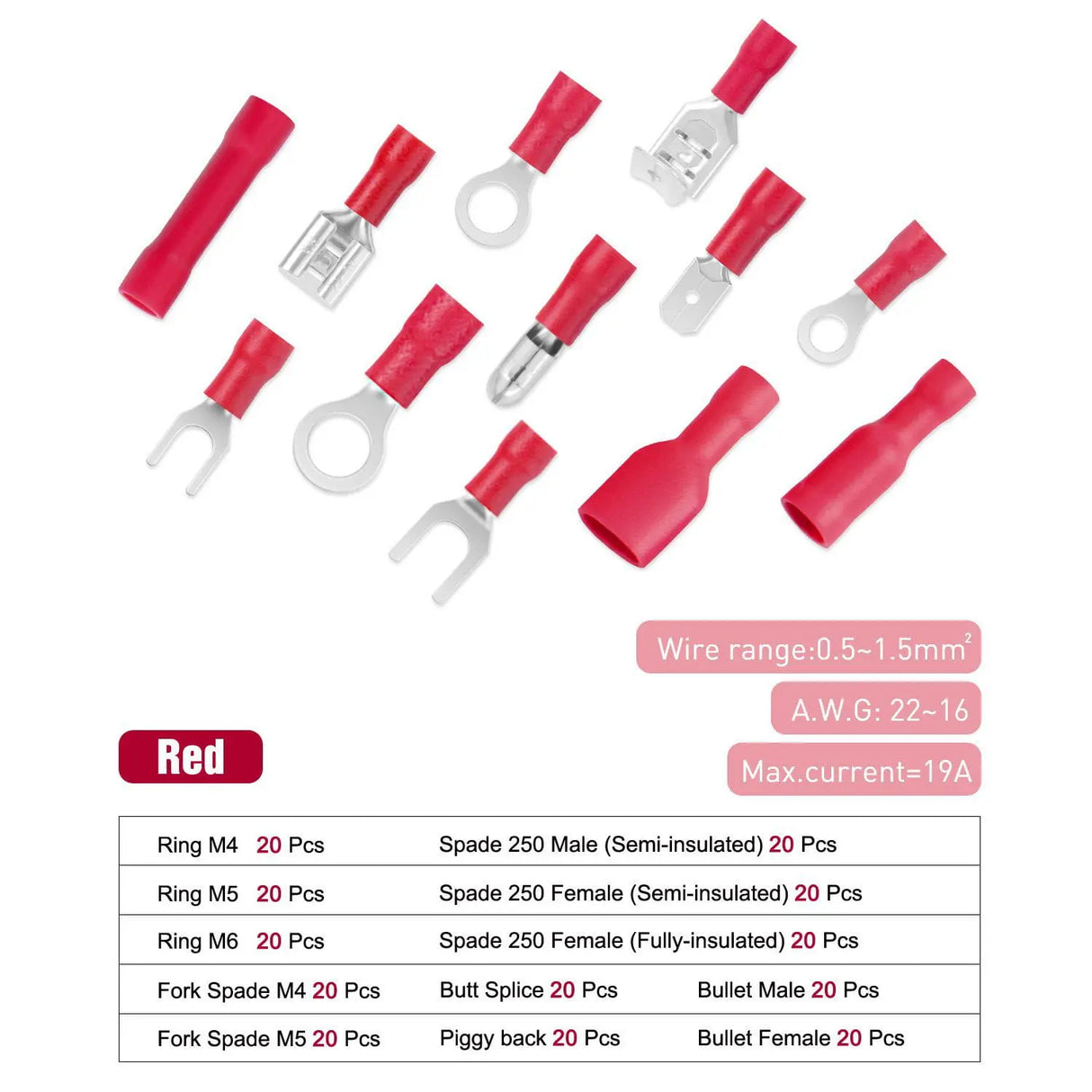

• Red: Suits cable/ wire sizes (0.5-1.5mm² 22-16AWG),Max.current = 19A

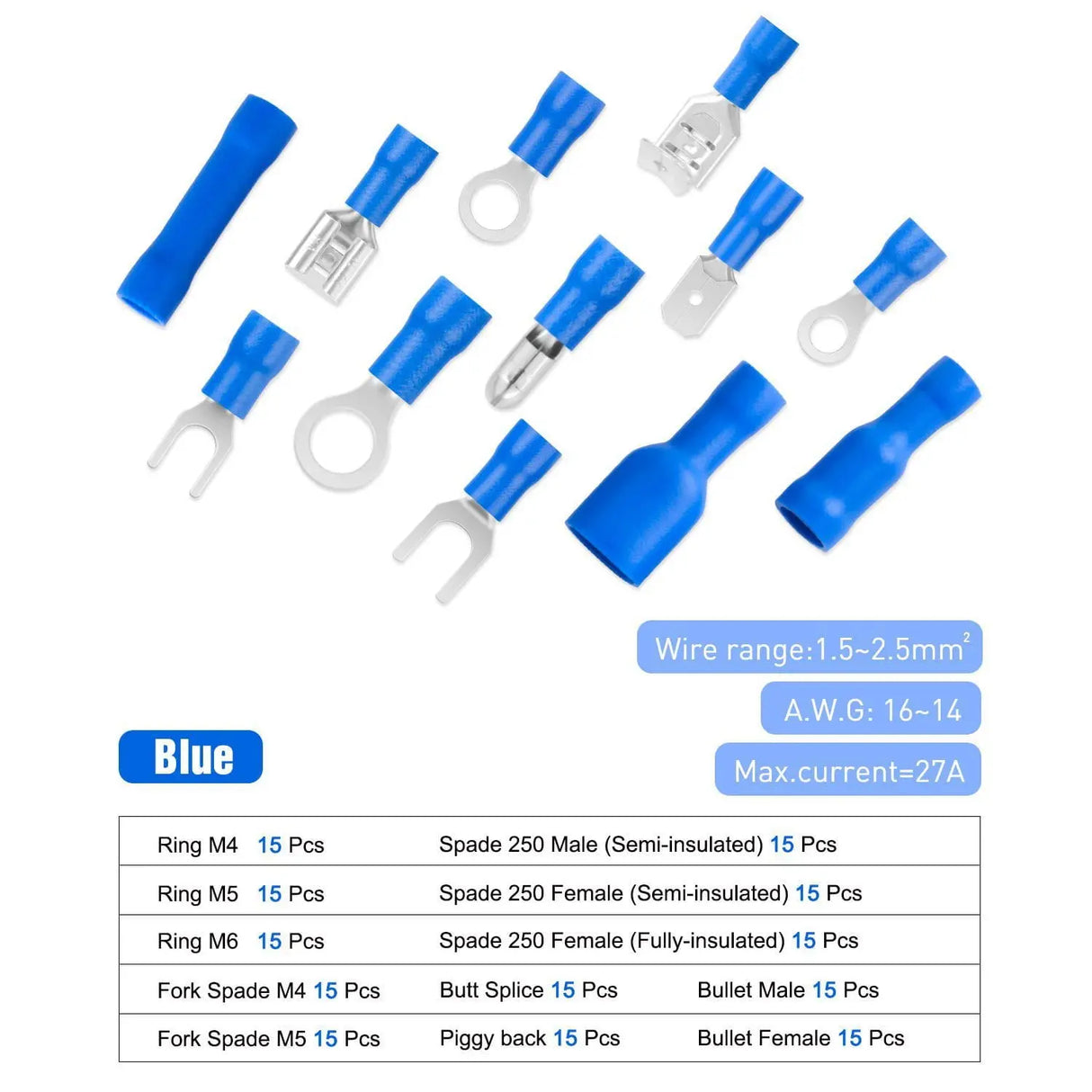

• Blue: Suits cable/ wire sizes (1.5-2.5mm² 16-14AWG),Max.current = 27A

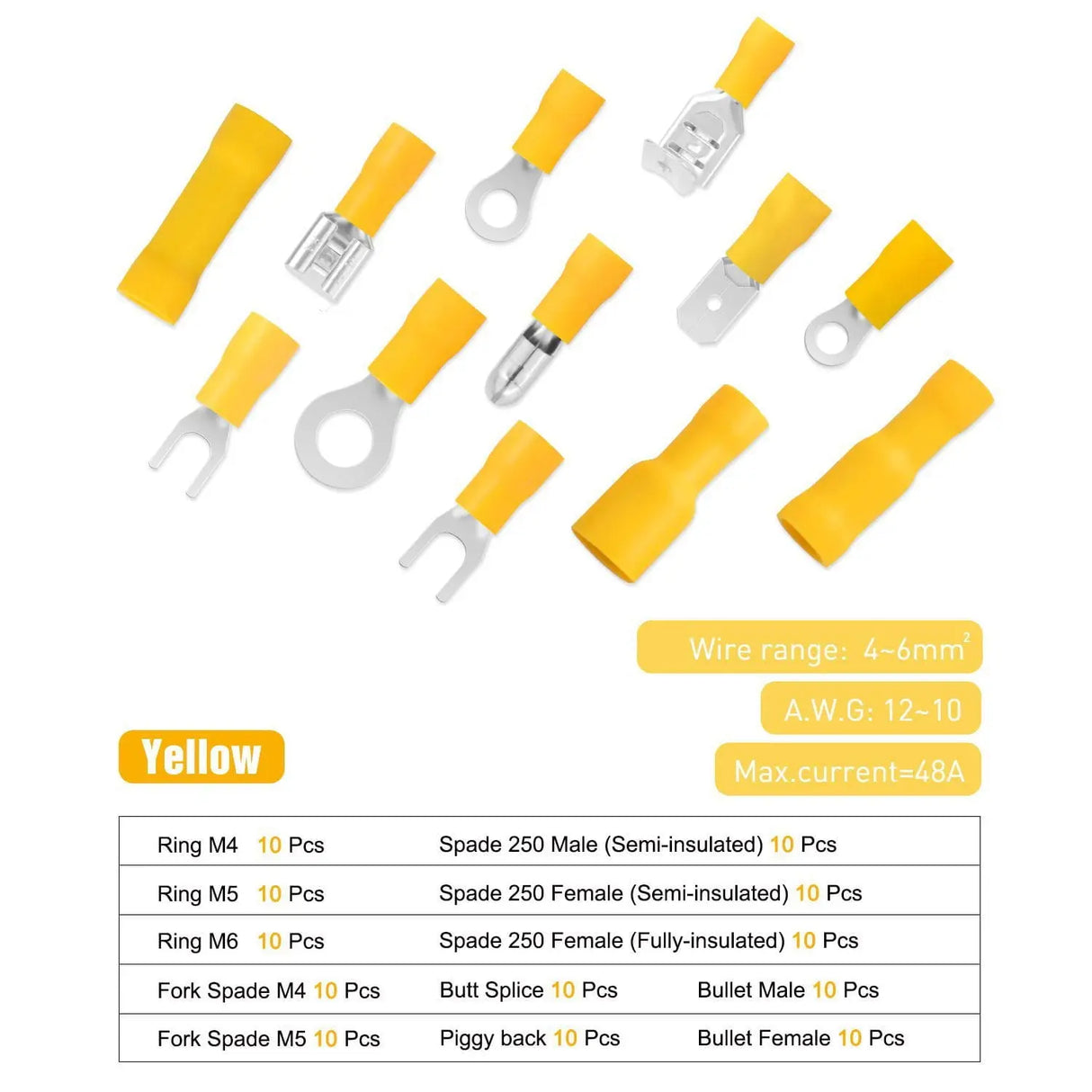

• Yellow: Suits cable/ wire sizes (4.0-6.0mm² 12-10AWG), Max.current = 48A
• Package Content: 540 Pcs x Assorted Crimp Terminals All Electrical Terminals Kit are Enclosed in Plastic Case for Easy Access.

USAGE

Step 1

Strip the wire

Step 2

Crimp the terminal

Step 3

Connection done
