5Pcs 10Amp Terminals Circuit Breaker
Description
Description
About this item
- Protect Your System: Nilight thermal circuit breaker can be reset after a disconnect over a period of time, then you can press the reset switch to use it again When load exceeds rated current, the switch reset button will automatically cut off the circuit, and thus play a role in protecting the line.Not designed for push on / push off manual switch operation, but the button pops out at overload and is reset by pushing back in.

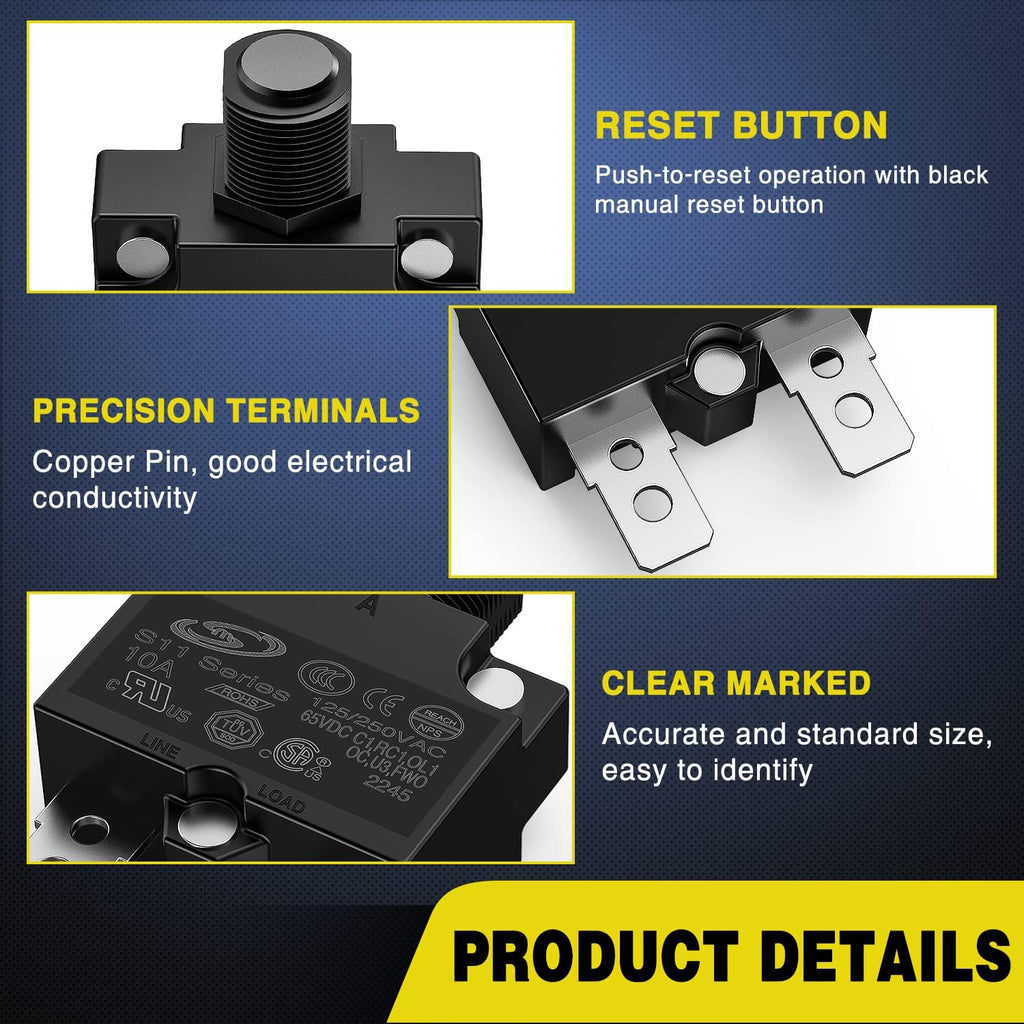

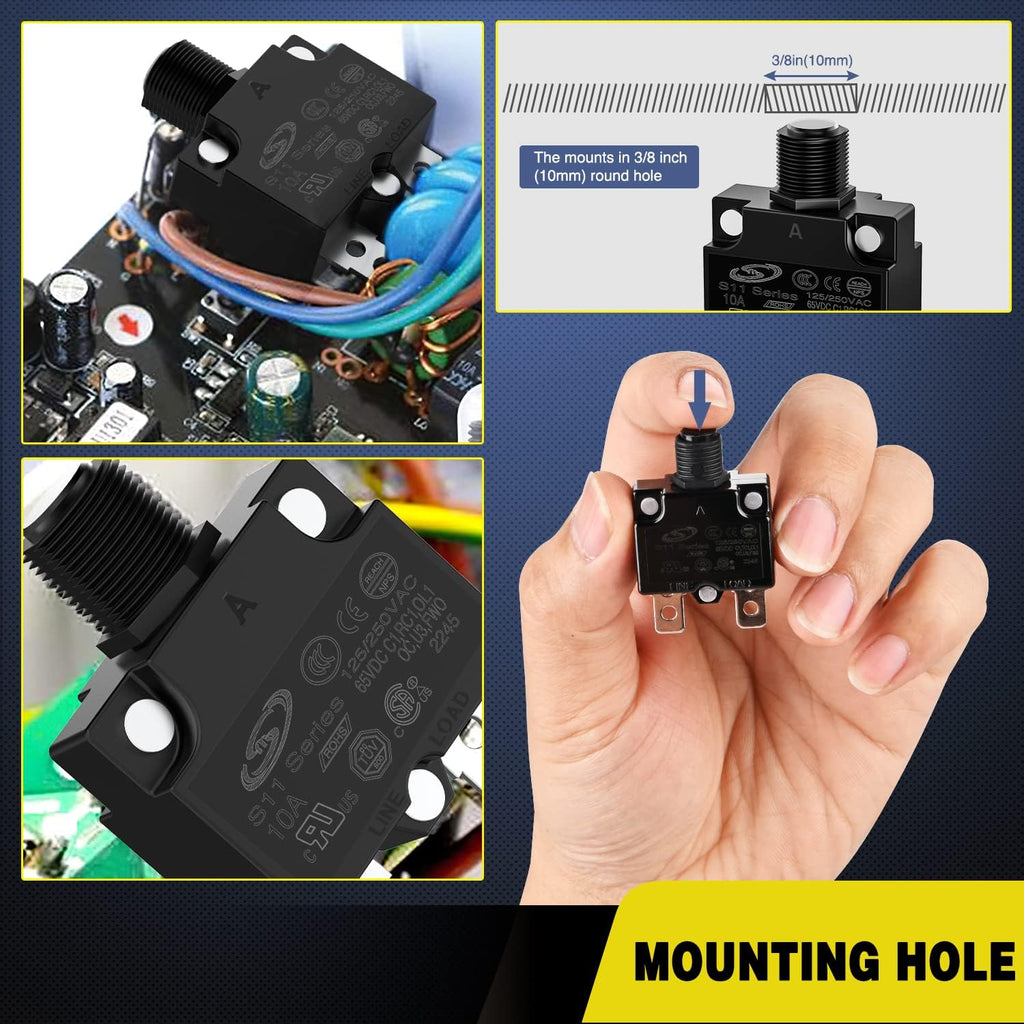

- Compact Design: Push-to-reset operation with black manual reset button. This circuit breaker with a waterproof button cap to protect from moisture, water, or bad weather. The hole size for mounting is in 3/8 inch(10mm). This circuit breaker can be used for both AC and DC applications. It's for 125V/250V AC and 65V DC applications.
- High Quality: Our Thermal Circuit Breaker is made of premium bakelite, durable and reliable to use, heat resistant, melting resistance and good conductivity, waterproof cover protect the internal from water and further damage.
- Application: Our circuit breaker compatible with all 12/24V vehicle and 125-250V AC systems industries. Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies

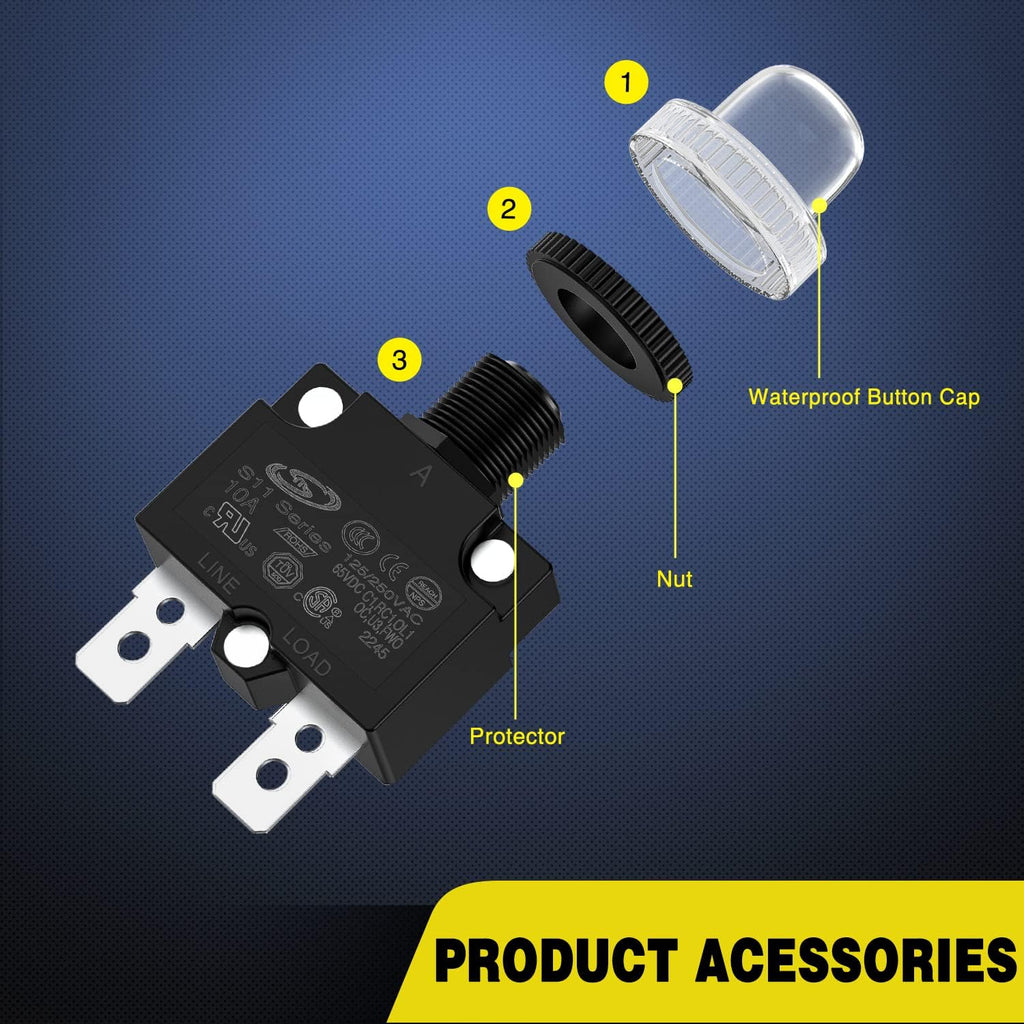

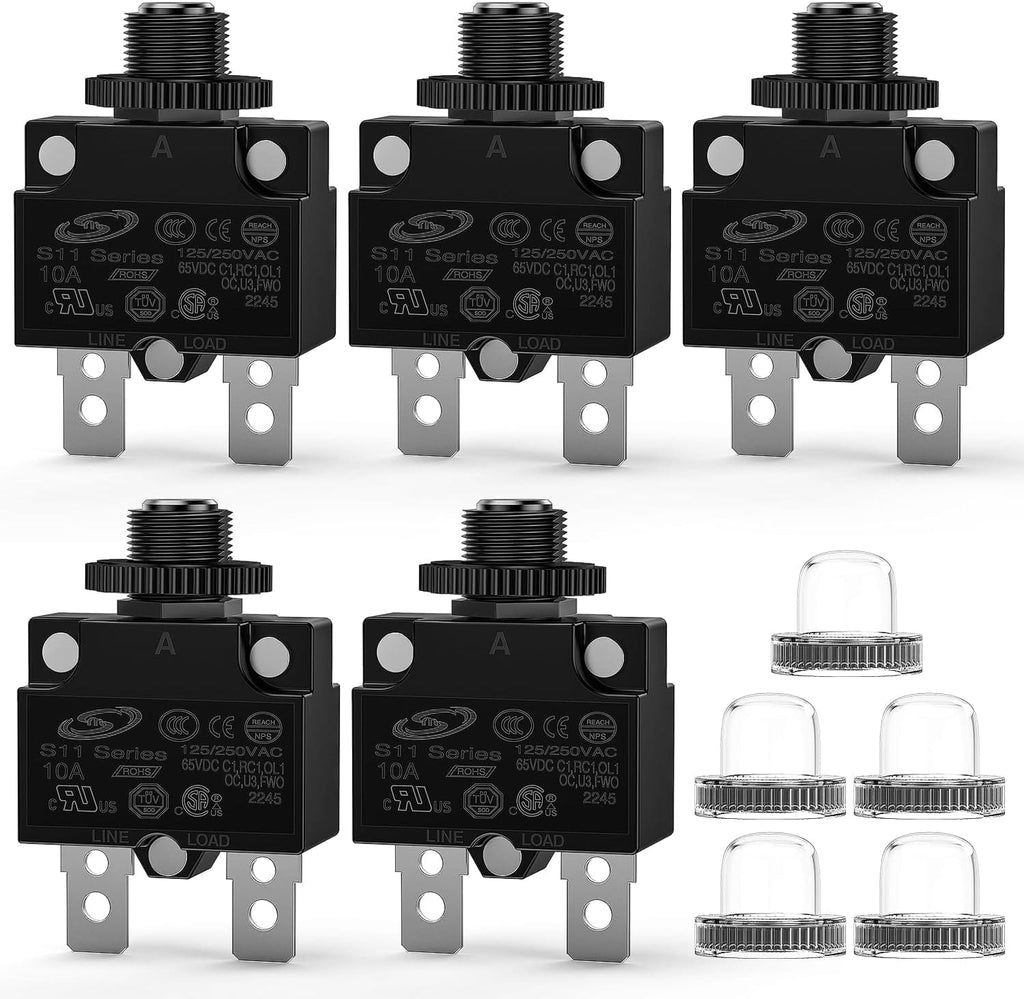

- Package Includes: 5 x 10A Manual Reset Thermal Circuit Breaker, 5 x Hex Nut, 5 x Waterproof Button Caps, 2 Year Warranty by Nilight.
When the load exceeds the rated current, this switch reset button will automatically cut off the circuit, and thus Thermal Circuit Breaker plays a role in protecting the line. Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies.
Features
Metal Sheet Terminals
Quick-plug or lock screw terminals, stability well.
Waterproof

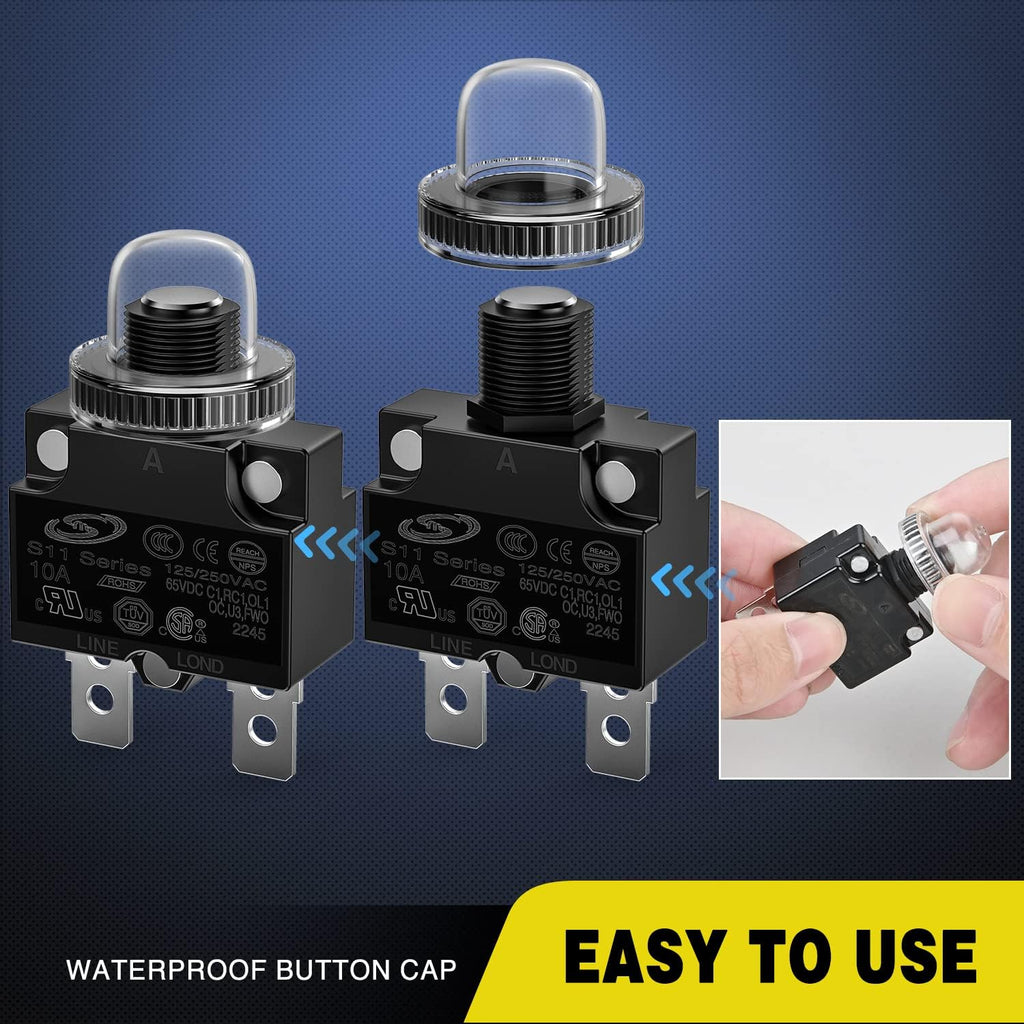

Come with transparent waterproof covers to prevent moisture or dust invasion. More durable and reliable.
Push Button Circuit Breaker
Marine Circuit Breakers rated at 10A. Operating voltage could be 65VDC/250V AC. The button will pop up when the circuit is overload, push to reset it.
Well-Constructed
Nilight circuit breaker is sturdy enough for long term use by being made of burr-free bakelite housing and metal shaft.
Great for all 12/24V vehicle and 125-250V AC systems industries.
Commercial appliances
household
power supplies
Industrial
Specifications

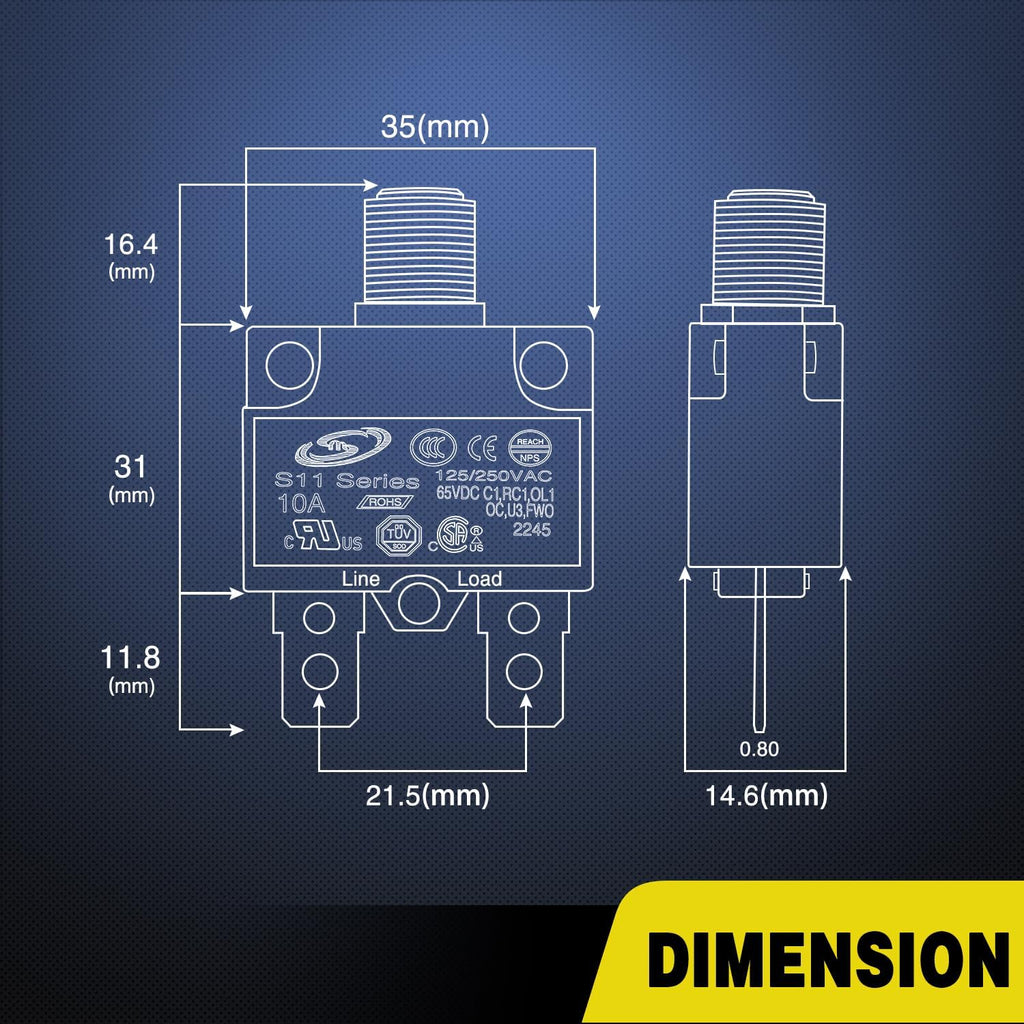

- Size: 45.8 x 31 x 14mm/1.8 x 1.22 x 0.55inch
- Voltage: 125-250V AC; 65V DC
- Rated current: 10A
- Reset type: Manual reset
- Operating temperature: -10℃ (14℉)~ 60℃ (140℉)
- Interrupt capacity: 1000 amps
- Function: When the load exceeds the rated current, this switch reset button will automatically cut off the circuit, and thus Thermal Circuit Breaker plays a role in protecting the line. Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies.
