5Pcs 20Amp Terminals Circuit Breaker

$11.99
{price}% OFF
30 Days Returns

Nilight will accept returns for up to 30 days from the date of purchase. Please include all original items in your return shipment. Incomplete returns may not be eligible for a full refund. Returns within 30 days or purchase will receive a full refund for the purchase price of the product.

No returns will be accepted after 30 days. Nilight will provide a return shipping label upon request.

Non-contiguous US residents and International residents – including Alaska, Hawaii, Canada and Mexico – are responsible for return shipping charges. Refunds will be applied to the original payment method that was used. Refunds are generally issued within 5-10 business days of Nilight receiving all returned goods. Your bank may require additional processing time to reflect the refund in your account.

Father's Day Offer

10% OFF For All Items;

13% OFF For Orders Above $229;

16% OFF For Orders Above $399

Check All Categories >>

Free Delivery|Order in the next [hour] to get it between [date_start] and [date_end]
  • Lowest Price
    Guarantee

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Details

Reviews

Free Shipping

2024 Product Guide

About this item

  • Protect Your System: Nilight thermal circuit breaker can be reset after a disconnect over a period of time, then you can press the reset switch to use it again When load exceeds rated current, the switch reset button will automatically cut off the circuit, and thus play a role in protecting the line.Not designed for push on / push off manual switch operation, but the button pops out at overload and is reset by pushing back in.

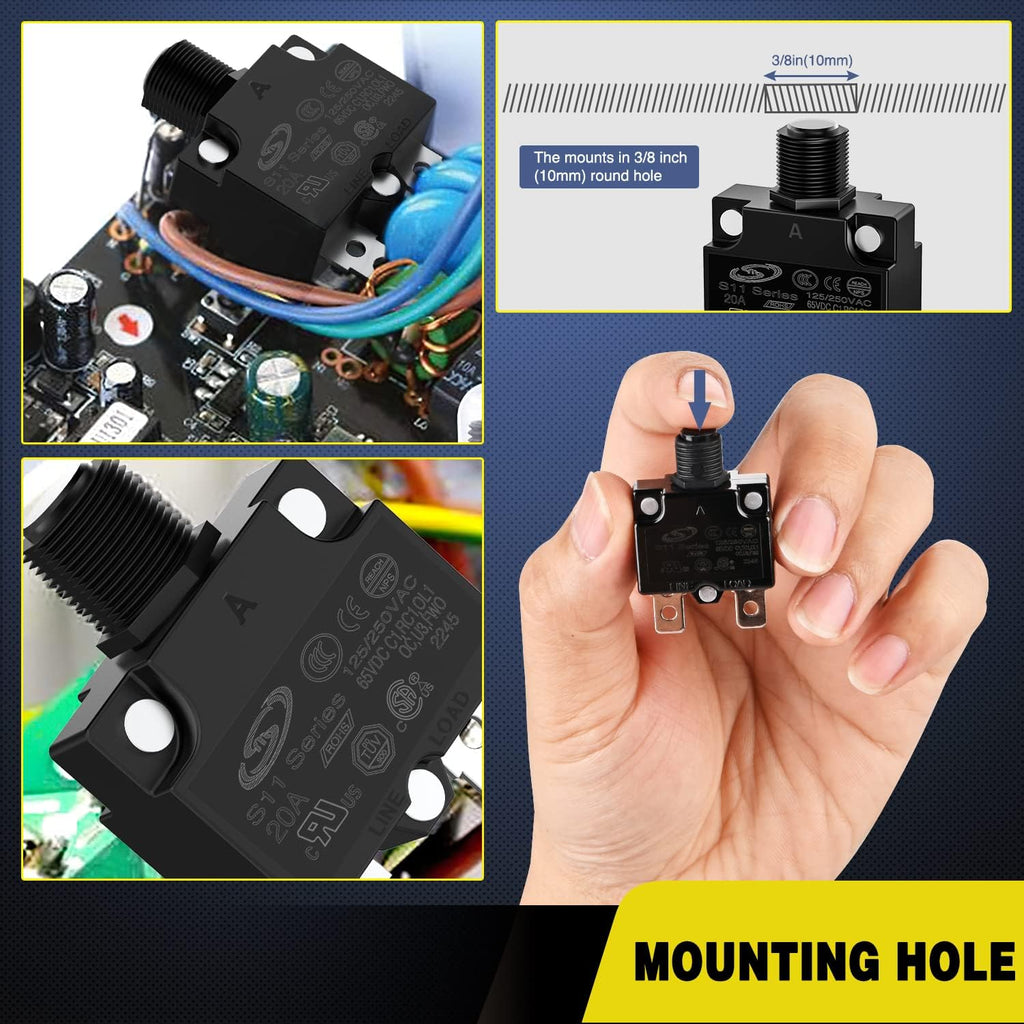

  • Compact Design: Push-to-reset operation with black manual reset button. This circuit breaker with a waterproof button cap to protect from moisture, water, or bad weather. The hole size for mounting is in 3/8 inch(10mm). This circuit breaker can be used for both AC and DC applications. It's for 125V/250V AC and 65V DC applications.
  • High Quality: Our Thermal Circuit Breaker is made of premium bakelite, durable and reliable to use, heat resistant, melting resistance and good conductivity, waterproof cover protect the internal from water and further damage.
  • Application: Our circuit breaker compatible with all 12/24V vehicle and 125-250V AC systems industries. Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies

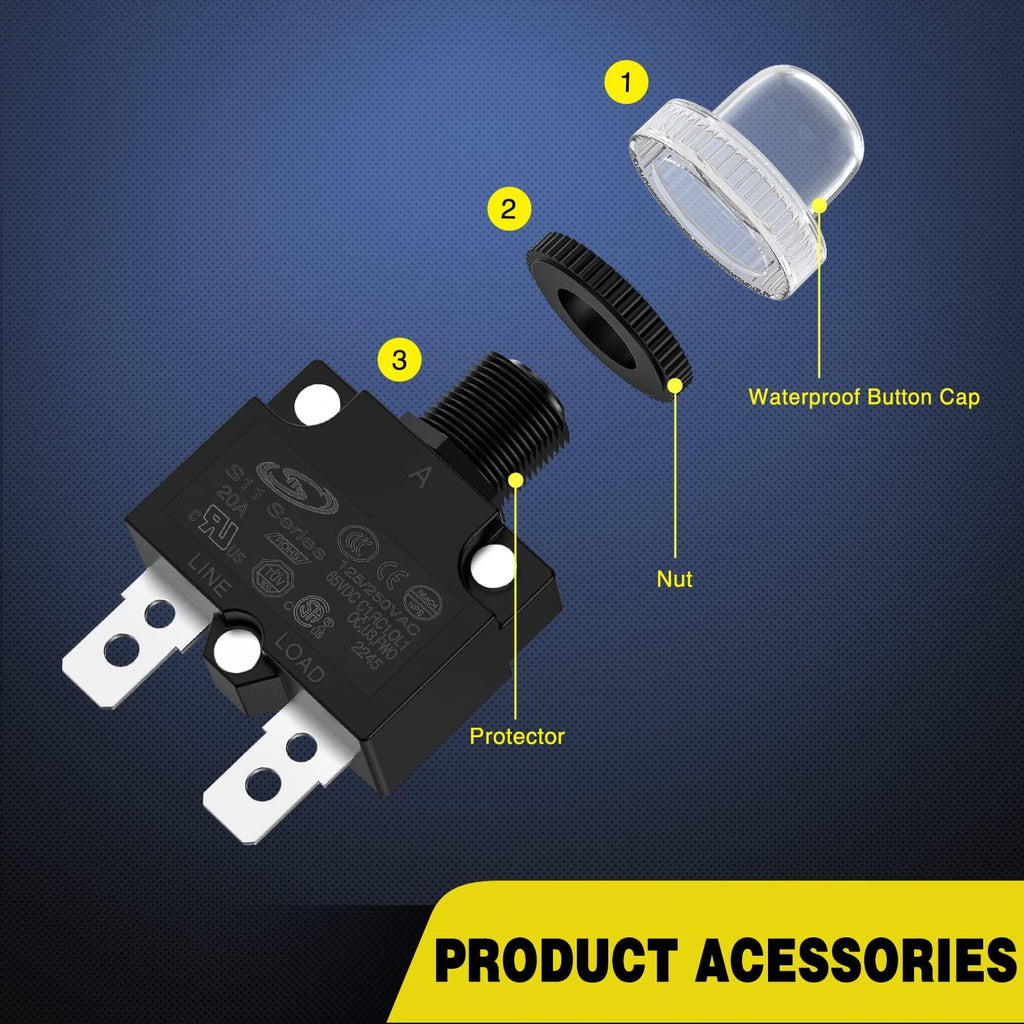

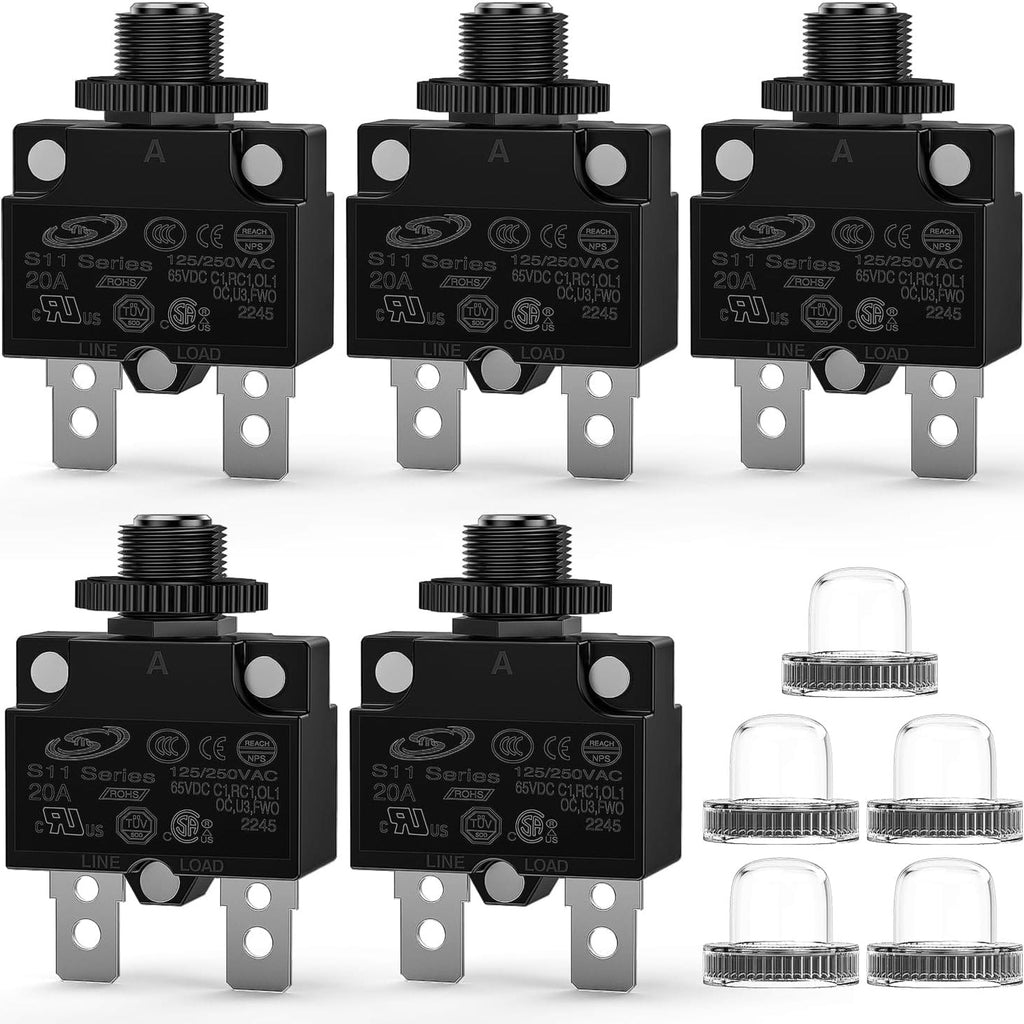

  • Package Includes: 5 x 20A Manual Reset Thermal Circuit Breaker, 5 x Hex Nut, 5 x Waterproof Button Caps, 2 Year Warranty by Nilight.

1

When the load exceeds the rated current, this switch reset button will automatically cut off the circuit, and thus Thermal Circuit Breaker plays a role in protecting the line. Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies.

1

Features

1

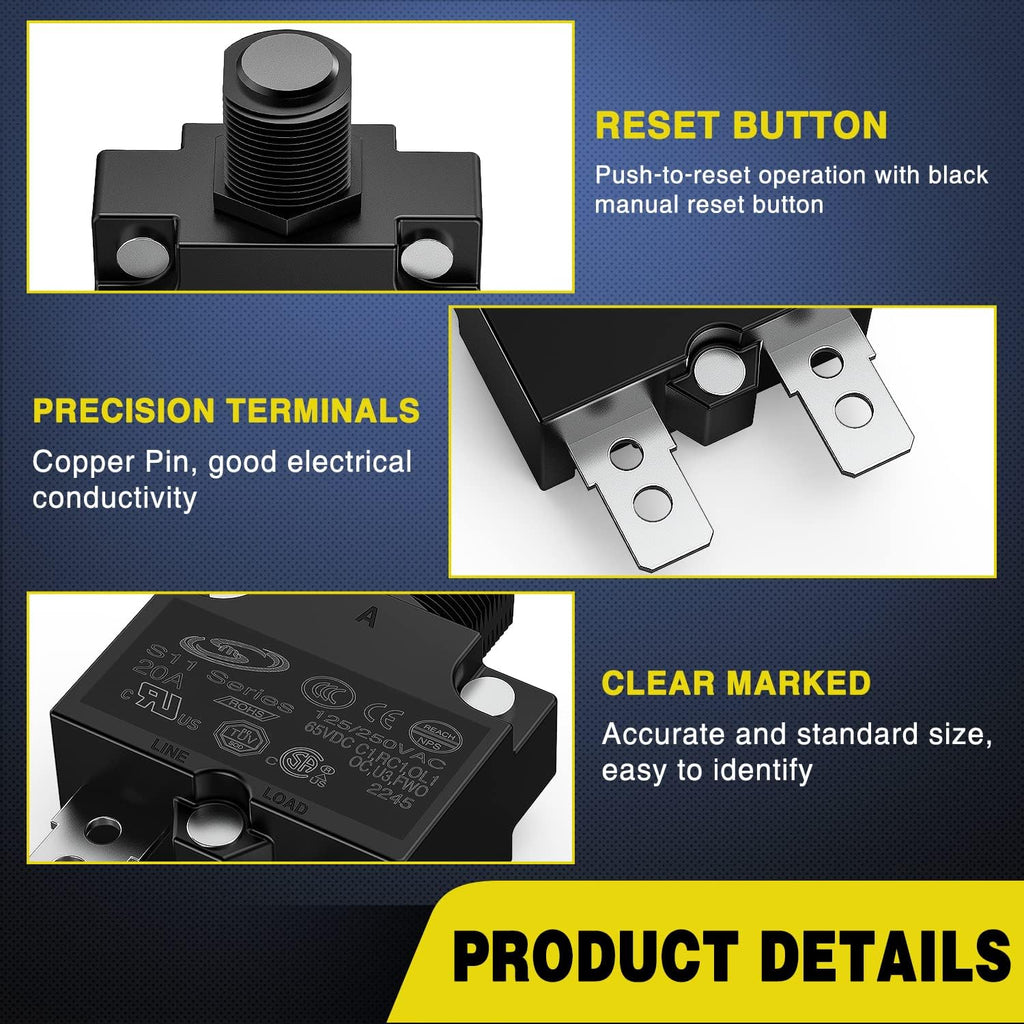

Metal Sheet Terminals

Quick-plug or lock screw terminals, stability well.

1

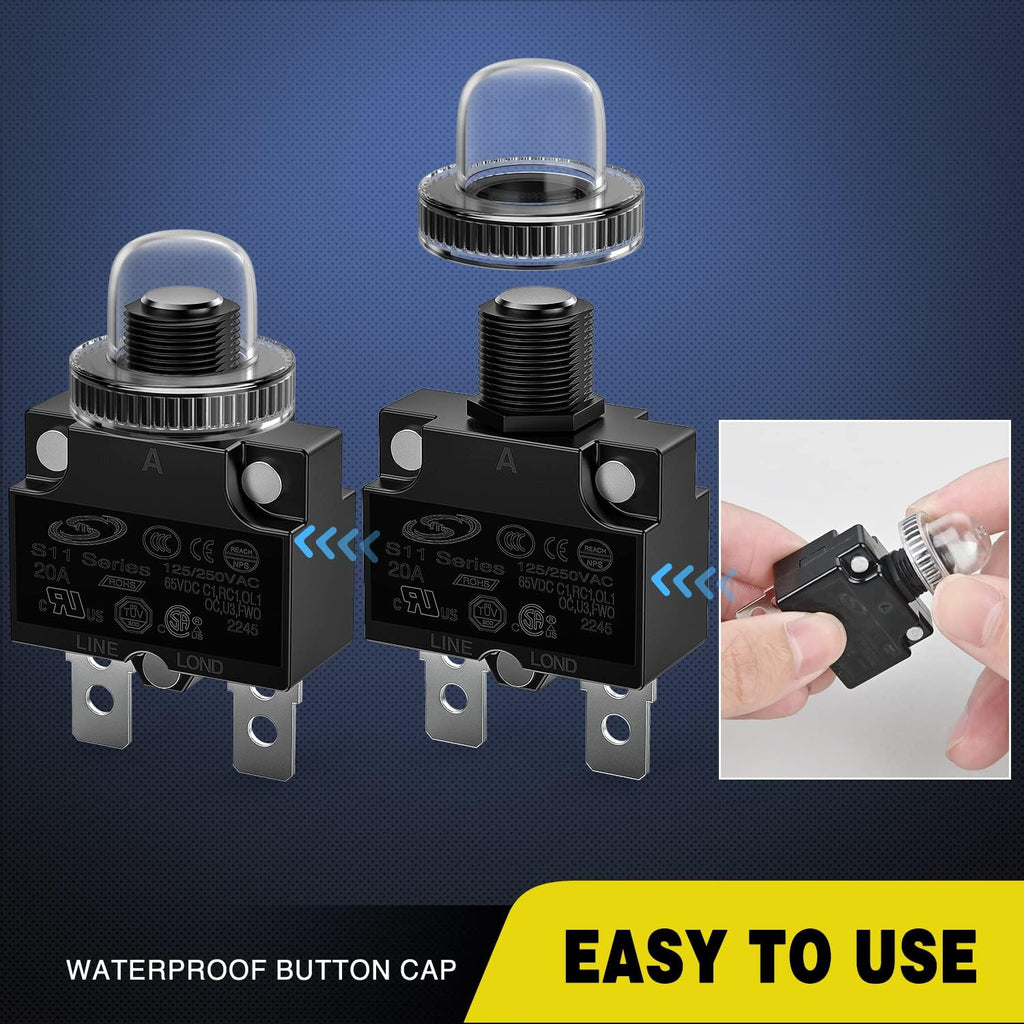

Waterproof

Come with transparent waterproof covers to prevent moisture or dust invasion. More durable and reliable.

1

Push Button Circuit Breaker

Marine Circuit Breakers rated at 20A. Operating voltage could be 65VDC/250V AC. The button will pop up when the circuit is overload, push to reset it.

1

Well-Constructed

Nilight circuit breaker is sturdy enough for long term use by being made of burr-free bakelite housing and metal shaft.

Great for all 12/24V vehicle and 125-250V AC systems industries.

1

Commercial appliances

1

household

1

power supplies

1

Industrial

1

Specifications

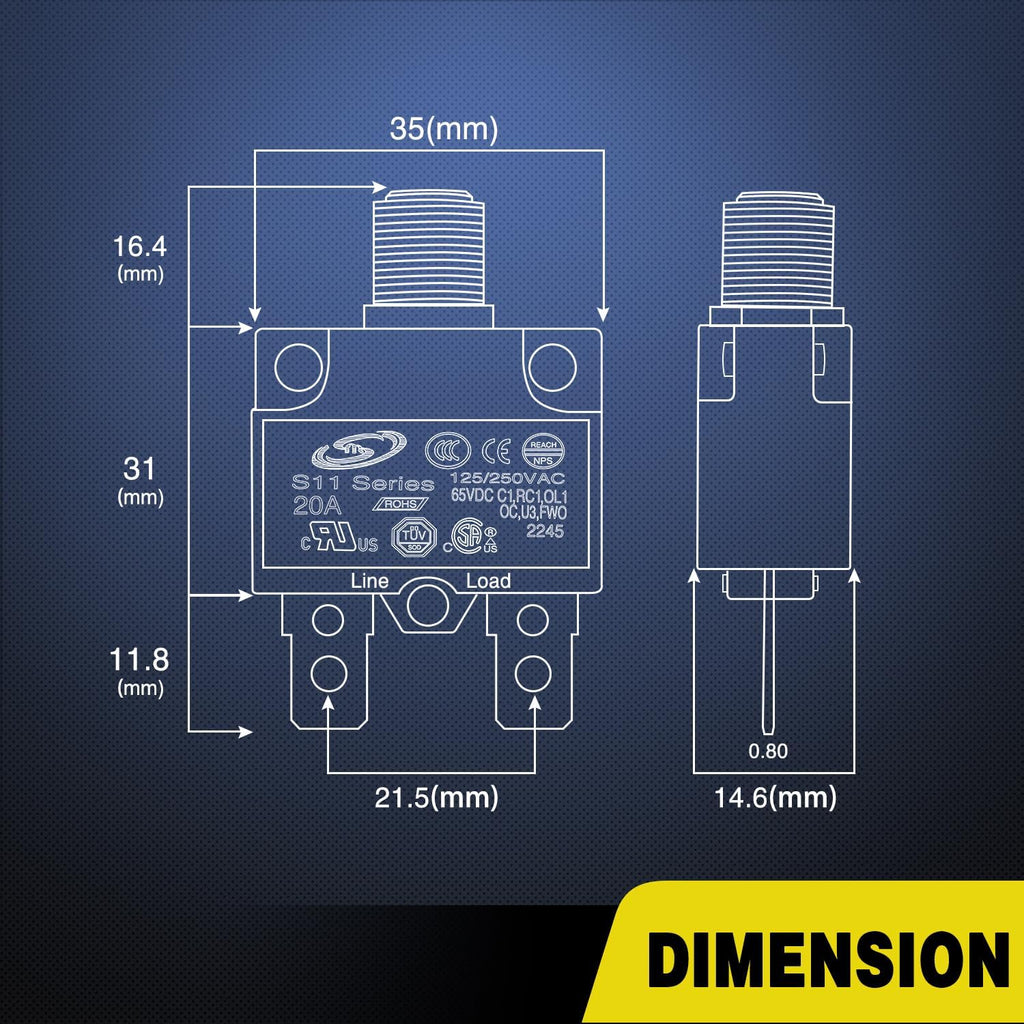

  • Size: 45.8 x 31 x 14mm/1.8 x 1.22 x 0.55"
  • Voltage: 125-250V AC; 65V DC
  • Rated current: 20A
  • Reset type: Manual reset
  • Operating temperature: -10℃ (14℉)~ 60℃ (140℉)
  • Interrupt capacity: 1000 amps

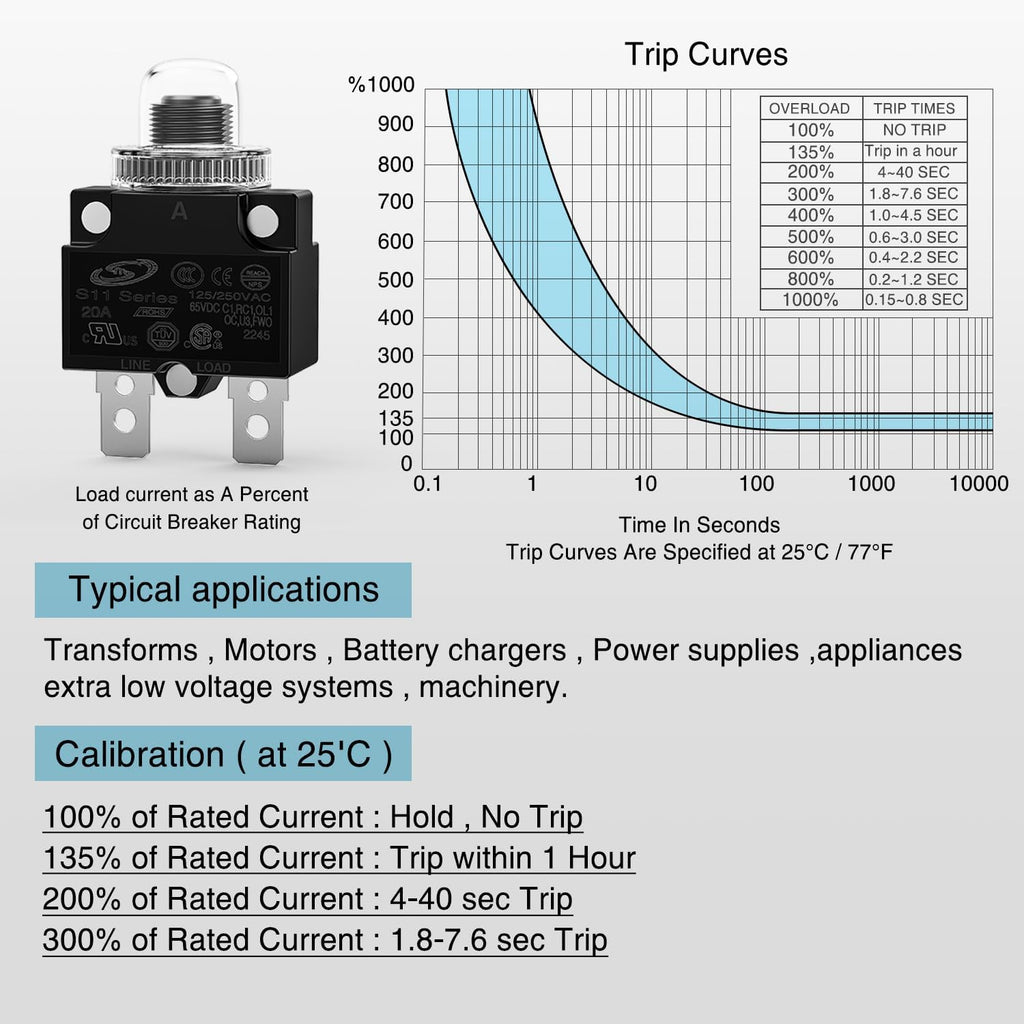

  • Function: When the load exceeds the rated current, this switch reset button will automatically cut off the circuit, and thus Thermal Circuit Breaker plays a role in protecting the line. Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies.
