Square LED Trailer Light Kit (Pair)

: In stock

Regular price $41.99


Related Video

About this item

  • New Design: Features separated running light display and stop turn light display by using halo glow ring, add on unique outlook and differences. Also, each light uses more led chips than the classic one, giving more brightness and reliable visibility for safety. 100% DOT compliant.
  • 7 Full Functions: Combined full functions of stop turn tail light, side marker, side reflector, rear reflector, and license plate light. Fit most 12V DC vehicles within 80 inches, like trailers, boats, trucks, RV, Marine, Pickups, campers, tractors, buses, lorry, vans, caravans, snowmobiles
  • IP68 Submersible: LEDs and circuit boards inside are fully waterproof and sealed to work underwater without electric short risk. Light housing also features water drainage for added protection.

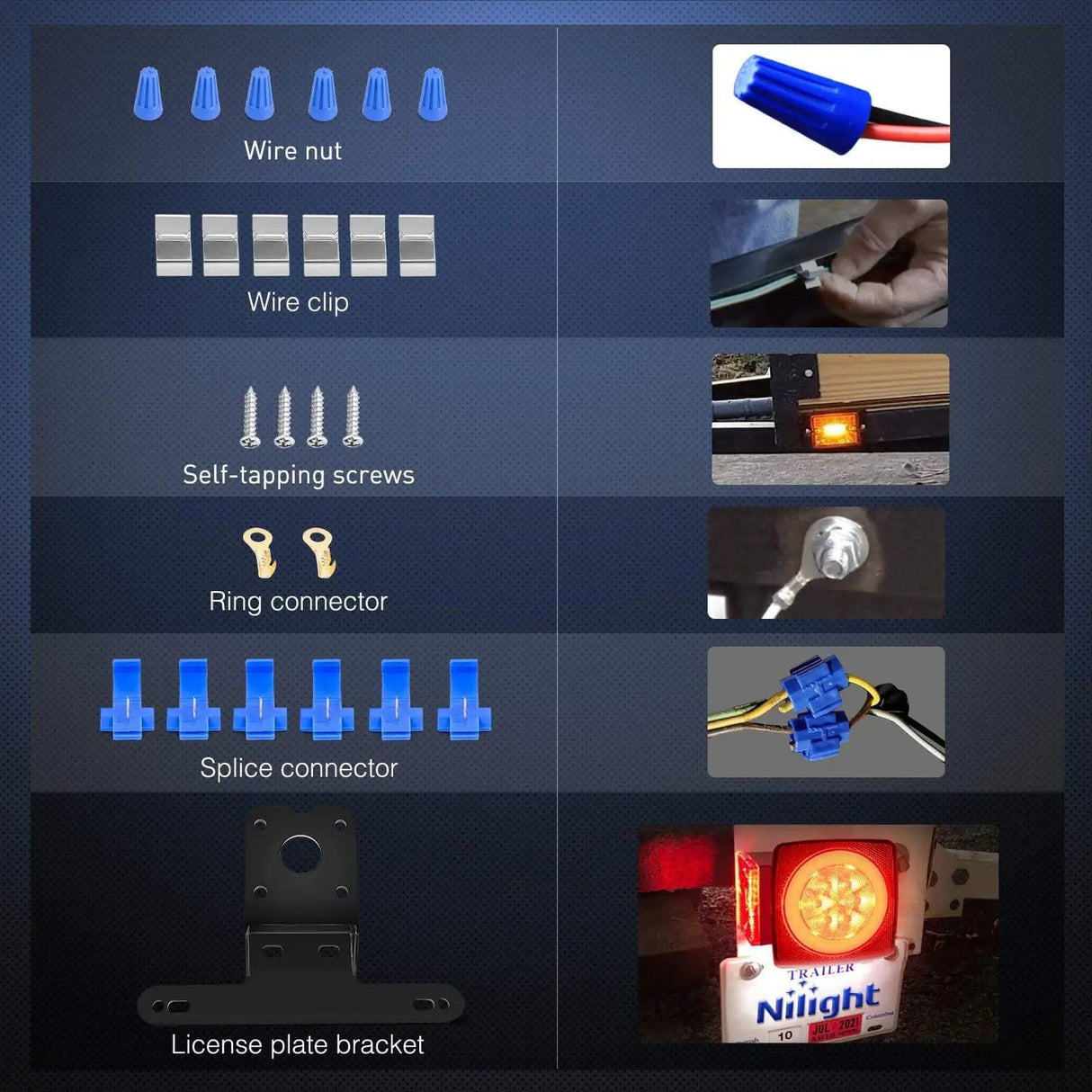

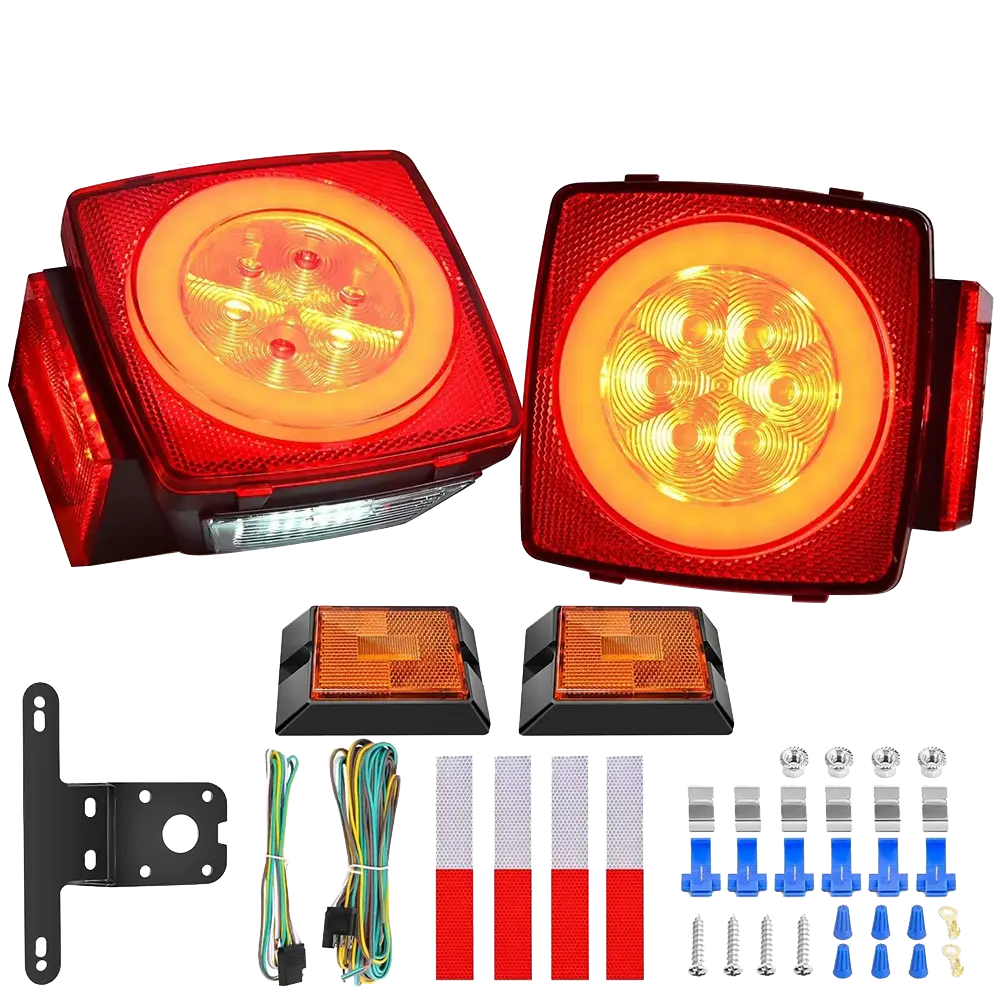

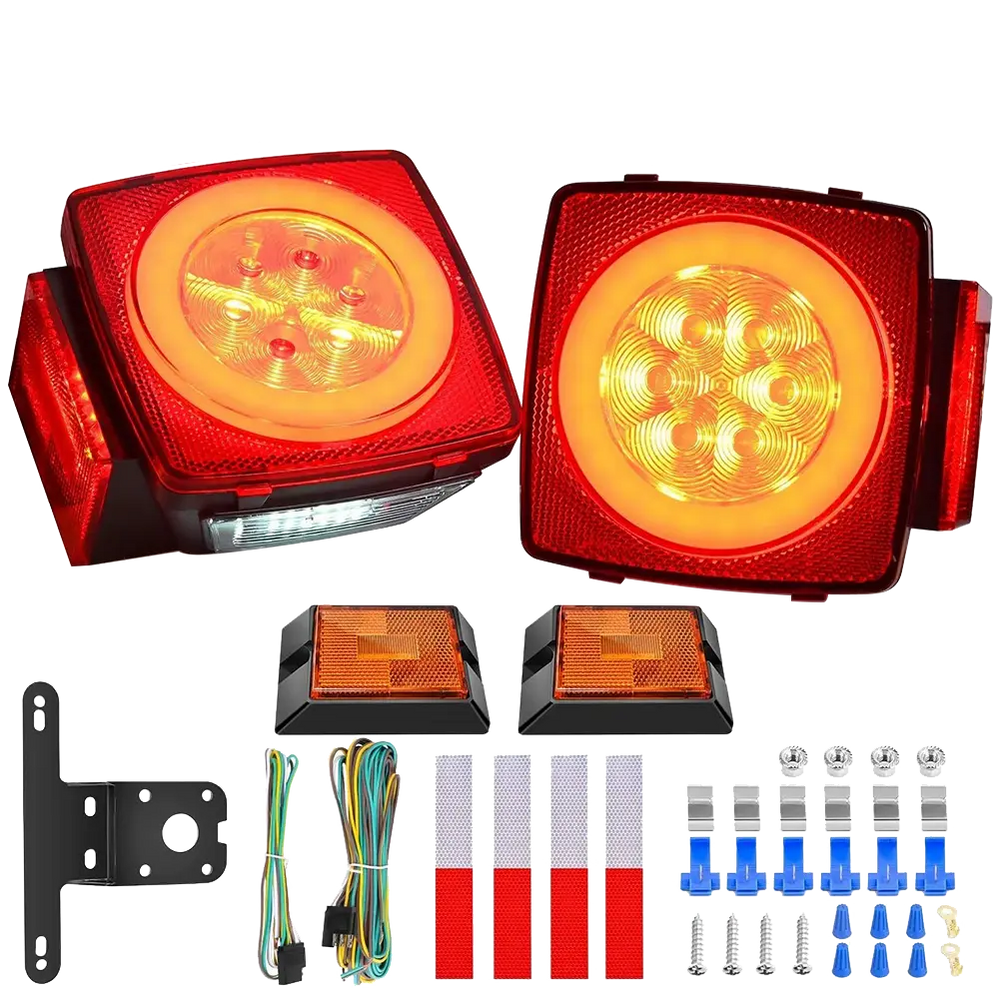

  • All-in-one kit: Comes with everything for your straight-forward installation, including square trailer lights, amber clearance light, license plate bracket, trailer wiring harness, reflective stickers, and different types of mounting hardware for handy use

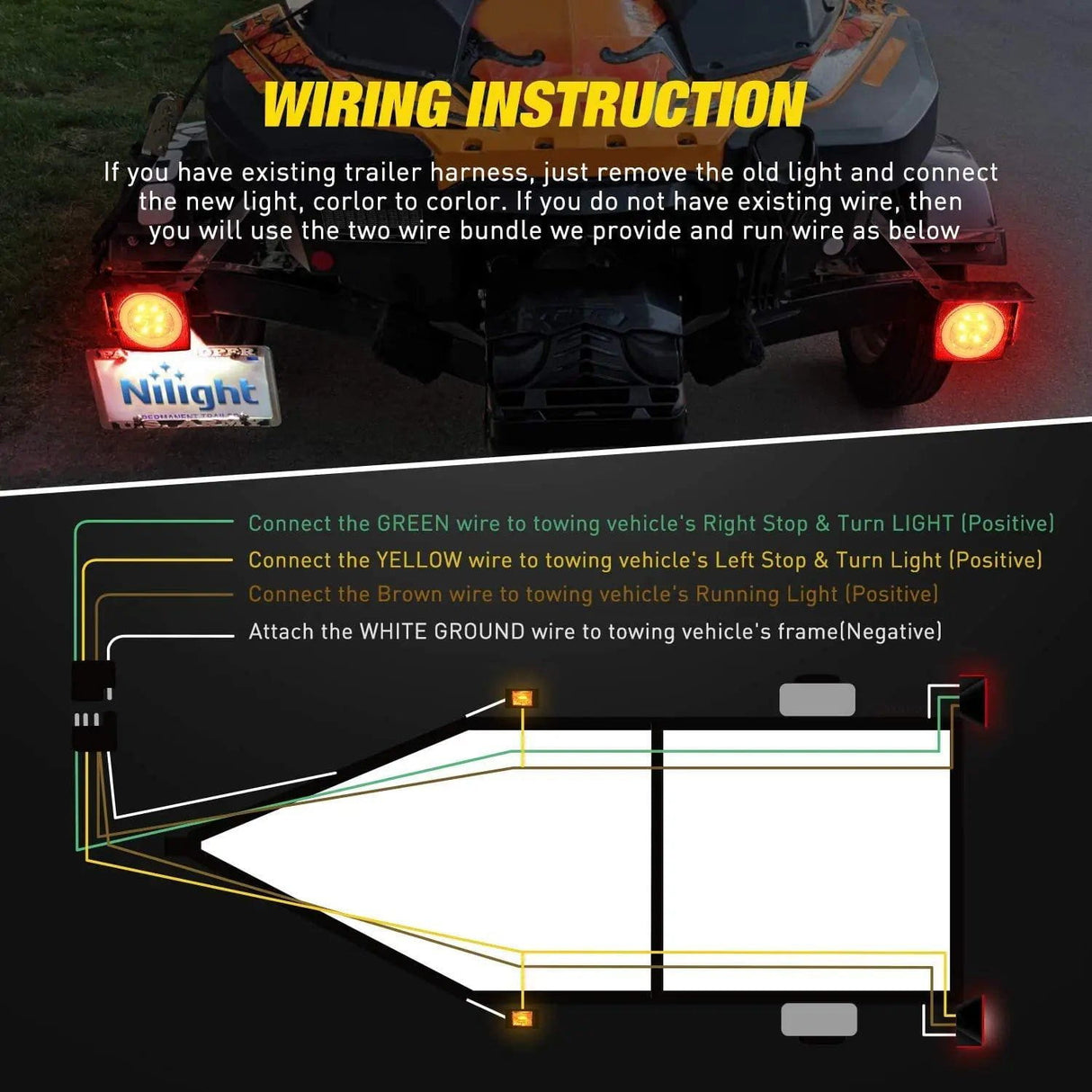

  • Easy Installation: Light mounting: stud-mounted design, light with license light on the driver side, the other on the passenger side. Wire connection: color-coded wires, just color to color, and white wire with ring terminals can be grounded at its own mounting stud or to the vehicle frame.

Nilight’s Submersible Square LED Trailer Light Kit

Adopt a new feature of the halo glow ring. Separate running light and stop turn light displaying, add one more LEDs, giving more brightness and reliable visibility for safety. Still combine 7 full functions of stop turn tail light, side marker, side reflector, rear reflector, and license plate light.

  • Operating voltage: 12VDC
  • Amperage Draw: 0.2A-0.4A
  • Waterproof Rate: IP68
  • DOT compliant

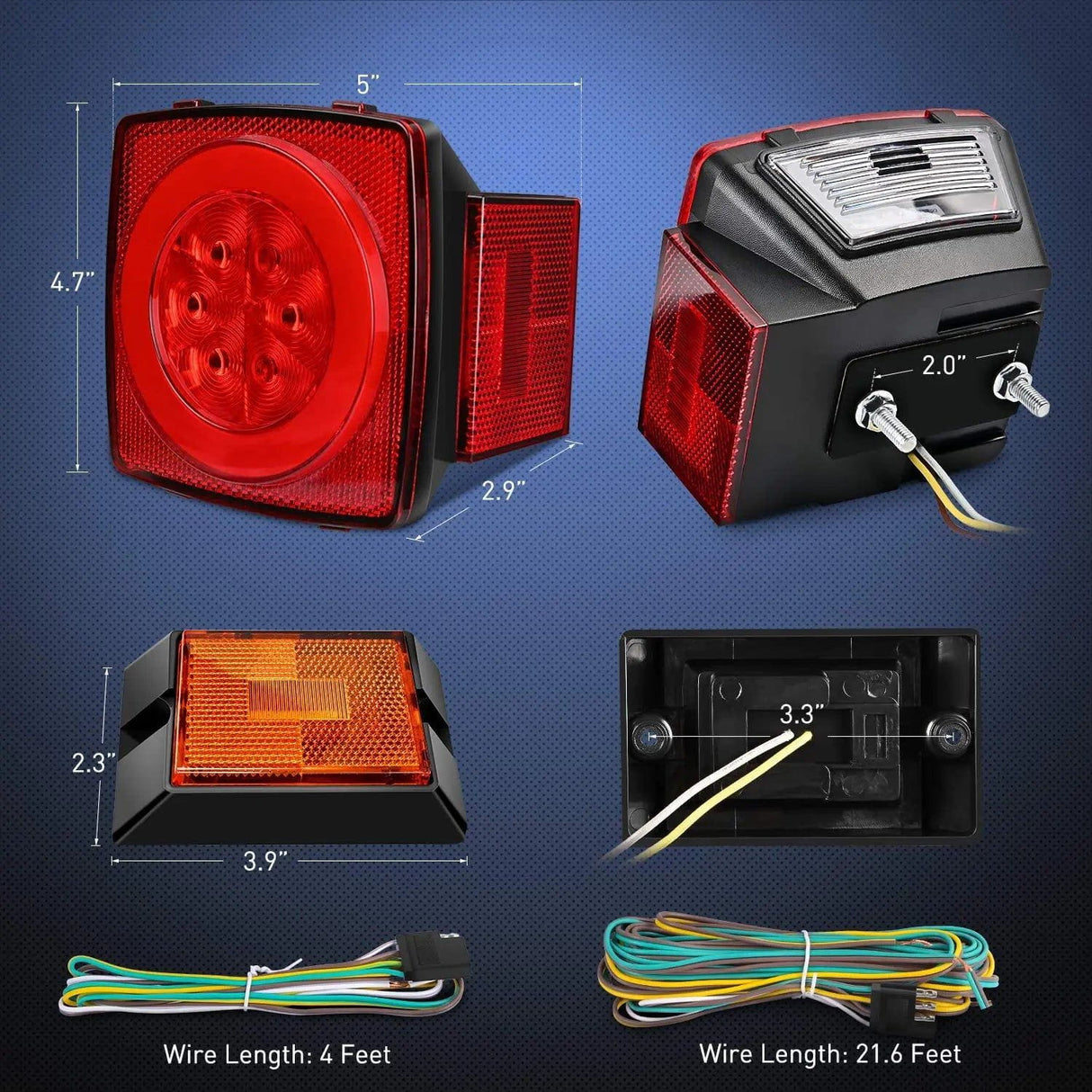

  • Square Light dimension: 5” x 4.7” x 2.9"
  • Amber clearance light dimension: 2.3" x 3.9"
  • Square light mounting distance: 2"
  • Amber clearance light mounting distance: 3.3"

Key Features

Quality LEDs

Quality LEDs

Quality and more LEDs, and add on a new design halo glow ring for better brightness and safety

Special Design

Special Design

Stud mounting for easy, firm, and durable installation. Grooves are designed for perfect surface mounting.

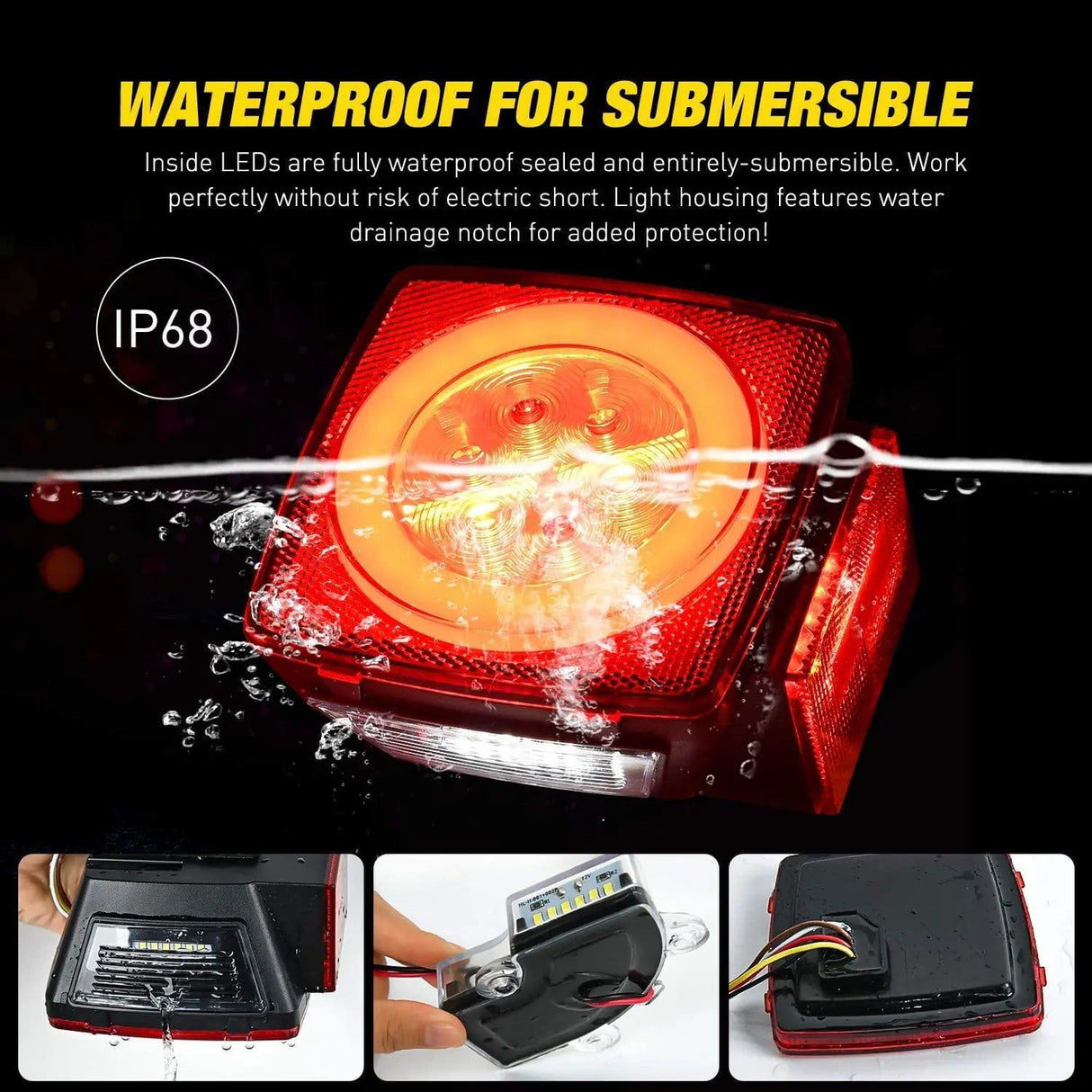

Built-in IP68 Waterproof

Built-in IP68 Waterproof

Inside electronics and the circuit board is epoxy encased and fully sonically sealed, entirely submersible, trailer light housing also features water drainage.

Convenient Ground

Convenient Ground

White wires are added to ring terminals for convenient ground at the mounting stud, no need to drill more holes for it.

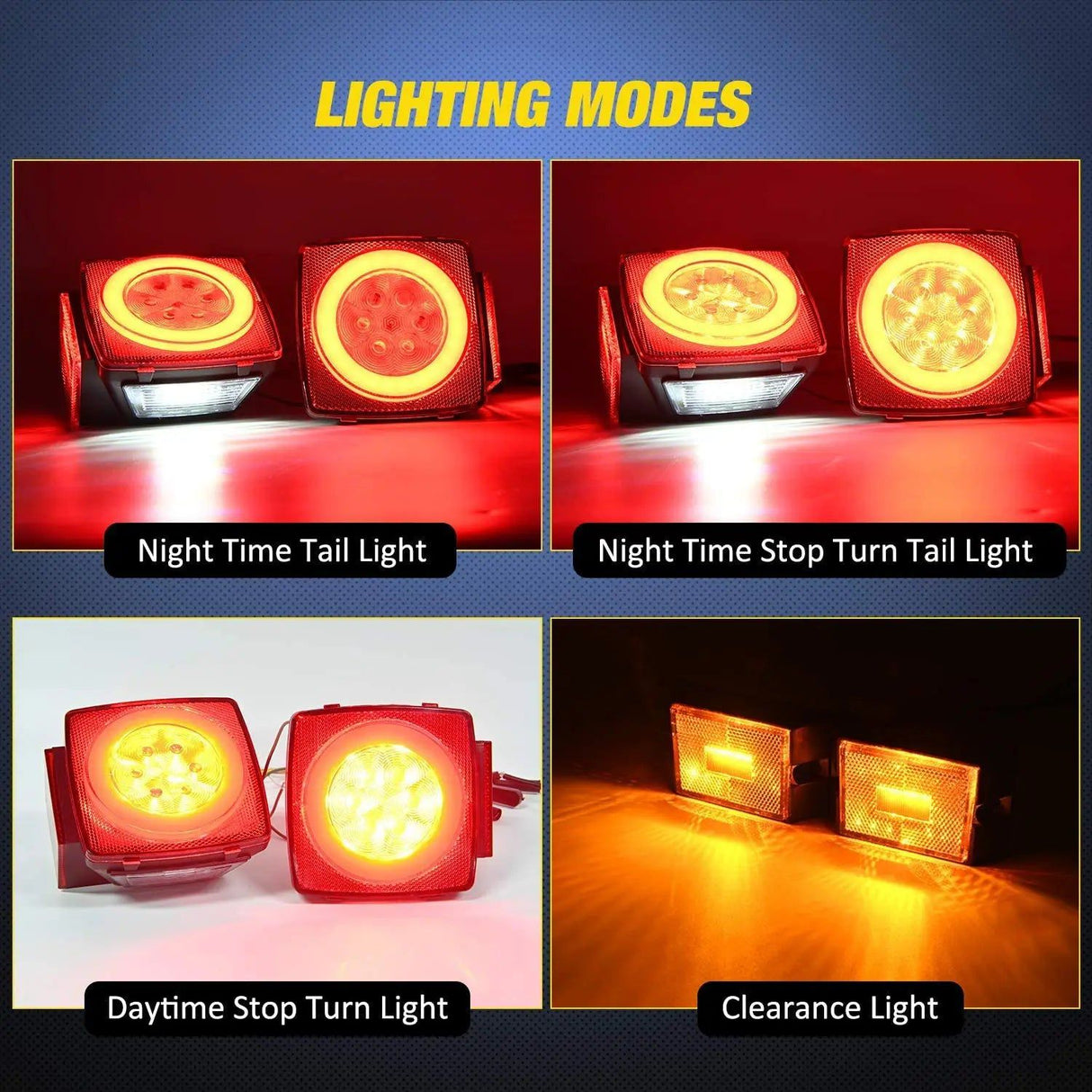

Lighting Mode

Night Time Tail Light

LED Trailer Light Kit

Night Time Stop Turn Light

Square LED Trailer Light Kit

Daytime Stop Turn Light

boat trailer light

Clearance Light

LED Trailer Light Kit, Square LED Trailer Light Kit, utility trailer light, boat trailer light

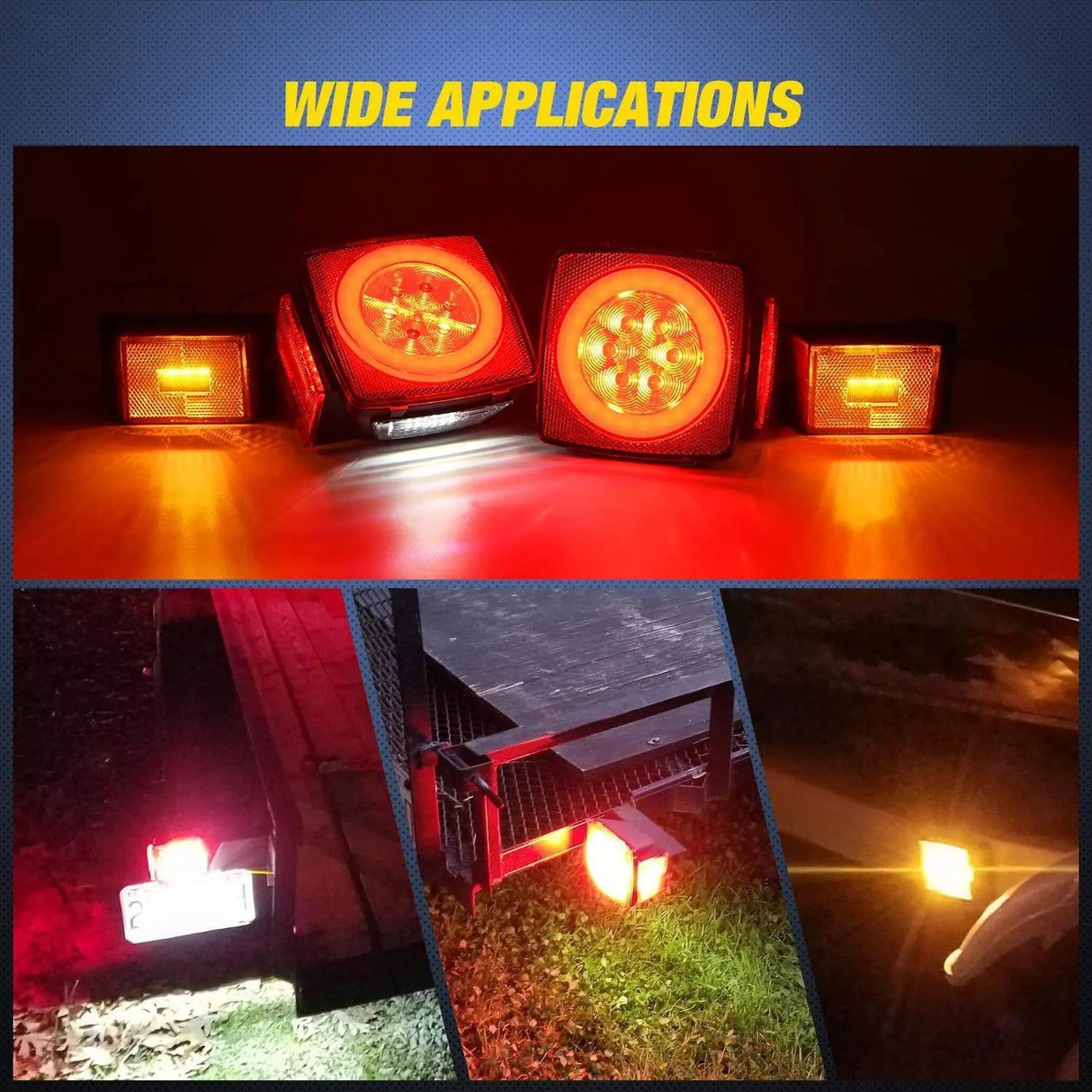

Perfect for 12V DC vehicles with max width of 80 inches. Fit most trailers, boats, trucks, RV, Marine, Pickups, camper, tractors, etc. bus, lorry, van, caravan, snowmobile utility trailers.

trailer light
