About this item
Excellent Electrical Conductivity: The middle conductor is made of high-quality Pure Tinned copper. Tin coating can also increase the current and corrosion protection.
Multifunctional Connector Kit: This heat shrink connector is compatible with a variety of applicants. For example car, motor, vehicle, boat, and other scientific projects.
Strong Crimps: Thick copper drums ensure high tensile strength, tear resistance and prevent mechanical damage. The cable does not slide out of the connector.
Ease of Application: Strip wire insulation, crimp terminal barrel with a wire crimper, and apply heat with a heat gun while rotating a connector. Heat shrink tubing will reduce in size and adhere to the wire. No soldering kit needed. Start making secure and durable connections in seconds.
Warranty Guarantee: We are focused on customer satisfaction with our products. If you have any questions, please feel free to contact us.
Shrinkage ratio 3: 1
Minimum shrink temperature: 175°F (80°C)
Full recovery temperature: 265°F (130°C)
Operating temperature: -65°F–255°F (-55°C - 125°C)

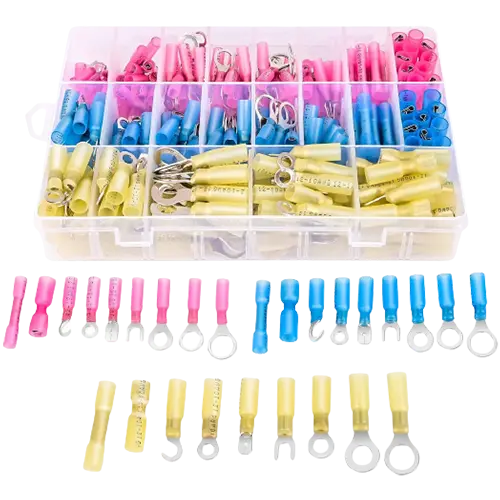

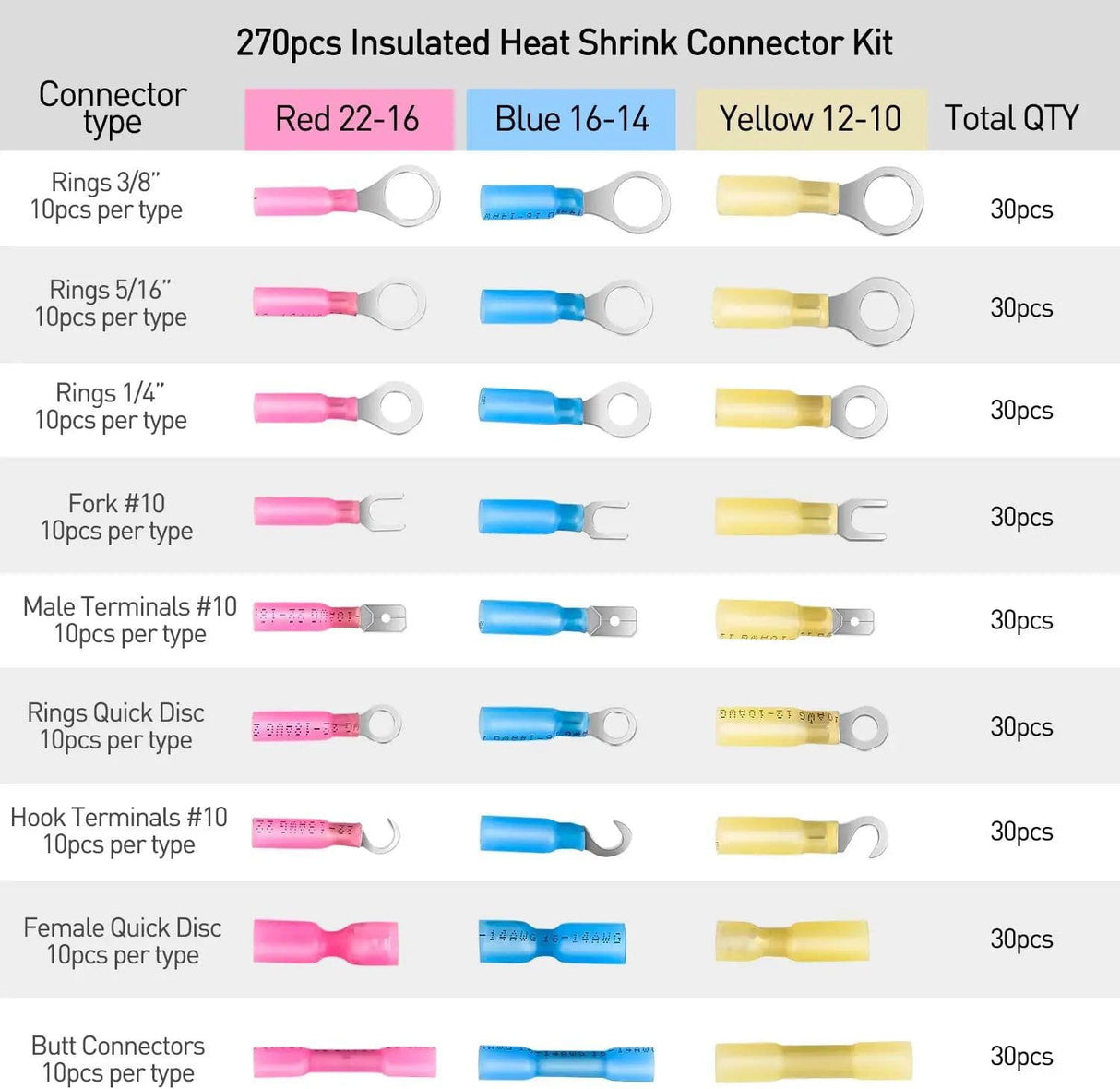

Connector types and quantity: Rings*120; Fork*30; Hook*30; Butt*30; Male*30; Female*30;

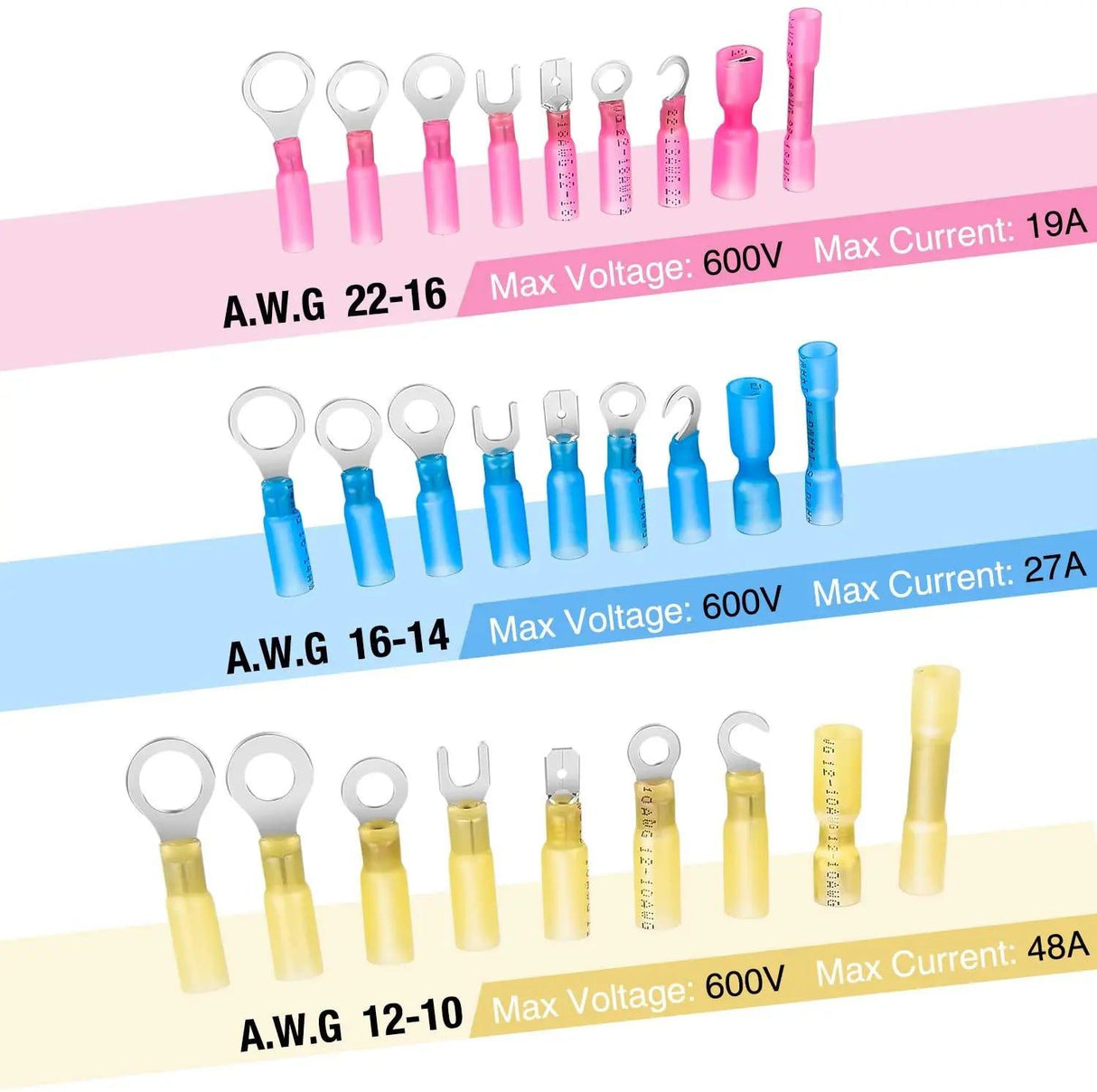

Yellow：10-12AWG, Max Voltage : 600V, Max Current : 48A
Blue : 14-16AWG, Max Voltage : 600V, Max Current : 27A
Red:16-22AWG, Max Voltage : 600V, Max Current : 19A
Nilight heat shrink connectors are compliant with ROHS, ISO9001:2008, SGS and CE standards.

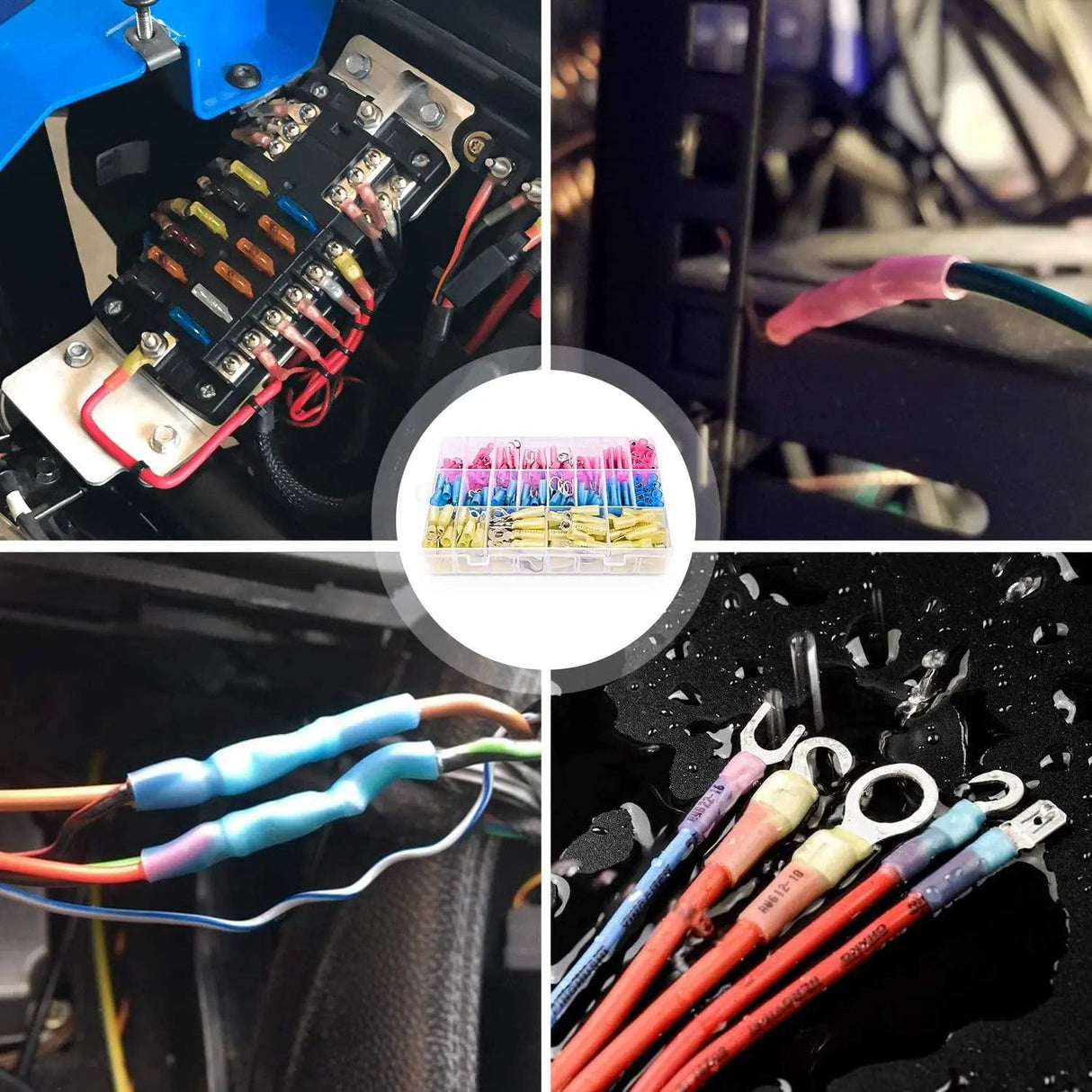

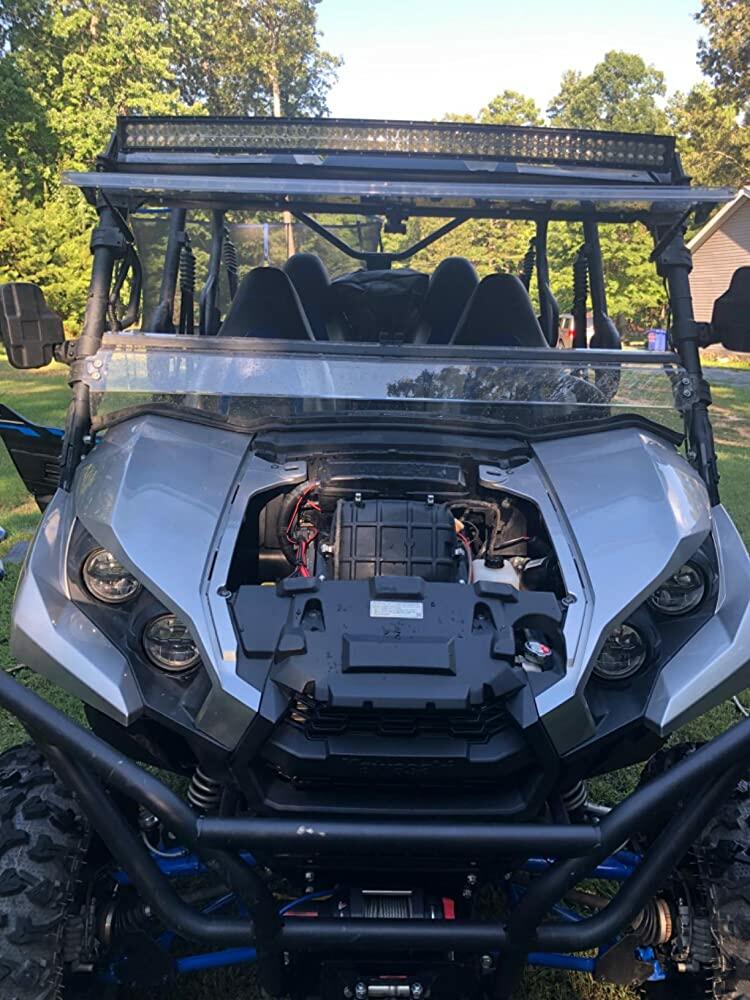

Ideal for use in ships, garages, automotive electricians, machinery, workshop cars, trucks, motor homes, home or other scientific projects.
Heat shrink electrical connectors

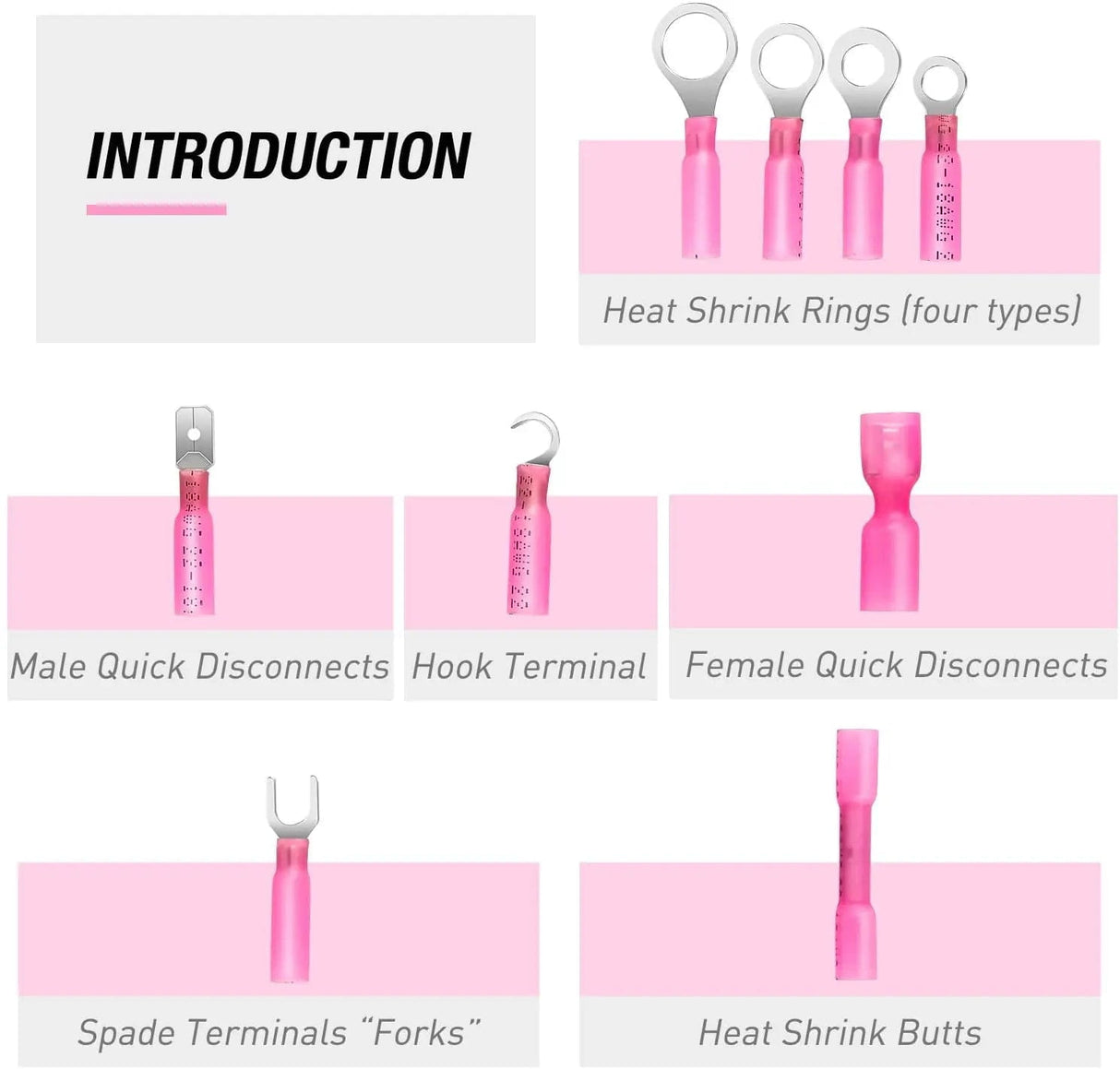

Electrical Terminals Kit allows you to choose from a variety of specifications and colors. Rings Fork Hook Spade Butt Splices. These can meet your various needs. Allows you to complete your work or project more brilliantly.
Waterproof and anti-corrosion

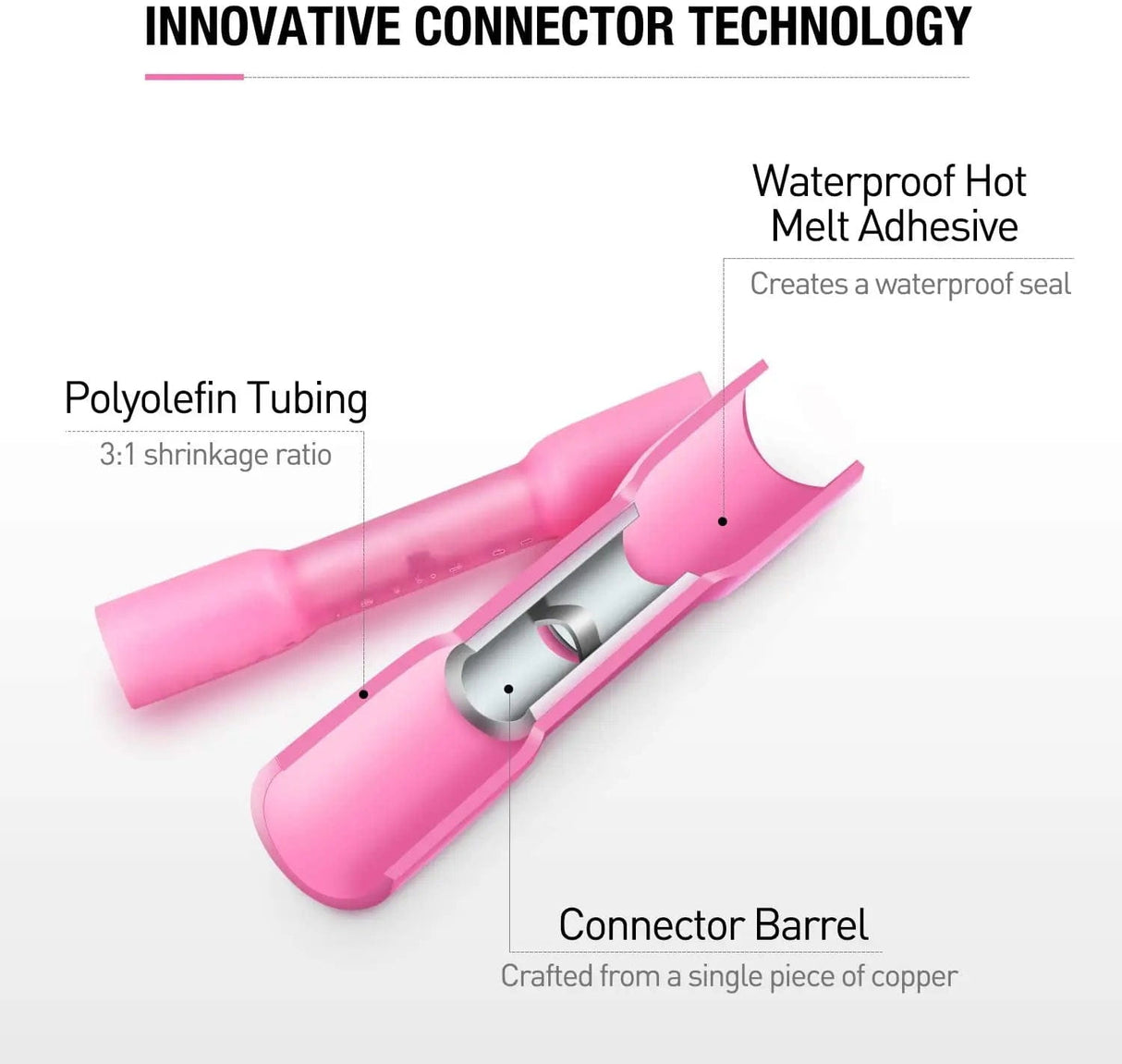

The outer material is polyolefin tube, and the inside is made of hot melt adhesive. These materials provide greater safety for wire connectors. In addition, the insulation seal can effectively prevent wire corrosion.
The heat shrink wire connectors have high elasticity and the pipes are not easily deformed. At the same time, it also has excellent tensile strength and resistance to mechanical damage. These can make your terminals life longer.

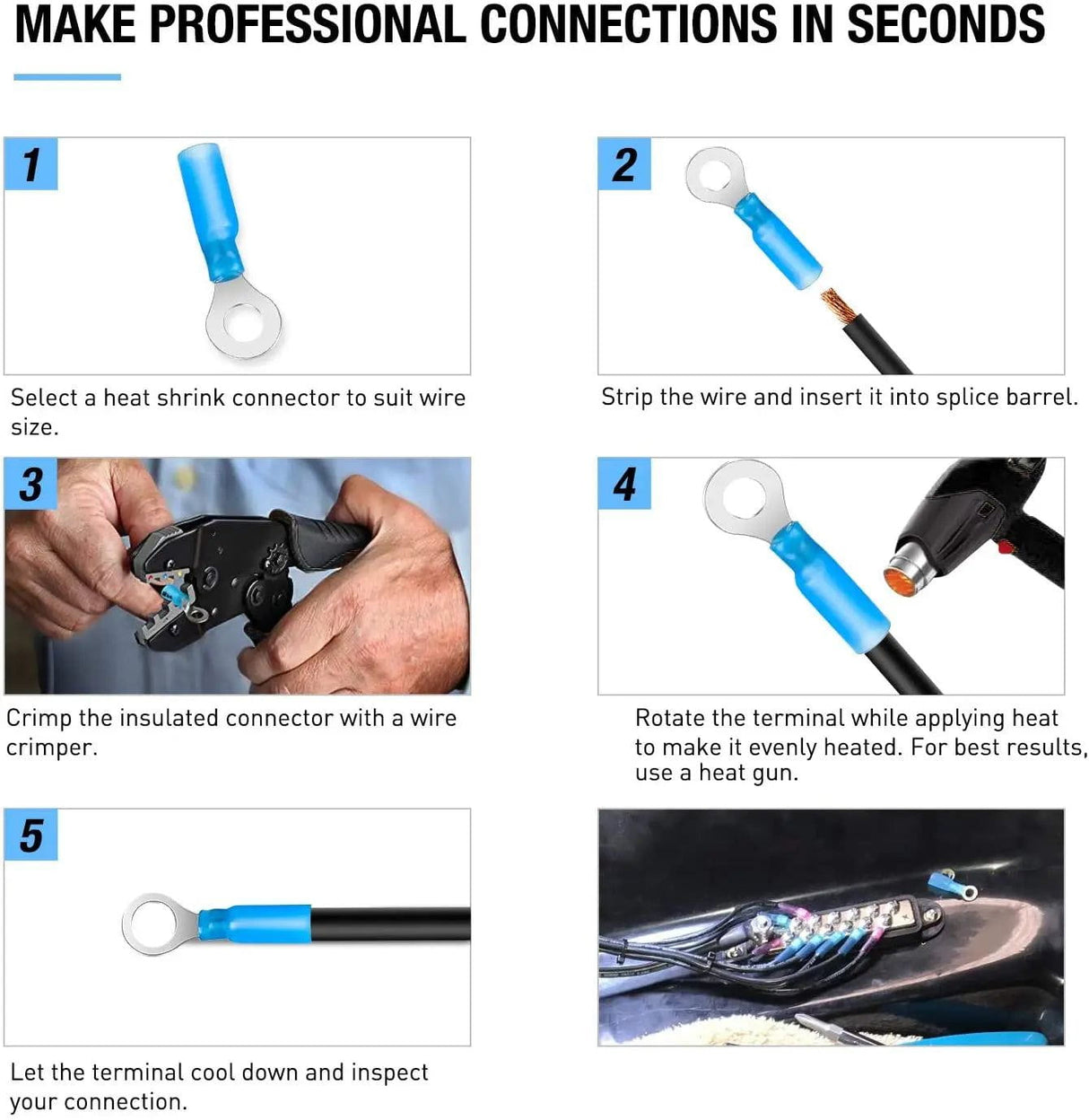

How to use
Strip the Wire
Select a heat shrink connector suit wire size.Strip the wire and insert it into splice barrel.
Crimp the Terminal
Crimp the insulated connector with a wire crimp.
Rotate the terminal while applying heat to male it evenly heated.For best results, use a heat gun.
Inspect the Connection
Let the terminal cool down and inspect your connection.
