5Pcs Red Cover SPST ON/Off Toggle Switch
5Pcs Red Cover SPST ON/Off Toggle Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
International Shipping
Nilight is shipping worldwide covering North and South America, Europe, Asia, Africa, Oceania and more.
We employ the services of major, trusted international carriers to ensure your package arrives at your destination safely.
U.S. domestic orders are shipped from our USA warehouse for the fastest delivery times but exceptions may occur.
Shipping Time
U.S. domestic shipping: about 3-7 Working Days
International shipping: about 8-15 working days
A standard processing time of up to 48 hours is required before the order is shipped out.
Due to challenges posed by the pandemic, our carrier is temporarily experiencing shipping delays, which may delay your delivery. We are always work to get your package to you as quickly and safely as possible.
Shipping Cost
We offer free shipping on all of our products to customers in the Continental U.S. when orders over $19.99. Customers in other regions need to pay additional shipping costs(Specific amount please kindly refer to your checkout page).
Tracking
Your tracking number will be sent in email immediately after we ship the order out. You may follow the link in the email to check the estimated arrival time of your order.
(Please note that tracking information will only be updated online in 1 working day after your order has been shipped.)
Product Description
Product Description
About this item
Connector type: SPST, 2 terminal pin on/off. Rating: 12V-20A/2 Pole
Safety cover: Red aircraft safety cover prevents accidental start

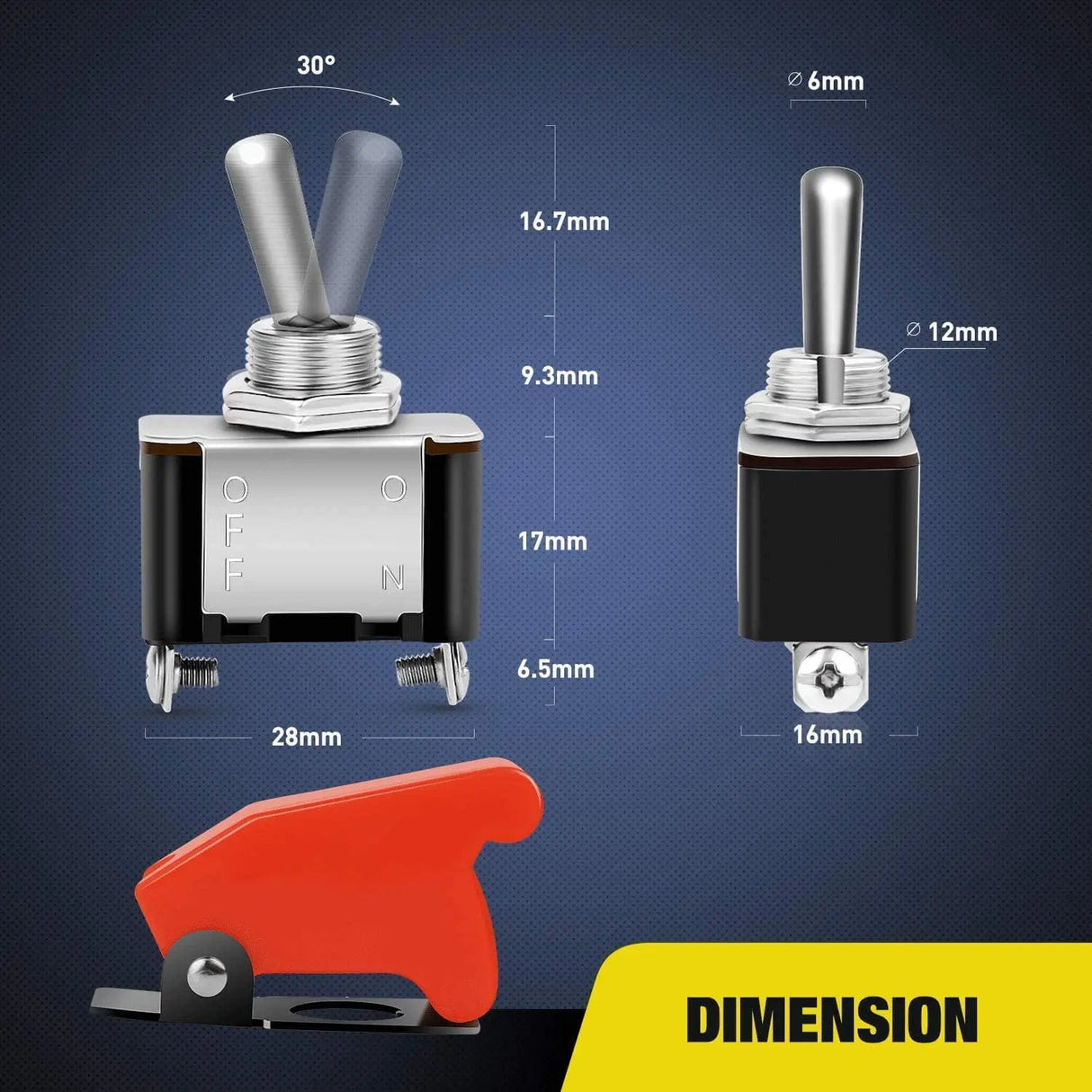

Easy to use and install: Open the red cover, and toggle the switch to on. Close the red cover to off the switch directly. Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections but is also easy to be soldered.

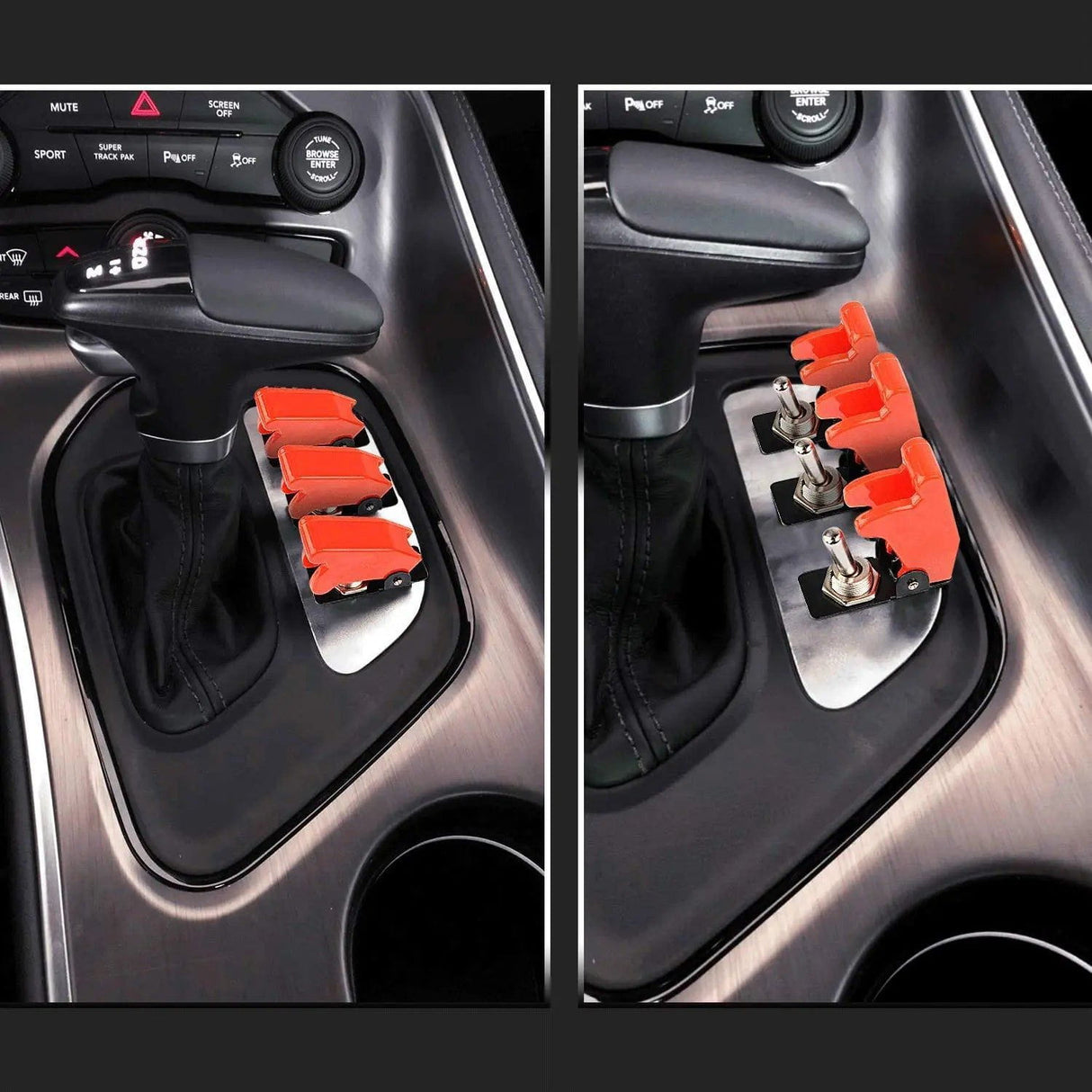

Widely used: Suitable for almost any motorized vehicle such as cars, trucks, boats, ATVs, utvs, airplanes, race cars, golf carts, or any off-road vehicle.

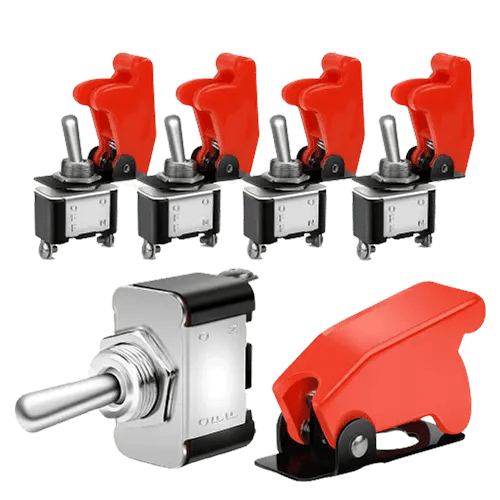

Package includes: 5PCS toggle switch
Specification
Type: On/Off
Rating: 12V-20A / 2 Pole
Connector Type: SPST, 2 terminal pin on/off.
Material (External): Metal and Plastic.
Mechanical life: more than 50.000 cycles.
Environment temperature:- 25 degrees ~ 80 degrees.
Toggle switch with safety cover
Widely used: Suitable for almost any motorized vehicle such as cars, trucks, boats, ATVs, ulvs, airplanes, race cars, golf carts, or any off-road vehicle.
The package include: 5 pcs toggle switch
Features

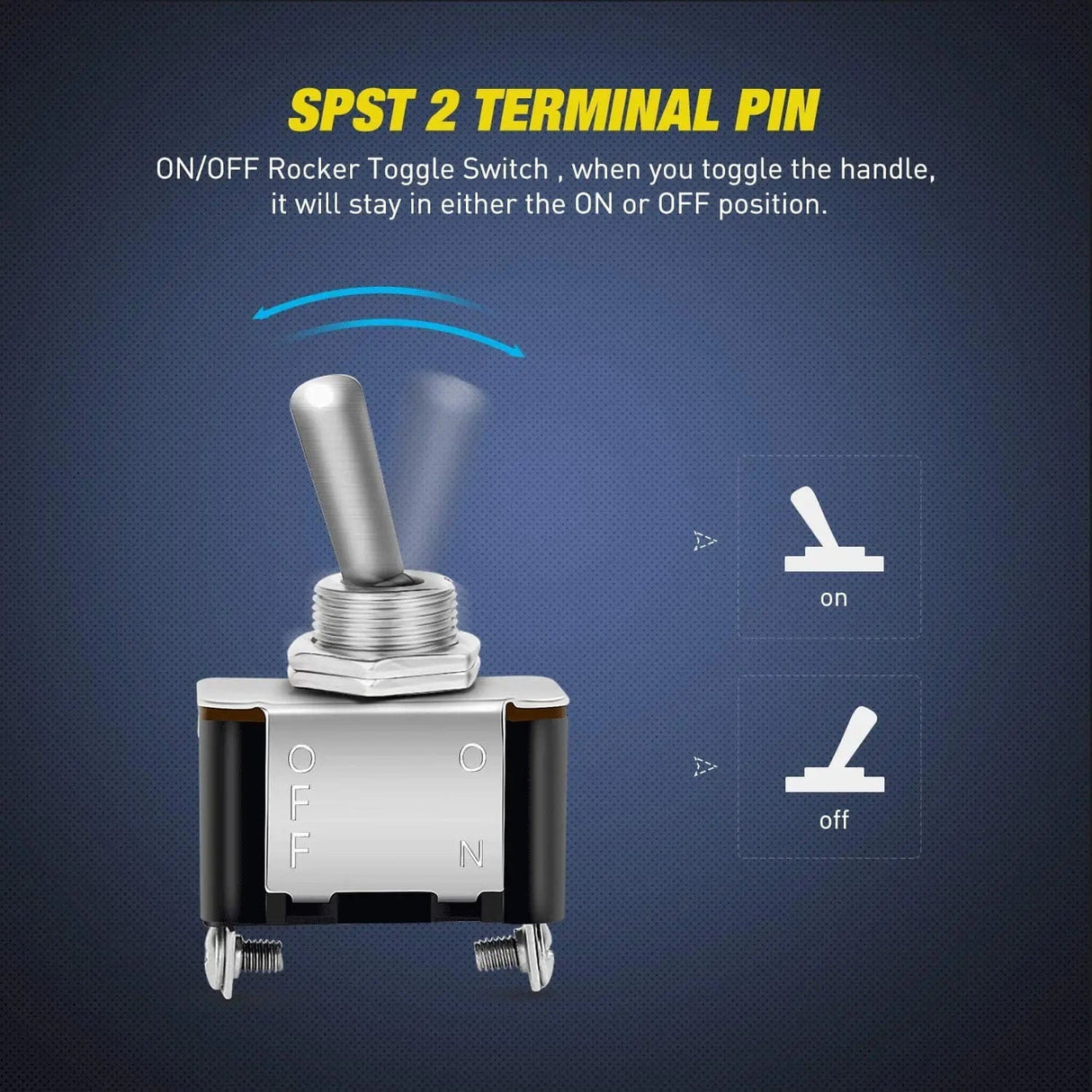

SPST 2 terminal PIN
ON/OFF rocker toggle switch, when you toggle the handle, it will stay in either ON or OFF position, easy operation.

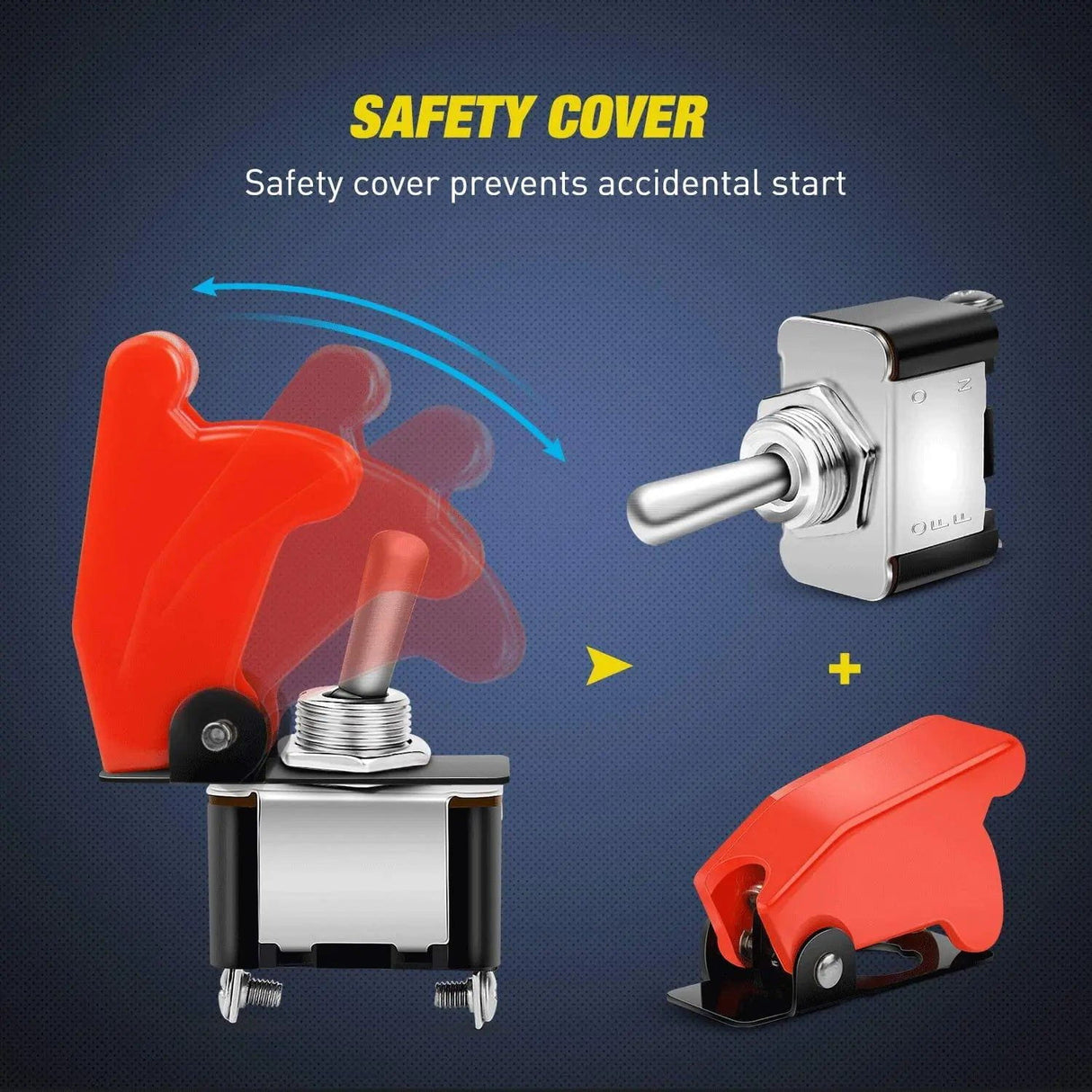

Safety cover
Cover it when not in use, the red aircraft safety cover prevents accidental start. Safe and secure.

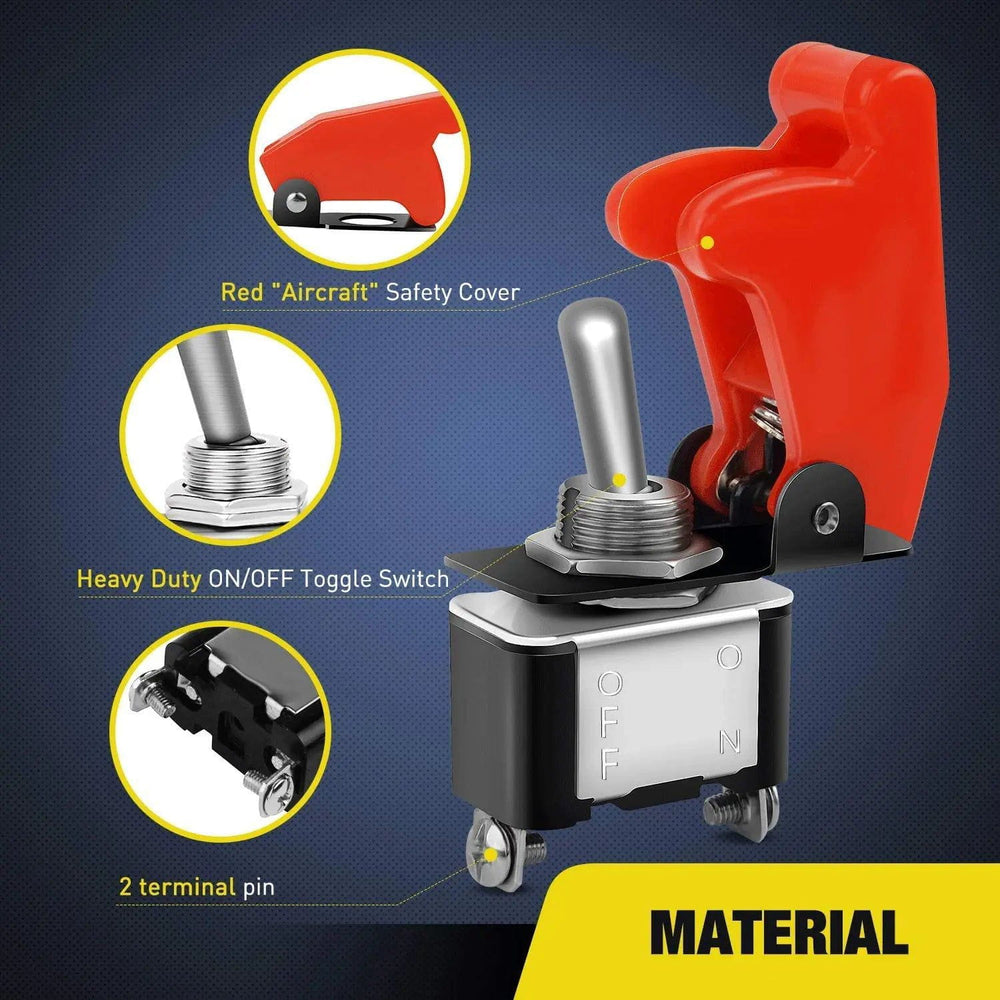

Heavy-duty Toggle Switch
The switch is built with high-quality industrial material, widely applied to different Cars, Marine and used for Critical lights, Chassis lamps, Fog lamps, and Dome lights.
2 Terminal Pin
Each of the terminals has a machine screw for quick connections, also easy to be soldered.
Product Specification
Product Specification
Features & Specs
| Mounting Type | Panel Mount |
|---|---|
| Terminal | Spst |
| Voltage | 12 Volts |
| Current Rating | 20 Amps |
| Maximum Current | 20 Amps |
| Mechanical Life Expectancy | 2 Years |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Smart Home Compatibility | Not Smart Home Compatible |
| Compatible with Vehicle Type | Cars, Trucks, Boats, ATVs, Off-Road Vehicles |
| Control Type | Manual |
| Number of Positions | 2 |
| Upper Temperature Rating | 1 Degrees Fahrenheit |
| Switch Type | Toggle Switch |
| Lower Temperature Rating | 1 Degrees Fahrenheit |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Connector Type | Spst, 2 Terminal Pin on/Off. |
Additional details
| Color | 5PCS Switch w/Red Cover |
|---|---|
| Mounting Hole Diameter | 12 Millimeters |
Item details
| Brand Name | Nilight |
|---|---|
| Manufacturer | Nilight |
| UPC | 812227031626 |
| Part Number | 90014E |
| Model | 90014E |
| Item Type Name | Nilight Heavy Duty Rocker Toggle Switch 12V 20A Red Cover SPST ON/Off 2Pin Car Truck Boat - 5 Pack, 2 Years Warranty |
| Unit Count | 5.0 Count |
| Included Components | 5 pcs toggle switch,5Pcs Red Cover |
| Global Trade Identification Number | 00812227031626 |
Materials & Care
| Material Type | Plastic |
|---|---|
| Contact Material | Brass |
User guide
| Specification Met | CE |
|---|---|
| International Protection Rating | IP67 |
