About this item

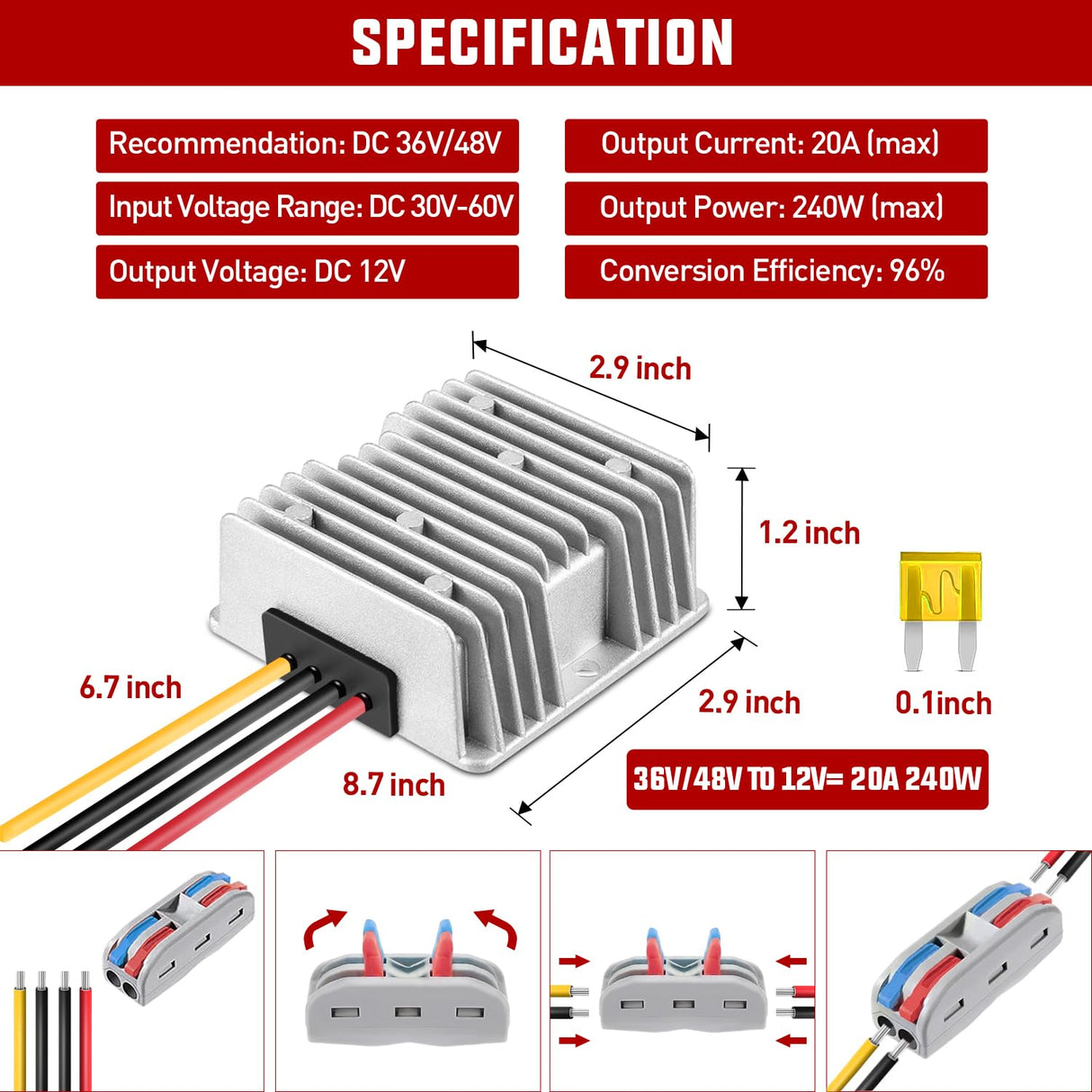

DC 48V 36V to 12V Converter: Input voltage: DC 36V 48V; Input Voltage Range: DC 30V-60Vï¼›Output voltage: 12V; Output current: 20A; Output power: 240W.

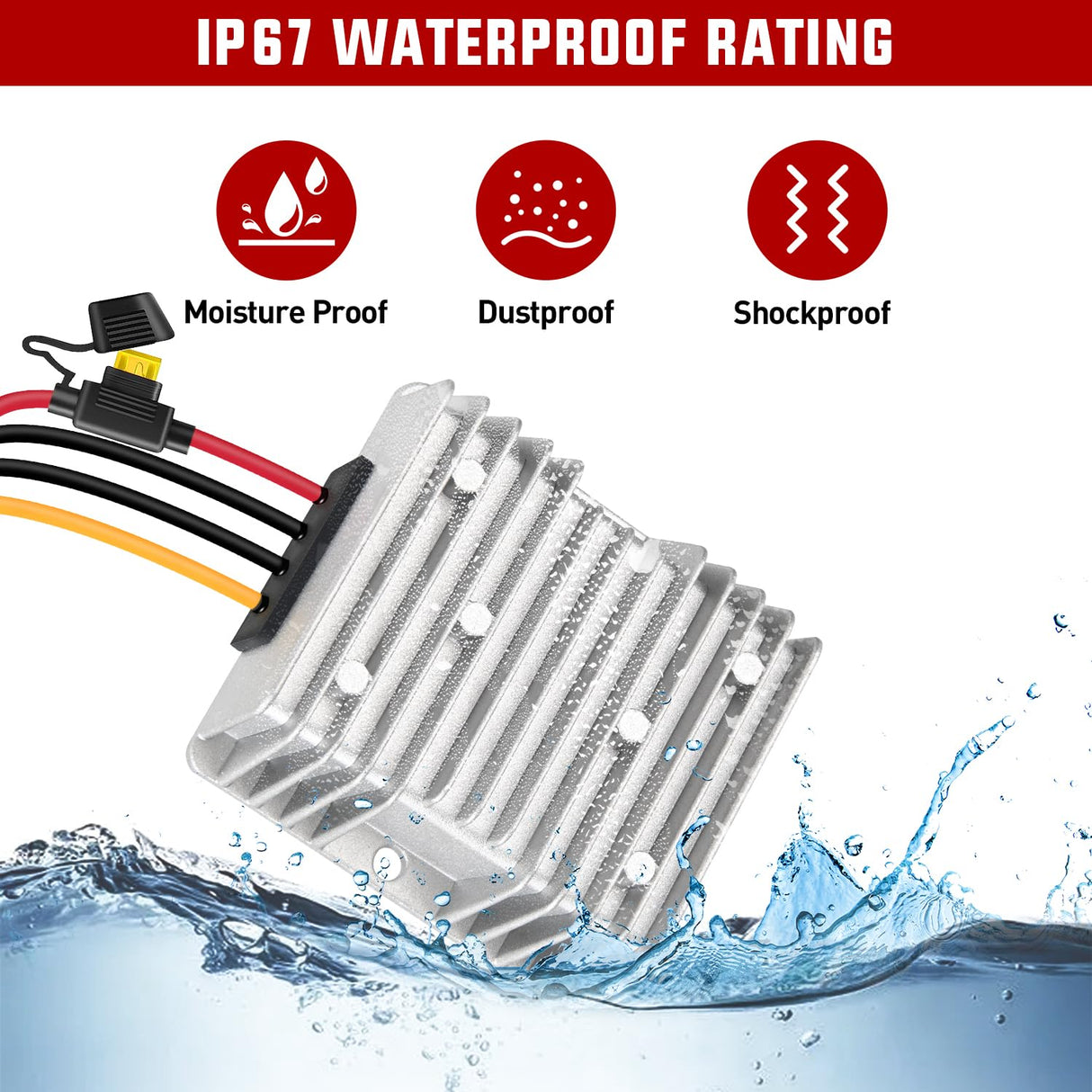

Waterproof & Anti-Shock Protection: Designed with aluminum shell and silicone sealed, Excellent waterproof, dustproof, explosion-proof, shock-resistant properties and adapt to a variety of harsh environment.
96% Conversion Efficiency: Our converter is built to last with a sturdy die-cast aluminum shell and high-quality design, the synchronous rectification technology make step down converter's conversion efficiency up to 96% with stability.
Intelligent Protection: safer to use: Assembled with smart chip that provides full protection against over/under voltage input, over-current, overload, overhead, over-temperature, and short circuit.

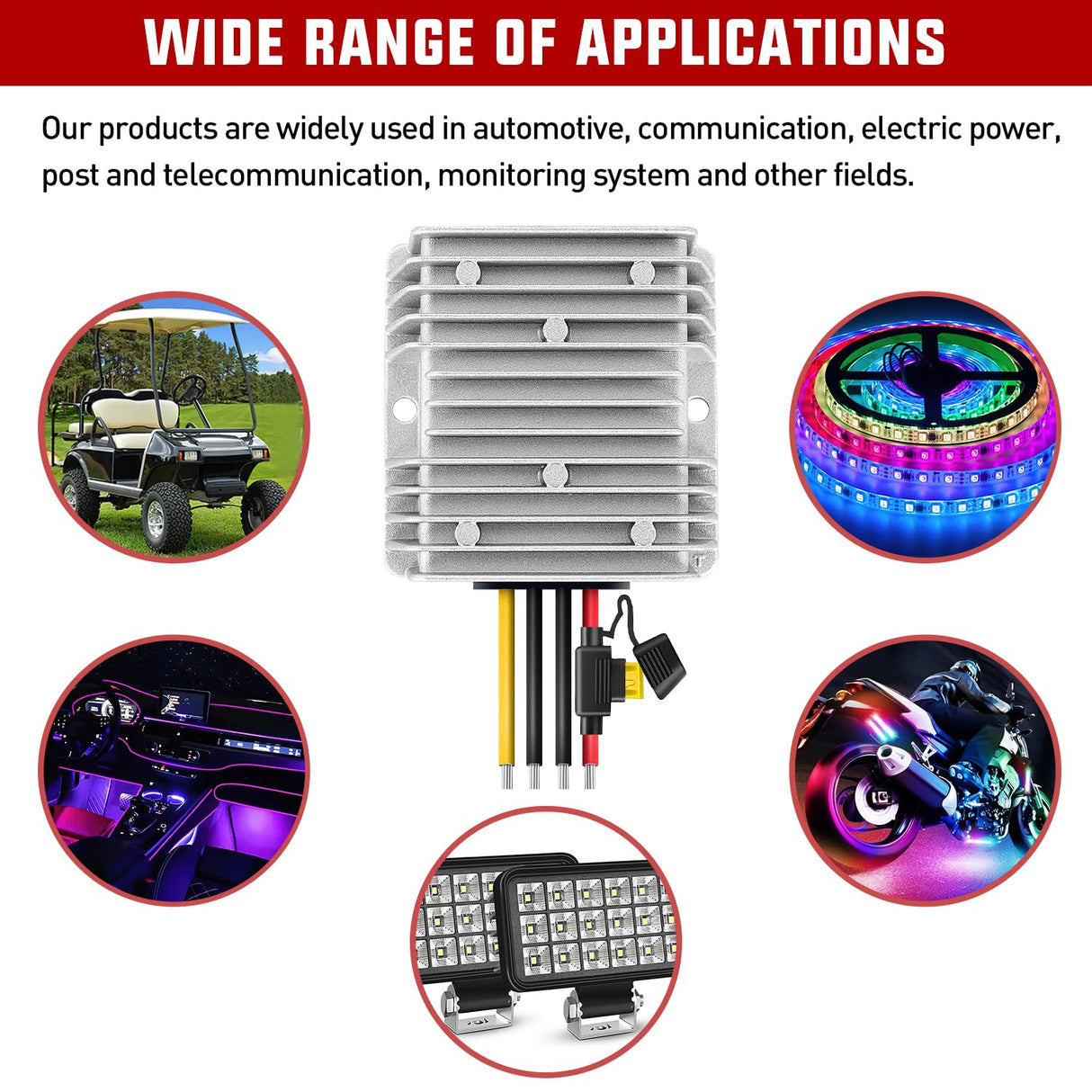

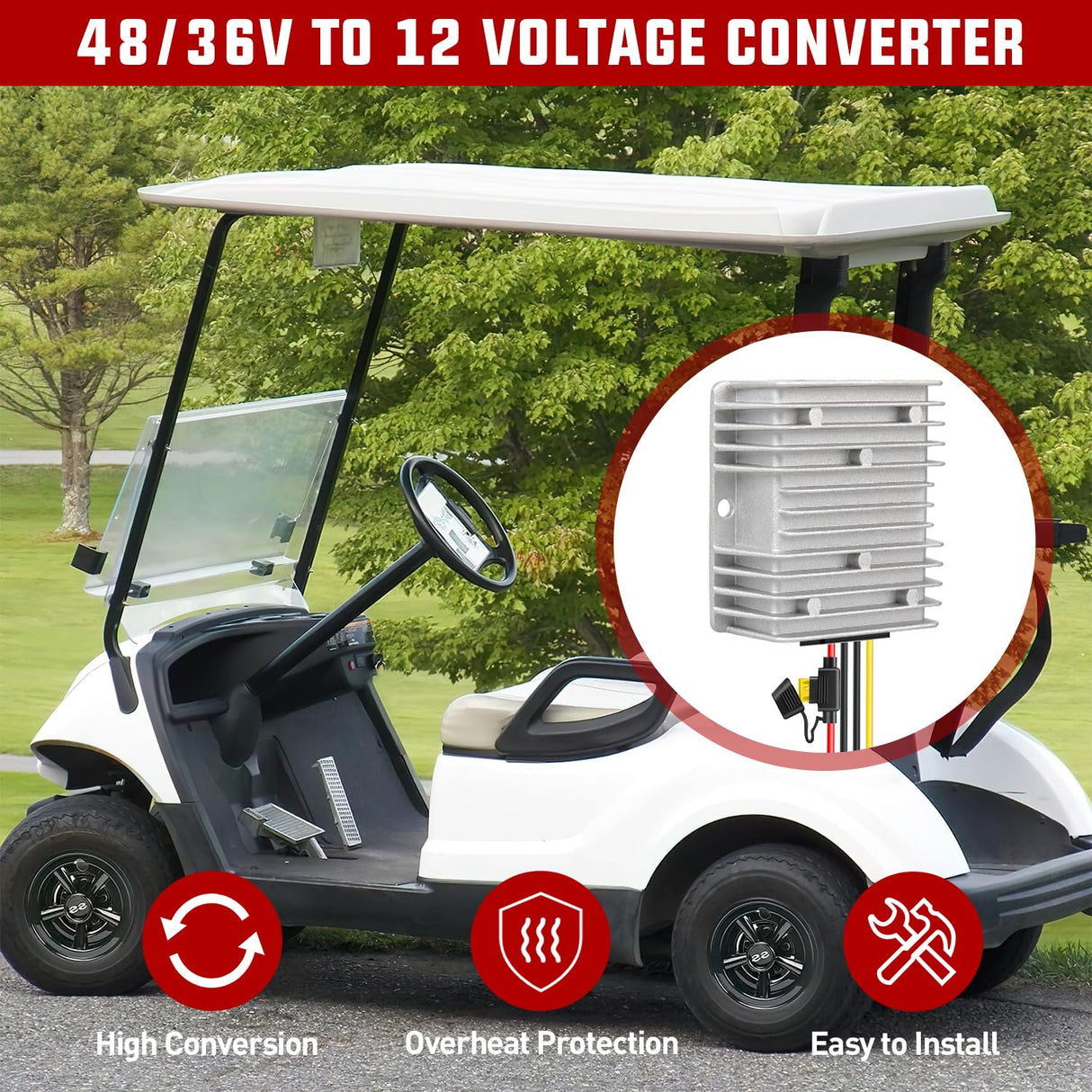

Widely used: our Power Supply Converter Regulator widely used in Automotive trucks, golf carts, LED strips, screens, surveillance systems, motors and DIY, etc. 2 Years Warranty by Nilight.
Our DC voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability. We provide different power voltage converters for all kinds of application devices.
Features
Quick Connect Terminals
Come with 2 pcs quick connect terminals, make it easy to use.
When you make electrical connection, only need a little force to push the lever up.
Strict Glue Pouring Process
Strict glue pouring process aluminum shell and silicone sealed design.
Waterproof, moisture-proof, seismic. Adapt to a variety of harsh environment.

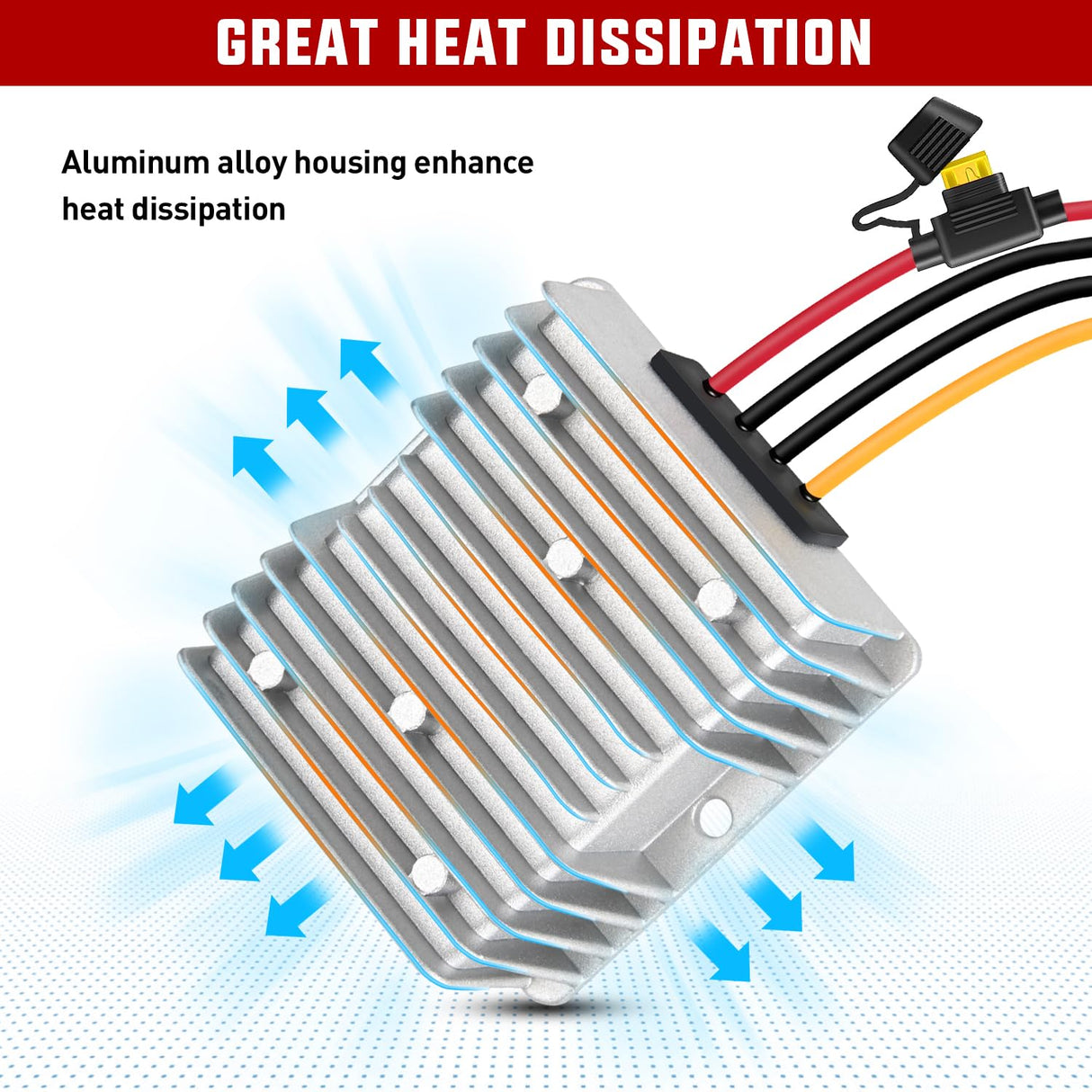

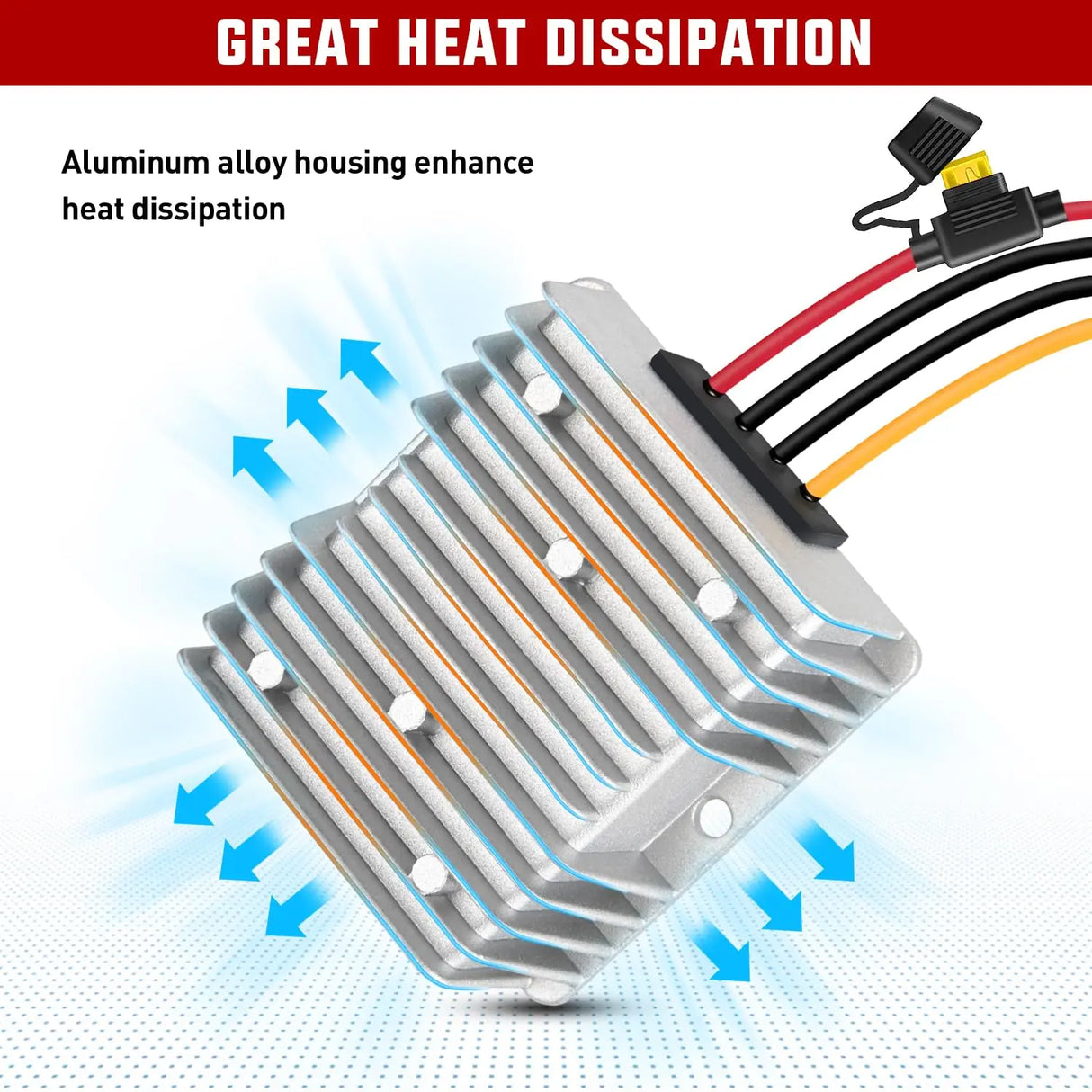

Better Heat Dissipation
Die-casted Aluminium shell; Excellent corrosion resistance; Improve better heat dissipation effect; Sturdiness to extend service life.
Advance Chip
Assembled with smart chip features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection.

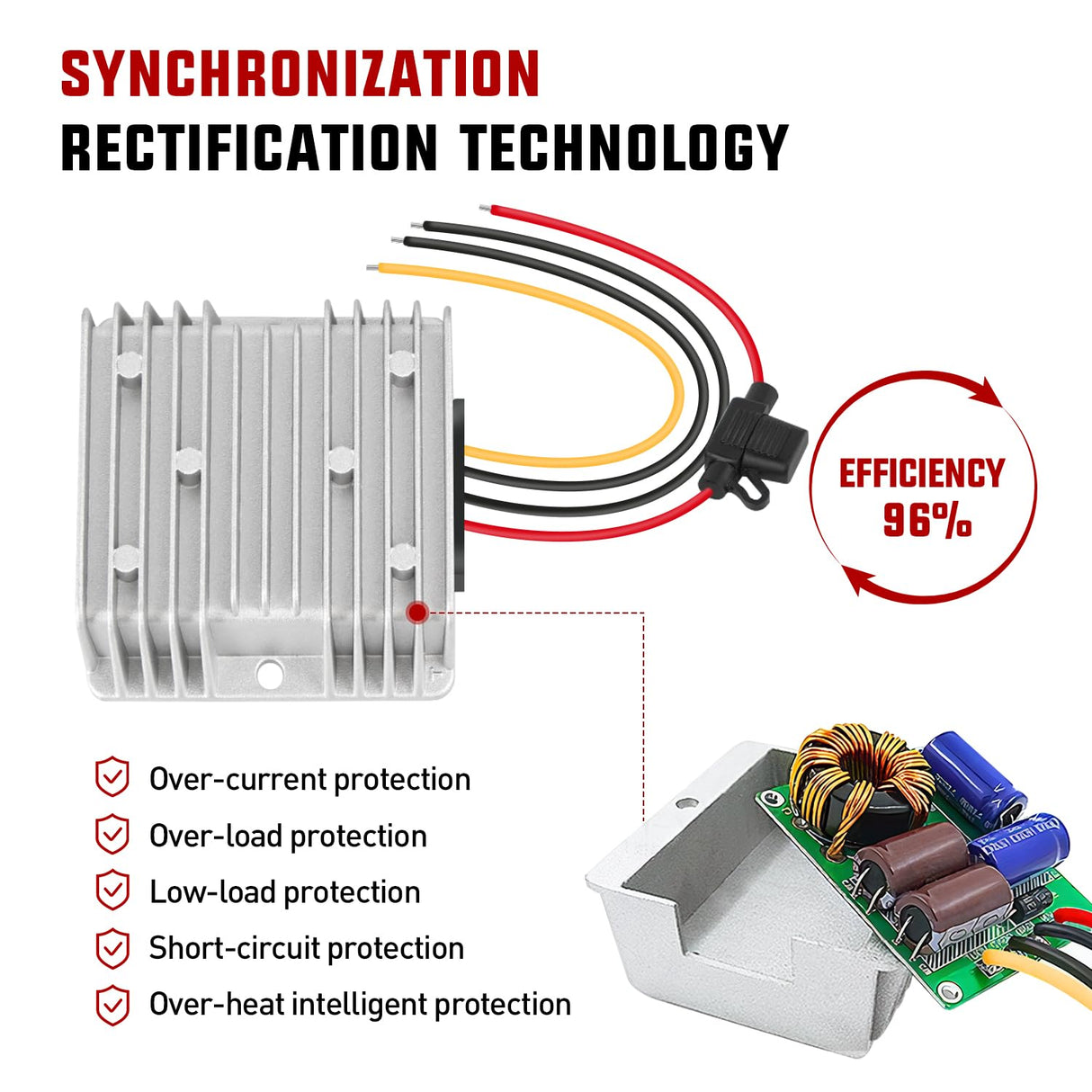

Synchronous Rectification Technology
Over-current Protection; Over-load Protection; Low-load Protection; Short-circuit Protection; Over-heat intelligent Protection

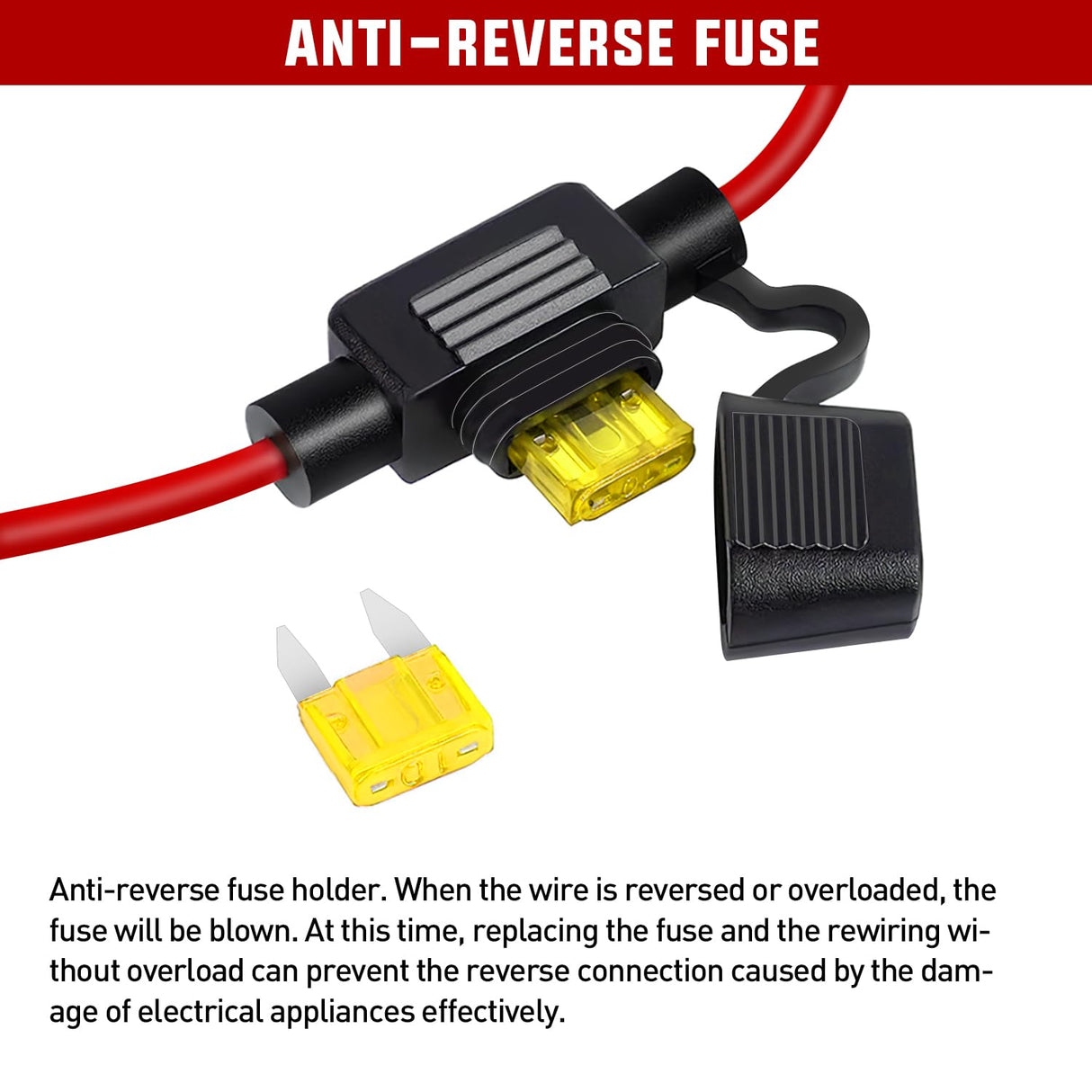

With anti-reverse fuse holder. When the wire is reversed or overloaded, the fuse will be blown. At this time, replacing the fuse and the fuse and rewiring without overload can prevent the reverse connection caused by the damage of electrical appliances effectively.

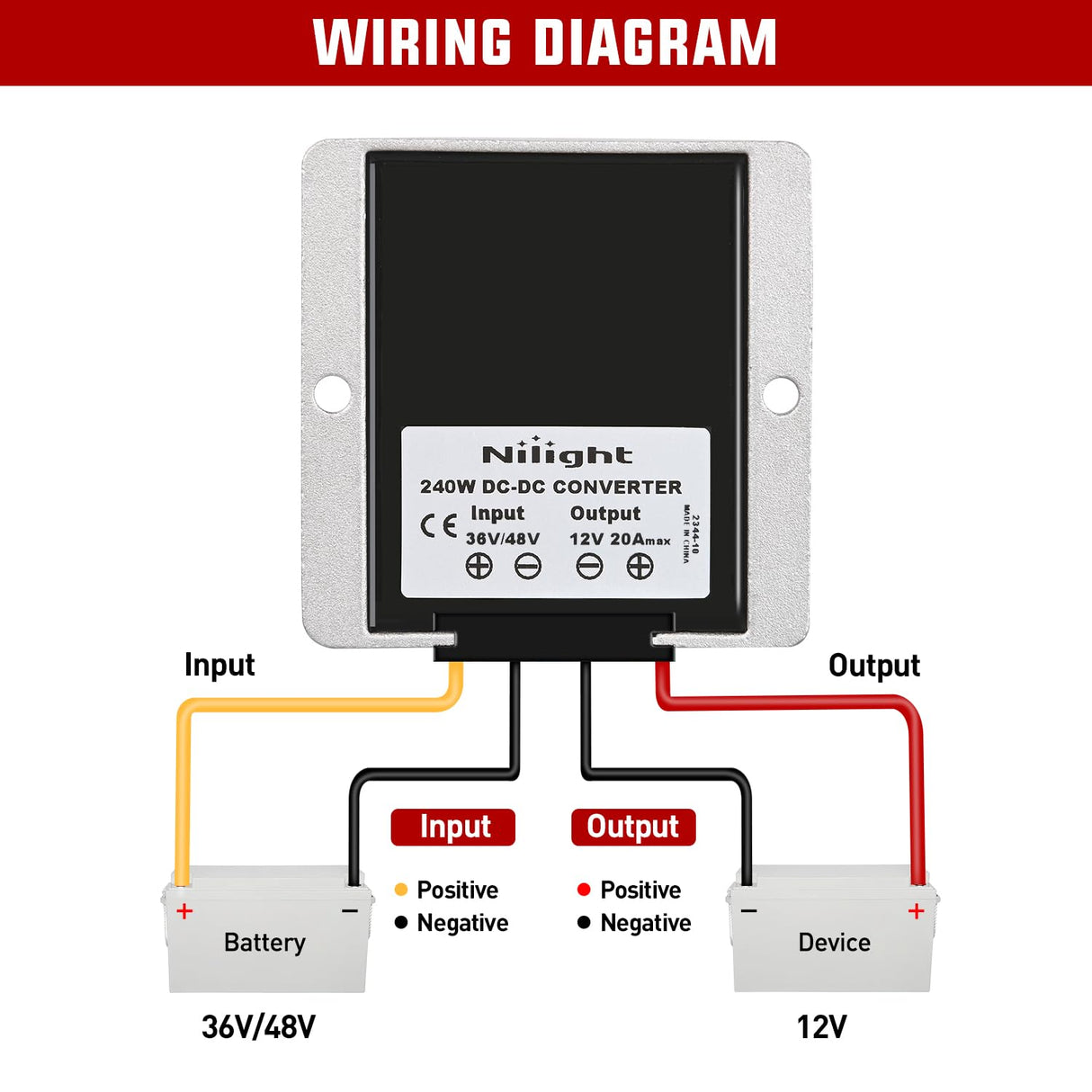

If the converter doesn't work, check the following steps: 1. Check whether the power supply has a voltage; 2. Whether the terminals are in poor contact and whether the wire ends are connected securely; 3. Check whether the wires are installed as shown in the picture.
| Model |
Nilight 240W 36V/48V to 12V 20A DC-DC Converter |
| Efficiency |
96% |
| Input voltage |
DC 36/48V |
| Output voltage |
DC 12V |
| Output current |
20A |
| No load current |
0.01A |
| Voltage accuracy |
±1.5% |
| Load regulation rate |
±0.2% |
| Linear adjustment rate |
±0.2% |
| Waterproof rating |
IP 67 |
| Operating Temperature |
-40~85°C |
| Package Included |

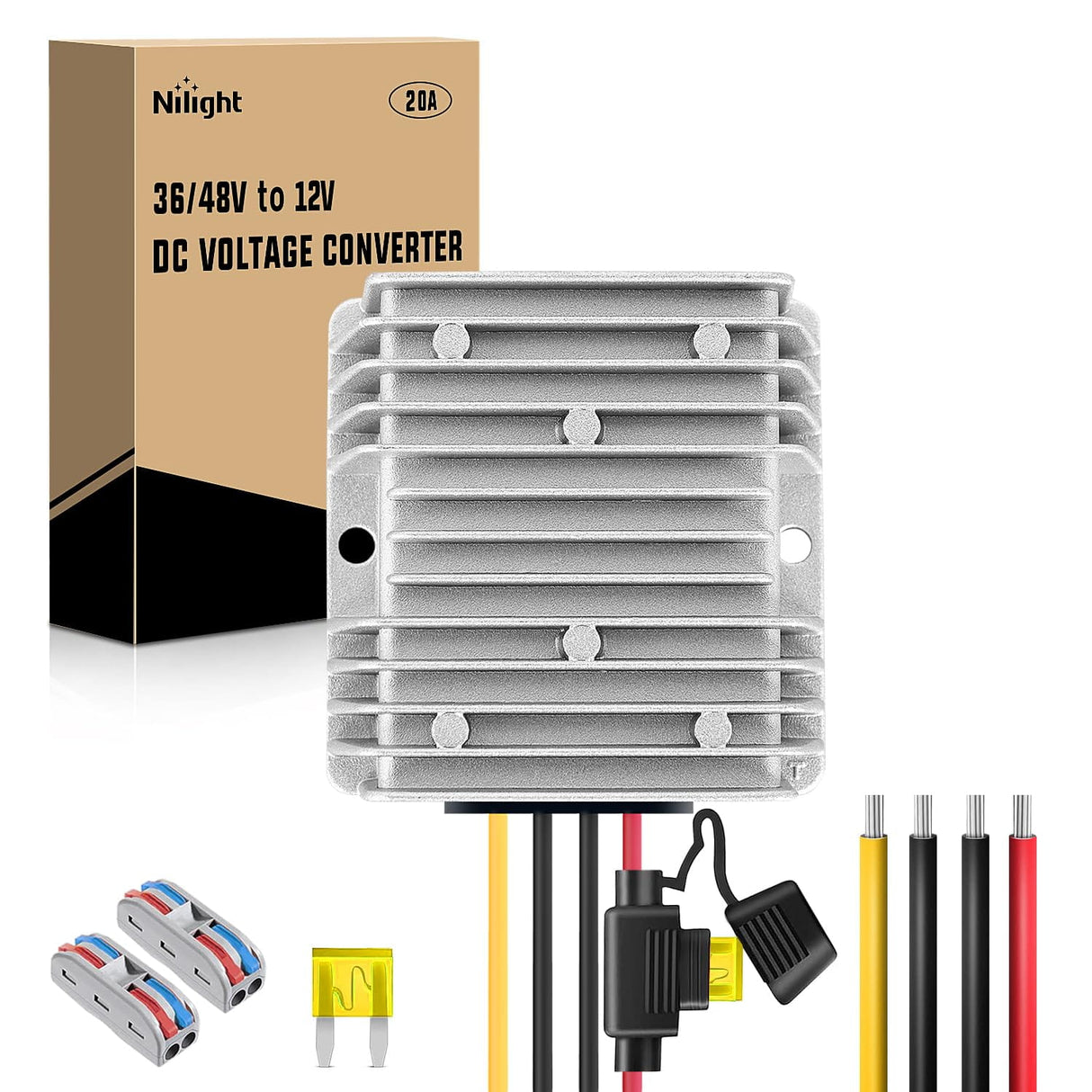

240W 36V/48V to12V 20A DC-DC Converter with fuse*1, Quick Connect Ternimal*2, 20A Fuse*1 |
