- Operating voltage: 12VDC
- Amperage Draw: 0.05A-0.2A
- DOT Compliant
- LED Type: 5050 tri-core at the front, 2835 red led at sidelight, 2835 white led at the bottom
Key Features
Quality LED
Quality led to less amperage drawn but outputs optimal brightness

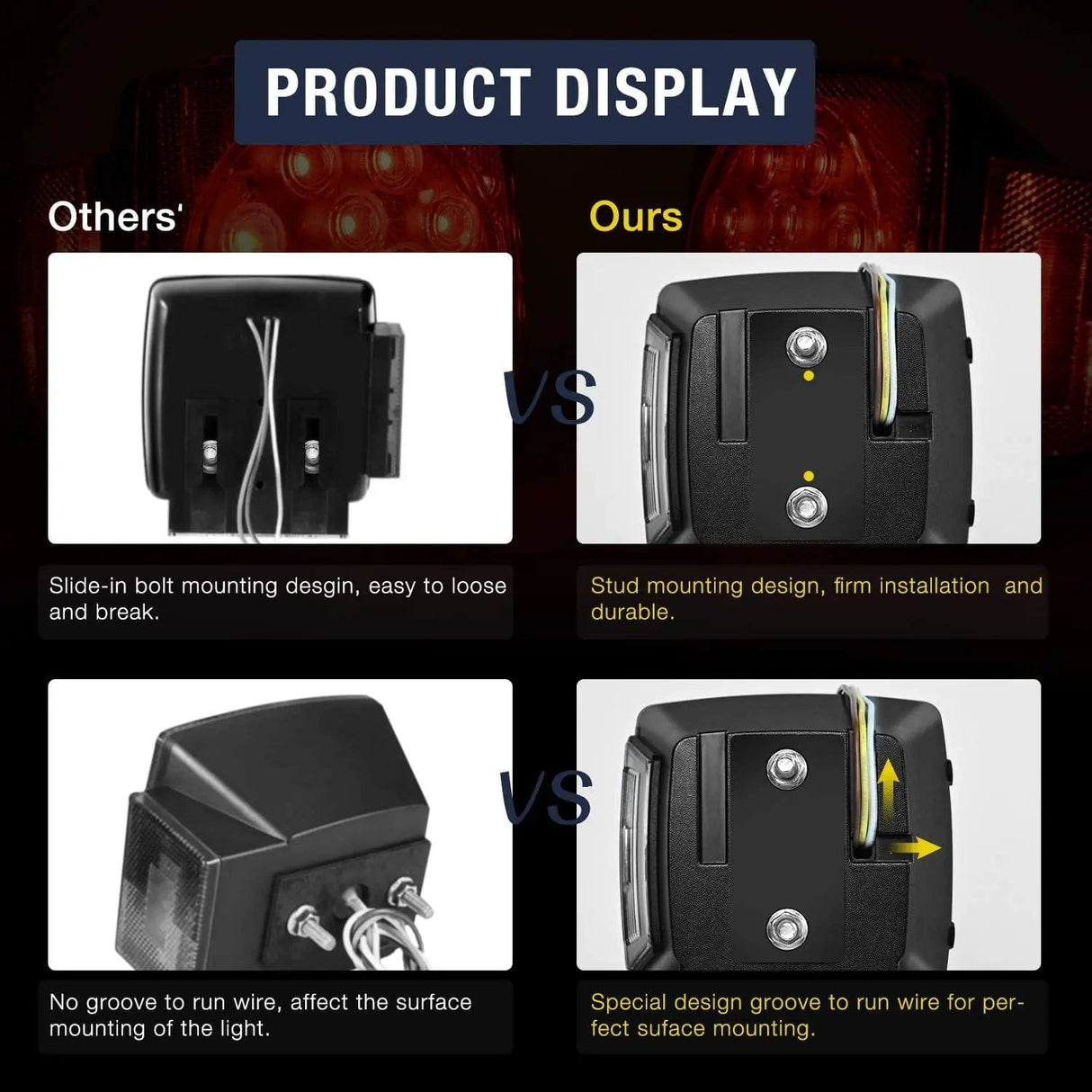

Special Design
Stud mounting for easy, firm, and durable installation. Grooves are designed for perfect surface mounting.

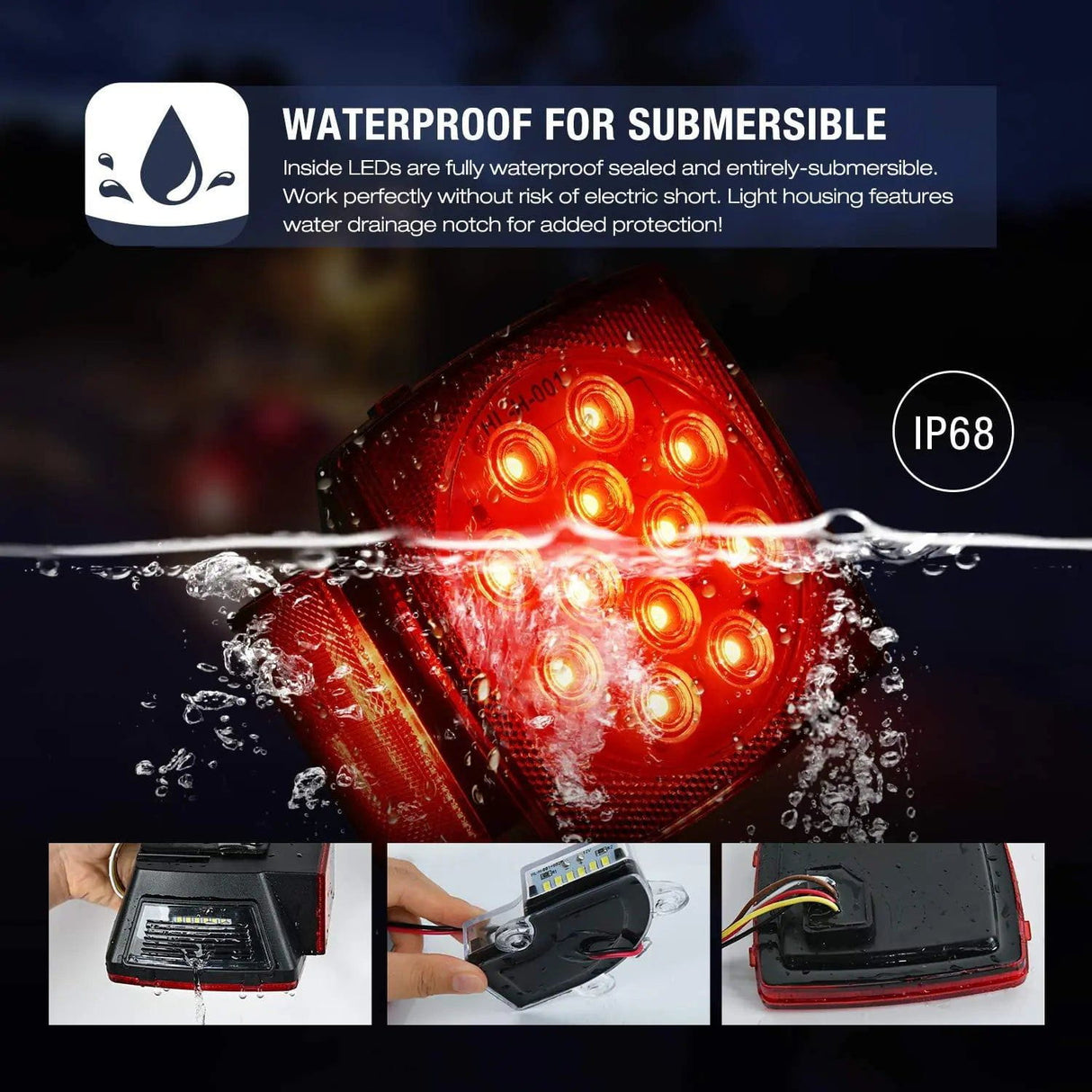

Built-in IP68 Waterproof
Inside electronics and the circuit board is epoxy encased and fully sonically sealed, entirely submersible, trailer light housing also features water drainage.

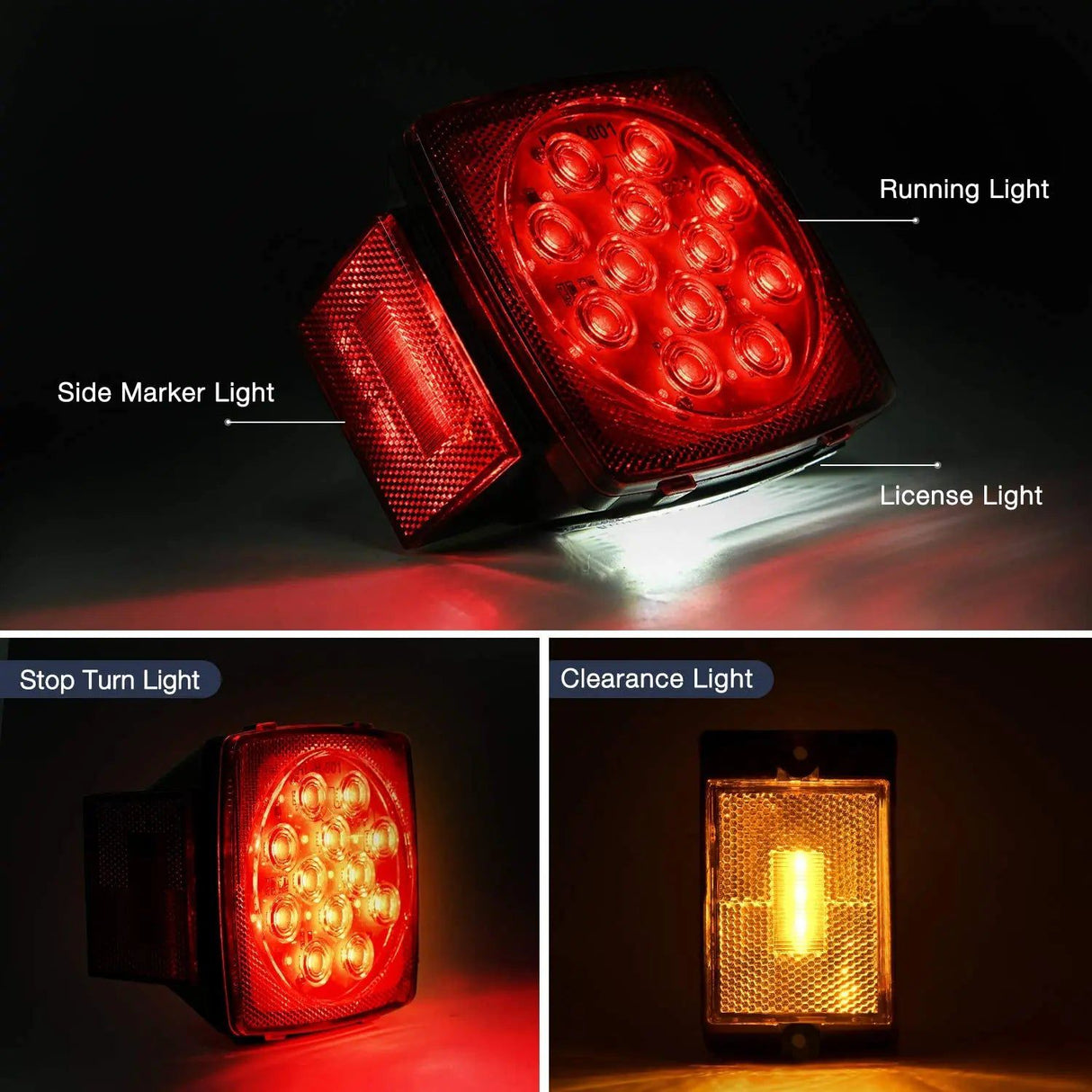

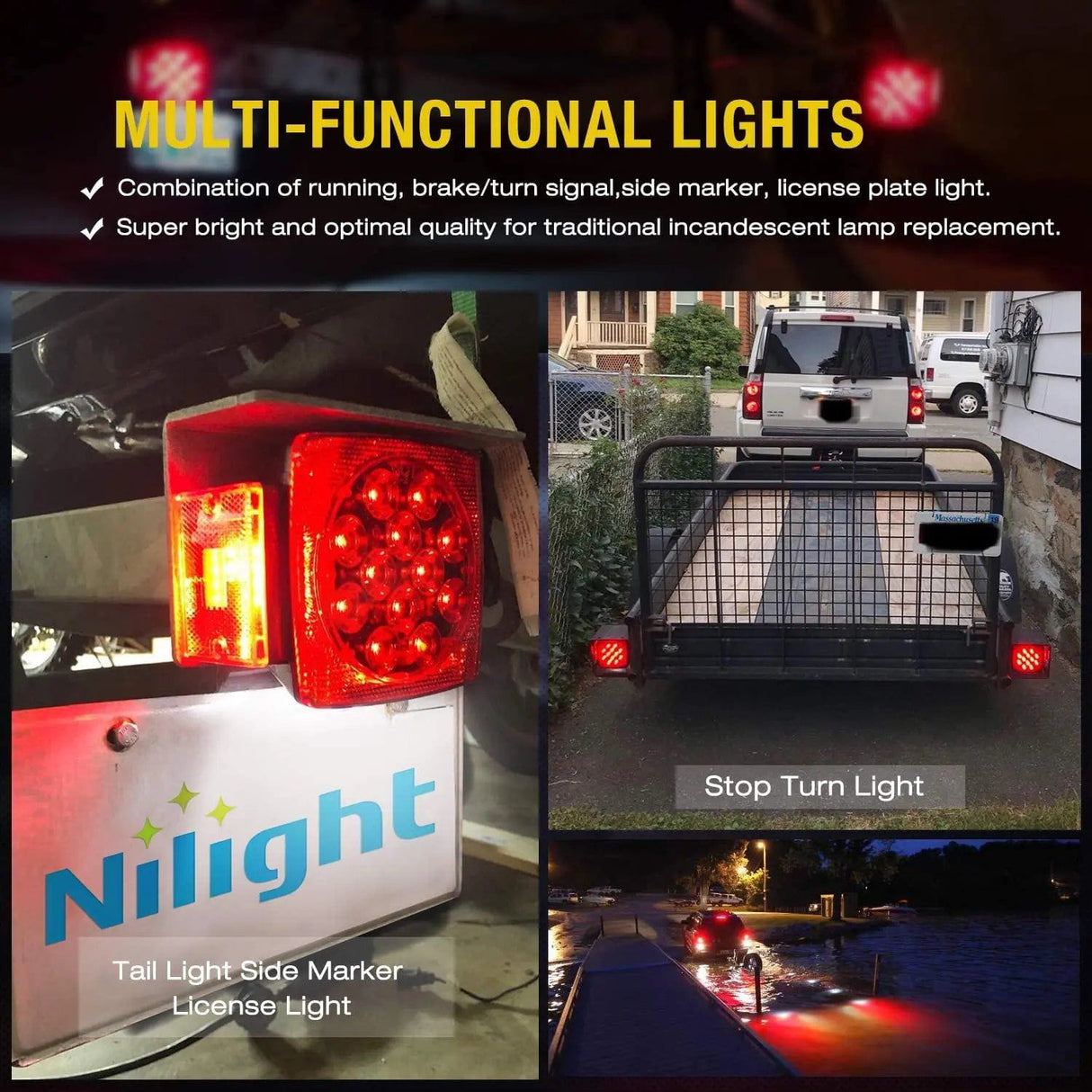

Multi-function
Combined 7 Full Functions: including stop turn tail light, side marker, side reflector, rear reflector, and license plate light.

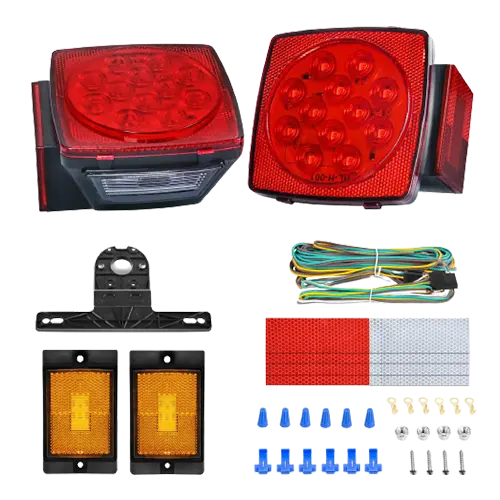

Additional Accessories
License Plate Bracket
Install together with a left lamp that has a license plate light at the bottom.
Trailer Wiring Harness
Comes with 2 sets of 4-pin trailer wiring harnesses, 21.65 feet plus 3.93 feet.

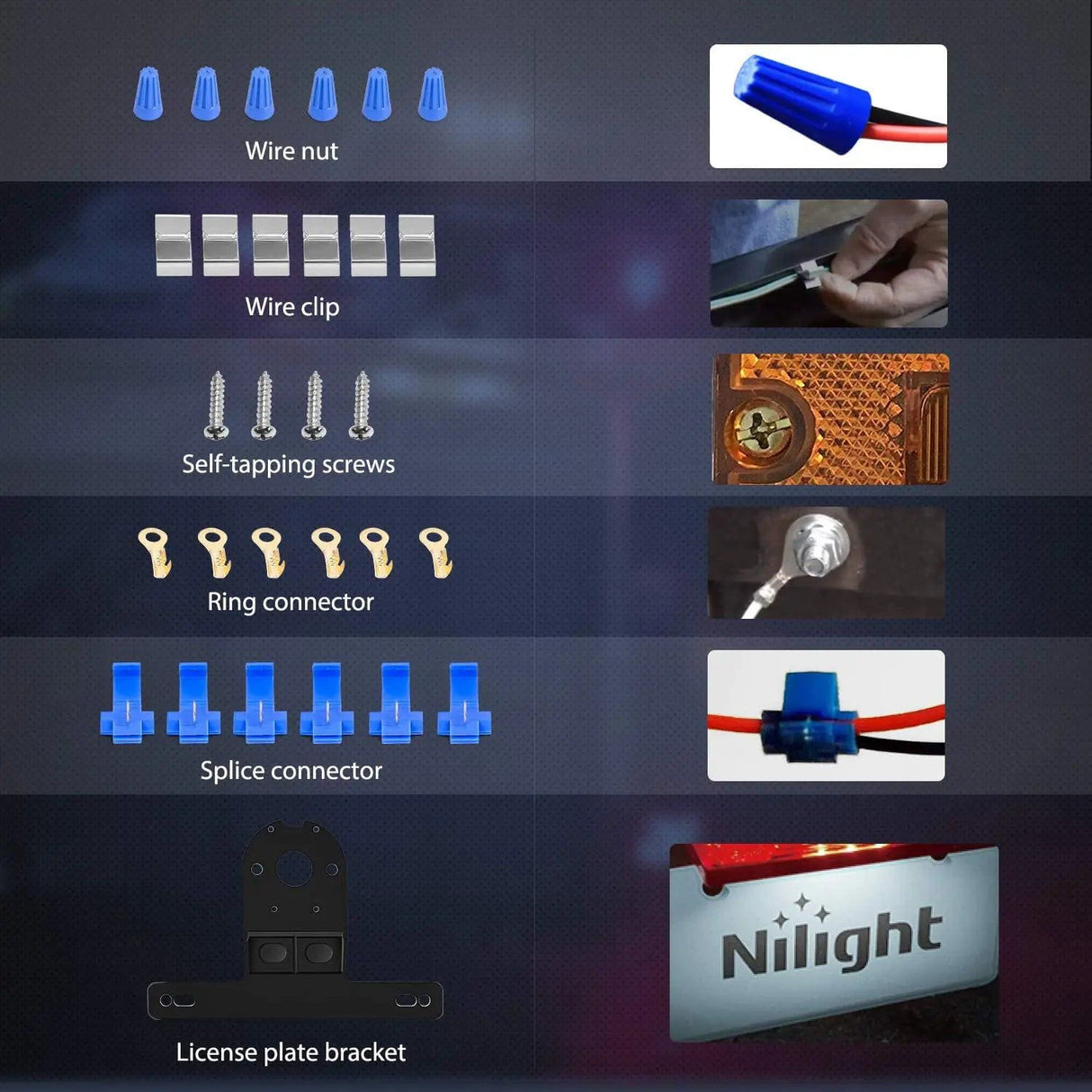

Handy Hardware Pack

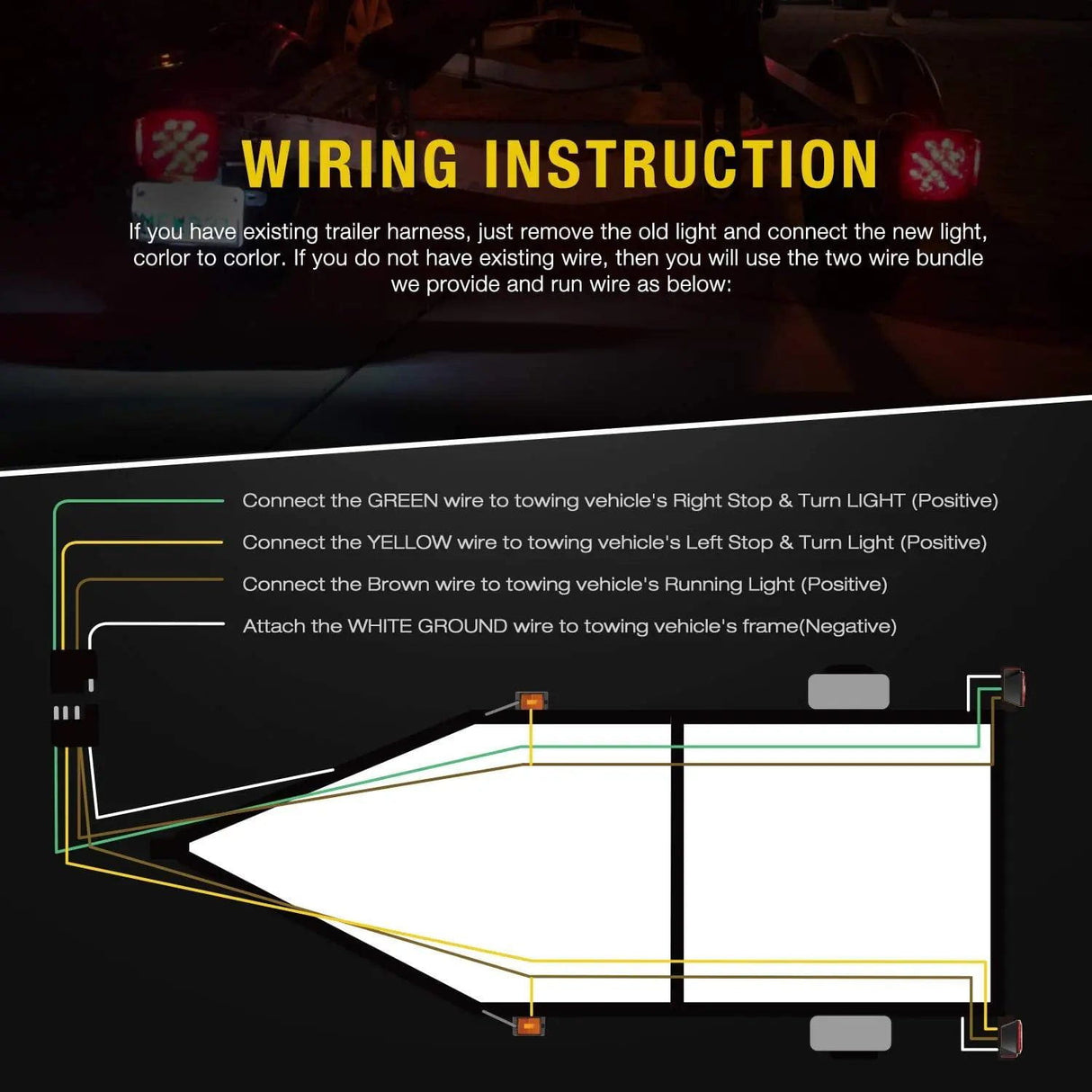

Comes with a wire nut, wire clip, mounting stud and nuts, ring connectors, and splice connectors for your use. Find usage instructions from Pic 7 of the product.
Reflective tape
Reflective tapes are provided for add-on safety

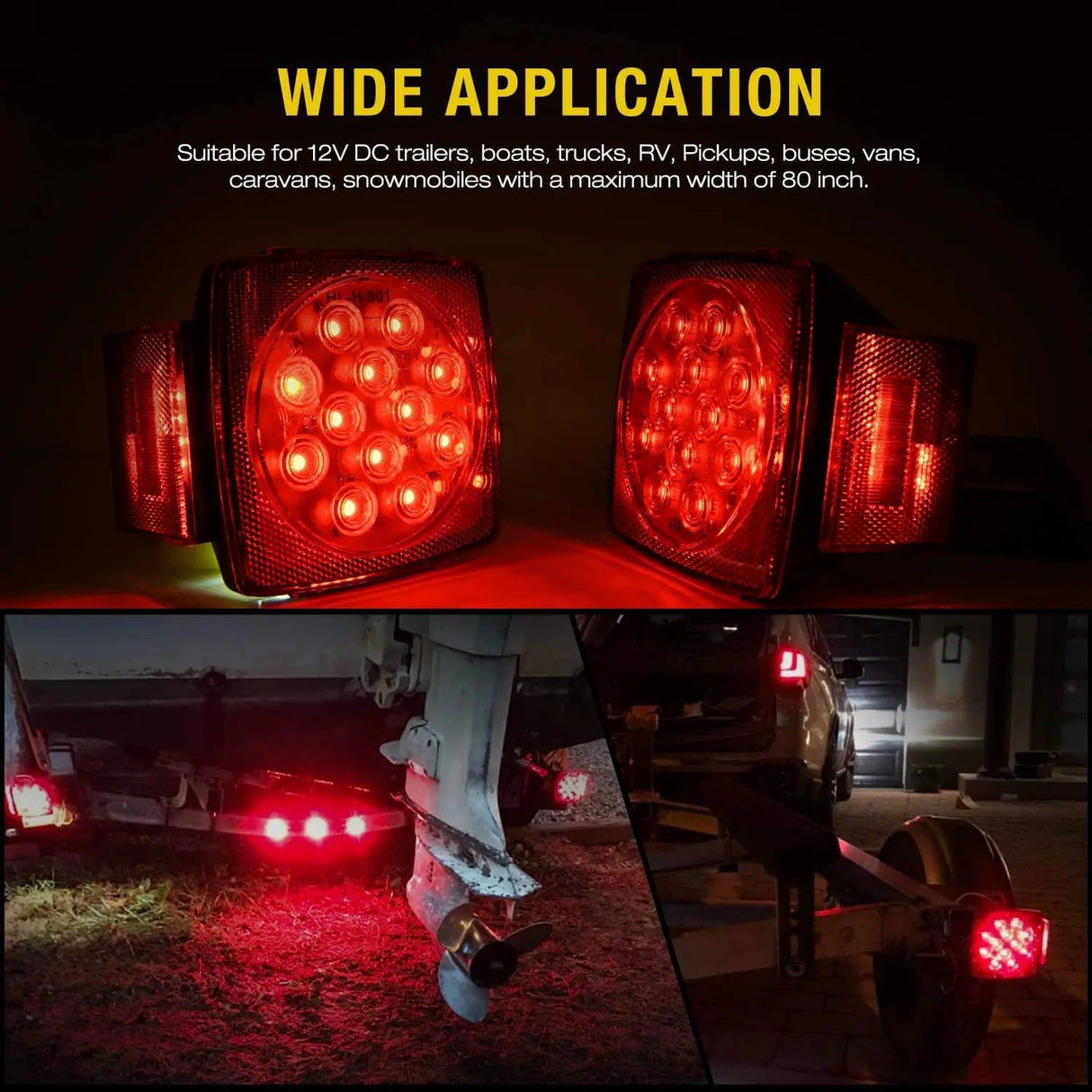

Applications
DOT compliant for most 12V DC vehicles with max width of 80 inches. Fit most trailers, utility trailers, boats, trucks, RV, Marine, camper, tractors, buses, lorry, van, caravan, and snowmobile.
