About this item

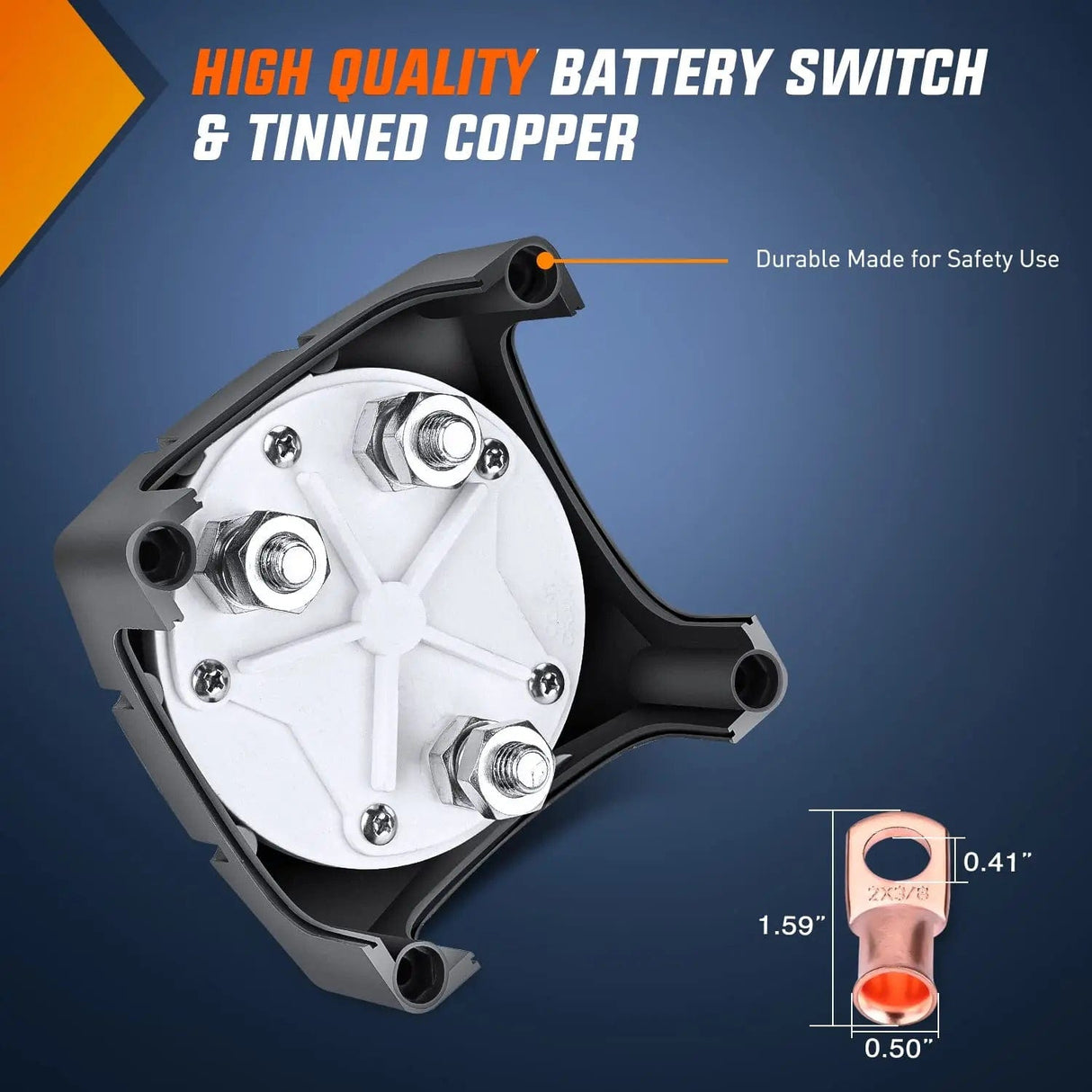

Heavy Duty: ABS plastic housing, durable made for safety use, rear cover insulates terminals against any short of circuits. Design for 2 batteries vehicles, can switch battery 1 / battery 2 separately or both on and off.
Purpose: eliminate any power from the battery when vehicle or boat is not in use, disconnects the battery safely. Avoid battery drain off.

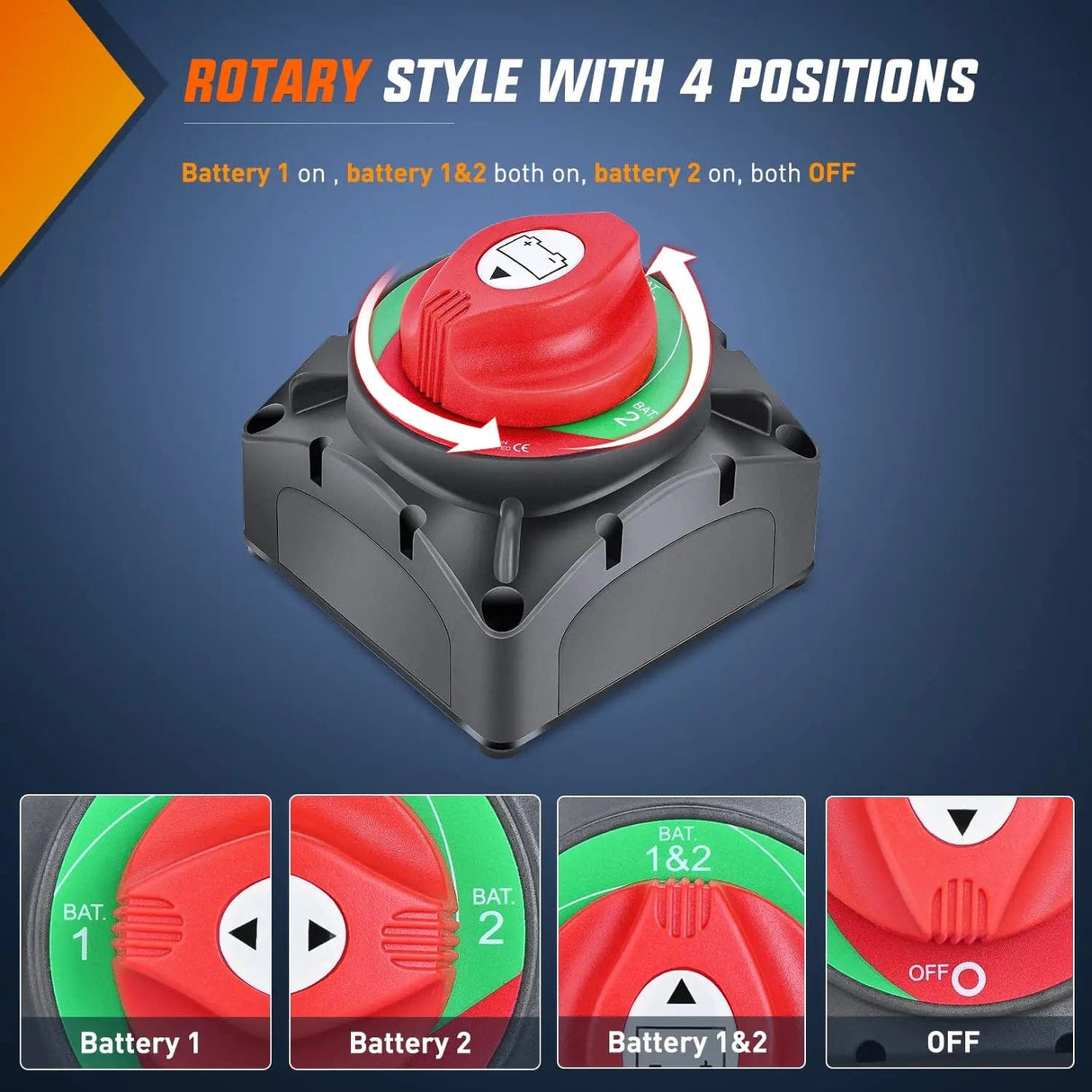

Operation: 1-2-Both-Off, 4 positions, 200A continuous at 12VDC, 300A intermittent at 12VDC, 1000A momentary at 12VDC.
Compatible: used for 12 - 48VDC systems to isolate and secure the electrical system, can stand alone or be locked together with other switch. Widely used for cars, marine boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks and other devices.
Design for 2 batteries, can switch to battery 1 / battery 2 separately or both on and off together. Eliminate any power from the battery when vehicle or boat is not in use, disconnect the battery safely. Avoid battery drain off.
Features
Well Built Heavy Duty Cut-Off Switch
Panel-mounted switches are designed specifically for panel mount applications; Countersunk recesses for surface mount applications.
ABS plastic housing and on/off switch knob
ABS plastic housing durably made for safety use, rear cover insulates terminals against any short circuit.
Used for 12 - 48VDC systems to isolate and secure the electrical system.
Can stand alone or be locked together with other switches.
Design for 2 batteries
This switch is designed for 2 batteries. Can switch to battery 1 / battery 2 separately or both on and off. Eliminate any power from the battery when vehicle or boat is not in use, disconnects the battery safely. Avoid battery drain off.

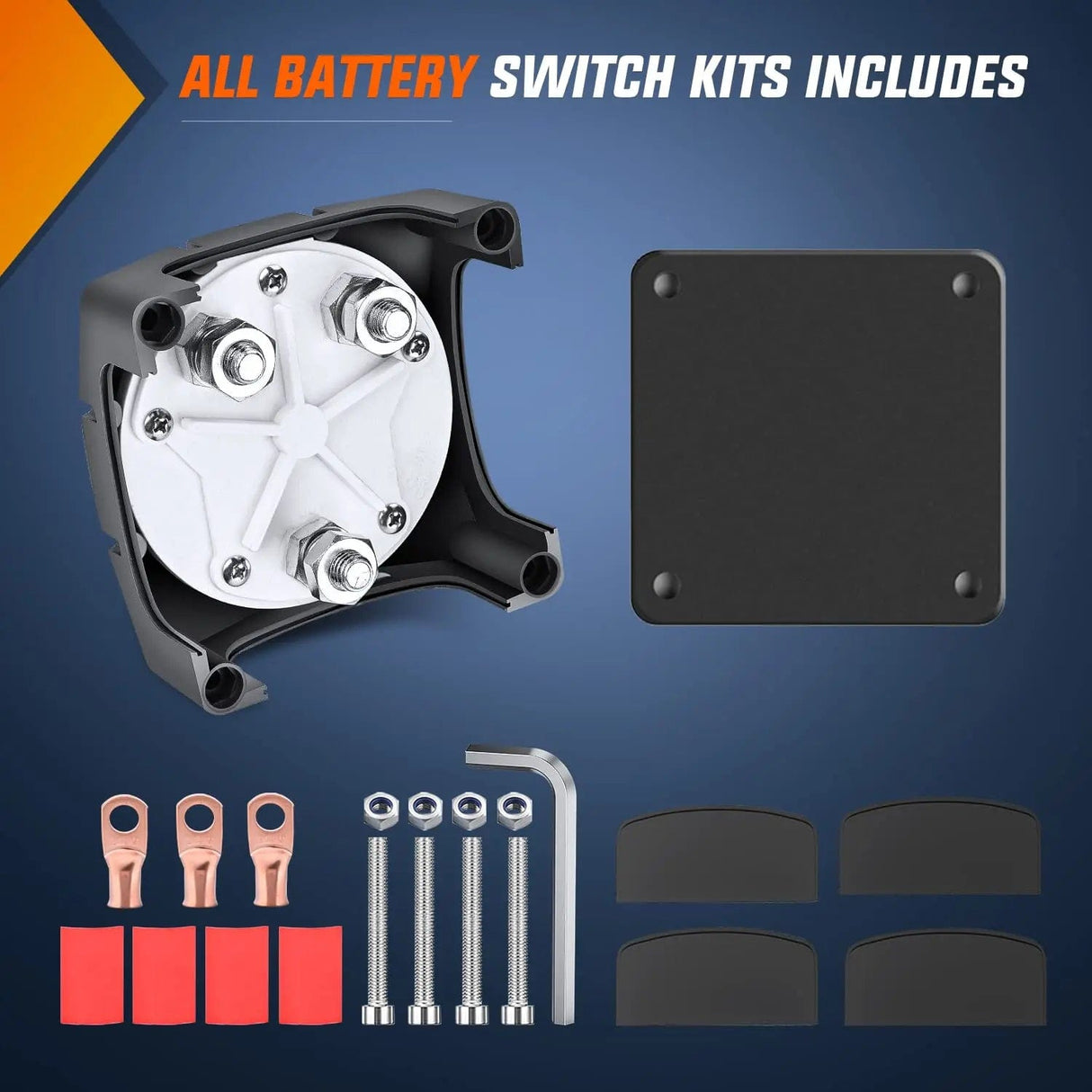

Brass Package Included: stud and nut

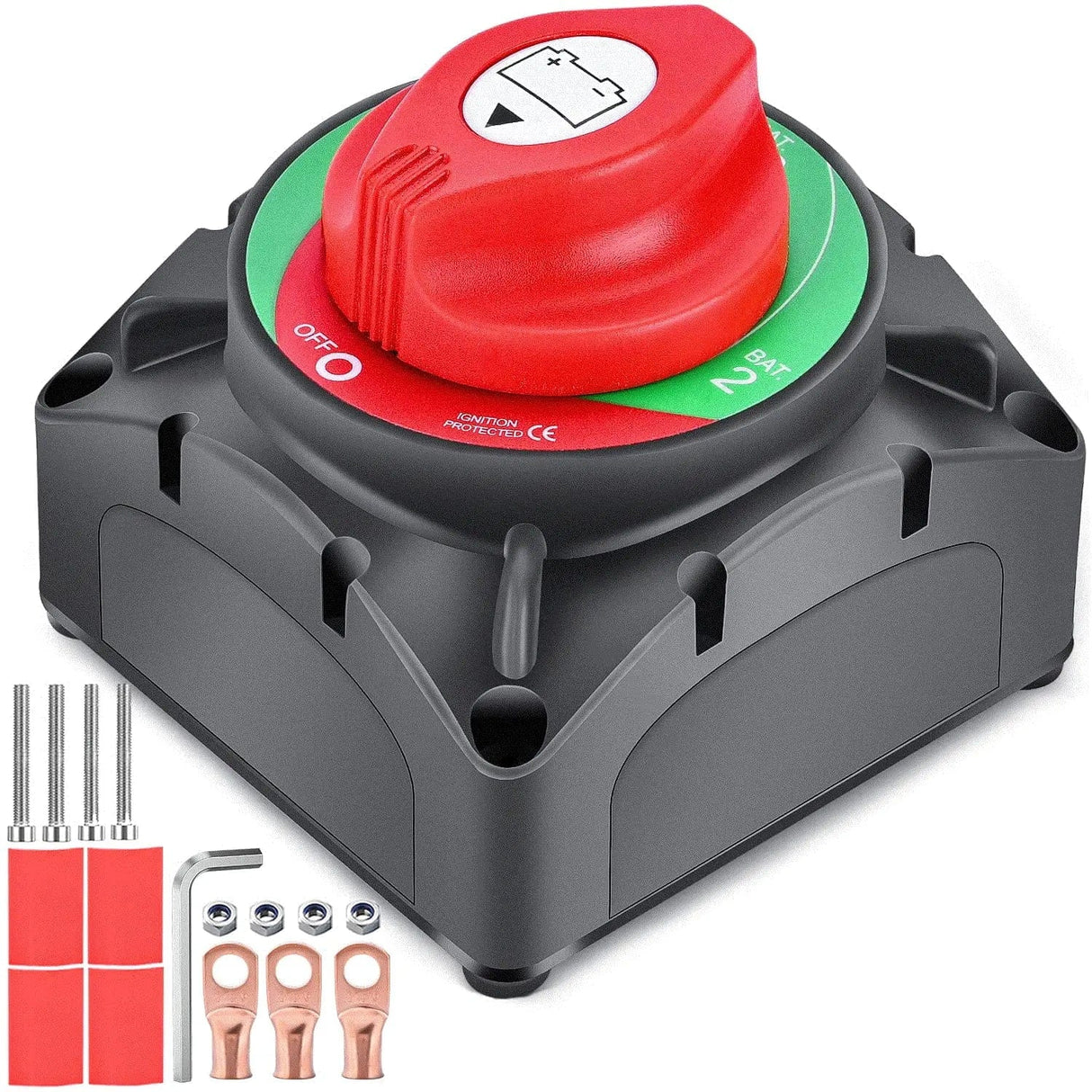

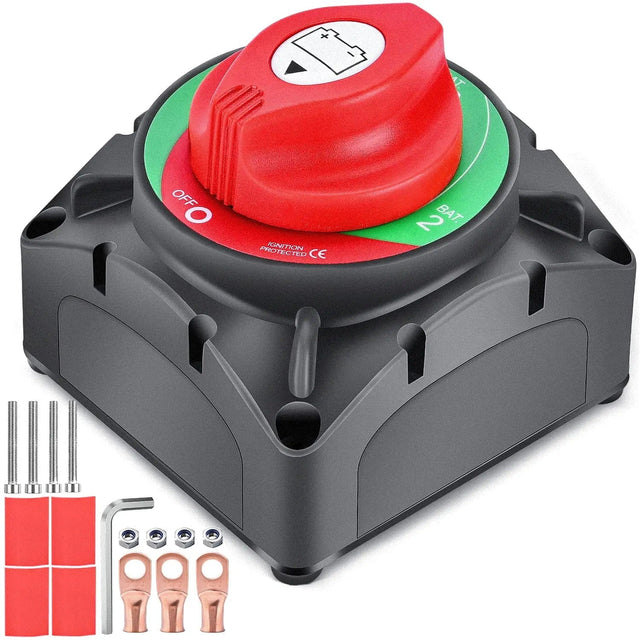

1 x Battery Switch
3 x Copper Ring Terminals
3 x Heat Shrink Tubings
1 x Hex wrench
4 x Side Pad
4 x Mounting Bolt
Backing Pad
Wiring Options
Simple set up
The most normal way to set up the switch is to connect the master switch to the battery and electronic devices directly.
Simple Operation:
Switch on = Power on
Switch off = Power off
Single on-off switch
This battery switch can also be used as an on-off switch to control the accessory power, its function is just like others toggle switches or rockers switches.
Dual battery set up
The 2-position battery kill switch can be also connected to 2 batteries by following this wiring diagram. Please remember that it will control the battery power of the 2 batteries simultaneously, can not be controlled separetly.
Product Specification
Connector Type |
Plug In |
Contact Material |
Gold |
Contact Type |
Normally Closed |
Controller Type |
Ring |
Current Rating |
600 amps |
Ean |
0812227038717 |
Included Components |
1-2-Both-Off Battery Switch |
Lower Temperature Rating |
1 degrees_celsius |
Material |
Acrylonitrile Butadiene Styrene |
Model Number |
90204B |
Mounting Type |
Surface Mount |
Number Of Positions |
1 |
Number of Items |
1 |
Operating Voltage |
12 volts |
Operation Mode |
ON-OFF-ON |
Part Number |
90204B |
Size |
600A 1-2-Both-Off Switch |
Specification Met |
CE |
Switch Type |
Kill Switch |
Terminal Type |
Screw |
UNSPSC Code |
26111700 |
UPC |
812227038717 |
Upper Temperature Rating |
1 degrees_celsius |
