Rocker Switch 3 Cigarette Socket Switch Panel w/ Dual USB Charger LED Voltmeter

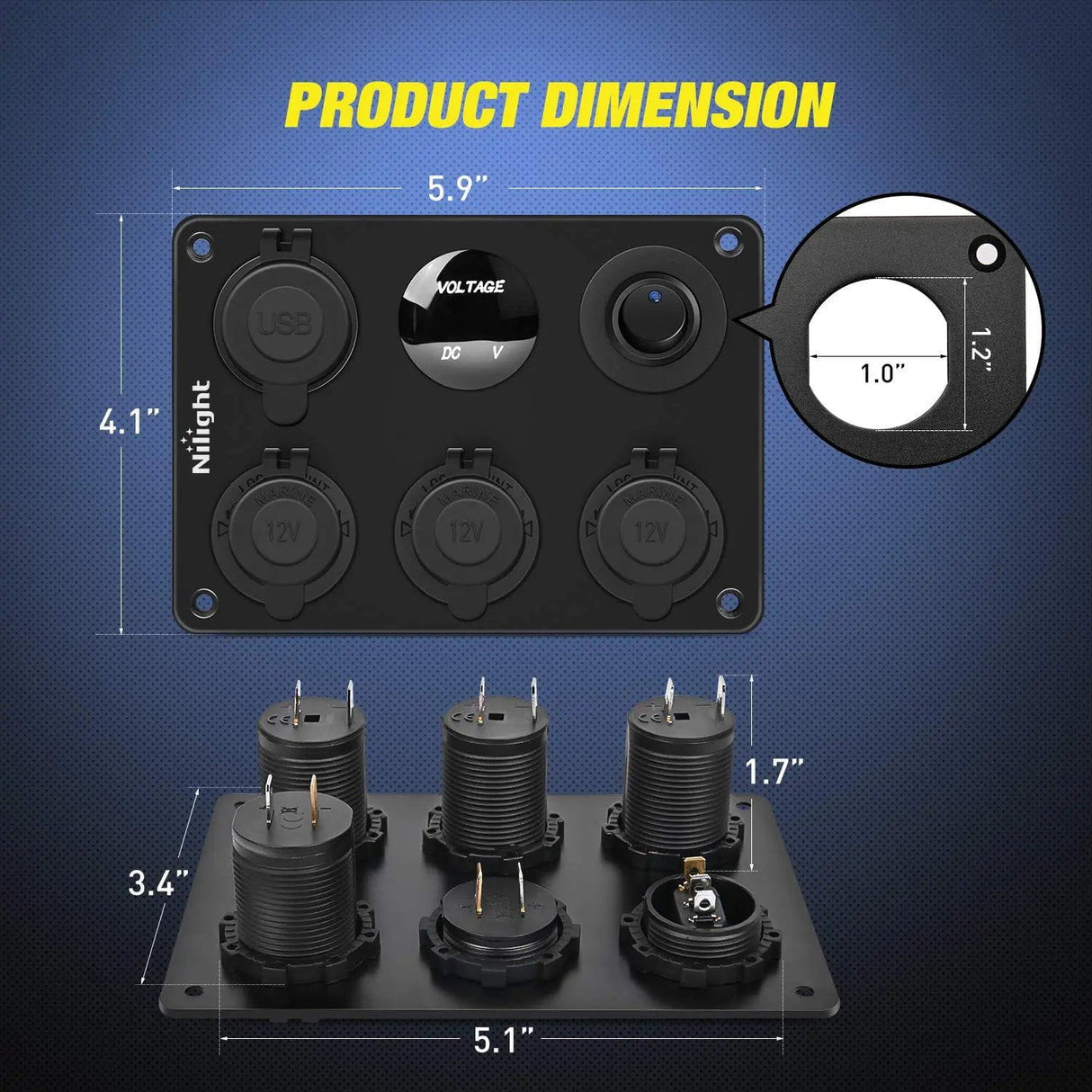

 product Size
 Product Specification
 Wide Compatibility
 Application

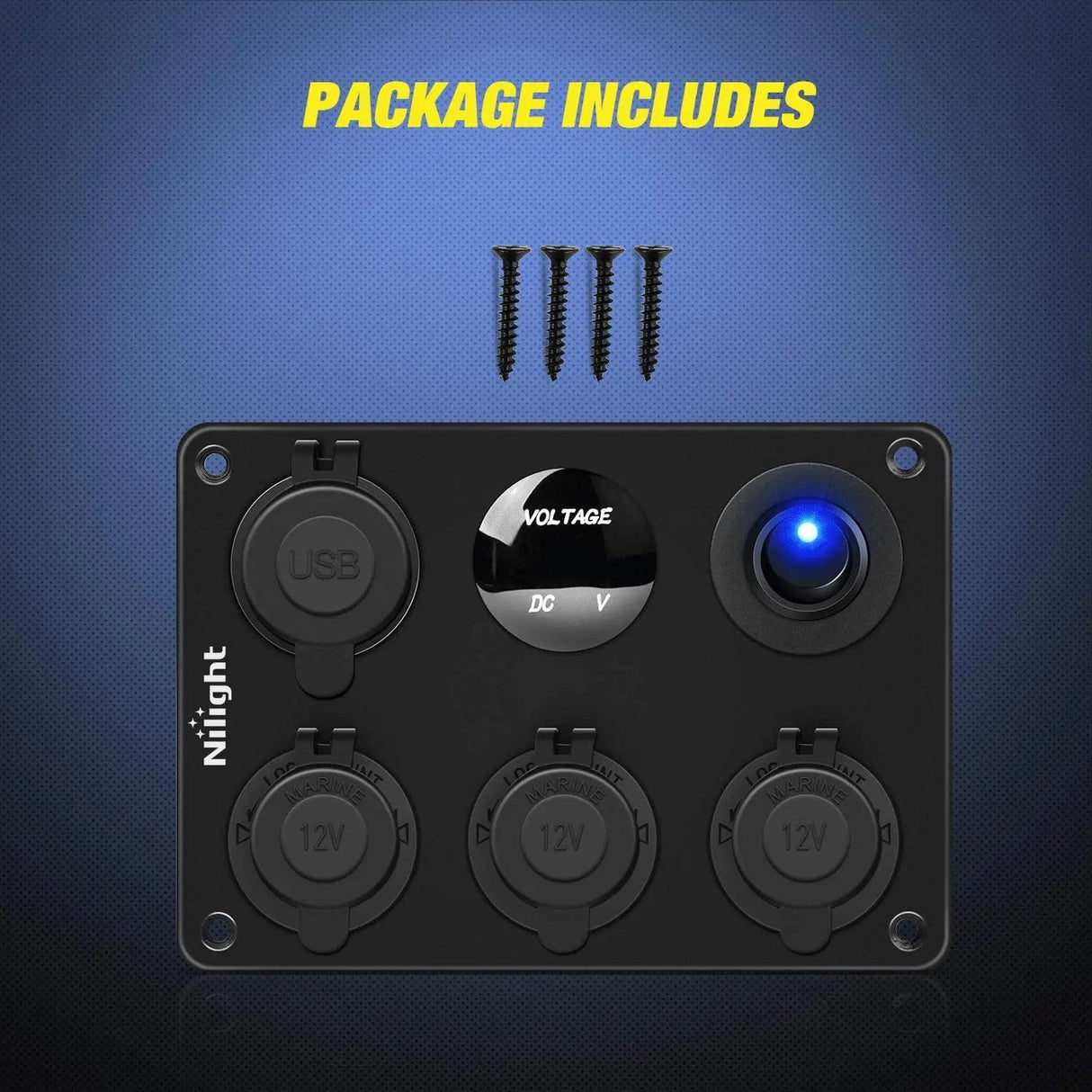

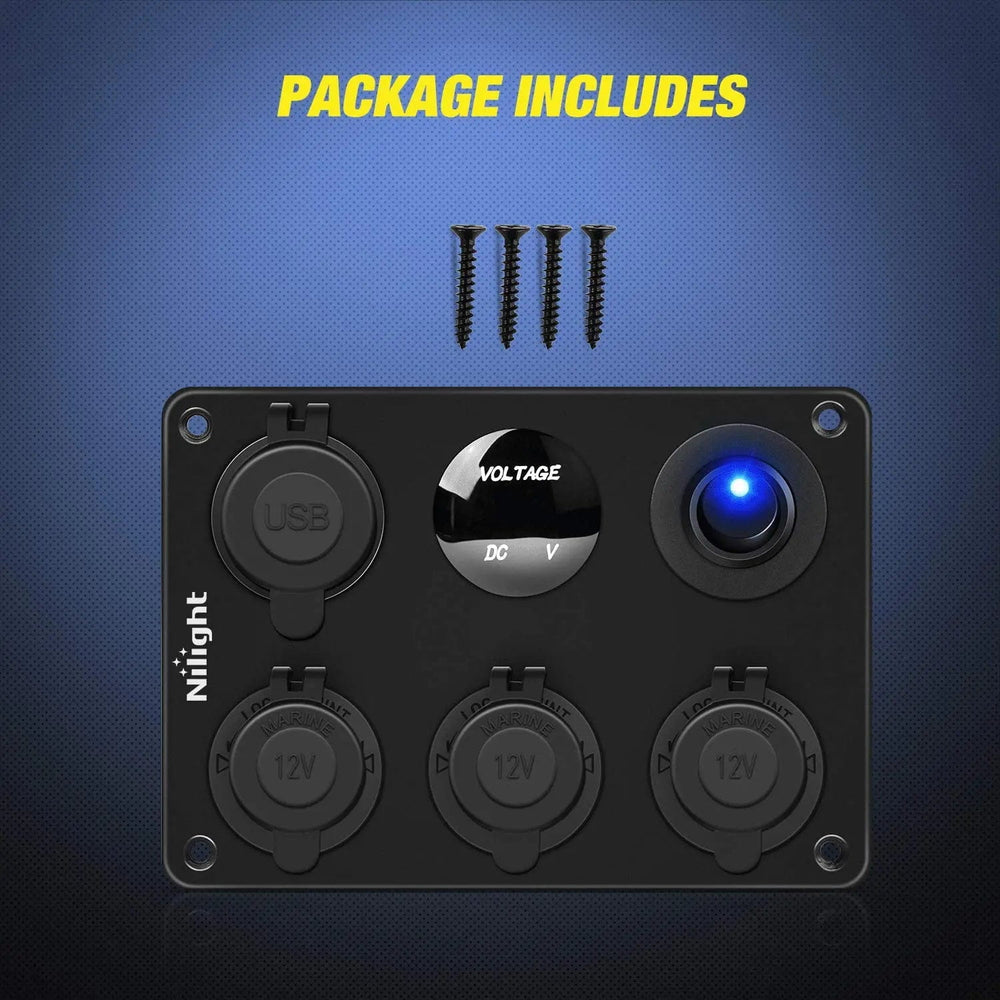

 Package Includes

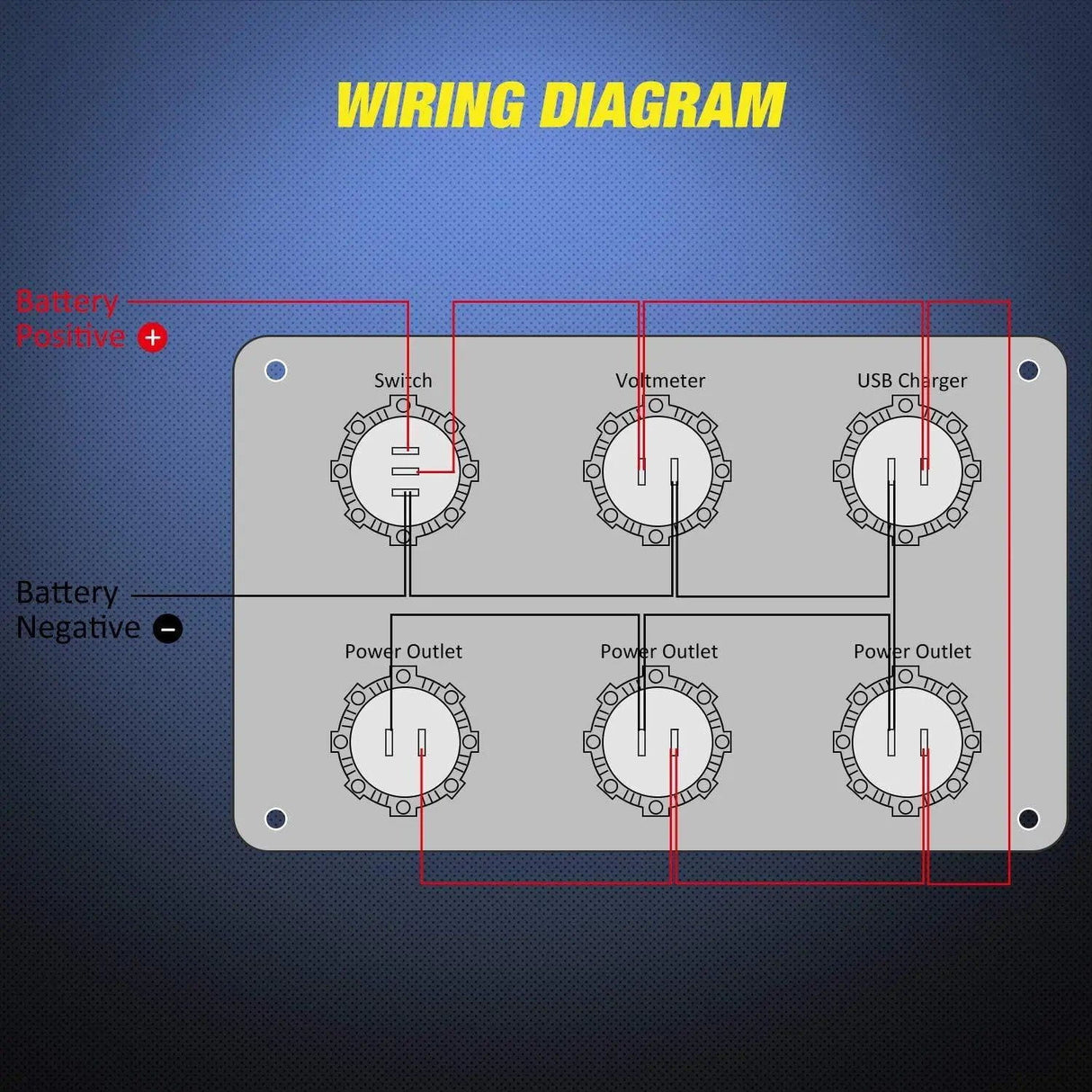

 Wiring Diagram

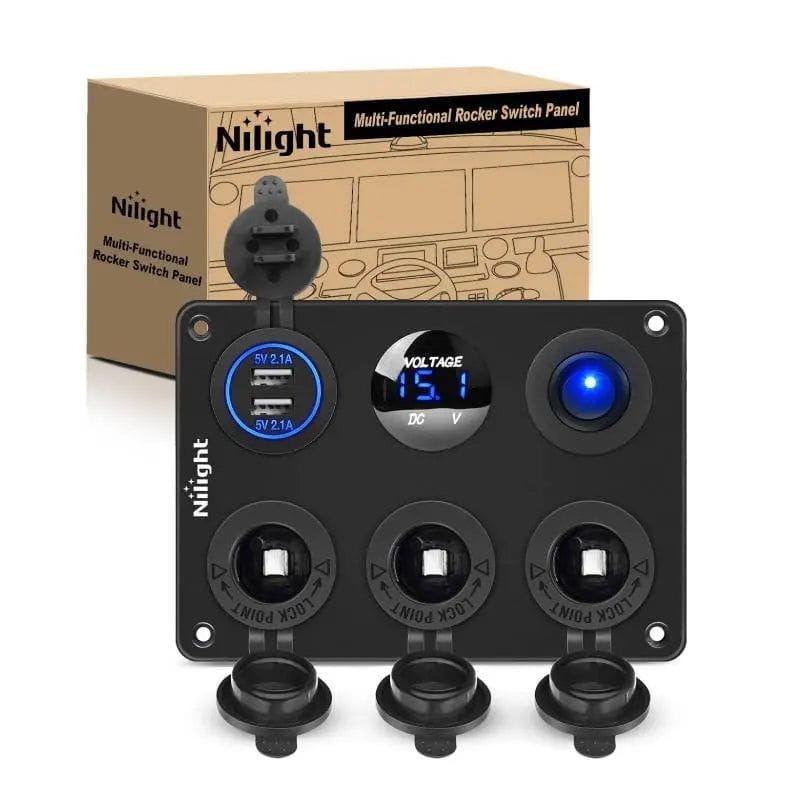

3 Cigarette Socket Switch Panel w/ Dual USB Charger LED Voltmeter

$27.99
{price}% OFF
Order in the next [hour] to get it between [date_start] and [date_end]
Special Offer

10% OFF For All Items;

13% OFF Orders Over $229;

16% OFF Orders Over $399

Check All Categories >>

  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Details

Reviews

Free Shipping

30 Days Returns

California Prop 65

Related Video


About this item

  • Multi-Functional Panel: This 12V panel is designed with 3 cigarette lighter outlets, a USB charger, an LED voltmeter, and an on/off rocker switch. You can remove or change the ports around the bezel to any position. Easy DIY any components that fit the panel. Which is convenient to install and operate on 12VDC/24VDC vehicles
  • 3 Cigarette Lighter Sockets: Provides total power up to 360W, 1 cigarette port max up to 120W, is exactly the same as in your car which can light a cigarette, The 3 Cigarette lighter sockets are enough for simultaneous use of a variety of portable appliances such as dashcam, GPS, air compressor pump, vacuum cleaner, air purifier, etc
  • On/Off Switch and LED Voltmeter: A main on&off switch for the whole device. Enable or disable the connection, can eliminate the panel power from the battery when it is off, disconnects the battery safely, and avoid battery drain off. The LED voltmeter displays when powered on, which can monitor your car battery in real-time and keep your driving safe all the time
  • Dual USB Charger Socket: This 12v USB charger is built-in dual USB charging ports, with an output of 5V/2.1A & 2.1A (total 4.2A), will detect your devices automatically and charge 2 devices simultaneously at optimal speed!
  • Package Include: Multi-Functions Panel, 4 Screws, a wiring diagram

Nilight Cigarette Socket Panel

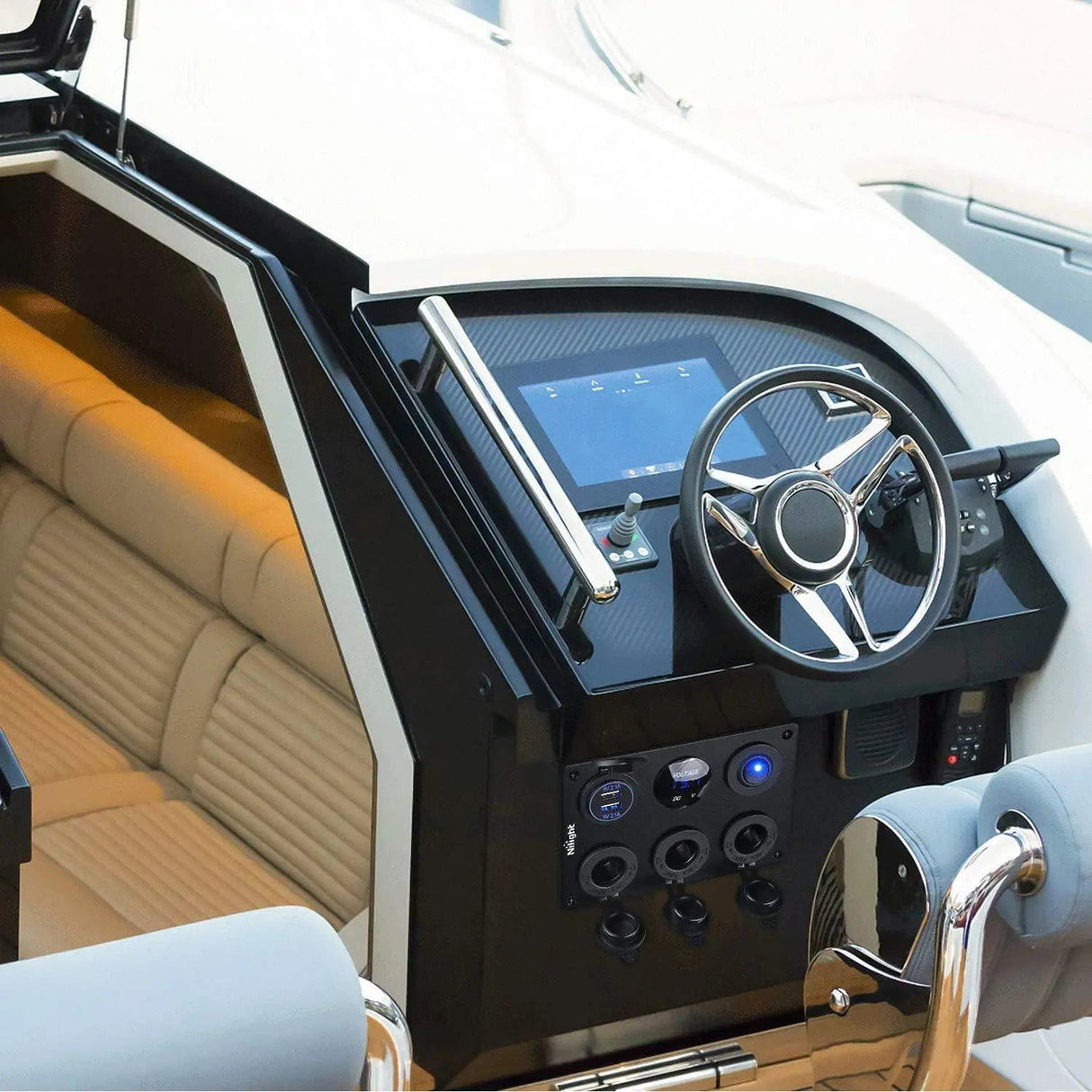

Integrated with a dual USB charger, digital Voltmeter, 3 Cigarette Socket, and power cutoff switches, this 12V/24V electrical panel can meet your various needs and is widely applicable for most 12V-24V DC cars, UTVs/ATVs, trucks, trailers, RVs, caravans, buses, marine boats, yachts, airplanes, etc.

  • Blue Backlit
  • Material: Panel: Aluminum, Switch: ABS & PC
  • Voltmeter display range: 0- 24VDC
  • Package Includes: A Cigarette Socket Panel, 4 terminals, 4 screws

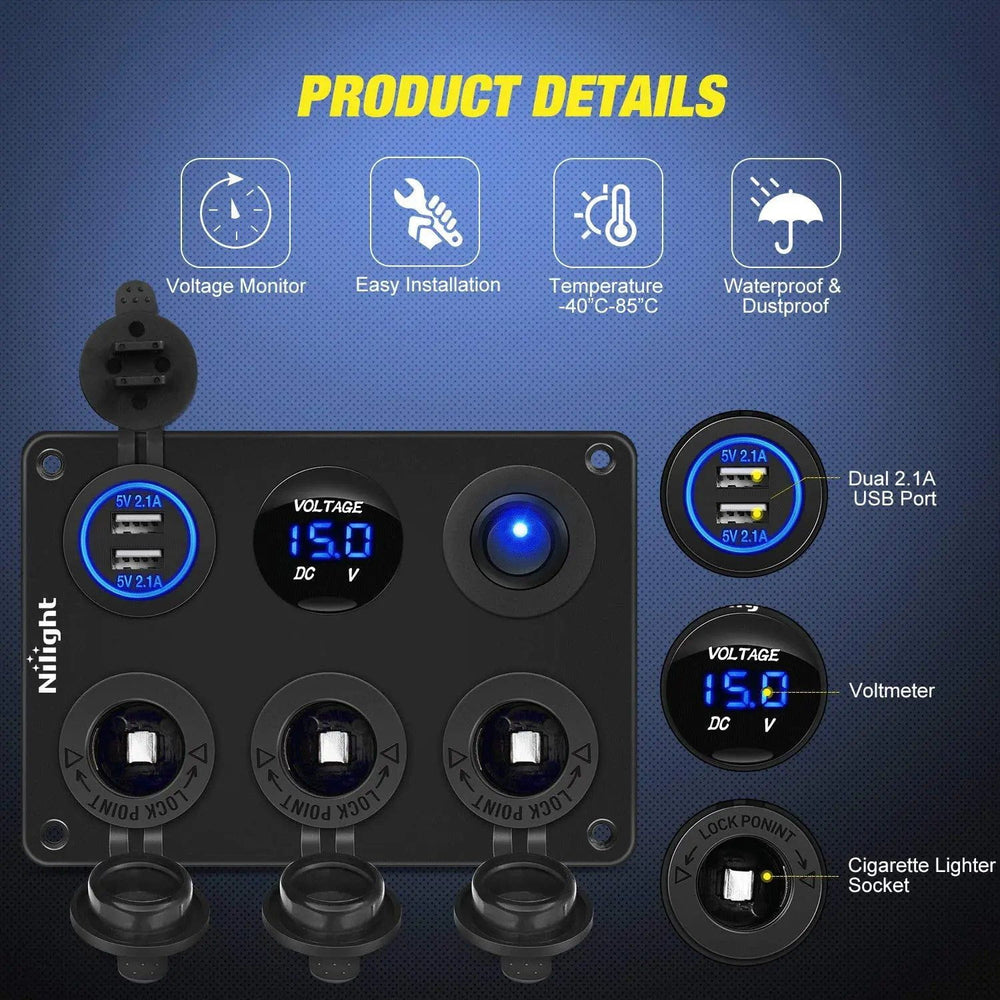

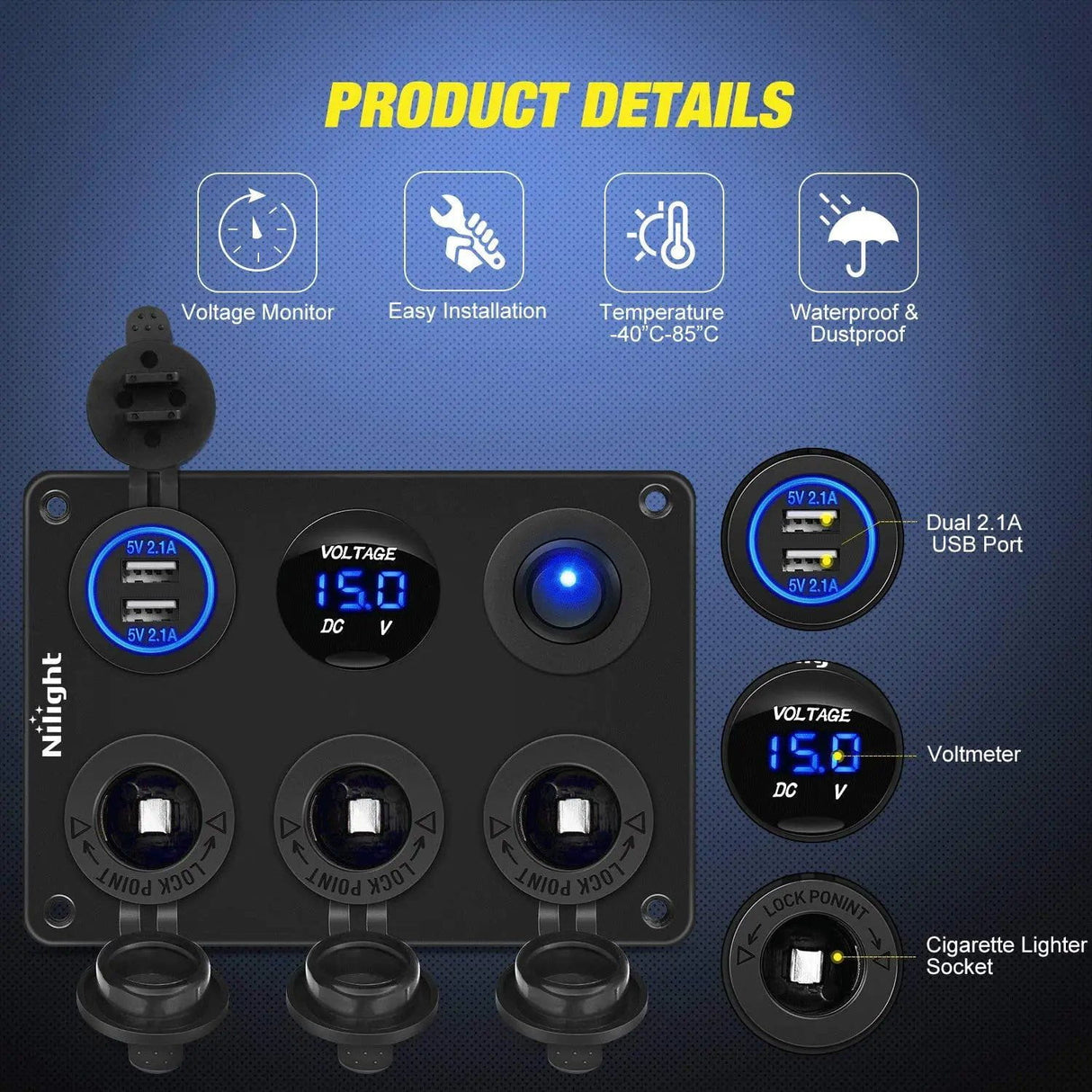

Feature

Cigarette Lighter Socket


Cigarette Lighter Socket

This is a universal 12V cigarette lighter socket, which is mainly made of durable flame-resistant hard plastic material for safe use

Dual USD Charger


Dual USD Charger

  • Dual USB charging ports with a single output of 2.1 A enable you simultaneously charges 2 devices at a high speed
  • Input voltage: 12 - 24V DC
  • Output voltage: 5V DC
  • Output current: 4.2A (2.1A & 2.1A)

Digital Voltmeter Monitor


Digital Voltmeter Monitor

  • Material: Aluminum Panel + Superior ABS & PC
  • This voltmeter helps you keep an eye on battery voltage maintenance of the battery, extends battery life to prevent an accident caused by battery problems

ON-OFF Toggle Switch


ON-OFF Toggle Switch

  • This round toggle switch is available in a variety of styles made especially for 12-volt application
  • Type: 3 Pins with LED SPST: ON-OFF
  • Working voltage: 12V DC

Cigarette Lighter Socket


Cigarette Lighter Socket

Total power up to 120W (12V DC) / 150W (24V DC). Fits perfectly with compatible devices such as dashcam, GPS, air compressor pump, vacuum cleaner, air purifier, etc. A great choice for 12-24V DC cars, SUVs, Vans, boats, motorcycles, RVs, etc.

Waterproof and Dustproof Cover


Waterproof and Dustproof Cover

The product is made of aluminum with a rubber seal-cap to keep it water-tight, best for marine but submerged in water operation is not recommended

Detachable Components


Detachable Components

The components from this panel are detachable and can be replaced with other components that fit the panel. Meet your DIY use.
